Sportpulse Mini Twin Tub Portable Washing Machine User Manual

1. Introduction

Thank you for choosing the Sportpulse Mini Twin Tub Portable Washing Machine. This compact and efficient appliance is designed for convenience, offering both washing and spin-drying functions in a single unit. It is an ideal solution for small living spaces such as apartments, dorms, RVs, and for camping. This manual provides essential information for safe and effective operation, maintenance, and troubleshooting.

2. Safety Instructions

• Read all instructions before using the appliance.
• Ensure the power supply matches the voltage specified on the appliance.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Keep children and pets away from the appliance during operation.
• Always unplug the appliance when not in use or before cleaning.
• Place the machine on a stable, level surface to prevent tipping.
• Do not overload the washing or spinning tubs.
• Ensure the drain hose is properly positioned to prevent water leakage.
• Do not open the spin-dry lid while the spin cycle is active.

3. Package Contents

Verify that all items are present in the package:

• 1 x Twin Tub Washing Machine
• 1 x Instruction Manual
• 1 x Inlet Hose
• 1 x Drain Hose
• 1 x Spin Cap/Partition

4. Product Features

• Twin Tub Design: Combines washing and spinning functions in one compact unit.
• Capacity: 11 lbs washing capacity and 7 lbs spin-drying capacity, suitable for small loads.
• Timer Control: Adjustable wash timer (0-15 minutes) and spin timer (0-5 minutes) for customized cycles.
• Compact & Lightweight: Dimensions of 21.7" x 13" x 25" make it ideal for limited spaces and easy portability.
• Easy Operation: Simple knob controls for wash timer, wash selector (Normal/Gentle/Drain), and spin timer.
• Transparent Top Cover: Allows monitoring of the washing process.
• Stainless Steel Spin Tub: Durable and rust-resistant material for efficient water extraction.
• Filter Net: Located on the side of the washing barrel for lint collection and easy cleaning.

5. Setup

5.1 Placement

Place the washing machine on a firm, level surface. Ensure it is close to a water source (faucet) and a drain point (sink, bathtub, or floor drain).

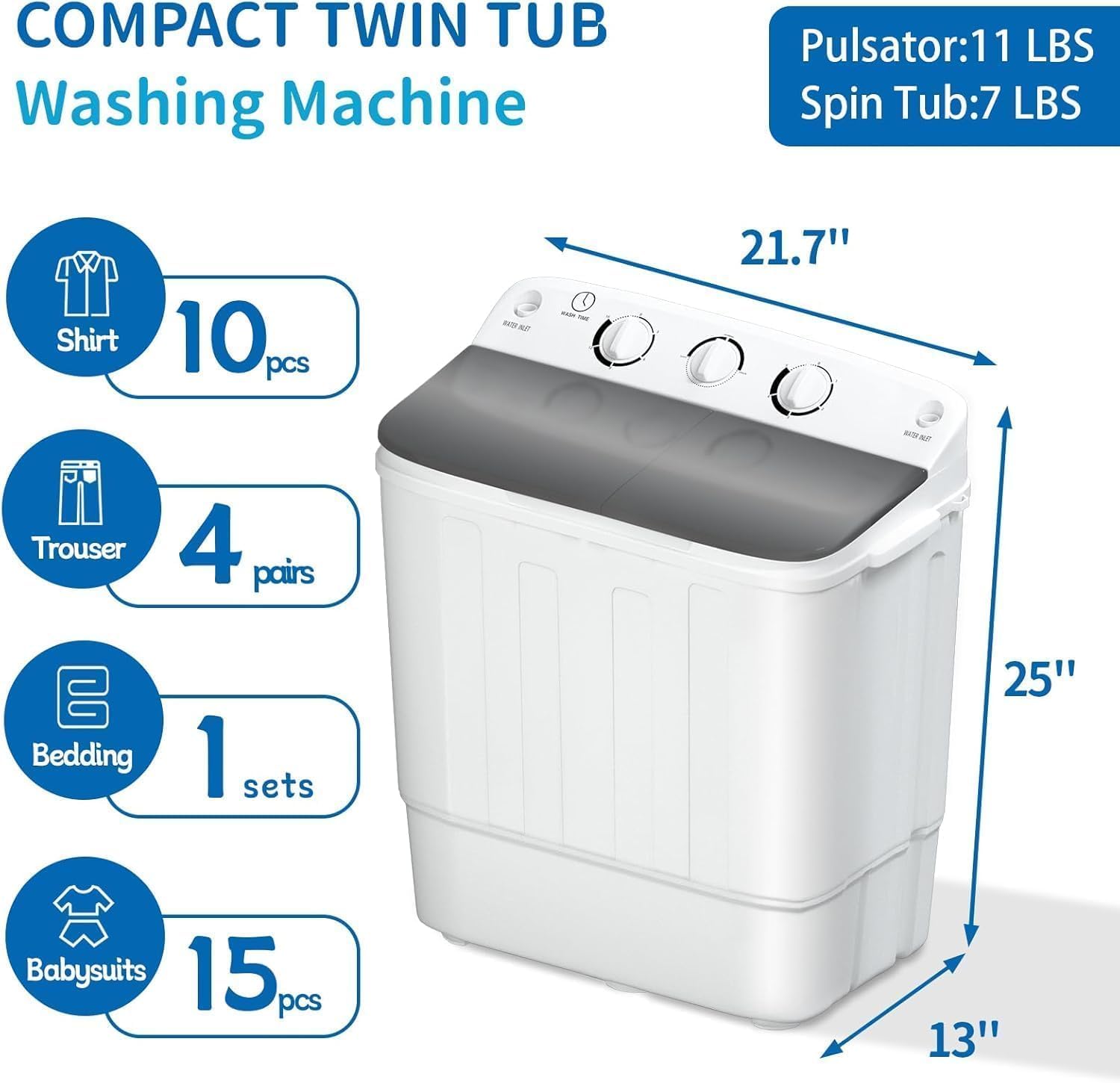

Image: The Sportpulse Mini Twin Tub Washing Machine, showing its compact dimensions of 21.7 inches width, 13 inches depth, and 25 inches height.

Image: The portable washing machine is shown in different compact environments, including an RV, a bathroom, an apartment living room, and a dorm room, highlighting its versatility for small spaces.

5.2 Connecting the Water Inlet Hose

Connect one end of the inlet hose to the water inlet port on the washing machine (usually located on the top left side). Connect the other end to a suitable faucet. Ensure a tight connection to prevent leaks.

Image: Close-up showing the two water inlet holes on the top of the machine, the inlet pipe collet, and the drain hose hung up on the side, illustrating how to connect water and manage drainage.

5.3 Connecting the Drain Hose

Attach the drain hose to the drain outlet at the bottom of the machine. Position the other end of the drain hose into a sink, bathtub, or floor drain. Ensure the hose is not kinked or blocked to allow for proper drainage.

Image: The portable washing machine is shown with its drain hose extended, ready for water discharge into a sink or drain.

6. Operating Instructions

6.1 Washing Clothes

1. Load Clothes: Open the lid of the washing tub and place your clothes inside. Do not overload the tub; ensure clothes can move freely.
2. Add Water: Fill the washing tub with water to the desired level using the inlet hose or manually.
3. Add Detergent: Add the appropriate amount of laundry detergent.
4. Select Wash Mode: Turn the 'Wash Selector' knob to either 'Normal' for regular clothes or 'Gentle' for delicate items.
5. Set Wash Timer: Turn the 'Wash Timer' knob to set the desired washing time (up to 15 minutes). The machine will start washing automatically.

Image: Close-up of the control panel showing the Wash Timer, Wash Selector (Gentle/Normal/Drain), and Spin Timer knobs, indicating easy operation.

Image: Illustrates the three main controls: 0-15 minutes Wash Timer, 3 Wash Mode Select (Gentle/Normal/Drain), and 0-5 minutes Spin Timer, with clear labels for each function.

6.2 Draining Water

1. Once the wash cycle is complete, turn the 'Wash Selector' knob to 'Drain'. The water will be pumped out through the drain hose.

6.3 Spin-Drying Clothes

1. Transfer Clothes: Move the washed clothes from the washing tub to the spin-drying tub. Arrange them evenly to maintain balance.
2. Insert Spin Cap: Place the provided spin cap/partition on top of the clothes in the spin tub to prevent them from flying out during spinning.
3. Set Spin Timer: Close the spin-dry lid and turn the 'Spin Timer' knob to set the desired spin time (up to 5 minutes). The machine will begin spinning.

7. Maintenance

7.1 Cleaning the Filter Net

Regularly clean the filter net located on the side of the washing barrel to remove lint and debris. This ensures efficient operation and prevents blockages.

7.2 General Cleaning

Wipe down the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the machine is dry before storing.

8. Troubleshooting

• Machine not starting: Check if the power cord is securely plugged in and if the timer knobs are set correctly.
• Water not draining: Ensure the drain hose is not kinked, blocked, or positioned too high.
• Excessive vibration during spin: Redistribute clothes evenly in the spin tub and ensure the machine is on a level surface.
• Poor washing performance: Do not overload the washing tub. Use appropriate water level and detergent amount.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact Sportpules customer service directly. Keep your purchase receipt for warranty claims.
