1. Introduction
Thank you for purchasing the U`King 70W14 LED Waterproof Stage Light. This manual provides essential information for the safe and efficient operation of your device. Please read these instructions thoroughly before use and retain them for future reference.
Image 1.1: The U`King 70W14 LED Waterproof Stage Light displaying a range of vibrant colors, including red, green, blue, white, and mixed hues, highlighting its versatile lighting capabilities.
2. Safety Information
- Ensure the power supply voltage matches the product's requirements.
- Do not open the casing; there are no user-serviceable parts inside. Refer all servicing to qualified personnel.
- Keep the device away from direct heat sources and ensure proper ventilation.
- This product has an IP67 waterproof rating, making it suitable for outdoor use and protection against dust and temporary immersion in water. However, avoid prolonged submersion.
- Always disconnect power before cleaning or maintenance.
- Avoid direct eye exposure to the light source.
3. Product Features
- IP67 Waterproof & Durable Construction: Constructed from robust aluminum and iron alloy, offering excellent waterproof performance and extended lifespan, ideal for various outdoor events, rainy day parties, pool gatherings, and patio lighting.
- Rich Colors & Dynamic Lighting Effects: Equipped with 14 RGBW 4-in-1 HD light beads and HD optical lenses for significantly enhanced brightness. Capable of producing red, green, blue, and white colors, along with color changes, strobe effects, and gradient transitions for colorful and dynamic lighting.
- Multiple Control Modes: Supports DMX512, auto-run, sound-activated, and master/slave modes. Features professional 4 or 8 DMX channels and a smooth 0-100% electronic dimmer.
- Versatile Application: Easy to use and adjust with a flexible dual bracket and knob. Can be easily mounted on floors, trusses, or ceilings, making it perfect for outdoor parties and stage performances.
Image 3.1: The U`King 70W14 LED Stage Light showcasing its ability to project individual colors like red, green, blue, and white, as well as mixed color combinations, demonstrating its full RGBW spectrum.

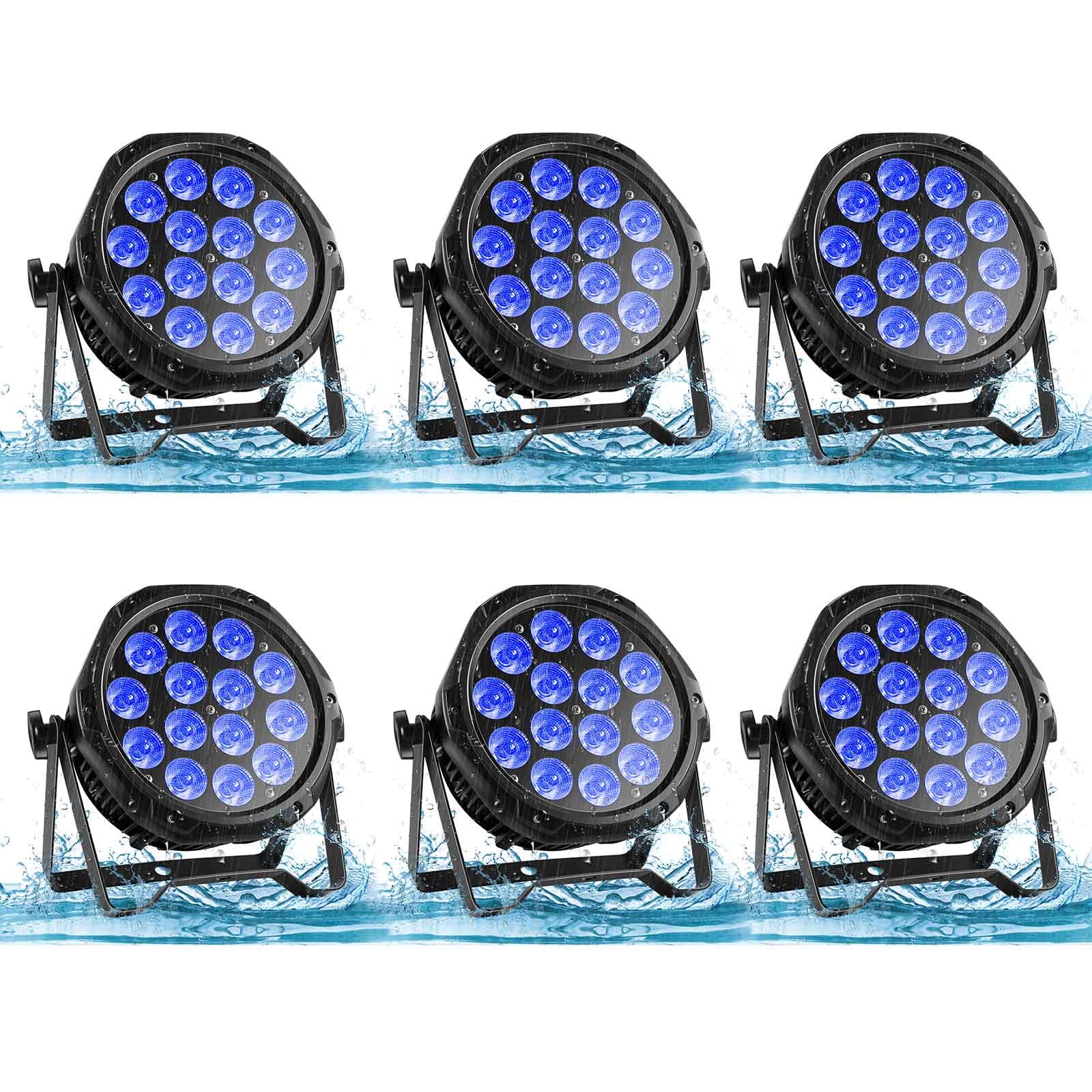

Image 3.2: The U`King 70W14 LED Stage Light highlighting its weather resistance, indicated by an IP65 rating, suitable for outdoor use. The image shows the light in a water splash scenario.
4. Package Contents
Please check the package contents upon receipt:
- U`King 70W14 LED Waterproof Stage Light Unit
- Power Cord
- Mounting Bracket (pre-attached)
- Instruction Manual
5. Setup
5.1 Mounting
The stage light features a flexible dual bracket for various mounting options:
- Floor Stand: Position the light on a flat, stable surface.
- Truss Mounting: Secure the bracket to a lighting truss using appropriate clamps (not included).
- Ceiling Mounting: Attach the bracket to a ceiling structure using suitable hardware (not included).
The bracket allows for 360-degree angle adjustment to direct the light as needed.
Image 5.1: Detailed view of the U`King 70W14 LED Stage Light, showing its dimensions (23.5cm/9.3in width, 24.2cm/9.5in height, 9.3cm/3.7in depth), its 360-degree adjustable bracket, and an efficient cooling structure on the rear.
Image 5.2: Illustration of the stage light's adjustable angle, demonstrating its ability to pivot up to 180 degrees for flexible light positioning.
5.2 Power Connection
Connect the provided power cord to the 'POWER IN' port on the back of the unit and then to a suitable power outlet. The unit also features a 'POWER OUT' port for daisy-chaining multiple lights.

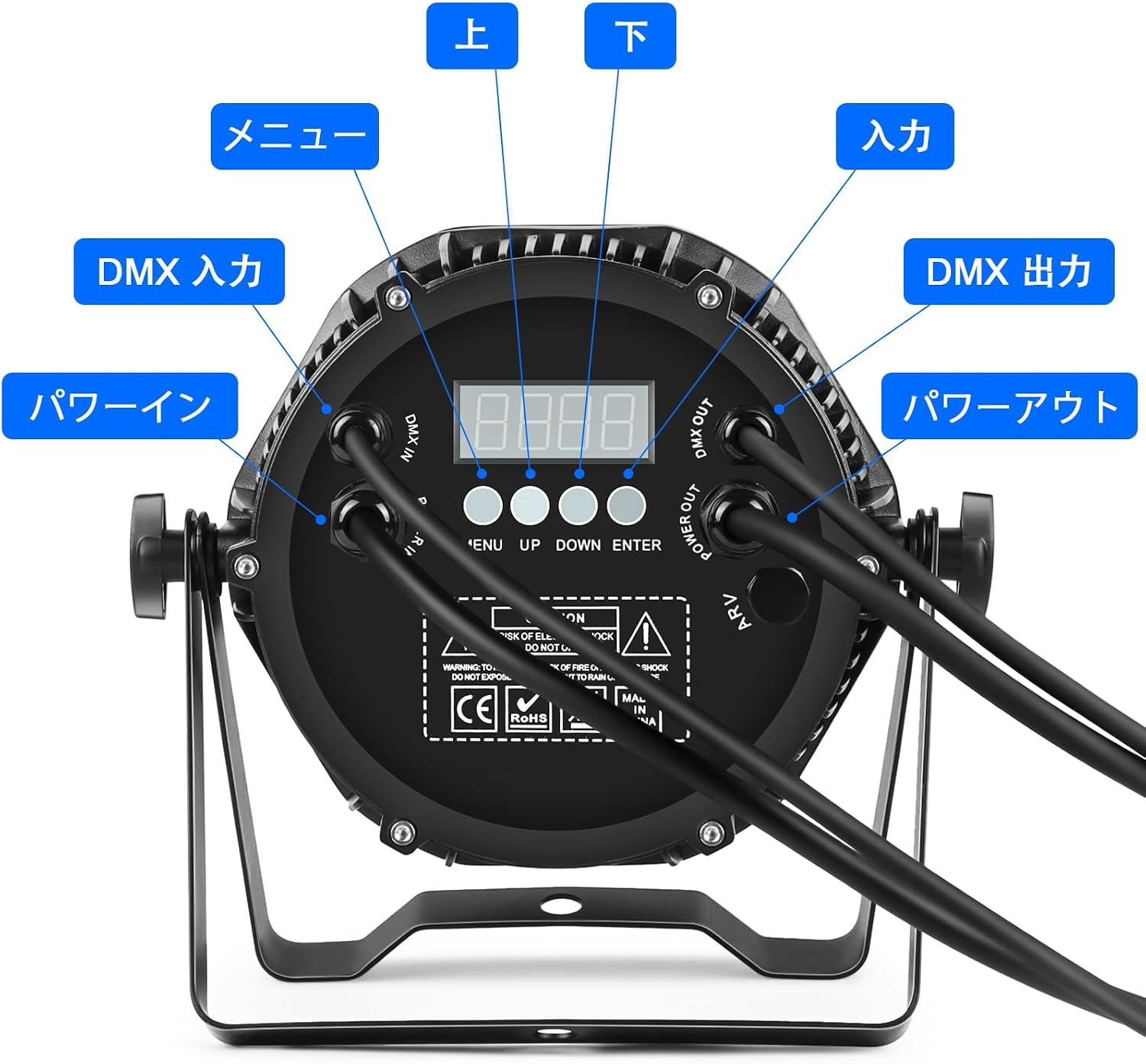

Image 5.3: The rear panel of the stage light, showing labeled ports for DMX IN, DMX OUT, POWER IN, and POWER OUT, along with control buttons (MENU, UP, DOWN, ENTER) and the digital display.
5.3 DMX Connection (Optional)
For DMX control, connect a DMX controller to the 'DMX IN' port. Use the 'DMX OUT' port to connect to other DMX-compatible lighting fixtures in a daisy-chain configuration.
Image 5.4: An illustration showing the U`King LED Stage Light being controlled by a DMX 512 controller, demonstrating its compatibility with professional lighting setups.
6. Operating Modes
The U`King 70W14 LED Stage Light offers multiple operating modes:
- DMX512 Mode: Allows professional control over color, brightness, and effects using a DMX controller. Supports 4 or 8 DMX channels. Refer to the DMX channel chart in the appendix for detailed information.
- Auto Mode: The light runs through pre-programmed sequences and color changes automatically.
- Sound Activated Mode: The light reacts to music and sound, changing patterns and colors in sync with the beat.
- Master/Slave Mode: Connect multiple units via DMX cables. Set one unit as 'Master' and others as 'Slave' to synchronize their operation.
Use the MENU, UP, DOWN, and ENTER buttons on the rear panel to navigate through the modes and settings displayed on the digital screen.
7. Maintenance
- Cleaning: Regularly clean the lens and casing with a soft, dry cloth to maintain optimal light output and appearance. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check power cables and DMX connections for any signs of wear or damage. Ensure all mounting hardware is secure.
- Storage: When not in use for extended periods, store the light in a cool, dry place, protected from dust and extreme temperatures.
Image 7.1: A close-up view of the stage light's efficient cooling structure, showing heat dissipation fins designed to maintain optimal operating temperature and extend product lifespan.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power / Light does not turn on | No power supply; Faulty cable; Unit malfunction | Check power connection and outlet; Replace power cable; Contact support if issue persists. |
| No DMX control | Incorrect DMX address; Faulty DMX cable; DMX controller issue | Verify DMX address setting; Check DMX cable connections; Test with another DMX controller. |
| Light flickers or behaves erratically | Unstable power; DMX signal interference; Internal issue | Ensure stable power supply; Check DMX connections for interference; Contact support. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | ZQ01072 |
| Brand | U`King |
| Color | Black |
| Shape | Oval |
| Material | Aluminum |
| Light Source Type | LED |
| Power Source | Corded Electric |
| Color Rendering Index (CRI) | 95.0 |
| Number of Light Sources | 14 |
| Included Components | Stage light body |
| Dimensions (L x W x H) | 24.2 x 9.3 x 23.5 cm |
| Waterproof Rating | IP67 |
10. Warranty and Support
U`King is committed to ensuring customer satisfaction and product quality. We offer:
- 30-Day Free Return/Exchange: If you are not satisfied with your purchase, you may return or exchange the product within 30 days.
- Professional After-Sales Support: Our dedicated after-sales service team is available to resolve any issues within 24 hours. Please contact us through your purchase platform for assistance.
Image 10.1: The U`King 70W14 LED Stage Light shown in diverse application scenarios, including a concert, a bar, an aquarium, and a wedding, demonstrating its versatility for different events and environments.
