1. Introduction
This instruction manual provides essential information for the safe assembly, operation, and maintenance of your ADORNEVE Full Size Loft Bed. Please read this manual thoroughly before beginning assembly and retain it for future reference. This loft bed is designed to maximize space efficiency, offering integrated storage, a study desk, and modern amenities.
Image 1.1: Overview of the ADORNEVE Full Size Loft Bed, showcasing the integrated desk, storage drawers, and LED lighting.
2. Safety Information
- Guardrails: The loft bed is equipped with a 13.1-inch full-length guardrail to prevent falls. Ensure all guardrails are securely installed before use.
- Anti-Toppling Device: An anti-toppling device is included to secure the bed to a wall, enhancing stability. Follow the assembly instructions to properly install this device.
- Weight Capacity: The upper bunk is rigorously tested to support up to 900 lbs. Do not exceed this weight limit.
- Mattress Recommendation: For optimal safety and comfort, use a mattress with a thickness of 4-6 inches on the upper bunk.
- Ladder Safety: The ladder features thick, wide, and solid treads for secure access. Always use the ladder when entering or exiting the bed.
- General Safety: Regularly inspect all bolts and connections to ensure they remain tight. Do not allow children to play unsupervised on or around the loft bed.
Image 2.1: Detail of the 13.1-inch safety guardrail and the anti-tip straps designed to secure the loft bed to a wall.
3. Components List
The ADORNEVE Full Size Loft Bed package includes the following main components. Refer to the detailed parts list in your assembly manual for specific quantities and hardware.
- Metal Loft Bed Frame (Full Size)
- Safety Guardrails
- Integrated Ladder
- Study Desk (55.4" x 14.2")
- Built-in Charging Station (2 AC Outlets, 1 USB Port, 1 Type-C Port)
- 8 Fabric Storage Drawers
- 2 Open Storage Shelves
- Full-length Clothing Rack
- Customizable Pegboard with 7 Hooks
- RGB LED Light Strip
- Assembly Hardware and Tools
- Installation Manual

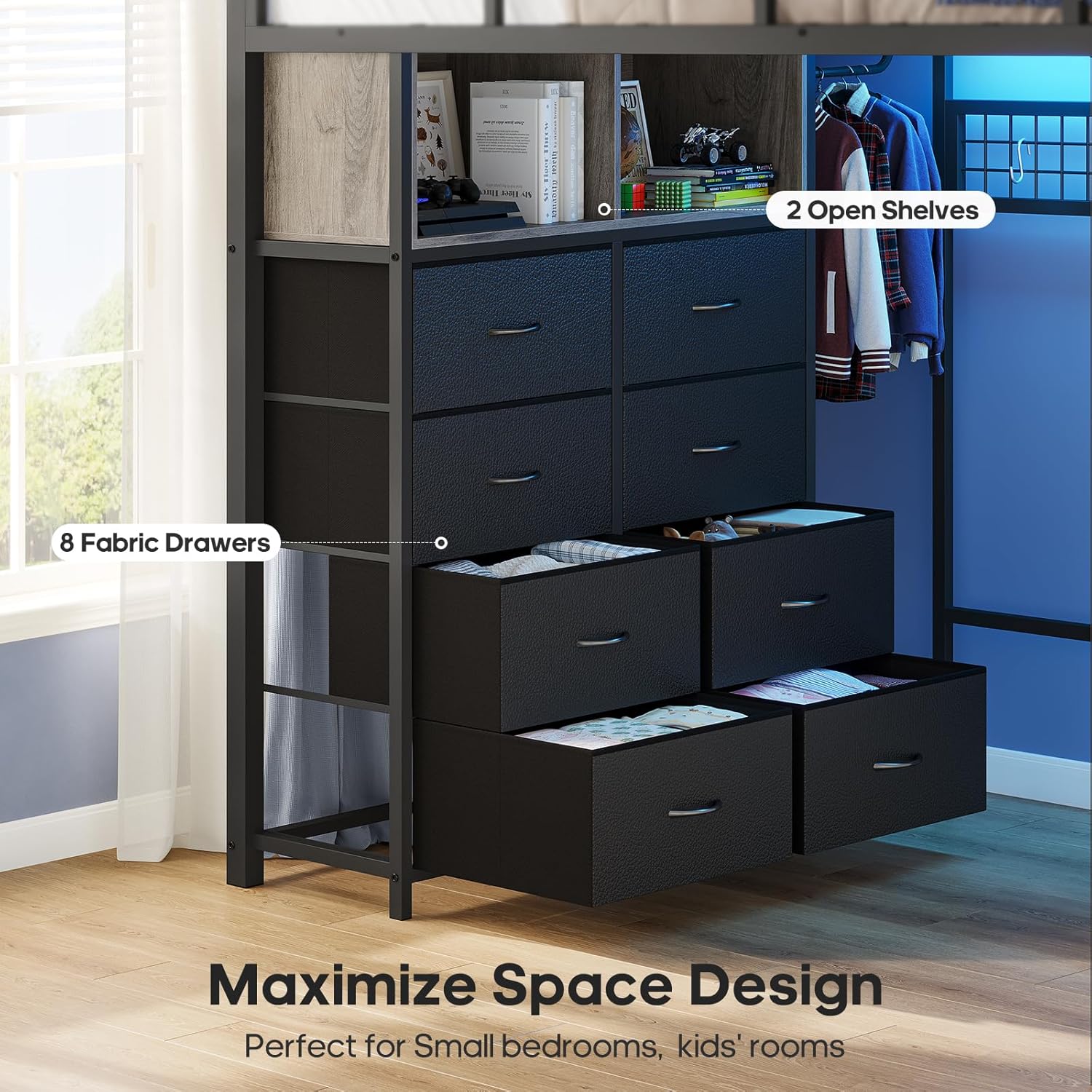

Image 3.1: Close-up view of the eight fabric drawers and two open shelves, illustrating the integrated storage solutions.
4. Setup and Assembly Instructions
The ADORNEVE Full Size Loft Bed is designed for straightforward assembly. It comes packaged in one box with numbered parts and detailed instructions. Please follow the steps outlined in the included installation manual carefully.
- Unpack Components: Carefully unpack all parts and hardware. Verify that all components listed in the manual are present and undamaged.
- Prepare Area: Choose a clear, spacious area for assembly. It is recommended to assemble the bed with at least two adults.
- Assemble Frame: Begin by assembling the main metal frame components according to the numbered steps in the manual. Ensure all bolts are finger-tightened initially.
- Install Storage and Desk: Attach the storage unit with drawers and shelves, followed by the study desk.
- Secure Safety Features: Install the guardrails, ladder, and the anti-toppling device as instructed.
- Final Tightening: Once all components are in place, systematically tighten all bolts and screws using the provided tools. Do not overtighten.
- Install LED Lights and Charging Hub: Follow the specific instructions for attaching the RGB LED light strip and integrating the power outlet charging hub into the desk.
For detailed visual guidance, refer to the diagrams and step-by-step instructions provided in your physical assembly manual.
Image 4.1: Dimensional diagram of the loft bed, providing measurements for planning and assembly.
5. Operating Instructions
5.1. RGB LED Ambiance Lighting
The integrated RGB LED lights offer customizable lighting options.
- Control: The LED lights can be controlled via a dedicated mobile application or the included remote control.
- Features: Access over 60,000 color options, music sync mode, microphone mode, timing mode, brightness adjustment, and custom style settings through the control interface.
- Power: Ensure the LED light strip is properly connected to a power source as per the assembly instructions.
Image 5.1: Illustration of the RGB LED lighting system, highlighting control methods and various lighting modes.
5.2. Built-in Charging Hub
The desk features an integrated power strip for convenient device charging.
- Outlets: The hub includes two 125V/12A AC outlets.
- USB Ports: It provides one 5V/2A USB-A port and one 5V/3A Type-C port for charging compatible devices.
- Usage: Plug the bed's main power cord into a standard wall outlet to activate the charging hub. Use appropriate cables for your devices.
Image 5.2: Detailed view of the built-in charging station, showing the AC outlets, USB-A, and USB-C ports for electronic devices.
6. Maintenance
- Cleaning: Wipe metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish. Fabric drawers can be spot cleaned as needed.
- Hardware Check: Periodically check all bolts, screws, and connections to ensure they are tight. Retighten if necessary to maintain structural integrity.
- Electrical Components: Ensure the charging hub and LED light connections are secure and free from damage. Do not attempt to repair electrical components yourself; contact qualified personnel if issues arise.
- General Inspection: Regularly inspect the bed for any signs of wear, damage, or instability. Address any concerns promptly.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose hardware; uneven floor; anti-toppling device not installed. | Check and tighten all bolts and screws. Ensure the bed is on a level surface. Install the anti-toppling device securely to a wall. |
| LED lights not working. | Power connection loose; remote/app issue; light strip damage. | Verify power connection to the LED strip. Check remote control batteries or app connectivity. Inspect the light strip for visible damage. |
| Charging hub not providing power. | Main power cord unplugged; device not compatible; hub malfunction. | Ensure the bed's main power cord is securely plugged into a working wall outlet. Test with different devices and cables. If issues persist, contact support. |
| Drawers do not slide smoothly. | Overloaded drawers; obstruction; fabric creased. | Reduce contents in the drawer. Check for any items obstructing the drawer path. Ensure fabric is not creased or caught. |
8. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 78.3"L x 56.3"W x 72"H |
| Size | Full |
| Color | Grey |
| Material | Heavy-coated steel tube frame, industrial-grade steel slats, fabric drawers |
| Weight Capacity (Upper Bunk) | 900 lbs |
| Recommended Mattress Thickness | 4-6 inches (no box spring required) |
| Charging Hub | 2 AC Outlets (125V/12A), 1 USB Port (5V/2A), 1 Type-C Port (5V/3A) |
| Storage | 8 fabric drawers, 2 open shelves, clothing rack, pegboard with 7 hooks |
Image 8.1: View of the integrated clothing rack and the customizable decorative mesh panel with hooks.
9. Warranty and Support
ADORNEVE products are manufactured with quality and customer satisfaction in mind. For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact ADORNEVE customer service through the retailer where the product was purchased.
Please retain your proof of purchase for any warranty claims.
