Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your YODOLLA Ergonomic Reclining Office Chair. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product. Keep this manual for future reference.

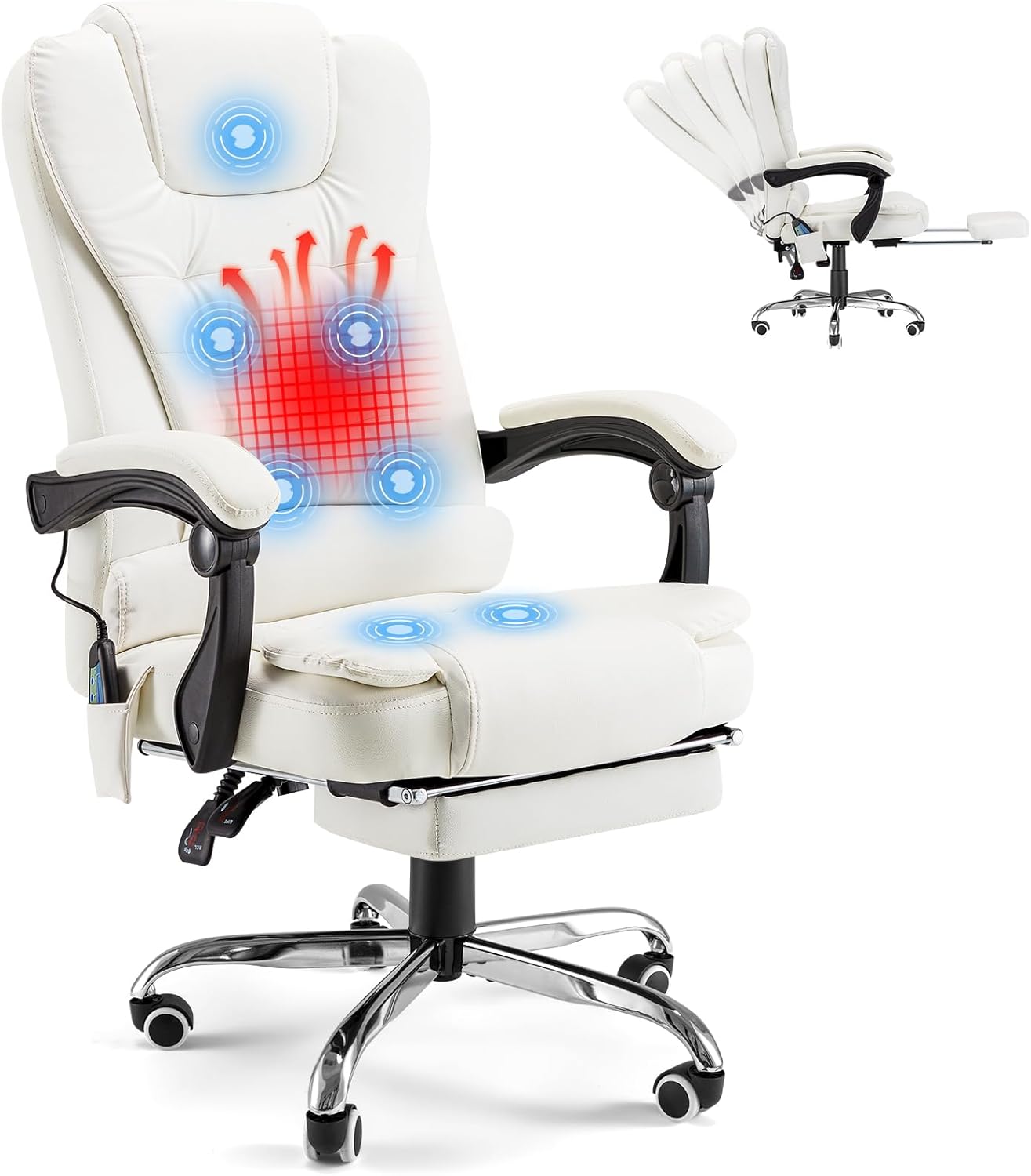

Image: The YODOLLA Ergonomic Reclining Office Chair in Cream White, showcasing its massage points and reclining feature.
Safety Information
- Ensure all parts are present and undamaged before assembly.
- Do not stand on the chair.
- Do not use the chair if any parts are missing or damaged.
- Keep children away from moving parts during adjustment.
- Maximum weight capacity: 350 lbs.
Package Contents
Before beginning assembly, verify that all components listed below are included in your package:
- Backrest
- Seat Cushion with Armrests
- Chair Base (5-star)
- Casters (5 pieces)
- Gas Lift Cylinder
- Gas Lift Cover
- Mechanism Plate
- Footrest Assembly
- Hardware Pack (screws, washers, Allen wrench)
- Massage Remote Control
- Power Adapter
Assembly Instructions
Follow these steps carefully to assemble your YODOLLA office chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.
- Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the chair base. Push firmly until they click into place.
- Install Gas Lift: Place the gas lift cylinder into the center hole of the chair base. Cover it with the gas lift cover.
- Attach Mechanism Plate: Secure the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
- Connect Seat to Gas Lift: Carefully place the assembled seat cushion onto the gas lift cylinder, ensuring it is centered and stable.
- Attach Backrest: Align the backrest with the mounting brackets on the seat cushion and secure it using the remaining screws. Tighten all screws evenly.
- Install Footrest: Slide the retractable footrest into its designated slots beneath the seat.
- Connect Massage Unit: Plug the massage remote control into the chair's massage unit port, typically located on the side or underside of the seat. Connect the power adapter to the remote and a power outlet.
Video: A demonstration of the assembly process for the YODOLLA office chair, showing how components fit together and the ease of setup.
Image: Various components of the YODOLLA office chair, including the base, casters, and seat, laid out before assembly.
Operating Instructions
1. Massage and Heat Function
Your YODOLLA office chair features 7 vibration massage points and a heat function for enhanced comfort. Use the wired remote control to operate these features.
- Power Button: Press to turn the massage and heat functions on/off.
- Heat Button: Activates or deactivates the heating function. Note: The heat function may require the massage function to be active.
- Intensity: Adjusts the vibration intensity through multiple levels.
- Mode: Selects from 5 different vibration massage modes.
- Zone Selection: Individual buttons allow you to target specific massage zones (neck, back, lumbar, legs).
Image: Close-up of the wired remote control for the chair's massage and heat functions, showing buttons for power, heat, intensity, mode, and zone selection.

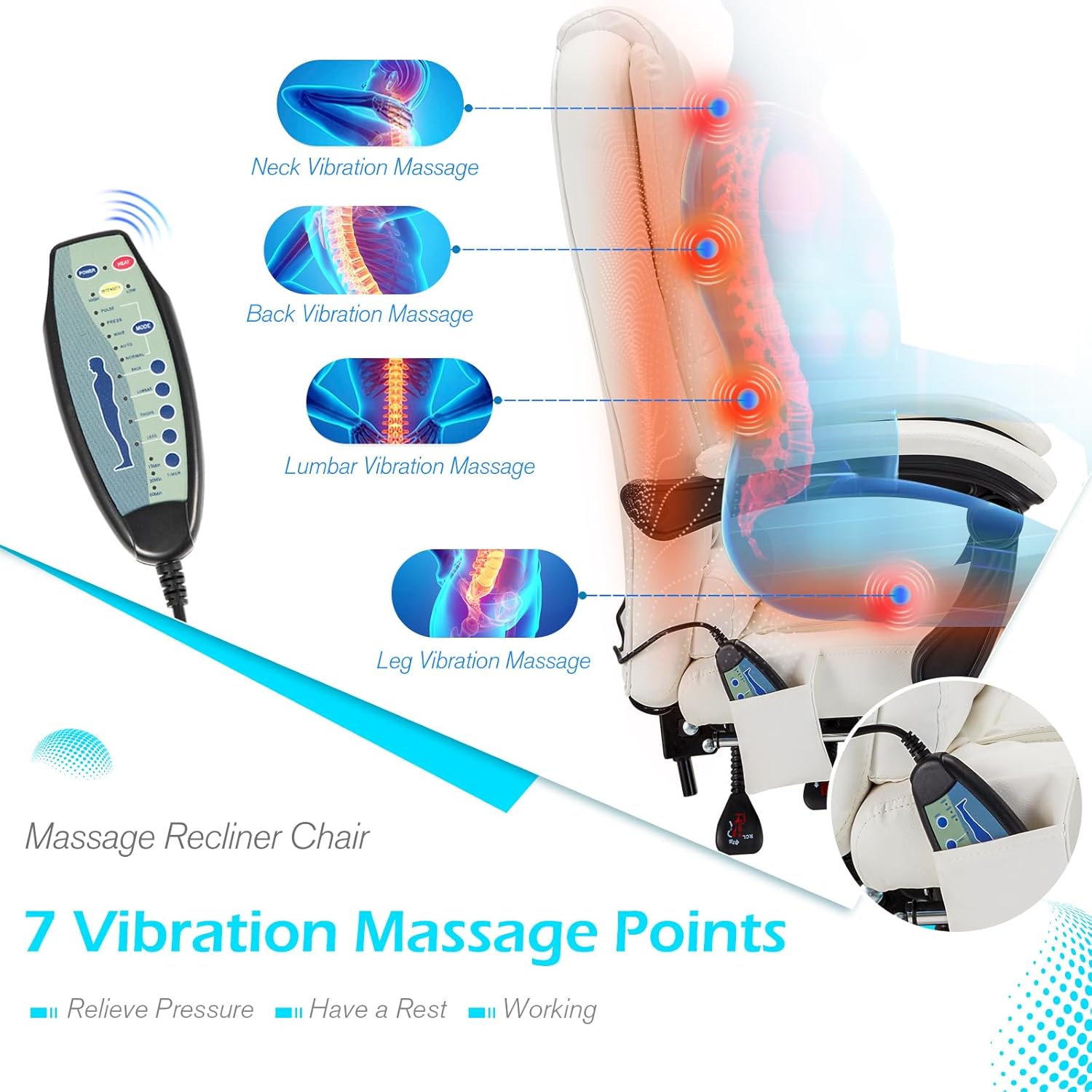

Image: The YODOLLA office chair with visual indicators highlighting the 7 massage points and heat zones in the backrest and seat.
2. Reclining Function
The backrest can be adjusted from 90° (upright) to 135° (reclined) to suit various activities like working, reading, gaming, or resting.
- Locate the lever on the right side of the chair, beneath the seat.
- Pull the lever upwards to unlock the backrest.
- Lean back to your desired angle, then push the lever downwards to lock the backrest in position.

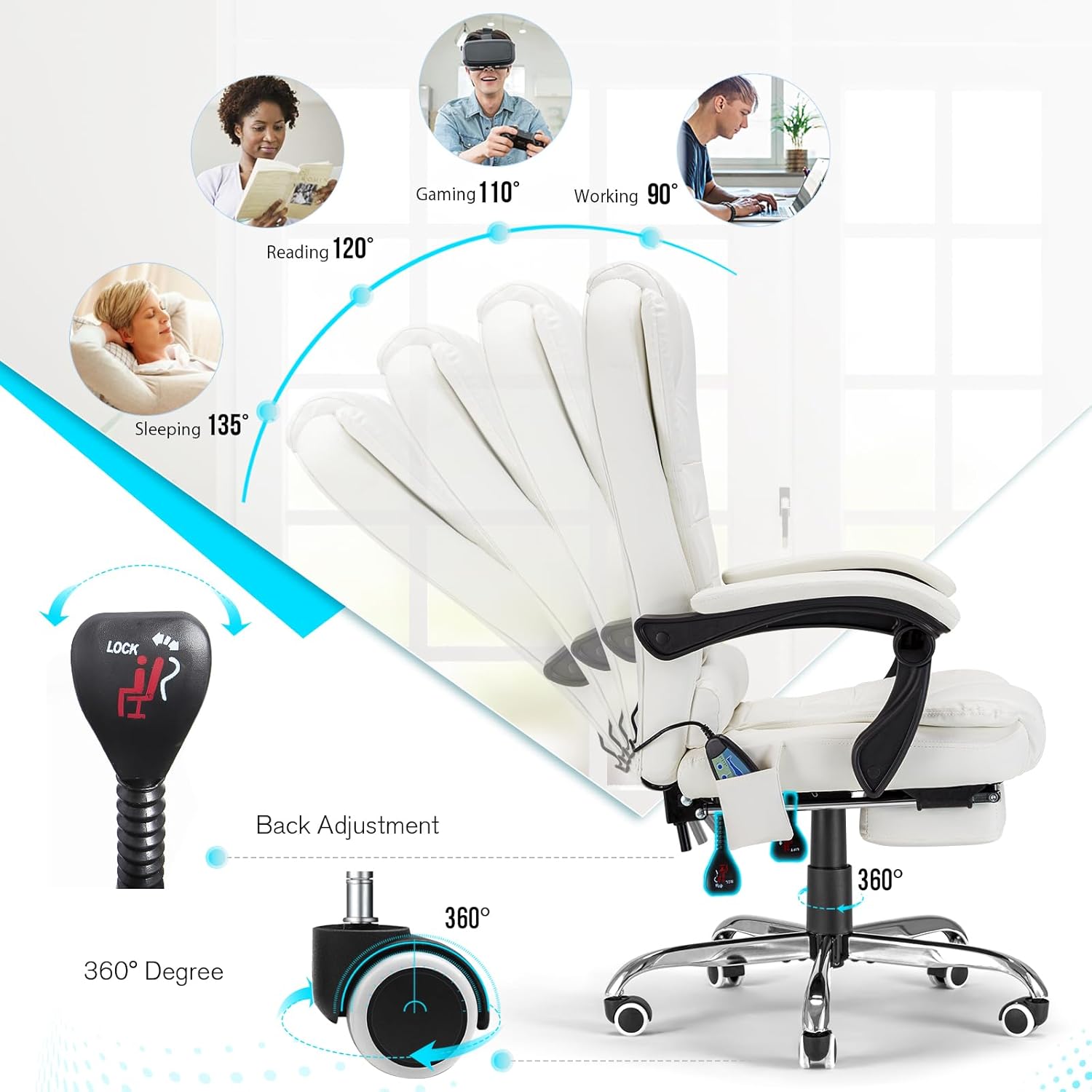

Image: Diagram illustrating the reclining mechanism of the YODOLLA office chair, showing the range of motion from 90 to 135 degrees.
3. Seat Height Adjustment
Adjust the seat height to ensure ergonomic posture at your desk. The seat height can be adjusted between 20 inches and 24 inches.
- Locate the lever on the right side of the chair, typically next to the reclining lever.
- To raise the seat: Lift the lever while taking your weight off the seat.
- To lower the seat: Lift the lever while remaining seated.
- Release the lever to lock the seat at the desired height.
Image: Close-up of the height adjustment lever on the YODOLLA office chair, indicating its function to raise or lower the seat.
4. Retractable Footrest
The integrated footrest can be extended for added comfort when reclining.
- Pull the footrest handle located beneath the front of the seat to extend it.
- Push the footrest back into its storage position when not in use.
5. Swivel and Mobility
The chair features a 360° swivel and smooth-rolling casters for easy movement around your workspace.
- The seat rotates freely in a full circle.
- The five casters allow for effortless gliding across various floor surfaces.
Maintenance and Care
- Cleaning: For the faux leather upholstery, wipe with a soft, damp cloth. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals or abrasive cleaners.
- Hardware: Periodically check all screws and bolts to ensure they are tight. Retighten as necessary to maintain stability.
- Casters: Clean casters regularly to remove dust and debris that may hinder smooth movement.
- Gas Lift: Do not lubricate the gas lift cylinder. If the gas lift malfunctions, contact customer support for replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift cylinder malfunction or lever not engaged. | Ensure the lever is fully pulled. If issue persists, the gas lift may need replacement. |
| Chair squeaks when moving. | Loose hardware or friction between components. | Tighten all screws. Apply a small amount of silicone lubricant to moving parts if necessary. |
| Massage/Heat function not working. | Power connection issue or remote malfunction. | Check if the power adapter is securely plugged into the chair and a working outlet. Ensure the remote control is properly connected. |
| Chair feels unstable. | Loose connections or damaged base/casters. | Verify all screws are tightened. Inspect the chair base and casters for any visible damage. |
Specifications
- Brand: YODOLLA
- Model: B0FNW88JZ3
- Color: Cream White Leather
- Product Dimensions: 24.8"D x 24.8"W x 47.3"H
- Adjustable Height: 20 inches to 24 inches (seat height)
- Back Style: Adjustable Back (90° to 135° reclining)
- Special Features: Adjustable Backrest, Adjustable Height, Heat Function, Massage Function (7 points), Retractable Footrest
- Included Components: Office Chair, Hardware, Massage Remote Control, Power Adapter
- Item Weight: 43 pounds
- Maximum Weight Capacity: 350 lbs
Image: Detailed product dimensions and key features of the YODOLLA office chair, including adjustable height and weight capacity.
Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact YODOLLA customer service directly. Refer to the product packaging or the official YODOLLA website for contact details.
Manufacturer: YODOLLA
Date First Available: August 27, 2025
