Square D MAL36900 Molded Case Circuit Breaker Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Square D MAL36900 Molded Case Circuit Breaker. The MAL36900 is a 3-pole thermal magnetic circuit breaker designed for feed-thru connections, rated at 900 Amps and 600 Volts. It incorporates Long Time (LI) and Instantaneous trip functions for comprehensive circuit protection.

2. Safety Information

WARNING: Risk of Electric Shock or Arc Flash.

• Installation, operation, and maintenance must be performed by qualified personnel only.
• Always de-energize the equipment before working on or near the circuit breaker.
• Use appropriate personal protective equipment (PPE) as required by safety standards.
• Follow all local and national electrical codes and safety regulations.
• Do not attempt to modify the circuit breaker. Unauthorized modifications can lead to serious injury or equipment damage.

3. Product Overview

The Square D MAL36900 is a robust thermal magnetic circuit breaker designed to protect electrical circuits from overloads and short circuits. Its feed-thru design allows for direct connection of conductors.

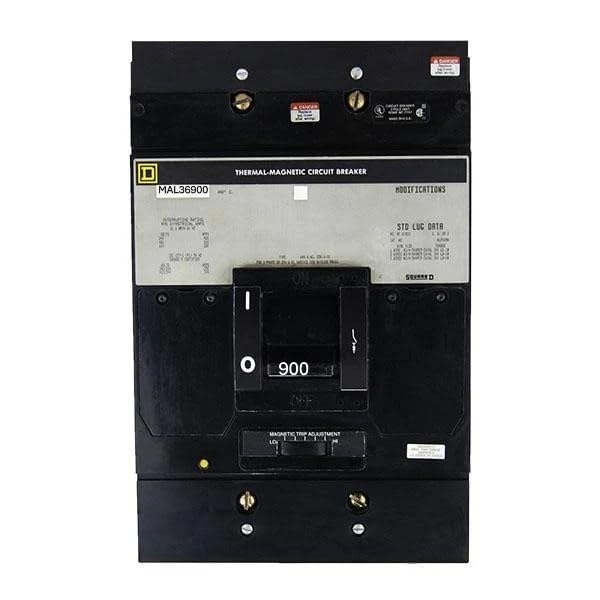

Figure 1: Front view of the Square D MAL36900 Molded Case Circuit Breaker. The image displays the breaker's main body, the "MAL36900" model designation, the "THERMAL-MAGNETIC CIRCUIT BREAKER" label, the ON/OFF indicator, the 900 Amp rating, and the magnetic trip adjustment dial at the bottom.

Key Features:

• Thermal-Magnetic Protection: Provides protection against both sustained overloads (thermal) and instantaneous short circuits (magnetic).
• 3-Pole Design: Suitable for three-phase electrical systems.
• 900 Amp Current Rating: Designed for high-current applications.
• 600V Voltage Rating: Compatible with high-voltage systems.
• Feed-Thru Connection: Facilitates direct conductor connection.
• LI Functions: Includes Long Time and Instantaneous trip functions for precise protection coordination.

4. Specifications

5. Installation

IMPORTANT: Installation must be performed by a qualified electrician in accordance with all applicable electrical codes and standards.

1. De-energize System: Ensure all power to the installation area is completely disconnected and locked out/tagged out before beginning any work. Verify with a voltage tester.
2. Mounting: Securely mount the MAL36900 circuit breaker into the designated panel using appropriate hardware. Ensure proper alignment and torque specifications are met for mounting screws.
3. Wiring Connections:
   • Connect the incoming (line) conductors to the designated line terminals and the outgoing (load) conductors to the designated load terminals.
   • Ensure all connections are clean, tight, and free from corrosion. Refer to the breaker's labeling for specific terminal designations and recommended wire sizes.
   • Use proper crimping tools for lug connections if applicable, and apply specified torque to all terminal screws.
4. Grounding: Ensure proper grounding of the electrical system as per code requirements.
5. Inspection: After installation, visually inspect all connections and ensure no tools or debris are left inside the panel.
6. Re-energize: Once installation is complete and verified, carefully re-energize the system.

6. Operation

The MAL36900 circuit breaker is designed for simple operation, providing clear indication of its status.

• Turning ON: Push the handle firmly to the "ON" (I) position.
• Turning OFF: Push the handle firmly to the "OFF" (O) position.
• Trip Indication: If an overload or short circuit occurs, the breaker will automatically trip. The handle will move to an intermediate "TRIPPED" position (typically between ON and OFF).
• Resetting a Tripped Breaker:
  1. First, move the handle completely to the "OFF" (O) position.
  2. Then, push the handle firmly to the "ON" (I) position.
  3. If the breaker immediately trips again, do not attempt to reset it repeatedly. Investigate the cause of the trip.
• Magnetic Trip Adjustment: The MAL36900 features a magnetic trip adjustment dial. This allows for fine-tuning the instantaneous trip setting. Consult system design specifications before adjusting this setting.

7. Maintenance

Regular maintenance helps ensure the longevity and reliable operation of your circuit breaker. All maintenance should be performed by qualified personnel with the system de-energized.

• Visual Inspection (Annually):
  • Check for any signs of physical damage, discoloration, or overheating on the breaker body and terminals.
  • Inspect connections for tightness and corrosion.
  • Ensure ventilation openings (if any) are clear of obstructions.
• Cleaning: Use a clean, dry cloth to wipe down the exterior of the breaker. Do not use solvents or abrasive cleaners.
• Functional Test (Periodically, as per site requirements): Perform a manual trip test by moving the handle to the OFF position and then back ON. This verifies the mechanical integrity of the trip mechanism.

8. Troubleshooting

If your MAL36900 circuit breaker is not functioning as expected, consider the following common issues:

• Breaker Trips Repeatedly:
  • Cause: Overload, short circuit, or ground fault in the protected circuit.
  • Action: Disconnect load, inspect wiring for damage or short circuits. Reduce load if an overload is suspected. If the issue persists, consult a qualified electrician.
• Breaker Does Not Reset:
  • Cause: Persistent fault, internal breaker damage, or handle mechanism issue.
  • Action: Ensure the handle is fully moved to the "OFF" position before attempting to reset. If it still won't reset, there may be a continuous fault or internal damage. Do not force the handle. Replace the breaker if damaged.
• Overheating (Discoloration/Smell):
  • Cause: Loose connections, excessive load, or internal damage.
  • Action: Immediately de-energize the circuit. Inspect all connections for tightness. Verify the load does not exceed the breaker's rating. If overheating persists or damage is visible, replace the breaker.

For issues not covered here, or if you are unsure about any troubleshooting steps, contact a qualified electrician or the manufacturer's support.

9. What's in the Box

• 1 x Square D MAL36900 Molded Case Circuit Breaker

10. Warranty and Support

For warranty information, technical support, or service inquiries regarding your Square D MAL36900 circuit breaker, please refer to the documentation provided at the point of purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: SQD
