Vexilar V15 Max Blitz Cordless Vacuum Cleaner

1. Introduction

Thank you for choosing the Vexilar V15 Max Blitz Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance, including the following:

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not use without dust bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not charge the unit outdoors.
• Do not modify or attempt to repair the appliance. Contact Vexilar customer support for assistance.

3. Package Contents

Please check the package contents carefully. If any items are missing or damaged, contact Vexilar customer support.

• V15 Max Main Unit
• Floor Brush
• Flexible Telescopic Tube
• High-Efficiency Filter
• Battery
• Flat Nozzle
• Furniture Brush
• User Manual
• Cleaning Tool
• Charger
• Wall Mount
• Water Tank
• Mopping Cloth

4. Product Overview

The Vexilar V15 Max Blitz is a powerful and versatile cordless vacuum cleaner designed for comprehensive home cleaning. Key features include:

• 65KPa Super Suction Power: Equipped with a high-performance motor, this vacuum achieves 65KPa suction, easily removing dust, crumbs, and pet hair from various surfaces, including thick carpets.
• Smart Foldable Design: The flexible tube allows cleaning under beds and sofas without bending, offering an ergonomic solution.
• 120° Green LED Light: Detects even invisible dust particles, ideal for thorough cleaning, especially in dark areas.
• Complete Home Cleaning: Designed for hard floors, carpets, sofas, and difficult corners.
• Up to 60 Minutes Runtime: High-capacity battery provides extended cleaning time, perfect for large apartments and complete cleaning sessions.
• LED Touch Display: Monitors battery level, mode, and device status in real-time for a smart user experience.
• Removable Battery: Allows separate charging and extends runtime flexibility.
• 2-in-1 Vacuum and Mop Function: With a 230ml water tank, it vacuums and mops simultaneously, eliminating dirt and stains in one pass.
• Cyclonic System + HEPA Filter: The multi-cyclone system with HEPA filter captures 99.9% of particles, promoting healthier air.
• Anti-Tangle V-shaped Brush: Prevents hair and pet fur from tangling, ensuring continuous cleaning performance.
• 1.5L Dustbin Capacity: Large capacity reduces the frequency of emptying.

5. Setup

5.1 Assembly

1. Insert the flexible telescopic tube into the main unit until it clicks into place.
2. Attach the floor brush to the other end of the telescopic tube until it clicks.
3. Ensure the battery is securely attached to the main unit.
4. For mopping, attach the water tank with the mopping cloth to the floor brush.

5.2 Charging the Battery

Before first use, fully charge the battery. The battery can be charged while attached to the main unit or separately.

1. Connect the charger to the charging port on the battery or the wall mount.
2. Plug the charger into a power outlet.
3. The LED display will show the charging status. A full charge takes approximately 5 hours.

5.3 Wall Mount Installation

The included wall mount allows for convenient storage and charging.

1. Choose a suitable location near a power outlet.
2. Mark the drilling points on the wall using the mount as a template.
3. Drill holes and insert wall plugs (if necessary).
4. Secure the wall mount with screws.
5. Hang the vacuum cleaner on the mount.

6. Operating Instructions

6.1 Power On/Off and Mode Selection

1. Press the power button on the handle to turn the vacuum cleaner on or off.
2. Use the mode selection button on the LED display to switch between three suction modes:
• Floor Mode: Suitable for hard surfaces like tiles and wood floors.
• Carpet Mode: Provides increased suction for carpets and rugs.
• Turbo Mode: Maximum suction for deeply embedded dirt or thicker carpets.

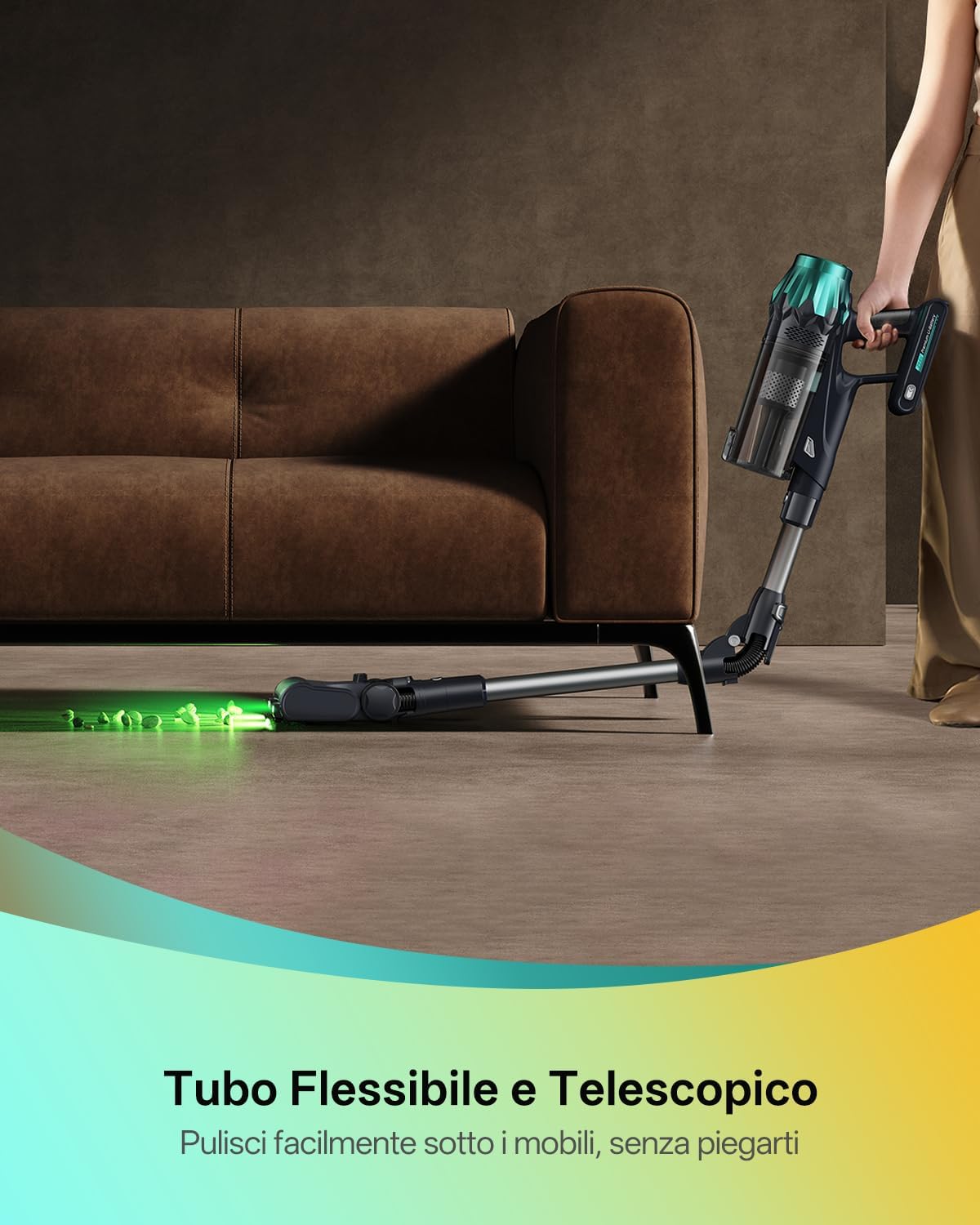

6.2 Using the Flexible Telescopic Tube

The flexible tube allows easy access to hard-to-reach areas under furniture.

1. Press the release button on the tube to bend it.
2. Extend or retract the tube to adjust its length as needed.
3. Once finished, straighten the tube until it locks into place.

6.3 Utilizing the 120° Green LED Light

The integrated LED light on the floor brush illuminates dust and debris, making it visible even in dimly lit areas.

6.4 Using Attachments

The V15 Max Blitz comes with various attachments for specialized cleaning tasks:

• Flat Nozzle: Ideal for narrow gaps, crevices, and car interiors.
• Furniture Brush: Suitable for delicate surfaces, upholstery, and curtains.

1. Detach the floor brush and telescopic tube from the main unit.
2. Attach the desired accessory directly to the main unit or the telescopic tube.

6.5 2-in-1 Vacuum and Mop Function

To use the mopping function:

1. Fill the water tank with clean water.
2. Attach the mopping cloth to the water tank.
3. Attach the filled water tank to the floor brush.
4. Proceed with vacuuming as usual; the mop will simultaneously clean the floor.

6.6 Video Demonstrations

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Vexilar V15 Max Blitz.

7.1 Emptying the Dustbin

1. Hold the main unit over a trash can.
2. Press the dustbin release button to open the bottom flap and empty the contents.
3. Close the flap securely.

7.2 Cleaning Filters

All filter components (except the HEPA filter) are washable. Regularly clean filters to maintain suction power.

1. Press the dustbin release button and twist to detach the entire dustbin assembly from the main unit.
2. Remove the HEPA filter and cyclonic filter from the dustbin.
3. Tap the HEPA filter to remove loose dust. Do not wash the HEPA filter.
4. Rinse the cyclonic filter and mesh filter under running water until clean.
5. Allow all washable parts to air dry completely for at least 24 hours before reassembling.

7.3 Cleaning the Brush Roll

The anti-tangle V-shaped brush roll should be cleaned periodically.

1. Locate the brush roll release tab on the side of the floor brush.
2. Push the tab to release and remove the brush roll.
3. Remove any tangled hair or debris from the brush roll using the provided cleaning tool or scissors.
4. Reinsert the brush roll and secure it by pushing the tab back into place.

7.4 Cleaning the Water Tank and Mopping Cloth

After each use of the mopping function:

1. Empty any remaining water from the tank.
2. Remove the mopping cloth and wash it thoroughly.
3. Allow the water tank and mopping cloth to air dry completely before storing.

8. Troubleshooting

If you encounter any issues with your Vexilar V15 Max Blitz, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Vexilar customer support.

9. Specifications

10. Warranty and Support

Vexilar offers 24/7 professional customer assistance and a 2-year warranty for the V15 Max Blitz. Service and repair centers are available across Europe. Purchase with peace of mind and enjoy a worry-free experience.

For any questions, issues, or warranty claims, please contact Vexilar customer support through their official website or the retailer where you purchased the product.
