GAXEZO 16-Head Deep Tissue Percussion Massage Gun Set User Manual

1. Important Safety Information

Please read all instructions carefully before using the GAXEZO 16-Head Deep Tissue Percussion Massage Gun Set. Retain this manual for future reference.

• Do not immerse the device in water or other liquids.
• Do not use the device on open wounds, swollen areas, or areas with skin irritation.
• Do not use the device on your head, face, or any bony areas.
• Consult a physician before use if you are pregnant, have a pacemaker, suffer from diabetes, or have any other medical conditions.
• Keep out of reach of children. This is not a toy.
• The device is designed for external use only.
• Do not use the device while charging.
• The smart auto-shutoff feature is designed to prevent overuse; adhere to recommended session durations.

2. Product Overview

The GAXEZO 16-Head Deep Tissue Percussion Massage Gun Set is designed to provide targeted muscle relief and relaxation. It features a powerful motor, multiple massage modes, and adjustable intensity levels.

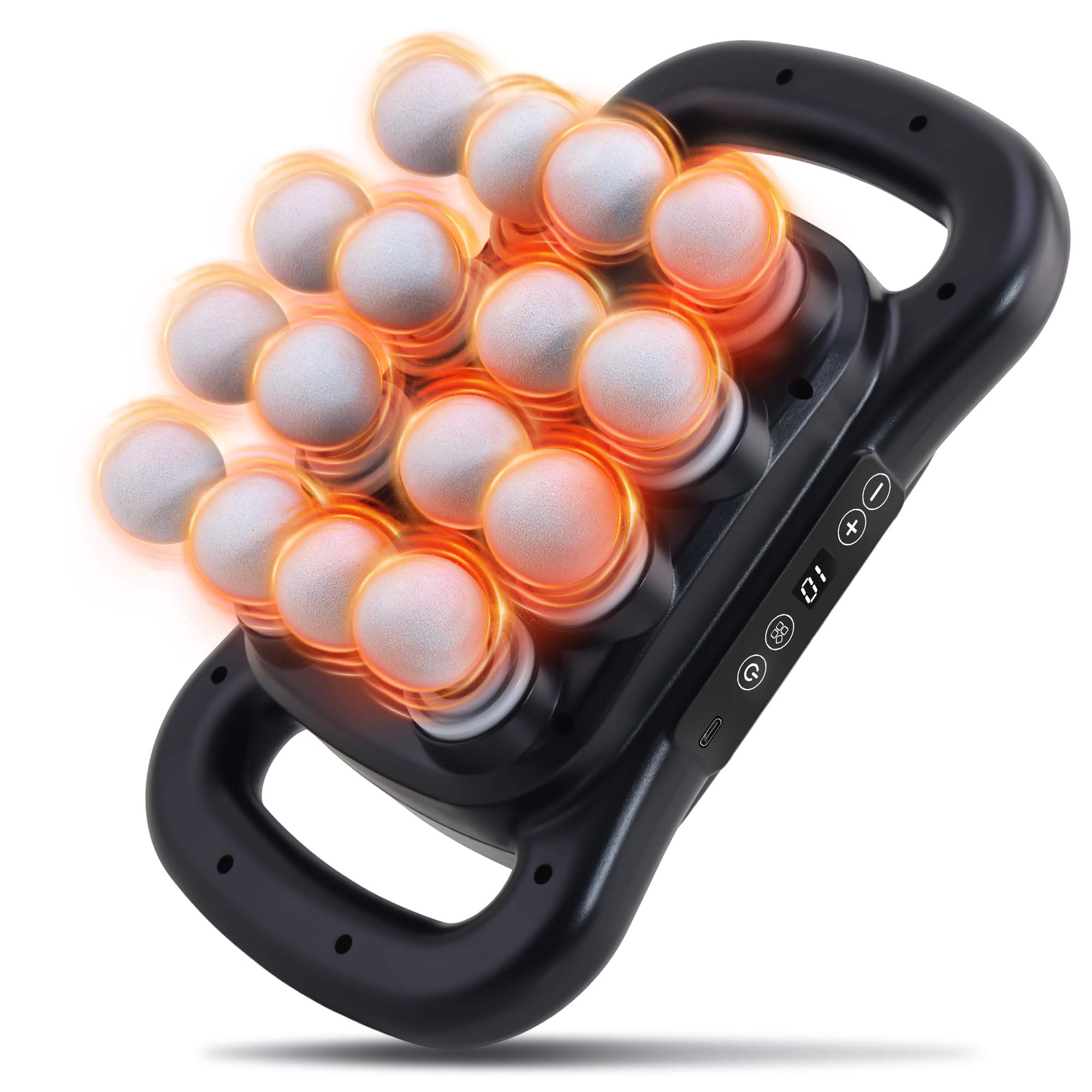

Image 2.1: The GAXEZO 16-Head Deep Tissue Percussion Massage Gun Set, showcasing its ergonomic design and multiple massage heads.

Key Features:

• Powerful Deep Tissue Relief: High-powered motor capable of withstanding forces up to 40 kg for deep muscle tension.
• 9 Modes & Adjustable Intensity: Offers 9 massage styles and adjustable intensity levels (1-3 for soothing, 4-6 for deep, 7-9 for professional).
• Smart Auto-Shutoff: Engineered with 10-minute automatic timers and motor protection to prevent overuse.
• Long-Lasting & Ultra-Quiet: Equipped with a 2600mAh battery for up to 8 hours of use and operates at 35-45dB.
• 16 Massage Heads: Provides extensive coverage for large muscle groups.

3. Setup

3.1 Charging the Device

Before first use, fully charge the massage gun. The device is equipped with a 2600mAh battery and supports Type-C fast charging.

• Connect the Type-C charging cable to the charging port on the device.
• Plug the other end of the cable into a compatible USB power adapter (not included).
• The indicator light will flash '88' during charging.
• Once fully charged (approximately 3 hours), the indicator light will remain constantly on.
• Note: The device cannot be used while charging.

Image 3.1: Illustration of the 2600mAh high-capacity lithium battery and Type-C fast charging port.

4. Operating Instructions

4.1 Power On/Off

• To power on, press and hold the power button (U) for a few seconds until the display illuminates.
• To power off, press and hold the power button (U) again for a few seconds.

4.2 Changing Modes

The device offers 9 different massage modes (P1-P9).

• After powering on, press the 'Mode' button (88) to cycle through the available modes.
• Each press will change the massage pattern.

4.3 Adjusting Intensity

The device has adjustable intensity levels from 1 to 9.

• Use the '+' button to increase the massage intensity.
• Use the '-' button to decrease the massage intensity.
• Levels 1-3 are for soothing massages.
• Levels 4-6 are for deep massages.
• Levels 7-9 are for professional-level massages.

Image 4.1: Digital display showing current level, mode, and power/intensity controls.

4.4 Smart Auto-Shutoff

The device is equipped with a 10-minute automatic timer. After 10 minutes of continuous use, the massager will automatically power off to prevent overuse and ensure safety.

5. Usage Areas

The GAXEZO 16-Head Massage Gun is designed for use on various muscle groups to relieve tension and promote relaxation.

• Back: Position the massager on your lower, middle, or upper back. Use the handles to apply gentle pressure and move across the muscles.
• Thighs (Front & Back): Place the massager on your thigh and move it along the muscle. Adjust pressure as needed.
• Calves: Position the massager on your calf muscles.
• Waist: Apply the massager to your waist area for targeted relief.
• Arms: Use on biceps, triceps, and forearms.
• Soles of Feet: Place your foot on the massager for a soothing foot massage.

Image 5.1: Visual guide for using the massager on different body parts.

Official Product Videos:

6. Maintenance

6.1 Cleaning

• Ensure the device is powered off and unplugged before cleaning.
• Wipe the surface of the massage gun with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.

6.2 Storage

• Store the device in a cool, dry place away from direct sunlight.
• Keep the device away from extreme temperatures.

7. Troubleshooting

• Device not turning on: Ensure the device is fully charged. Press and hold the power button for a few seconds.
• Weak massage intensity: Increase the intensity level using the '+' button. Ensure the device is fully charged.
• Device stops unexpectedly: The auto-shutoff feature activates after 10 minutes. Power on the device again if you wish to continue.
• Charging indicator not working: Ensure the charging cable is securely connected to both the device and the power adapter. Try a different power adapter or cable.

8. Specifications

9. Warranty and Support

For warranty information or product support, please refer to the contact details provided with your purchase or visit the official GAXEZO website. Keep your proof of purchase for any warranty claims.
