VEVOR Tabletop Gas Grill Instruction Manual

1. Introduction

Thank you for choosing the VEVOR Tabletop Gas Grill, Model EQT42CCS. This portable 2-burner stainless steel grill is designed for convenient outdoor cooking, offering 15,000 BTU of total heating power and a spacious 224 sq. in. cooking area. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your grill.

2. Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

• For outdoor use only. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Do not store a spare liquid propane cylinder under or near this appliance.
• Always keep the grill area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
• Maintain proper clearance from combustible construction: 24 inches from sides and back.
• Never operate the grill unattended.
• Keep children and pets away from the grill at all times.
• Always check for gas leaks before each use. Use a soapy water solution to check connections.
• Ensure all gas connections are tight and secure.
• Do not obstruct the flow of combustion and ventilation air to the grill.
• Wear protective gloves when handling hot components.

3. Included Components

Verify that all components listed below are present in the packaging:

• 1 x Gas Grill (Main Unit)
• 1 x Gas Regulator (US Standard – For Propane Canister Connection)
• 1 x Thermometer (Max 752°F/400°C) - Pre-installed
• 1 x Universal Gas Hose (Connects Regulator to Small Canister & Large Tank Adapter)
• 2 x Cooking Grates (Wire Diameter: 0.12 in / 5 mm)
• 2 x Heat Plates
• 1 x User Manual

Figure 1: Product Dimensions and Included Accessories. This image displays the overall dimensions of the grill and lists all components that come with the unit, including the gas regulator, universal gas hose, thermometer, cooking grates, and heat plates.

4. Assembly Instructions

The VEVOR Tabletop Gas Grill is designed for quick and easy assembly. Follow these steps to set up your grill:

1. Unpack and Inspect: Carefully remove all components from the packaging. Inspect for any damage. Ensure all listed components in Section 3 are present.
2. Attach the Grill Legs: The grill comes with foldable legs. Extend the four legs from the bottom of the grill until they lock securely into place. Ensure the grill is stable on a flat, non-combustible surface.
3. Place Heat Plates: Position the two heat plates directly over the burners inside the grill body. These plates help distribute heat evenly and protect the burners from dripping grease.
4. Install Cooking Grates: Place the two cooking grates on top of the heat plates. Ensure they sit firmly and are level.
5. Connect Gas Regulator and Hose: Attach the gas regulator to the universal gas hose. Then, connect the hose to the gas inlet on the side of the grill. Ensure all connections are hand-tightened.

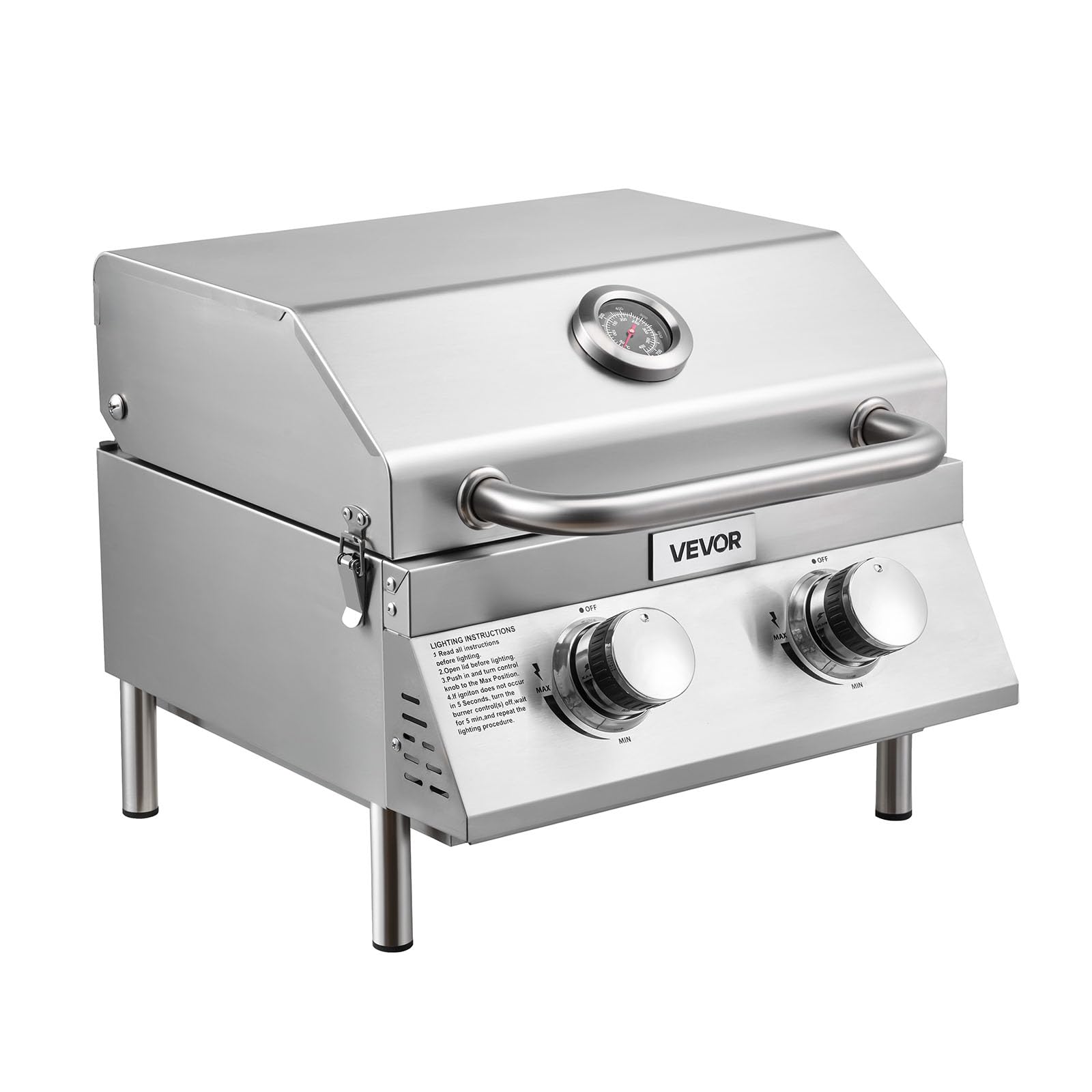

Figure 2: VEVOR Tabletop Gas Grill in its compact, closed state. This image shows the grill ready for transport or storage, with its lid securely latched and legs folded.

5. Setup and Fuel Connection

Your VEVOR grill is compatible with both standard propane tanks and smaller 1lb propane cylinders.

5.1 Connecting to a Propane Source

1. Ensure all burner control knobs are in the 'OFF' position.
2. Connect the universal gas hose (with regulator) to your propane tank (20lb) or 1lb propane cylinder. Hand-tighten firmly.
3. Open the valve on the propane tank/cylinder slowly to allow gas flow.
4. Perform a leak test (see Section 5.2).

5.2 Leak Test Procedure

Always perform a leak test before initial use and after any gas cylinder change or connection adjustment.

• Mix a solution of equal parts liquid dish soap and water.
• Ensure all burner control knobs are 'OFF'.
• Turn on the gas supply at the propane tank/cylinder.
• Apply the soapy solution to all gas connections (regulator to hose, hose to grill inlet).
• If bubbles appear, there is a leak. Immediately turn off the gas supply and tighten the connection. Repeat the test. If bubbles still appear, do not use the grill and contact customer service.

Figure 3: Dual Fuel Compatibility. This image illustrates how to connect the grill to either a standard propane tank or a smaller 1lb propane cylinder, highlighting the versatility of the fuel options.

6. Operating Instructions

Follow these steps for safe and effective operation of your VEVOR grill.

6.1 Lighting the Burners

1. Open Lid: Always open the grill lid before attempting to light the burners.
2. Turn on Gas: Slowly open the valve on your propane tank/cylinder.
3. Ignite Burner: Push and turn one burner control knob to the 'HIGH' position. You should hear a click from the igniter. If the burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes, and repeat the lighting procedure.
4. Light Second Burner: Once the first burner is lit, you can proceed to light the second burner by pushing and turning its control knob to 'HIGH'.
5. Adjust Heat: Once both burners are lit, close the lid and allow the grill to preheat for 5-10 minutes. Use the independent control knobs to adjust the flame intensity as needed. The built-in thermometer will help monitor the internal temperature.

6.2 Shutting Down the Grill

1. Turn all burner control knobs to the 'OFF' position.
2. Turn off the gas supply at the propane tank/cylinder valve.
3. Allow the grill to cool completely before cleaning or moving.

Figure 4: High Heat Output. This image provides a close-up view of the two stainless steel burners in operation, demonstrating the grill's 15,000 BTU total heat output for efficient cooking.

Figure 5: Spacious Cooking Area. This image shows the grill in use, with various foods like burgers and vegetables cooking on its 224 sq. in. surface, suitable for 3 to 5 people.

7. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your grill and ensure safe operation.

7.1 After Each Use

• Clean Cooking Grates: Once the grill has cooled, use a grill brush to remove any food residue from the cooking grates.
• Empty Grease Tray: The removable oil tray (grease tray) should be emptied and cleaned after each use to prevent grease buildup and potential flare-ups.
• Wipe Exterior: Wipe down the stainless steel exterior with a damp cloth and mild detergent. Dry thoroughly to prevent water spots.

7.2 Periodic Maintenance

• Inspect Burners: Periodically check the burner ports for any blockages (e.g., spider webs, food debris). Use a wire brush or paperclip to clear any obstructions.
• Check Gas Hose: Inspect the gas hose for kinks, cuts, or abrasions. Replace if any damage is found.
• Storage: When not in use, especially for extended periods, store the grill in a dry, protected area. The secure lid lock and compact design make it easy to store.

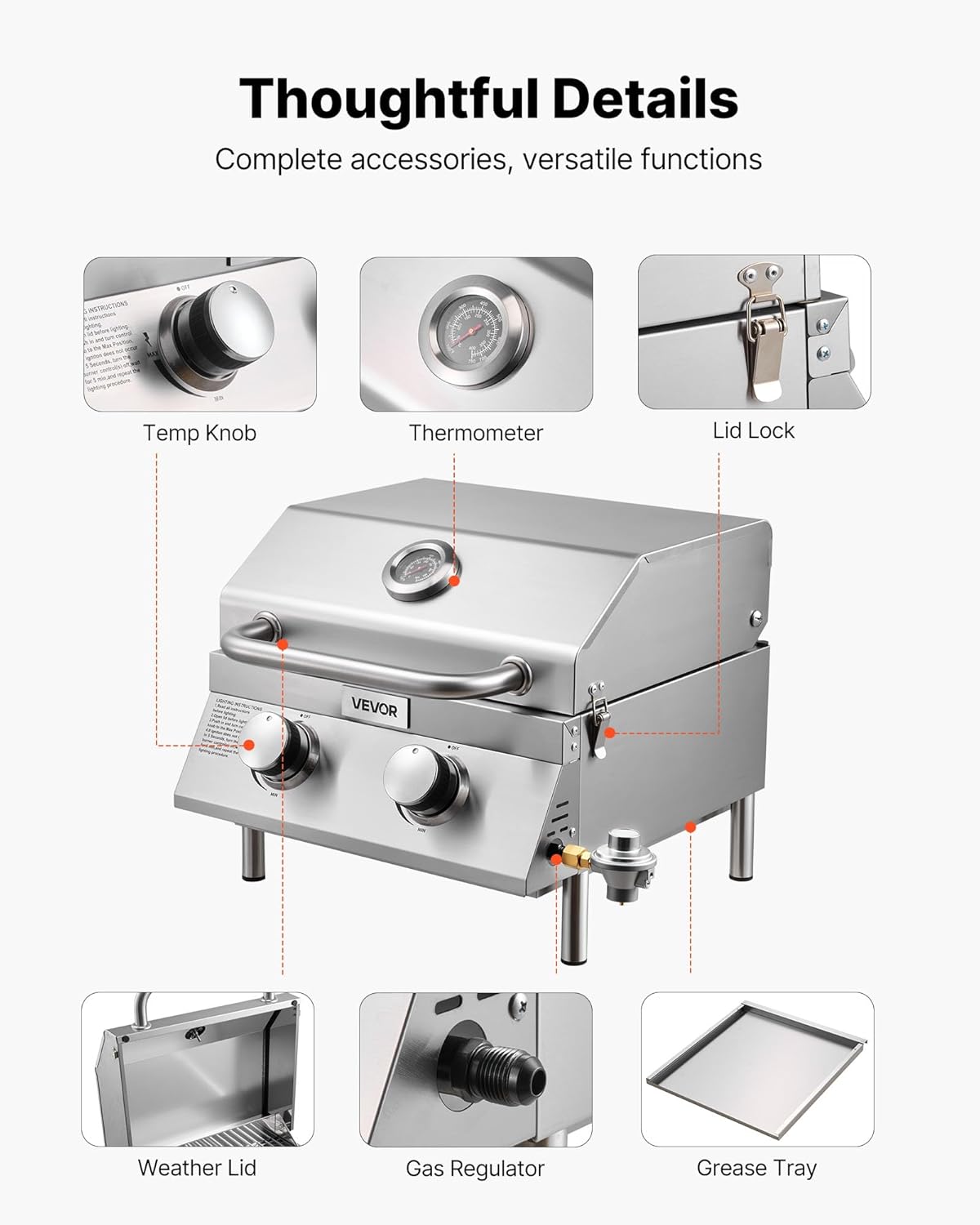

Figure 6: Thoughtful Details. This image highlights key features such as the built-in thermometer, independent temperature control knobs, secure lid lock, gas regulator, and the removable grease tray for easy cleaning.

8. Troubleshooting

If you encounter issues with your grill, refer to the table below for common problems and solutions.

9. Specifications

10. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please refer to the contact information provided with your product packaging or visit the official VEVOR website. Keep your purchase receipt as proof of purchase for any warranty claims.
