1. Introduction
This manual provides detailed instructions for the safe and correct installation, operation, and maintenance of your SHOTGUN Pro E-Bike Compatible Child Bike Seat and Handlebar Combo. Please read all instructions carefully before assembly and use to ensure the safety of your child and optimal product performance. This product is designed for children aged 18 months to 5 years, with a maximum weight of 60 lbs (27 kg).
Image: A parent and child enjoying a ride on a mountain bike equipped with the Shotgun Pro seat and handlebars, demonstrating the product in use.
2. Safety Information
- Always ensure your child wears a properly fitted helmet.
- The maximum weight limit for the child is 60 lbs (27 kg). Do not exceed this limit.
- Regularly inspect all bolts, screws, and straps to ensure they are securely fastened before each ride.
- Ensure the child's feet are securely strapped into the footrests to prevent them from interfering with the bike's wheels or pedals.
- Do not leave the child unattended on the bike seat.
- Avoid riding on rough terrain or at high speeds that may compromise the child's safety.
- Be aware of your increased center of gravity and adjust your riding style accordingly.
- When transporting the bike without the child, remove the child seat to prevent air turbulence from loosening components.
3. Package Contents
Verify that all components are present before beginning assembly:
- SHOTGUN Pro Child Bike Seat assembly
- SHOTGUN Pro Handlebar assembly
- Mounting hardware (bolts, spacers, quick-release levers)
- Tools for installation
- Instruction Manual
Note: The "Football" listed in some product specifications is an error and not included.
Image: All components of the Shotgun Pro Child Bike Seat and Handlebar Combo laid out, including the seat, handlebars, and mounting hardware.
4. Setup and Installation
The SHOTGUN Pro seat is designed for quick attachment and removal with zero frame contact, mounting to your bike's headset and seat post. It is compatible with most modern mountain bikes and e-bikes with wide down tubes.
4.1. Bike Compatibility Check
- Steerer Tube Clearance: A minimum of 10mm clearance under the stem with 46mm clearance from the center of the steerer is required for the headset mount.
- Seat Post Clearance: 14mm of space is required on the seat post for the rear attachment.
- Handlebar Compatibility: The Pro handlebars fit 31.8mm and 35mm handlebar diameters, and stems up to 60mm wide. Suitable for flat or riser handlebars.
Image: A diagram illustrating the minimum 10mm stem clearance and 46mm clearance from the center of the steerer required for proper installation of the Shotgun Pro seat.
4.2. Seat Installation Steps
- Attach Headset Mount: Loosen your bike's stem bolts and slide the Shotgun Pro headset spacer onto the steerer tube, ensuring it sits flush. Re-tighten stem bolts to manufacturer specifications.
- Attach Seat Post Mount: Secure the rear clamp to your bike's seat post, ensuring 14mm of clear space. Do not overtighten.
- Connect Seat Assembly: Align the front arm of the child seat with the headset mount and the rear arm with the seat post mount. Use the quick-release levers to secure the seat in place.
- Adjust Seat Position: Adjust the seat's angle and height to ensure a comfortable and secure fit for your child and to allow for proper pedaling clearance for the adult rider.
Image: A close-up view of the Shotgun Pro seat securely fitted onto a mountain bike frame, highlighting the attachment points.
Image: The Shotgun Pro seat installed on a bike, demonstrating its zero-frame-contact design to protect the bike's finish.
4.3. Handlebar Installation Steps
- Attach Handlebar Clamps: Open the quick-release clamps on the Shotgun Pro handlebars.
- Position Handlebars: Place the clamps onto the adult bike's handlebars, ensuring they are centered and positioned comfortably for the child.
- Secure Handlebars: Close the quick-release clamps firmly. Ensure the handlebars are stable and do not rotate.
Image: A detailed view of the Shotgun Pro child handlebars, highlighting their 19mm undersized grips, 355mm length, and compatibility with 31.8mm and 35mm handlebar diameters.
5. Operating Instructions
Once the seat and handlebars are securely installed, follow these guidelines for safe operation:
- Seating the Child: Help your child onto the seat, ensuring they are centered and comfortable.
- Foot Placement: Guide your child's feet into the footrests and secure the straps firmly. This prevents their feet from dangling or contacting moving parts.
- Hand Placement: Encourage your child to hold onto the Shotgun Pro handlebars.
- Riding: Start with gentle rides on smooth, flat surfaces to allow both you and your child to get accustomed to the new setup. Gradually increase difficulty as comfort and confidence grow.
Image: A parent and child smiling while riding a mountain bike on a dirt trail, showcasing the child's comfortable and engaged position on the Shotgun Pro seat.
6. Adjustments
The SHOTGUN Pro seat offers multiple adjustment options to grow with your child and fit various bike types:
- Leg Length: The seat features 7 adjustable leg length options. Loosen the adjustment bolts, slide the footrests to the desired length, and re-tighten securely.
- Saddle Position: The saddle position can be adjusted forward or backward to optimize comfort for the child and clearance for the adult.
- Leg Width: Adjustable leg widths accommodate different bike frame sizes, including wide down tubes found on some e-bikes.

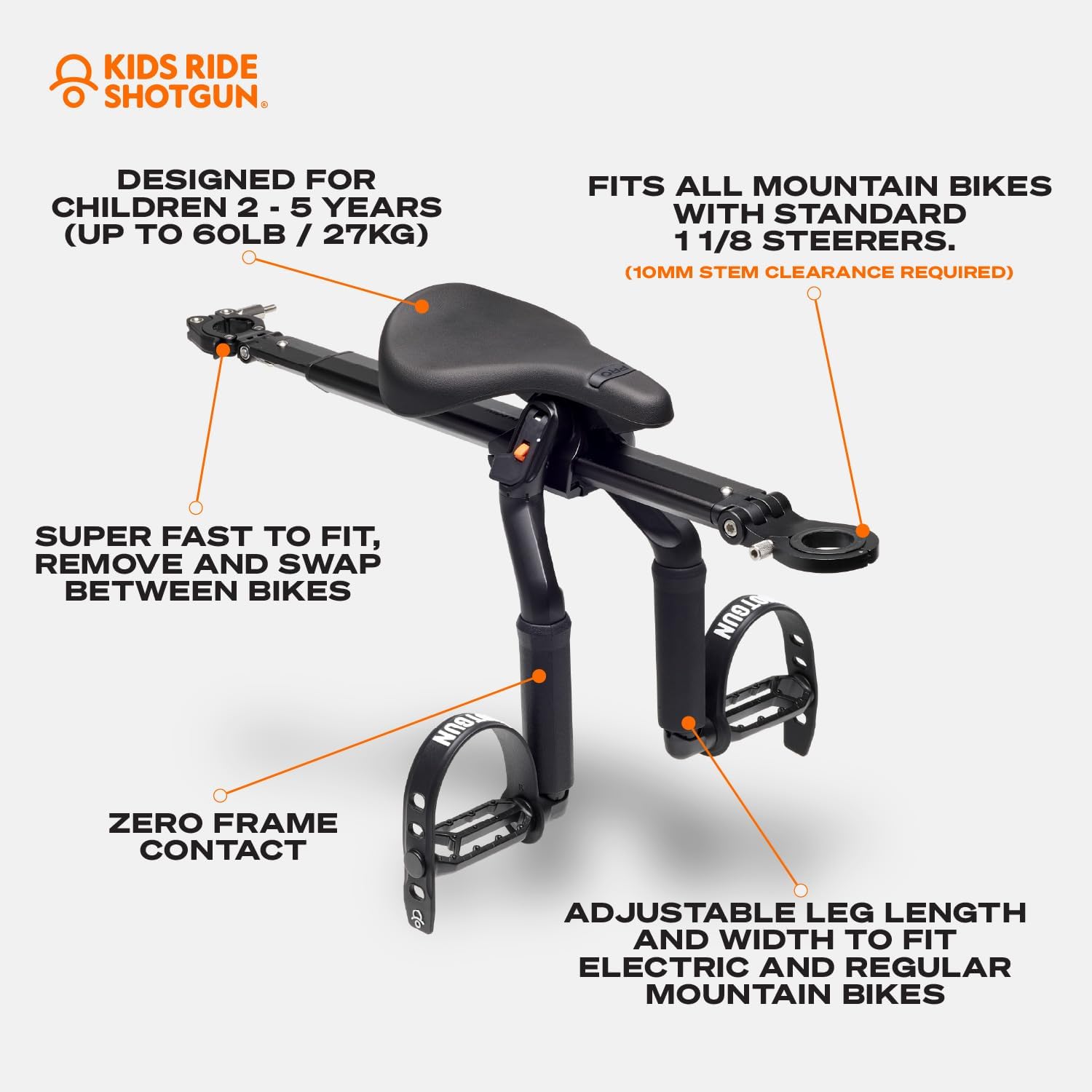

Image: The Shotgun Pro child bike seat with labels indicating its adjustable leg length, adjustable leg width, and zero-frame-contact design, suitable for electric and regular mountain bikes.
7. Maintenance
Proper maintenance ensures the longevity and safety of your SHOTGUN Pro child bike seat:
- Cleaning: Wipe down the seat and handlebars with a damp cloth after use. Avoid harsh chemicals that may damage materials.
- Inspection: Regularly check all bolts, screws, and quick-release mechanisms for tightness. Inspect the seat, footrests, and handlebars for any signs of wear, cracks, or damage. Replace any damaged parts immediately.
- Storage: Store the seat in a dry place away from direct sunlight when not in use to prevent material degradation.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Seat feels loose or wobbly | Mounting bolts or quick-release levers are not fully tightened. | Check and securely tighten all mounting bolts and quick-release levers. Ensure proper stem and seat post clearance. |
| Child's feet are not secure | Footrest straps are loose or incorrectly adjusted. | Adjust the footrest straps to ensure a snug fit around the child's feet. Verify leg length adjustment is appropriate. |
| Adult rider has difficulty pedaling | Seat position is too far back or too high, interfering with leg movement. | Adjust the saddle position forward and/or lower the seat slightly to provide adequate pedaling clearance. |
| Handlebars rotate or slip | Handlebar clamps are not tight enough or incompatible handlebar diameter. | Ensure handlebar clamps are fully tightened. Verify your bike's handlebar diameter is 31.8mm or 35mm. |
9. Specifications
| Brand | SHOTGUN |
| Model Name | Shotgun Pro E-Bike Compatible Seat Combo |
| Part Number | KRS-Combo |
| Product Dimensions (LxWxH) | 13.8" x 13.7" x 3.6" (35.05 cm x 34.8 cm x 9.14 cm) |
| Item Weight | 300 Grams (0.66 lbs) |
| Weight Limit | 27 Kilograms (60 lbs) |
| Recommended Age | 18 months to 5 years |
| Material | Polyurethane (PU) and Memory Foam Rubber (Seat), Leather (Outer Material) |
| Handlebar Compatibility | 31.8mm and 35mm diameters, stems up to 60mm wide |
| Bike Compatibility | Most modern mountain bikes, e-bikes with wide down tubes, standard 1 1/8 steerers |
10. Warranty and Support
10.1. Warranty Information
The SHOTGUN Pro Child Bike Seat and Handlebar Combo comes with a 1 Year Manufacturer Guarantee. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
10.2. Customer Support
For any questions, technical assistance, or warranty claims, please contact Kids Ride Shotgun customer support through their official website or the retailer where the product was purchased. Provide your model name (KRS-Combo) and date of purchase for faster service.
