1. Important Safety Information
Please read and understand all safety instructions before installing, operating, or performing maintenance on this electric garage heater. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Hardwired Installation Required: All wiring must be performed according to national and local electrical codes. The heater must be properly grounded. The heater circuit must be protected with appropriate fuses. This 10000W shop heater does not include a power cord. It is STRONGLY RECOMMENDED to hire a professional electrician for installation.
- This heater operates on 240 Volts (AC) and draws 41.6 Amps. Ensure your electrical system can support these requirements.
- Safety is paramount. This heater is equipped with Overheat Protection and is ETL Certified, ensuring it meets strict safety standards.
- Do not operate the heater if any part has been submerged in water.
- Keep combustible materials at least 3 feet (0.9 meters) away from the front, sides, and top of the heater.
- Always disconnect power before servicing or cleaning the heater.
Image: The heater highlighting its ETL certification and overheat protection features for enhanced safety.
2. Product Overview
The Zipfun 10000W Electric Garage Heater is designed to provide efficient heating for large spaces such as garages, workshops, and indoor shops. It features a robust design, multiple control options, and integrated safety features.
2.1 Key Features
- 10000W heating capacity, suitable for areas up to 1200 sq ft (112 sqm).
- Digital LED display for current input voltage and temperature/timer settings.
- Full-function remote control for convenient operation.
- Three heat settings: 10000W (High), 7500W (Low), and Fan Only.
- Built-in adjustable thermostat with a range of 50°F to 95°F (10°C to 35°C).
- Smart ECO and Timer function (1-8 hours) for energy efficiency.
- Adjustable louvers for precise airflow direction.
- Variable mounting angles for ceiling or wall installation.
- Overheat protection and ETL certification.

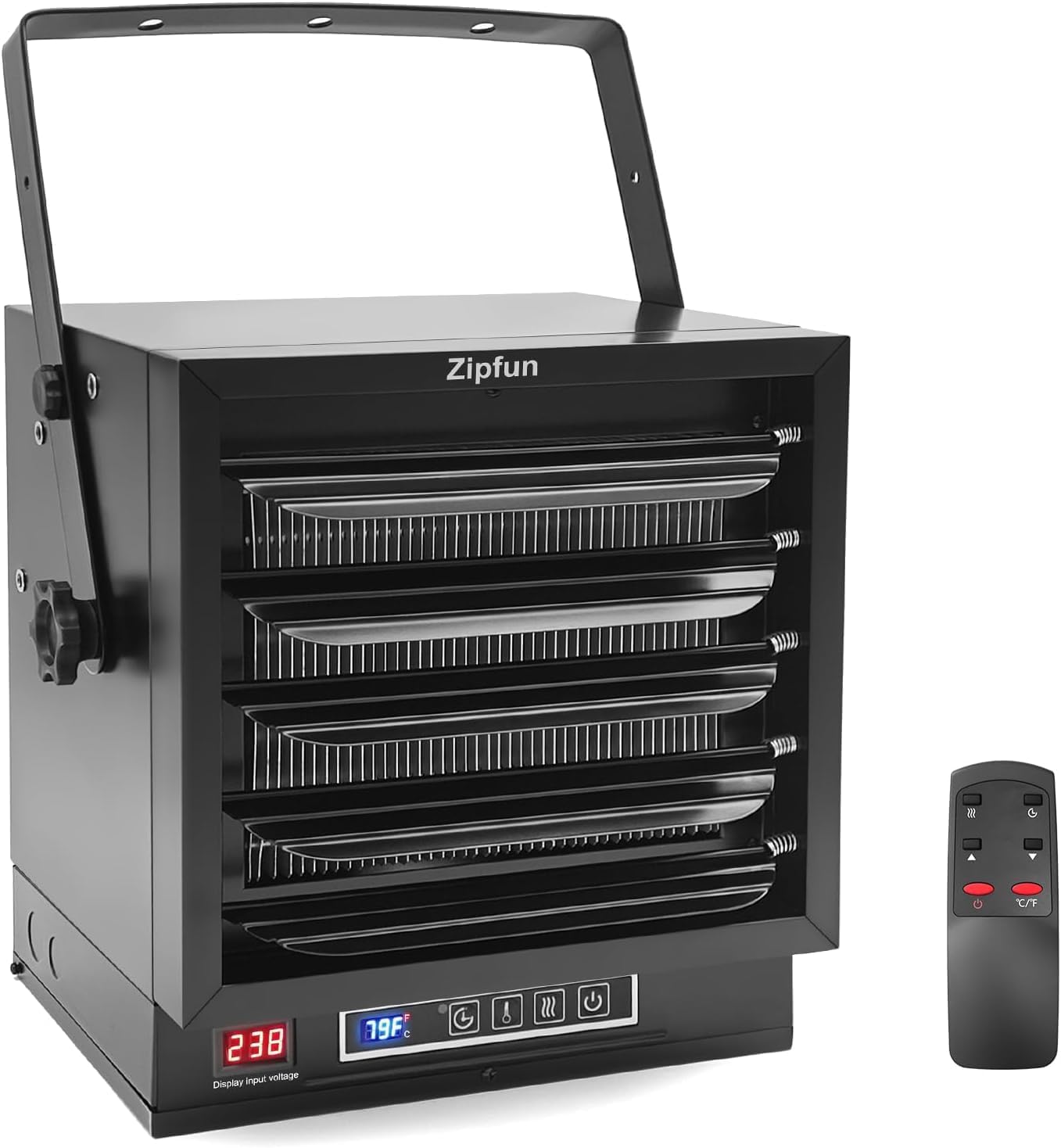

Image: The Zipfun 10000W Electric Garage Heater and its accompanying remote control.
2.2 Package Contents
- 1 x Zipfun 10000W Electric Garage Heater
- 1 x Mounting Bracket
- 1 x Infrared Remote Control
- Screws and Washers for installation
Image: Dimensions of the heater (10.6"D x 14.2"W x 12.6"H) and a display of the included accessories: remote control, mounting screws, and washers.
3. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your heater. This unit requires hardwired installation by a qualified electrician.
3.1 Mounting Location
- Choose a location that allows for optimal heat distribution and is clear of obstructions.
- The heater can be mounted on the ceiling or a wall. Ensure the mounting surface is structurally sound to support the heater's weight (approximately 26 pounds).
- Maintain a minimum clearance of 3 feet (0.9 meters) from any combustible materials.
3.2 Mounting Instructions
- Using the provided mounting bracket, mark the drilling locations on your chosen ceiling or wall surface.
- Drill appropriate pilot holes and secure the mounting bracket using the supplied screws and washers. Ensure the bracket is firmly attached.
- Attach the heater to the mounting bracket. The design allows for adjustable angles for both horizontal and vertical mounting, along with a safety lock.
- Adjust the heater to your desired angle. The adjustable louvers can be positioned to direct airflow precisely.
Image: Illustration of the heater's variable mounting angle capability and adjustable louvers for directing heat.
3.3 Electrical Connection
This heater requires a dedicated 240V/60Hz electrical circuit with a minimum amperage of 41.6 Amps. A professional electrician is required for hardwired installation.
- Ensure the main power supply to the circuit is turned off at the breaker panel before beginning any wiring.
- Connect the heater's wiring to the dedicated 240V circuit according to local and national electrical codes.
- Verify all connections are secure and properly insulated.
- The heater must be properly grounded.
- Once wiring is complete, restore power to the circuit.
4. Operating Instructions
Your Zipfun garage heater can be controlled via the digital touch panel on the unit or the included infrared remote control.
4.1 Digital Touch Panel and Remote Control Overview
Image: Detailed view of the heater's control panel and remote, indicating buttons for power, heat settings, temperature control, and timer.
- Power On/Off: Press the power button to turn the unit on or off.
- Heat Control: Cycle through heat settings: 10000W (High), 7500W (Low), and Fan Only (FA).
- Temperature Control: Use the temperature up/down buttons to set your desired temperature between 50°F and 95°F. The built-in thermostat will maintain this temperature.
- Timer Button: Set the operating timer from 1 to 8 hours. The heater will automatically turn off after the set time.
- ECO Mode: The Smart ECO function automatically adjusts the operating mode or turns off the heater based on the current room temperature to optimize energy consumption.
- Input Voltage Display: The digital display shows the current input voltage, which can be useful for troubleshooting.
The remote control requires 2 AAA batteries (not included).
Image: A user operating the heater with the remote control in a large industrial space.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your Zipfun garage heater. Always disconnect the power supply before performing any maintenance.
- Cleaning: Periodically wipe the exterior of the heater with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the heater is completely dry before restoring power.
- Air Inlet/Outlet: Keep the air inlet and outlet grilles free from dust and debris to ensure proper airflow. Use a vacuum cleaner with a brush attachment to gently clean these areas.
- Inspections: Annually inspect the power connections and mounting hardware for any signs of wear, damage, or loosening. If any issues are found, consult a qualified electrician.
- Storage: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place, protected from dust.
6. Troubleshooting
Refer to this section for common issues and their solutions. If you encounter problems not listed here, or if solutions do not resolve the issue, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power supply; circuit breaker tripped; loose wiring. | Check circuit breaker. Ensure power is supplied to the unit. Verify all electrical connections (consult electrician). |
| Fan does not rotate or rotates too slowly. | Input voltage is lower than 208V; debris in fan. | Check the digital voltage display. If below 208V, consult an electrician to verify power supply. Disconnect power and carefully remove any debris from the fan area. |
| Heater shuts off unexpectedly (Overheat Protection). | Overheating due to blocked airflow; high ambient temperature; internal fault. | Ensure air inlets/outlets are clear. Reduce ambient temperature if possible. Allow unit to cool down. If problem persists, contact support. |
| Remote control not working. | Dead batteries; obstruction between remote and heater. | Replace AAA batteries in the remote. Ensure a clear line of sight to the heater's receiver. |
| Inaccurate temperature reading. | Sensor obstruction or placement. | Ensure nothing is blocking the temperature sensor. The sensor measures ambient air near the unit. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Zipfun |
| Model Number | HS12100-08B |
| Power Output | 10000W (High), 7500W (Low) |
| Voltage | 240 Volts (AC) |
| Amperage | 41.6 Amps |
| Heating Coverage | Up to 1200 sq ft / 112 sqm |
| Product Dimensions | 10.6"D x 14.2"W x 12.6"H |
| Item Weight | 26 pounds |
| Mounting Type | Ceiling Mount and Wall Mount |
| Thermostat Range | 50°F - 95°F (10°C - 35°C) |
| Timer Function | 1-8 hours |
| Safety Features | Overheat Protection, ETL Certified, Flame Resistant |
| Control Methods | Digital Touch Panel, Infrared Remote Control |
| Included Components | Heater, Mounting Bracket, Remote Control, Screws, Washers |
| UPC | 629103400359 |
8. Warranty and Support
8.1 Manufacturer's Warranty
This Zipfun Electric Garage Heater (Model HS12100-08B) comes with a 1-Year Manufacturer's Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage resulting from improper installation, misuse, abuse, unauthorized repairs, or acts of nature. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For technical assistance, troubleshooting guidance, or warranty inquiries, please contact Zipfun customer support. Refer to the product packaging or the official Zipfun website for the most current contact information.
When contacting support, please have your model number (HS12100-08B) and purchase date readily available.
