1. Introduction
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Lioncho 8KW 12V Portable Diesel Heater, Model 8KW-H. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury. This portable diesel heater is designed to provide rapid and efficient heating for various applications, including RVs, trailers, trucks, boats, and other indoor spaces.

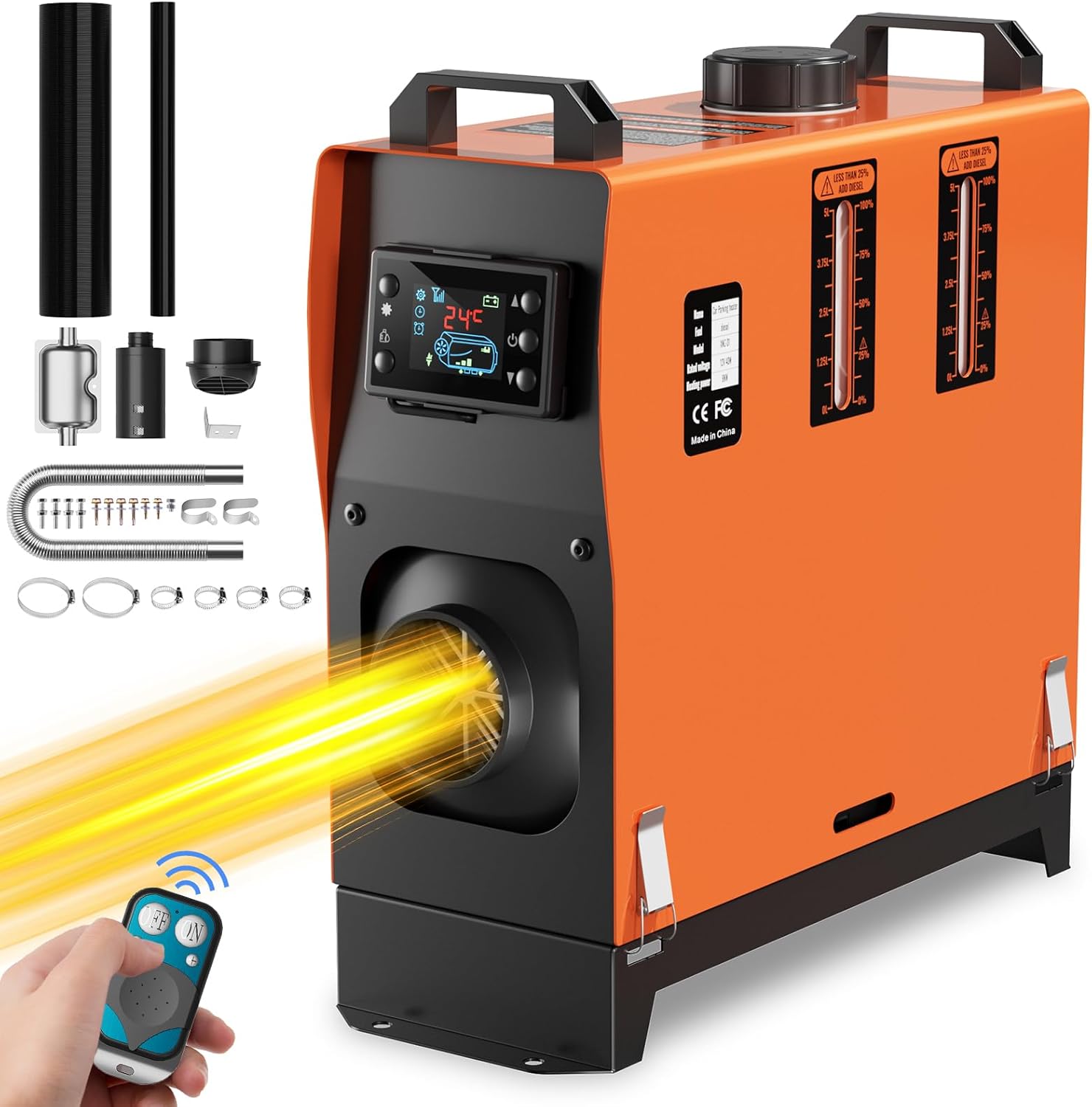

Figure 1: Lioncho 8KW 12V Portable Diesel Heater with included accessories and remote control.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing accidents and ensuring safe operation:
- Ventilation: Ensure adequate ventilation when operating the heater, especially in enclosed spaces, to prevent carbon monoxide buildup.
- Fuel: Use only diesel fuel. Do not use gasoline or other volatile fuels.
- Placement: Place the heater on a stable, non-combustible surface. Maintain a safe distance from flammable materials.
- Exhaust: Ensure the exhaust pipe is properly installed and directed away from combustible materials and living spaces.
- Electrical Connection: Connect the heater to a 12V DC power source. Ensure connections are secure and free from damage.
- Overheat Protection: The heater is equipped with overheat protection, which activates if the temperature exceeds 270°C (518°F). Do not bypass this safety feature.
- Children and Pets: Keep children and pets away from the heater during operation.
- Maintenance: Perform regular maintenance as described in this manual. Disconnect power before any maintenance or cleaning.
- Emergency Shut-off: Familiarize yourself with the emergency shut-off procedure.
3. Package Contents
Verify that all components are present and undamaged upon unpacking:
- Lioncho 8KW 12V Portable Diesel Heater Unit
- Remote Control
- LCD Display Panel
- Exhaust Pipe
- Air Intake Pipe
- Muffler
- Fuel Tank (Integrated)
- Fuel Pump
- Fuel Line
- Mounting Plate and Fasteners
- Air Filter
- Hose Clamps and Connectors
- Power Cable
- User Manual (This Document)
4. Product Overview
The Lioncho 8KW 12V Portable Diesel Heater features an all-in-one design for convenience and portability. Key components include:
Figure 2: Internal Structure of the Heater. This diagram illustrates the main internal and external components, including the 5L fuel tank, control panel, air outlets, combustion chamber, and safety features.

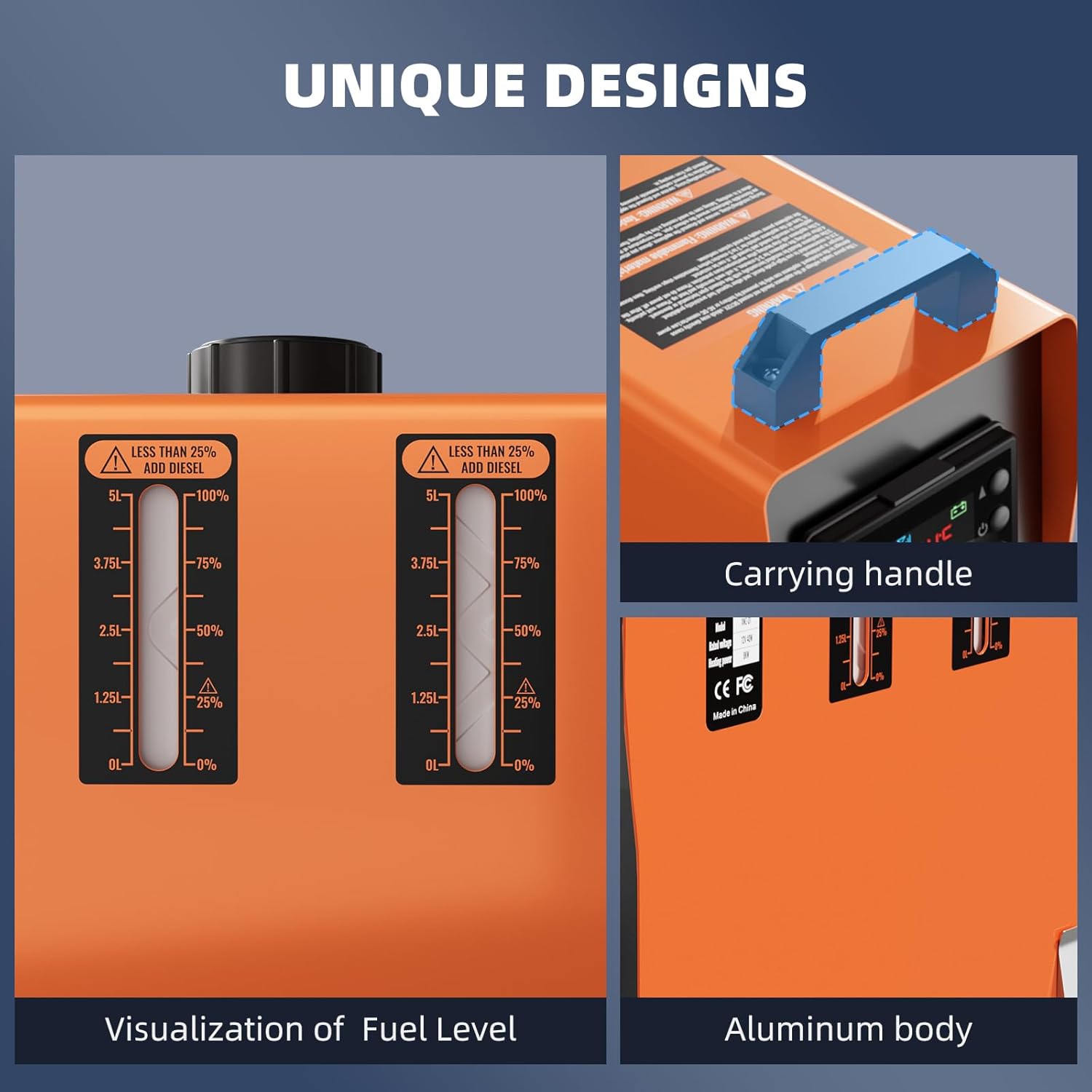

Figure 3: Unique Design Features. This image highlights the visible fuel level indicators, the robust carrying handle for portability, and the durable aluminum body construction.
4.1. Main Components
- Heater Unit: Contains the combustion chamber, heat exchanger, and fan.
- Fuel Tank: Integrated 5-liter tank for diesel fuel. Features a clear visualization of the fuel level.
- Control Panel (LCD Screen): Digital display for monitoring and adjusting settings.
- Remote Control: Allows for convenient operation from a distance.
- Air Inlet/Outlet: For drawing in cold air and expelling heated air.
- Exhaust Port: For connecting the exhaust pipe to safely vent combustion gases.
- Carrying Handle: For easy transport of the unit.
5. Setup and Installation
Proper setup is essential for safe and efficient operation. Follow these steps carefully:
- Unpacking: Remove all packaging materials and inspect the heater for any signs of damage.
- Placement: Position the heater on a flat, stable, and non-combustible surface. Ensure there is sufficient clearance around the unit for proper airflow and heat dissipation.
- Fueling: Fill the integrated 5-liter fuel tank with clean diesel fuel. Do not overfill. Ensure the fuel cap is securely tightened.
- Exhaust System:
- Connect the exhaust pipe to the heater's exhaust port using the provided clamps.
- Route the exhaust pipe safely away from the heated area, ensuring it is clear of any flammable materials, windows, or air intakes.
- Install the muffler onto the exhaust pipe if desired, to reduce noise.
- Air Intake: Connect the air intake pipe to the designated port. Ensure the air filter is attached.
- Power Connection: Connect the 12V DC power cable to the heater and then to a suitable 12V power source (e.g., vehicle battery, portable power station). Ensure correct polarity.
- Initial Start-up (Priming): For the first use or after refueling, the fuel pump may need to be primed. Follow the instructions in the Operating section to initiate the priming process if necessary.
6. Operating Instructions
The Lioncho diesel heater can be operated using either the integrated LCD control panel or the remote control.
Figure 4: Control Modes. This image shows the heater being controlled by a remote from a distance, alongside a close-up of the LCD monitor with its control buttons for temperature adjustment and power.
6.1. Powering On/Off
- To Power On: Press and hold the power button on the LCD panel or the remote control. The heater will initiate a start-up sequence, including fuel priming and ignition.
- To Power Off: Press and hold the power button again. The heater will enter a cool-down cycle to prevent damage from residual heat. Do not disconnect power during the cool-down cycle.
6.2. Temperature Adjustment
- Use the "Up" and "Down" buttons on the LCD panel or remote control to adjust the desired temperature. The LCD screen will display the current and target temperatures.
- The heater will automatically adjust its output to maintain the set temperature.
6.3. Mode Selection
- The LCD panel allows selection of various operating modes, such as constant temperature control. Refer to the on-screen menu for specific options.
6.4. Remote Control Operation
- The remote control provides convenient access to power on/off and temperature adjustments from a distance of up to 32 feet.
- Ensure the remote control has working batteries.
Figure 5: One-Click Remote Control. This image illustrates the ease of use with the remote control and LCD panel for adjusting temperature settings.
7. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your heater. Always disconnect power before performing any maintenance.
- Cleaning:
- Wipe the exterior of the heater with a damp cloth. Do not use abrasive cleaners or solvents.
- Periodically check the air intake and exhaust ports for obstructions and clean as necessary.
- Fuel Filter: Inspect the fuel filter regularly for debris. Clean or replace if clogged to ensure proper fuel flow.
- Exhaust System: Check the exhaust pipe and muffler for any leaks, damage, or blockages. Ensure all connections are secure.
- Electrical Connections: Verify that all electrical connections are tight and free from corrosion.
- Storage: When storing the heater for extended periods, ensure the fuel tank is empty and the unit is clean and dry. Store in a cool, dry place.
8. Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not start. | No power, low fuel, clogged fuel line, air in fuel system. | Check 12V power connection. Refuel. Check fuel filter. Prime the fuel pump. |
| Heater produces smoke. | Improper combustion, clogged exhaust, incorrect fuel. | Ensure proper ventilation. Check exhaust for blockages. Use only diesel fuel. |
| Insufficient heating. | Low power setting, air intake/outlet blocked, large area. | Increase temperature setting. Clear any obstructions. Ensure heater is appropriately sized for the space. |
| LCD screen not working. | Loose connection, power issue. | Check power cable and LCD connection. |
| Remote control not responding. | Dead batteries, out of range. | Replace remote control batteries. Move closer to the heater. |
9. Specifications
| Feature | Detail |
|---|---|
| Model | 8KW-H |
| Manufacturer Part Number | YT-03-B |
| Heating Power | 8KW (4,700 to 27,000 BTU) |
| Voltage | 12 Volts (DC) |
| Fuel Type | Diesel |
| Fuel Consumption | 0.23 - 0.51 liters per hour (approx. 1 gallon per night) |
| Heating Coverage | 215 - 269 sq ft (20 - 25 sq meters) |
| Special Features | Adjustable Temperature, Digital Display, Energy Efficient, Overheat Protection |
| Item Weight | 20 pounds |
| Package Dimensions | 19 x 18 x 8 inches |
| Color | Orange |
| Indoor/Outdoor Usage | Indoor (with proper exhaust ventilation) |
10. Warranty and Support
Specific warranty details are not provided in the product information. For warranty claims, technical support, or replacement parts, please contact Lioncho customer service through your original point of purchase or visit the official Lioncho website.
Brand: Lioncho
Model: 8KW-H
