1. Introduction
This manual provides instructions for the safe and efficient operation of your CARSUN Portable 150PSI Tire Inflator Air Compressor, Model T2199. This compact digital tire inflator is designed for versatility and precision, featuring a clear digital pressure display, automatic shut-off, and an integrated LED light for various inflation needs.
The device is suitable for inflating car tires, motorcycle tires, bicycle tires, and sports equipment. Please read this manual thoroughly before first use and retain it for future reference.
2. Safety Information
- Always ensure the device is fully charged before use to avoid interruptions.
- Do not leave the inflator unattended while in operation.
- Keep out of reach of children.
- Avoid over-inflating tires or other items. Always refer to the manufacturer's recommended pressure.
- Do not operate the device in wet conditions or near flammable liquids or gases.
- If the device becomes excessively hot during use, turn it off and allow it to cool down before continuing.
- Use only the provided charging cable and accessories.
3. Package Contents
The CARSUN Portable Air Compressor package includes:
- 1 x Wireless Air Compressor (Model T2199)
- 3 x Interchangeable Nozzles (for car/bike valves, sports balls, inflatables)
- 1 x USB Type-C Charging Cable
- 1 x User Manual
4. Setup
4.1 Charging the Device
Before initial use, fully charge the air compressor. Connect the provided USB Type-C charging cable to the device's charging port and to a suitable USB power adapter (not included). The charging indicator on the display will show the charging status. A full charge typically takes approximately 3 hours.
A single full charge can inflate approximately 8 car tires, 30 bicycle tires, or 88 balls, providing up to 25 minutes of continuous operation.
Image: The CARSUN T2199 Portable Air Compressor displaying its battery capacity and illustrating its ability to inflate multiple car tires, bike tires, motorcycle tires, and balls on a single charge.
4.2 Attaching the Air Hose and Nozzle
Screw the air hose securely onto the air outlet port of the compressor. Select the appropriate nozzle for the item you wish to inflate and attach it to the other end of the air hose.
5. Operating Instructions
5.1 Powering On/Off
Press and hold the power button (usually marked with a "U" or power symbol) for 1.5 seconds to turn the device on. The digital display will illuminate. To turn off, press and hold the power button again.

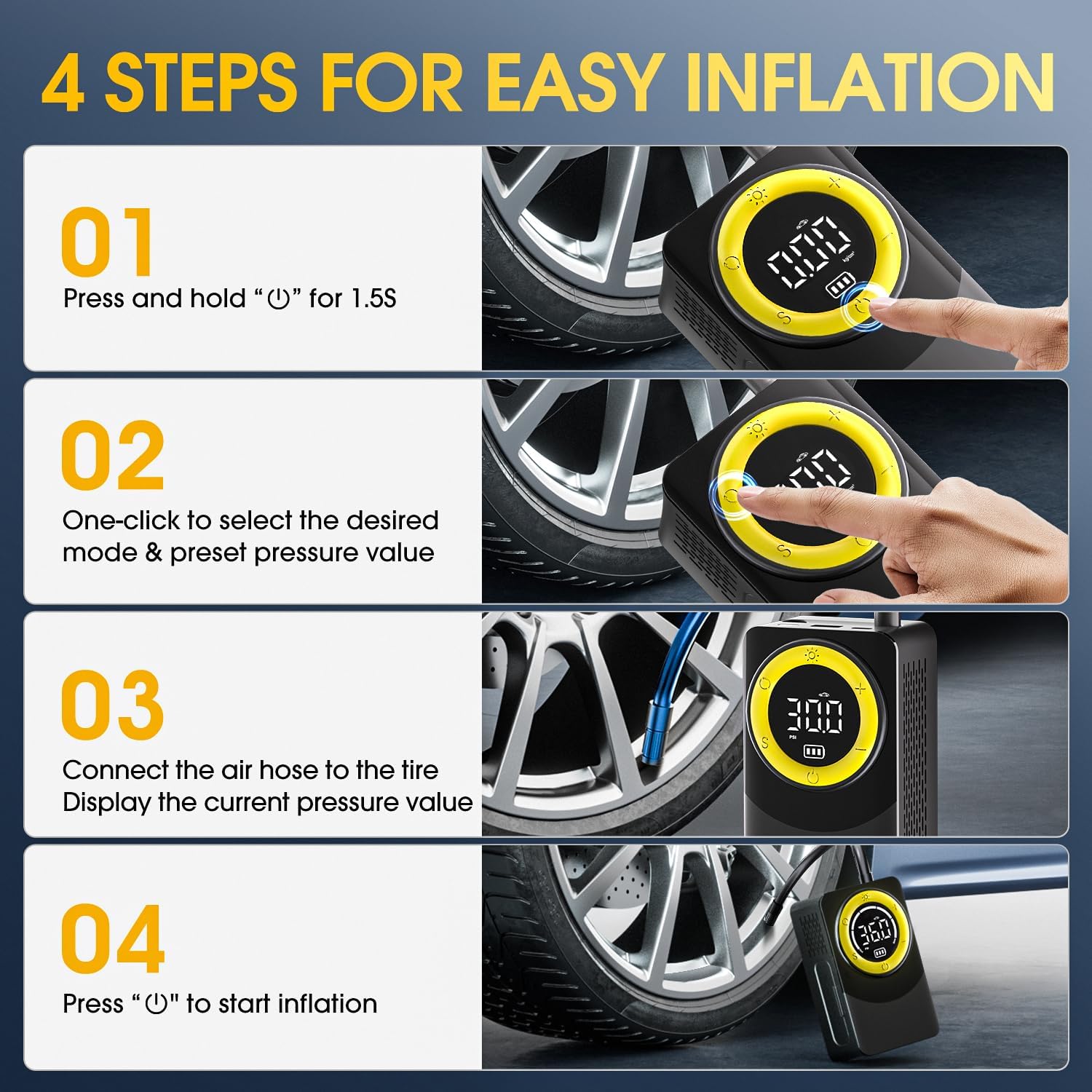

Image: A visual guide demonstrating the four simple steps to operate the CARSUN T2199: power on, select mode and preset pressure, connect the air hose, and start inflation.
5.2 Selecting Pressure Units and Modes
Once powered on, you can switch between pressure units (PSI, BAR, KPA, kg/cm²) by pressing the 'S' button. The device offers 5 preset inflation modes: Car, Motorcycle, Bike, Balls, and a Custom mode. Press the mode selection button (often indicated by an icon or 'M') to cycle through these modes.
Image: The digital display of the CARSUN T2199, highlighting the selection options for 5 inflation modes and 4 pressure units, providing precise control for various items.
5.3 Setting Target Pressure
After selecting a mode, the display will show a default pressure value. Use the '+' and '-' buttons to adjust the target pressure to your desired level. For custom mode, you can set any pressure within the device's range (3-150 PSI).
5.4 Connecting and Starting Inflation
Connect the nozzle to the valve of the item you wish to inflate. The display will show the current pressure. Press the power/start button to begin inflation. The compressor will automatically stop once the preset target pressure is reached.
Image: The CARSUN T2199 in operation, demonstrating its smart auto-stop feature which automatically halts inflation once the desired pressure is achieved, allowing for hands-free use.
5.5 Fast Inflation Capability
The CARSUN T2199 features a powerful motor for rapid inflation. For example, it can inflate a standard car tire from 30 PSI to 36 PSI in under 1 minute.
Image: The CARSUN T2199 showcasing its rapid inflation speed, capable of increasing tire pressure from 30 PSI to 36 PSI in less than one minute for a standard car tire.
5.6 Using the LED Light
The integrated LED light offers three modes: illumination, alarm, and SOS. Press the light button (often indicated by a light bulb icon) to cycle through these modes. This feature enhances visibility and safety during nighttime or emergency situations.
Image: The CARSUN T2199 illustrating its multi-functional LED light with strobe, flashlight, and SOS modes, alongside its capability to act as a portable charger for other devices.
6. Maintenance
- Cleaning: Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
- Storage: Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the air hose and nozzles are stored properly in the designated compartment (if available) to prevent loss or damage.
- Battery Care: For optimal battery life, charge the device at least once every three months if not in regular use.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery or device is off. | Charge the device. Press and hold the power button for 1.5 seconds. |
| Inflation is slow or not working. | Air hose not securely connected, nozzle blocked, or low battery. | Ensure connections are tight. Check for obstructions in the nozzle. Recharge the device. |
| Device stops before reaching target pressure. | Battery is depleted or device overheated. | Recharge the device. Allow the device to cool down if it feels hot. |
| Inaccurate pressure reading. | Incorrect unit selected or sensor issue. | Verify the correct pressure unit (PSI, BAR, etc.) is selected. If problem persists, contact support. |
8. Specifications
- Model: T2199
- Brand: CARSUN
- Maximum Pressure: 150 PSI
- Power: 65 Watts
- Voltage: 12 Volts
- Battery Type: Lithium Polymer
- Hose Length: 7.9 inches (20 cm)
- Noise Level: 70 Decibels
- Product Dimensions: 2.95 x 1.82 x 4.92 inches (7.49 x 4.62 x 12.5 cm)
- Product Weight: 522 g
- Special Features: Automatic Shut-off, Pressure Detection, Memory Function, Fast Inflation, Cordless Operation, LED Light (Illumination, Alarm, SOS)
9. Warranty and Support
The CARSUN Portable 150PSI Tire Inflator Air Compressor (Model T2199) comes with a 24-month warranty against manufacturing defects from the date of purchase.
For technical support, warranty claims, or any inquiries, please contact CARSUN customer support. We offer 24/7 customer support and lifetime technical assistance.
- Customer Support: Available 24/7
- Return Policy: 30-day unconditional return guarantee
- Technical Support: Lifetime technical support
