1. Introduction
This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your Breezestival 10x12 FT Outdoor Storage Shed. Please read all instructions carefully before beginning assembly or use. Retain this manual for future reference.
Safety Warnings
Always prioritize safety during assembly and use. This product includes safety warnings for proper assembly, usage, and handling of heavy components. Ensure all components are handled with care to prevent injury. Wear appropriate personal protective equipment, such as gloves and eye protection, during assembly.
Image 1.1: The Breezestival 10x12 FT Outdoor Storage Shed with its double doors open, situated on a patio in a garden.
2. Setup and Assembly
The Breezestival 10x12 FT Outdoor Storage Shed is designed for straightforward assembly. It is recommended that 3-4 adults complete the assembly process, which typically takes approximately 3 hours using basic tools. Refer to the detailed step-by-step manual included in your packaging for specific instructions and diagrams.
Site Preparation
- Select a level, stable surface for installation.
- Ensure adequate clearance around the shed for assembly and future access.
- Clear the area of any debris, rocks, or vegetation.
Component Identification
All panels are pre-drilled and numbered for easy identification. Before starting assembly, unpack all components and verify against the parts list provided in the separate assembly manual.

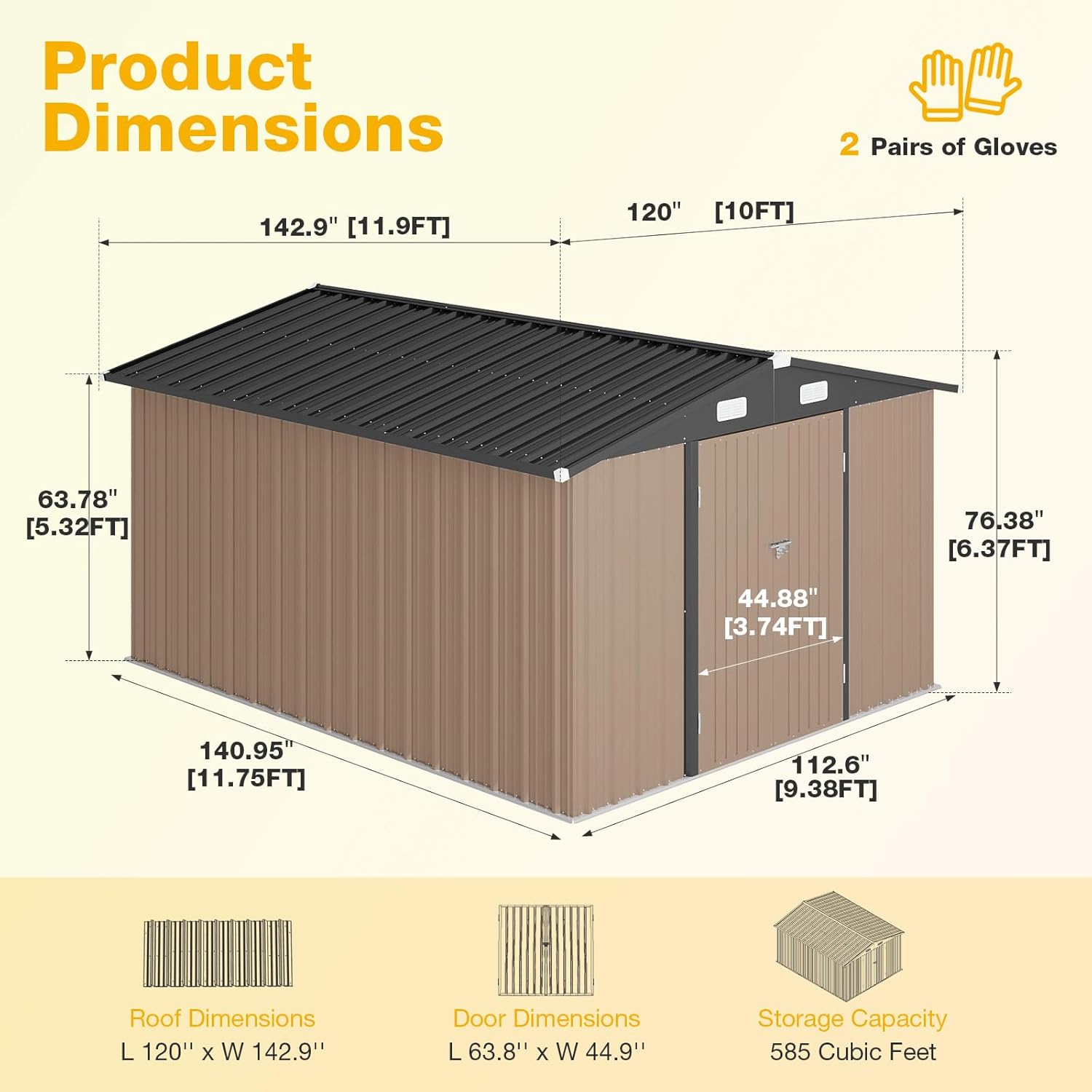

Image 2.1: Detailed product dimensions of the 10x12 FT storage shed, including roof, door, and overall measurements.
Image 2.2: An exploded view diagram highlighting the premium structural engineering framework, indicating increased compressive strength and wind resistance.
3. Operating Instructions
Door Operation and Security
The shed features lockable double doors for secure storage. To open, disengage the security door latch. To close, ensure both doors are properly aligned and engage the latch. A padlock (not included) can be used to further secure the doors.
Ventilation
Built-in ventilation vents are integrated into the shed design to reduce condensation and maintain air circulation, helping to keep stored items dry. Ensure these vents remain unobstructed for optimal performance.
Image 3.1: Detailed views of key shed components, including the four air vents for circulation and the security door latch for locking.

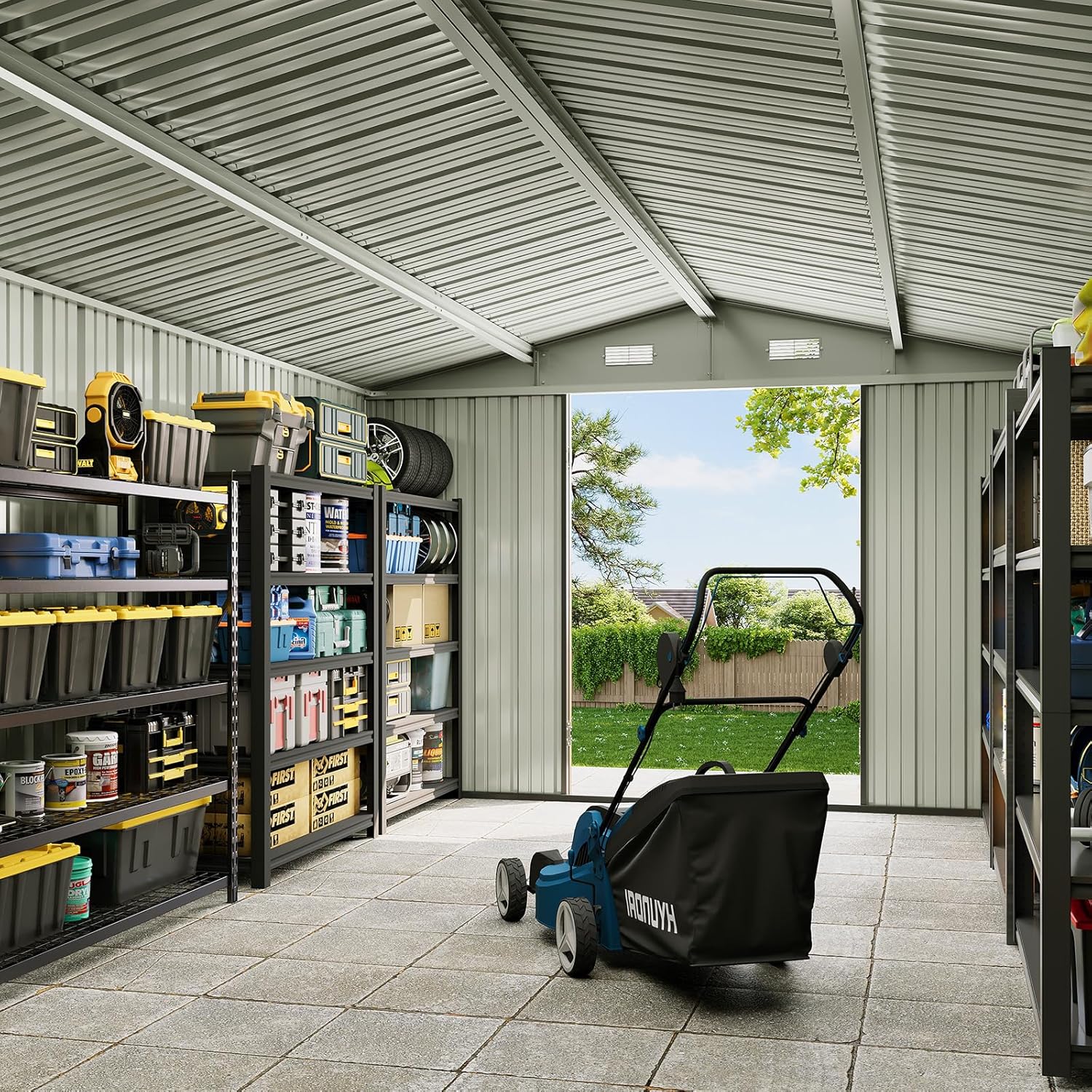

Image 3.2: The spacious interior of the shed, demonstrating its capacity for storing various tools and equipment, such as a lawnmower and items on shelving units.
4. Maintenance
Regular maintenance will extend the lifespan and preserve the appearance of your Breezestival storage shed.
Cleaning
- Clean the exterior surfaces periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
- Rinse thoroughly with clean water and allow to air dry.
- Keep the roof clear of excessive snow or debris to maintain its sloped design functionality and prevent pooling.
Inspection
- Periodically inspect all fasteners and connections to ensure they remain tight. Tighten as necessary.
- Check for any signs of wear, damage, or corrosion. Address any issues promptly to prevent further deterioration.
Image 4.1: The refined galvanized steel construction and the scratch protective film that should be removed during assembly to reveal the pristine surface.
Image 4.2: A visual comparison highlighting the durability and anti-corrosion properties of premium galvanized steel used in the shed, contrasting it with a rusted shed for long-term use.
5. Troubleshooting
This section addresses common issues you might encounter with your storage shed.
Condensation Inside the Shed
- Cause: Insufficient airflow or significant temperature differences between inside and outside.
- Solution: Ensure the built-in ventilation vents are clear of obstructions. Consider adding a moisture absorber if the problem persists in very humid environments.
Difficulty Closing Doors
- Cause: Uneven ground, misaligned panels, or debris in the door track.
- Solution: Verify the shed is on a level surface. Check for any loose fasteners or misaligned panels and adjust as needed. Clean the door tracks.
Water Accumulation on Roof
- Cause: Debris blocking the sloped roof design.
- Solution: Regularly clear leaves, snow, and other debris from the roof to allow proper water runoff.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Breezestival |
| Model Number | G37009BR20A-YF |
| Color | Green |
| Material | Galvanized Steel (Iron) |
| Item Weight | 235 Pounds |
| Style | Modern |
| Base Material | Alloy Steel |
| Top Material Type | Alloy Steel |
| Water Resistance Level | Waterproof |
| Frame Material | Metal |
| Door Style | French Doors |
| Assembly Required | Yes |
7. Warranty and Support
Warranty Information
For specific warranty details, please refer to the documentation included with your purchase or contact Breezestival customer service. Warranty terms typically cover manufacturing defects under normal use.
Customer Support
If you have any questions, require assistance with assembly, or encounter any product-related issues, please contact the Breezestival support team. Contact information can typically be found on the product packaging or the official Breezestival website.
