BrewVox 1500W Carbon Infrared Outdoor Patio Hanging Heater

1. Important Safety Information

Please read all instructions carefully before using this appliance. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• This heater is designed for both indoor and outdoor use. Ensure it is installed in a location protected from direct heavy rain or snow.
• Do not operate the heater with a damaged cord or plug, or after the heater malfunctions or has been dropped or damaged in any manner.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• Always unplug the heater when not in use.
• Ensure the power supply matches the voltage requirements of the heater (120V).
• This heater is IP-Rated for protection against water, dust, splashes, and wind.

2. Package Contents

Verify that all items are present upon unpacking:

• BrewVox 1500W Carbon Infrared Hanging Heater Unit
• Remote Control
• Mounting Chain and Carabiner
• Mounting Hardware (screws, anchors)
• Instruction Manual

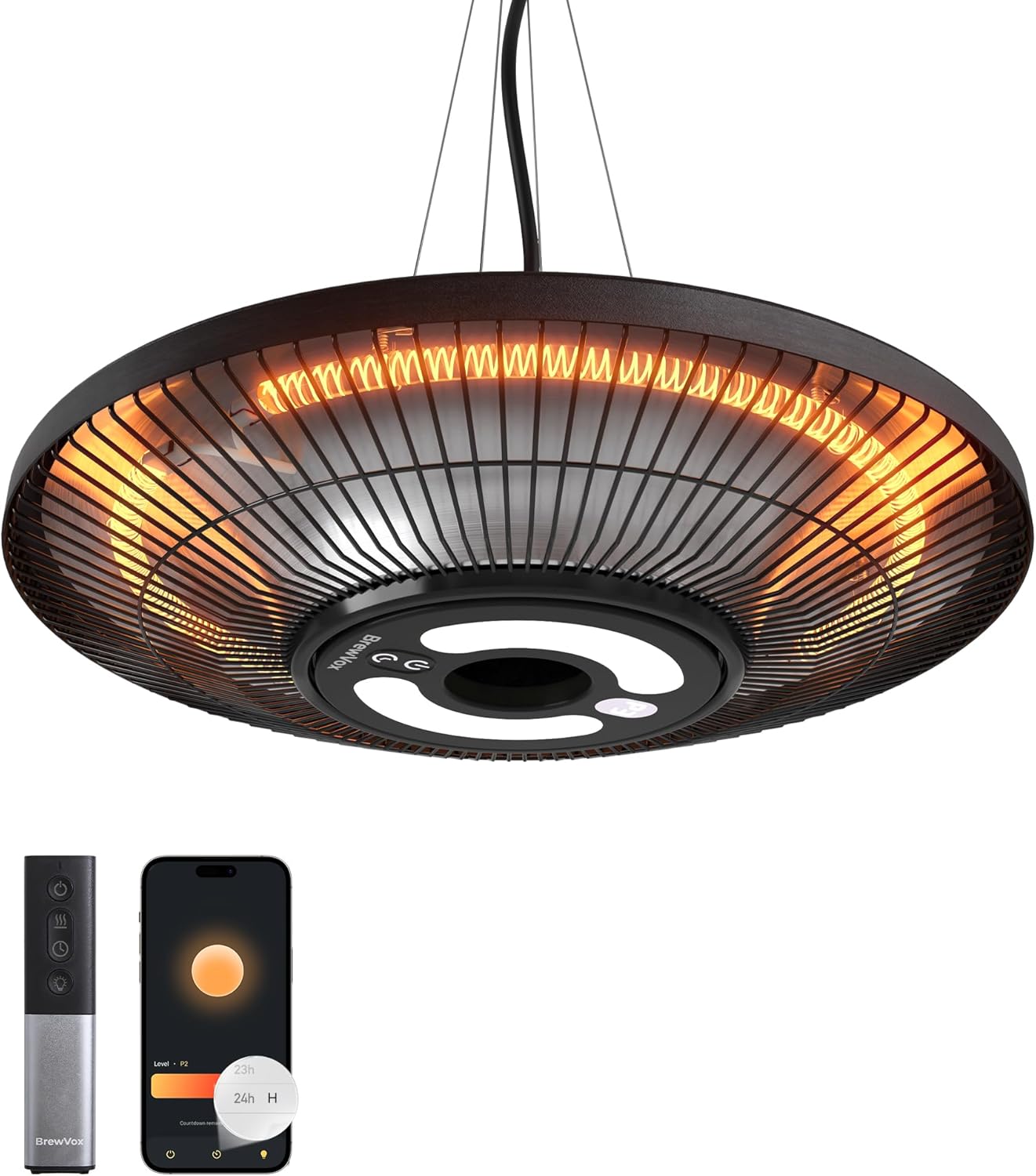

Image: The BrewVox hanging heater unit, remote control, and a smartphone displaying the control app.

3. Setup and Installation

The BrewVox hanging heater is designed for easy installation. Follow these steps:

1. Unpacking: Carefully remove the heater from its packaging. Ensure all internal packing materials, such as foam inserts protecting the heating elements, are removed before operation.
2. Mounting Location: Choose a suitable location for hanging the heater. Ensure the mounting surface is sturdy enough to support the heater's weight (approximately 8.18 pounds). The heater is suitable for ceiling mount in areas like patios, garages, or living rooms.
3. Attach Mounting Bracket: Secure the provided mounting bracket to your chosen surface using the appropriate hardware.
4. Hang the Heater: Attach the heater to the mounting bracket using the included chain and carabiner. Adjust the chain length to achieve your desired hanging height.
5. Power Connection: Plug the 7.5 ft power cord into a standard 120V electrical outlet.

Image: The heater showing its dimensions (16.5"D x 4.5"W x 4.5"H) and highlighting its 7.5 ft power cable, weatherproof design (IP25), and internal heat shield.

Installation Video

Video: Demonstrates the installation process and quick heating capabilities of a 1500W electric hanging patio heater.

4. Operating Instructions

The BrewVox heater offers multiple control options for convenience.

Power On/Off and Heat Settings

The heater features advanced carbon heating technology for instant warmth (1-3 seconds) and up to 95% radiant efficiency. It provides a soft, low-glare glow.

• Pull Cord: The heater can be turned on/off and cycle through heat settings (P1, P2, P3) by pulling the cord located on the unit.
• Remote Control: Use the included remote control to power the unit on/off, adjust heat levels, and control the LED light.
• Heat Levels: The heater offers three power levels:
  • Level 1: Left Zone (750W)
  • Level 2: Right Zone (750W)
  • Level 3: Dual Zone (1500W)

Image: Illustration of the Eco Dual-Zone Infrared Heater's three power levels: 750W for the left zone, 750W for the right zone, and 1500W for both zones combined.

LED Light and Display

The heater includes a built-in LED night light and a clear digital display.

• LED Light: Provides convenient illumination and can be controlled remotely via the remote or app.
• Display: Shows the current heat level and timer settings at a glance.

Image: Close-up of the heater's base, illustrating the LED light and display with icons for On/Off, Night Light, and Level/Timer settings.

Operation Videos

Video: Overview of a ceiling patio heater, demonstrating its features and operation.

Video: Highlights the features and remote control functionality of a hanging patio heater.

Video: A short demonstration of a 1500W outdoor hanging heater in operation.

5. Smart App Control

Control your BrewVox heater conveniently from your smartphone.

• Download App: Download the compatible smart app to your mobile device.
• Pair Device: Follow the in-app instructions to pair your heater with your smartphone.
• Remote Operation: Use the app to turn the heater on/off, set your preferred warmth level, and activate the 24-hour timer for automatic shut-off. This allows you to pre-heat your space before arrival for maximum comfort and energy savings.

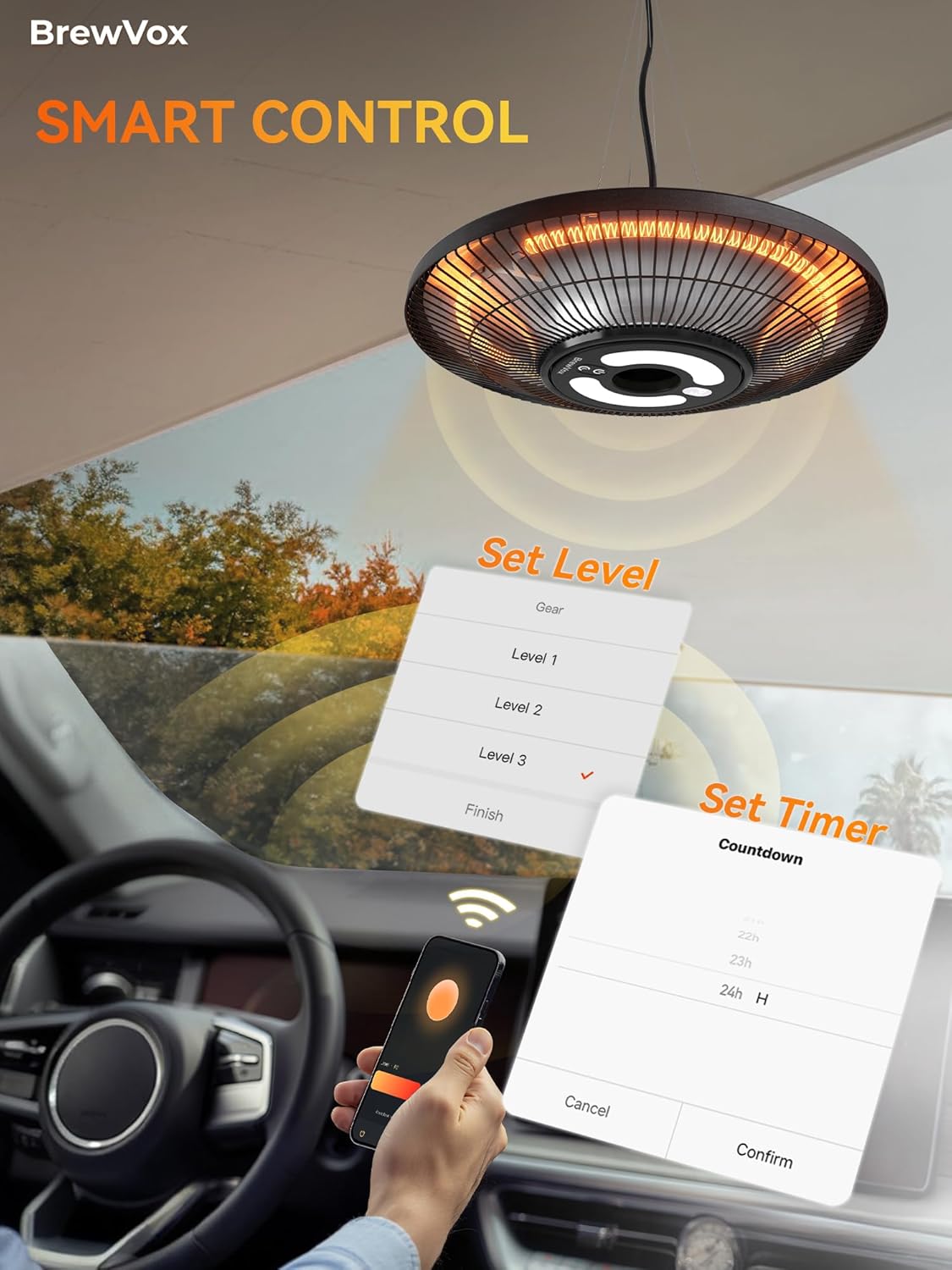

Image: A person using a smartphone app to control the hanging heater from inside a car, demonstrating smart control functionality.

App Control Video

Video: A brief demonstration of the smart app control features for the heater.

6. Maintenance

To ensure optimal performance and longevity of your BrewVox heater, follow these maintenance guidelines:

• Cleaning: Ensure the heater is unplugged and completely cool before cleaning. Use a soft, damp cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Storage: During off-season or extended periods of non-use, store the heater in a cool, dry place.
• Inspection: Periodically inspect the power cord and plug for any signs of damage. If damage is found, discontinue use and contact customer support.

7. Troubleshooting

If you encounter issues with your BrewVox heater, refer to the following common solutions:

• Heater not turning on: Check if the power cord is securely plugged into a working outlet. Ensure the main power switch on the unit is in the 'On' position.
• No heat output: Verify that a heat level (P1, P2, or P3) is selected. Allow a few seconds for the carbon heating elements to reach full temperature.
• Remote control not working: Check and replace the batteries in the remote control. Ensure there are no obstructions between the remote and the heater's sensor.
• App connectivity issues: Ensure your smartphone's Wi-Fi is enabled and connected to the same network as the heater. Restart the app and/or the heater if necessary.

If problems persist after attempting these steps, please contact BrewVox customer support.

8. Specifications

9. Warranty and Support

Your satisfaction is our top priority. BrewVox offers hassle-free support for its products.

If you encounter any issues while using the BrewVox 1500W Carbon Infrared Outdoor Patio Hanging Heater, please do not hesitate to contact our professional customer support team. We are dedicated to resolving any problems and ensuring you have the best possible experience.

For support, please refer to the contact information provided on your product packaging or the official BrewVox website.
