YESERLI Electric Patio Heater (Model Q2580) - Instruction Manual

1. Product Overview

The YESERLI Electric Patio Heater (Model Q2580) is a versatile 1500W carbon infrared heater designed for both indoor and outdoor use. It features efficient far-infrared heating technology, providing instant warmth in approximately 2 seconds. The heater offers 3 heat settings (500W, 1000W, 1500W) and can be controlled via an included remote or intuitive touch screen. Engineered for quiet operation, it includes a smart 24-hour programmable timer and is built with an IP65 waterproof rating, making it resistant to rain, snow, sand, and dust. Safety features include a master power switch and automatic overheat shut-off.

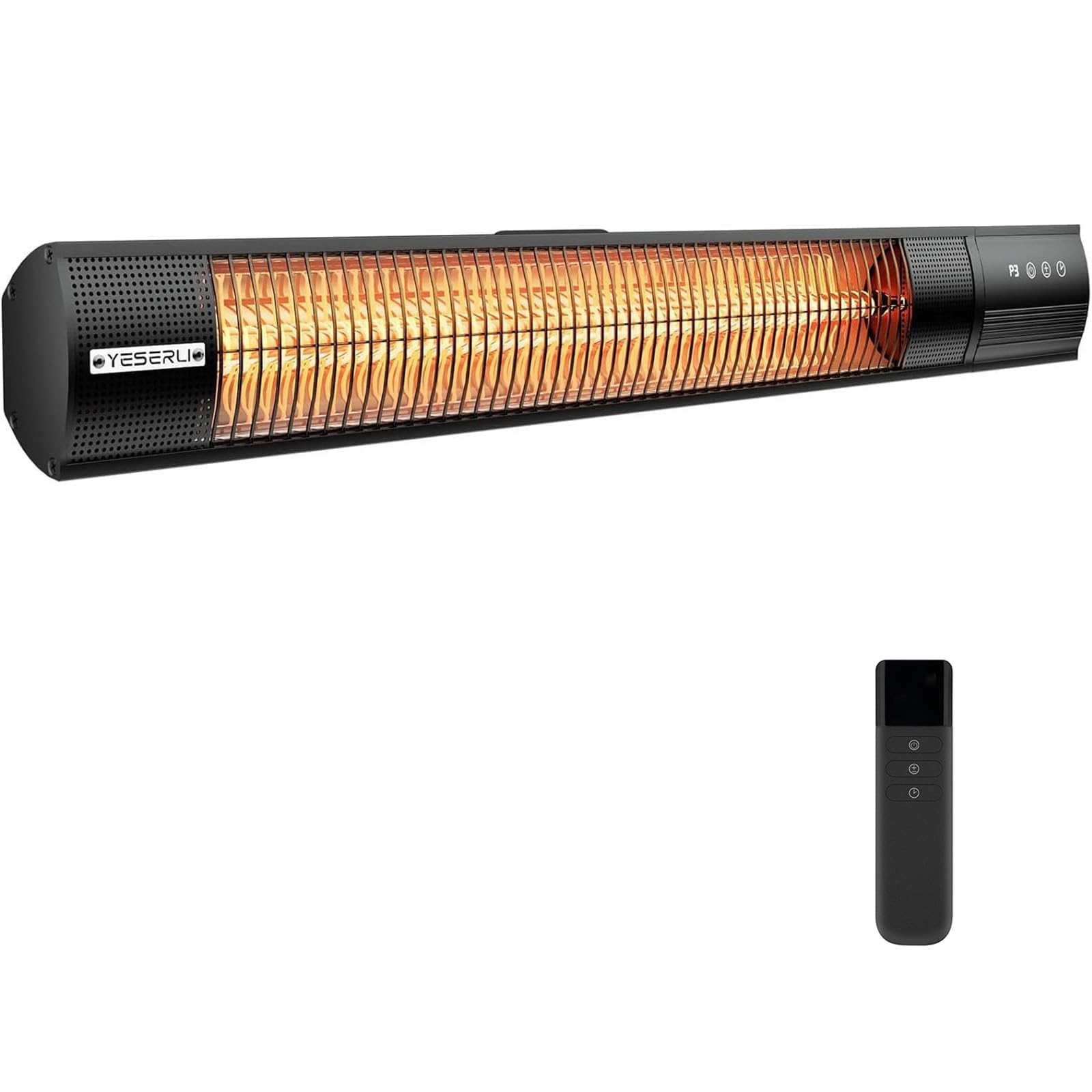

Image: YESERLI Electric Patio Heater demonstrating wide angle heat dissipation from its high-quality carbon fiber tube, with icons for 3S Fast Heating.

2. Important Safety Information

WARNING: Always ensure the master power switch is open before using the heater. This product is equipped with safety features to minimize hazards.

• The outdoor heater has a master power switch.
• It will automatically shut off when the unit overheats, significantly reducing the possibility of a fire hazard.
• The heater is IP65 waterproof and all-weather resistant, built to withstand rain, snow, sand, and dust.
• Ensure proper installation to prevent accidental tipping or damage.
• Keep flammable materials away from the heater.

Image: YESERLI Electric Patio Heater with a shield icon, illustrating safety features such as overheat protection, IP65 waterproof rating, V0 flame retardant, and SGS certification.

3. Setup and Installation

The YESERLI Electric Patio Heater is designed for easy wall or ceiling mounting. Follow these steps for secure installation:

1. Prepare Mounting Surface: Choose a suitable location on a wall or ceiling. Ensure the surface is sturdy enough to support the heater's weight (4.8 pounds).
2. Mark Drill Points: Use the provided fixed clip as a template to mark the locations for the four mounting holes. Ensure the bracket is level.
3. Drill Holes: Use an impact drill to create four holes at the marked points.
4. Insert Wall Anchors: Insert the four plastic wall anchors into the drilled holes.
5. Secure Fixed Clip: Secure the fixed clip to the wall using the four ST4x30 screws, ensuring it is firmly fixed.
6. Attach Wall-Mount Bracket: Insert the wall-mount bracket into the fixed clip.
7. Secure Heater: Tighten the knob to secure the heater to the bracket.
8. Adjust Angle: Adjust the heater to the desired angle (up to 45 degrees) and then tighten the knobs to lock it in place.
9. Plug In: Once securely mounted, plug the heater into a suitable 120V AC power outlet.

Image: Step-by-step diagram illustrating the installation process for the YESERLI Electric Patio Heater, including marking, drilling, inserting bolts, and mounting the heater on a wall.

4. Operating Instructions

The heater can be operated using the intuitive touch screen controls on the unit or the included remote control.

4.1 Power On/Off

• Ensure the master power switch on the side of the unit is in the 'ON' position.
• Press the power button on the unit's touch screen or the remote control to turn the heater on or off. The digital display will show 'P0' when in standby.

4.2 Adjusting Heat Settings

The heater has 3 power modes:

• P1: 500W (Low Heat)
• P2: 1000W (Medium Heat)
• P3: 1500W (High Heat)

Use the '+' or '-' buttons on the remote or the corresponding icons on the touch screen to cycle through the power levels (P1, P2, P3).

Image: Visual representation of the three heat modes (P1: 500W Low Heat, P2: 1000W Medium Heat, P3: 1500W High Heat) of the YESERLI Electric Patio Heater.

4.3 Setting the Timer

The smart 24-hour programmable timer allows you to set an auto-off time.

• Press the timer button on the remote or the unit's touch screen.
• The display will flash, indicating the timer setting mode.
• Use the '+' or '-' buttons to adjust the desired number of hours (up to 24 hours).
• Once confirmed, the timer will activate, and the heater will automatically turn off after the set duration.

Image: YESERLI Electric Patio Heater displaying its digital panel, silent operation, and 24-hour built-in timer feature, suitable for use in a bedroom setting.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your heater.

• Cleaning: Before cleaning, always turn off the heater, unplug it from the power source, and allow it to cool completely. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
• Inspection: Periodically inspect the power cord and plug for any signs of damage. If any damage is found, discontinue use and contact customer support.
• Storage: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.

6. Troubleshooting

If you encounter issues with your YESERLI Electric Patio Heater, refer to the following common troubleshooting steps:

• Heater Not Turning On:
  • Check if the master power switch is in the 'ON' position.
  • Ensure the power cord is securely plugged into a working 120V outlet.
  • Verify that the circuit breaker has not tripped.
• No Heat Output:
  • Confirm that the heater is powered on and not in standby mode ('P0').
  • Check the heat setting (P1, P2, or P3) and increase if necessary.
  • If the unit has overheated, it may have automatically shut off. Allow it to cool down before attempting to restart.
• Remote Control Not Working:
  • Ensure there are no obstructions between the remote and the heater.
  • Check and replace the remote control batteries if needed.

For further assistance, please contact customer support.

7. Specifications

8. Warranty and Support

YESERLI is dedicated to creating high-quality, durable, and safe heaters. Our products combine rapid heating technology with weather-resistant materials, ensuring instant warmth and long-lasting performance.

For any questions, technical support, or warranty claims, please refer to the contact information provided in your product packaging or visit the official YESERLI website. We offer 24/7 customer service for fast solutions and friendly support.
