Nitecore NB Plus 10000mAh Power Bank Instruction Manual

1. Product Overview

The Nitecore NB Plus is a waterproof, competition-grade energy bar designed for portability and durability. It offers a 10000mAh capacity with a maximum 22.5W output, making it a reliable power source for various electronic devices during outdoor activities.

Key Features:

• High Capacity: 10000mAh built-in high-density Li-ion battery.
• Fast Charging: Max 22.5W output and 18W input via USB-C.
• Waterproof: IPX7 rated for protection against water immersion.
• Lightweight Design: Weighs only 155g (5.47 oz) for ultimate portability.
• Dual Ports: Equipped with both USB-A and USB-C for versatile charging.
• Durable Construction: Features double-sided carbon fiber sheets and a composite anti-torsion structure.
• Advanced Safety: Microcontroller Unit (MCU) and Dual NTC Thermistors for precision temperature control and multiple protection mechanisms.

Figure 1: Nitecore NB Plus 10000mAh Power Bank.

Figure 2: The Nitecore NB Plus fits easily into a pocket, demonstrating its lightweight 155g design.

2. Detailed Features

2.1 High Energy Density

The NB Plus incorporates a built-in 10,000mAh high-density and high-capacity Li-ion battery, boasting an energy density of up to 300mWh/g. This ensures sufficient power for smartphones, headlamps, and other devices, even during extended activities like 100km or 100-mile trail races.

Figure 3: High energy density of the NB Plus battery.

2.2 Durable Construction

Constructed with double-sided carbon fiber sheets and a lightweight composite frame, the NB Plus is designed for resilience. Its self-developed composite anti-torsion structure, combined with four rounded corners, effectively reduces abrasion and impact, providing a comfortable grip and ensuring durability for active users.

Figure 4: Internal structure with carbon fiber sheets and composite frame.

Figure 5: The composite anti-torsion structure enhances durability.

Figure 6: Rounded corners design for improved grip and impact resistance.

2.3 Waterproof Design (IPX7)

The NB Plus is IPX7 rated, signifying its ability to withstand immersion in water up to 1 meter for 30 minutes. This makes it suitable for use in various outdoor conditions, including heavy rain or accidental splashes. The internally reinforced waterproofing technology, combined with the Touch Button and multiple waterproof protections, ensures reliability. Note: This product is not designed for underwater use. Please dry it thoroughly before use in case of accidental drops into water.

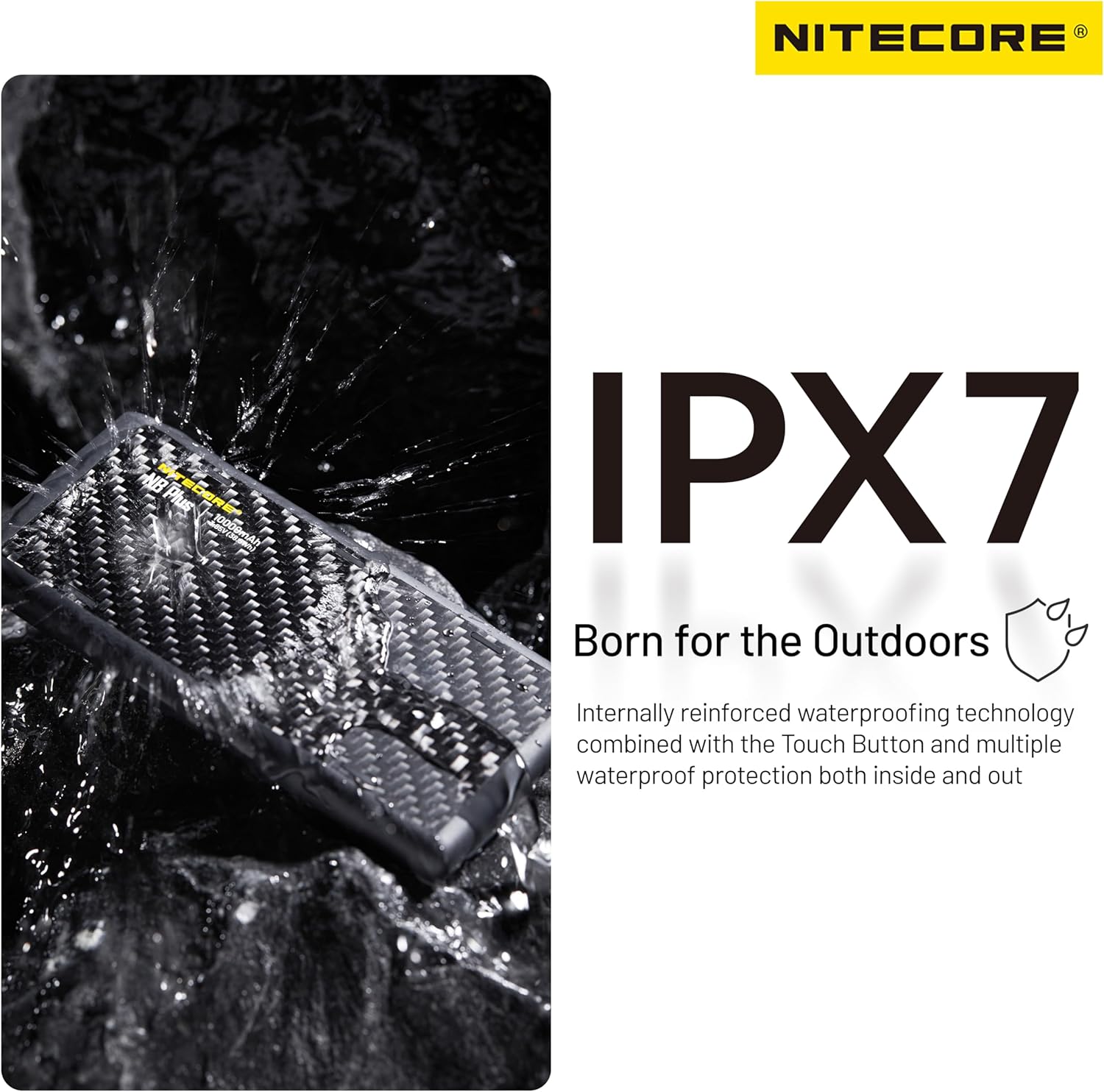

Figure 7: IPX7 waterproof rating for outdoor reliability.

2.4 Enhanced Performance & Efficient Power

The power bank features both USB-A and USB-C ports, allowing for simultaneous charging and discharging. The USB-C port supports a maximum output of 22.5W and a maximum input of 18W. It also supports Two-way PD (Power Delivery), QC 3.0 Output, and SCP (SuperCharge Protocol) to power various mainstream electronic devices efficiently.

Figure 8: USB-A and USB-C ports with power specifications.

2.5 Safety Features

The NB Plus is equipped with a Microcontroller Unit (MCU) and Dual NTC Thermistors for precision temperature control. This system provides comprehensive protection, including intelligent thermal protection, iTouch Button protection, optimized charge/discharge efficiency, overcurrent protection, short-circuit protection, over-discharge protection, accurate power indication, overcharge protection, and overvoltage protection. It is designed to operate safely in temperatures between -10°C and 35°C (14°F and 95°F).

Figure 9: MCU and Dual NTC Thermistors for advanced safety and temperature control.

3. Setup

3.1 Initial Charge:

1. Connect the Nitecore NB Plus to a power source (e.g., wall adapter, computer USB port) using a compatible USB-C cable.
2. The blue indicator lights on the power bank will flash to show the charging status. All four lights will remain solid when the power bank is fully charged.

3.2 Checking Battery Level:

• Briefly press the power button located on the side of the power bank. The blue indicator lights will illuminate, showing the current battery level. Each light typically represents approximately 25% of the battery capacity.

4. Operating Instructions

4.1 Charging External Devices:

1. Connect your external device (e.g., smartphone, tablet, headlamp) to the NB Plus using a compatible USB-A or USB-C cable.
2. The NB Plus will automatically detect the connected device and begin charging. The indicator lights will show the remaining power of the power bank.
3. The USB-C port functions as both an input and an output, supporting up to 22.5W output. The USB-A port is output-only, also supporting up to 22.5W output.

4.2 Simultaneous Charging and Discharging:

The Nitecore NB Plus supports pass-through charging, meaning it can be recharged itself while simultaneously providing power to an external device. This feature allows for continuous power management.

5. Maintenance

5.1 Cleaning:

To clean the NB Plus, gently wipe its surface with a soft, dry cloth. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the device's finish or internal components.

5.2 Water Exposure:

While the NB Plus is IPX7 waterproof, it is crucial to ensure all ports (USB-A and USB-C) are completely dry before connecting any cables or attempting to charge the device or external devices. Water in the ports can cause short circuits or damage.

5.3 Storage:

Store the power bank in a cool, dry environment, away from direct sunlight, high temperatures, and high humidity. For prolonged storage periods, it is recommended to charge the device to approximately 50% capacity every three months to maintain battery health and extend its lifespan.

6. Troubleshooting

6.1 Device Not Charging:

• Check Power Bank Charge: Ensure the Nitecore NB Plus has sufficient charge by pressing the power button and observing the indicator lights.
• Cable Connection: Verify that the charging cable is securely connected to both the power bank and the external device.
• Try Different Cable/Port: Test with a different charging cable or try using the other available port on the power bank.
• Device Compatibility: Confirm that your external device is compatible with the power bank's output specifications (voltage and current).

6.2 Slow Charging:

• Cable Quality: Ensure you are using a high-quality cable that supports fast charging protocols (PD, QC 3.0, SCP).
• Device Support: Confirm that your external device supports fast charging. Older devices may charge at a slower rate.
• Environmental Factors: Extreme temperatures (very hot or very cold) can affect charging efficiency. Use the power bank within its recommended operating temperature range.

7. Specifications

8. Warranty and Support

8.1 Warranty Information:

For detailed information regarding the warranty period and terms for your Nitecore NB Plus power bank, please refer to the official Nitecore website or the warranty card included with your product. Keep your proof of purchase for warranty claims.

8.2 Customer Support:

Should you encounter any issues, have questions about product functionality, or require technical assistance, please contact Nitecore customer support. Contact details can typically be found on the official Nitecore website or in the product packaging.
