1. Introduction
Thank you for choosing the BOMOVA Electric Food Warming Mat. This appliance is designed to keep your food warm for extended periods, making it ideal for gatherings, parties, or daily use. Please read this manual thoroughly before operating the device to ensure safe and efficient use. Keep this manual for future reference.
The BOMOVA Electric Food Warming Mat, designed to keep multiple dishes warm simultaneously.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical hazards, do not immerse the cord, plugs, or the appliance itself in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
- Do not use the appliance for other than intended use.
- Surface Compatibility: The food warming mat can be used on heat-resistant surfaces such as stainless steel, solid wood, and tiles. Avoid direct use on heat-sensitive surfaces like marble, granite, quartz, or thick glass. If used on stone/quartz surfaces, always place a heat-resistant mat or warm towel underneath for preheating protection.
- Ensure the mat is placed on a stable, flat surface during operation.
3. Product Overview
3.1 Components
- BOMOVA Electric Food Warming Mat (35"x16")
- Detachable Power Cord (6.1 ft)
- Silicone Straps (for rolling and storage)
- Storage Bag
- User Manual
The product package includes the warming mat, two silicone straps for rolling, a storage bag, the power cord, and this user manual.
3.2 Control Panel
The control panel features buttons for adjusting temperature (9 levels from 104°F to 248°F), setting the timer (1-6 hours), and activating the child lock.
- Power Button: Turns the mat on/off.
- Temperature Adjustment Buttons (+/-): Increases or decreases the heating level.
- Timer Button: Cycles through timer settings.
- Child Lock Button: Activates/deactivates the child lock function.
- Digital Display: Shows current temperature or timer setting.
4. Setup
- Unpack: Carefully remove the warming mat and all accessories from the packaging.
- Placement: Place the warming mat on a clean, dry, and heat-resistant surface. Ensure there is adequate space around the mat for proper ventilation.
- Connect Power: Connect the detachable power cord to the mat's power inlet. Ensure it is fully plugged in and stable. Then, plug the power cord into a standard electrical outlet.
The power cord connects securely via an inner buckle design, ensuring a stable connection during use.
This image illustrates the dimensions of the warming mat, measuring approximately 35 inches by 16 inches, and highlights its detachable 6.1 ft power cable for convenience.
5. Operating Instructions
5.1 Power On/Off
- To turn on the mat, press the Power Button once. The digital display will illuminate.
- To turn off the mat, press the Power Button again.
5.2 Temperature Adjustment
The warming mat offers 9 heating levels, ranging from 104°F (40°C) to 248°F (120°C).
- After powering on, use the '+' and '-' buttons to select your desired temperature.
- The digital display will show the current temperature setting.

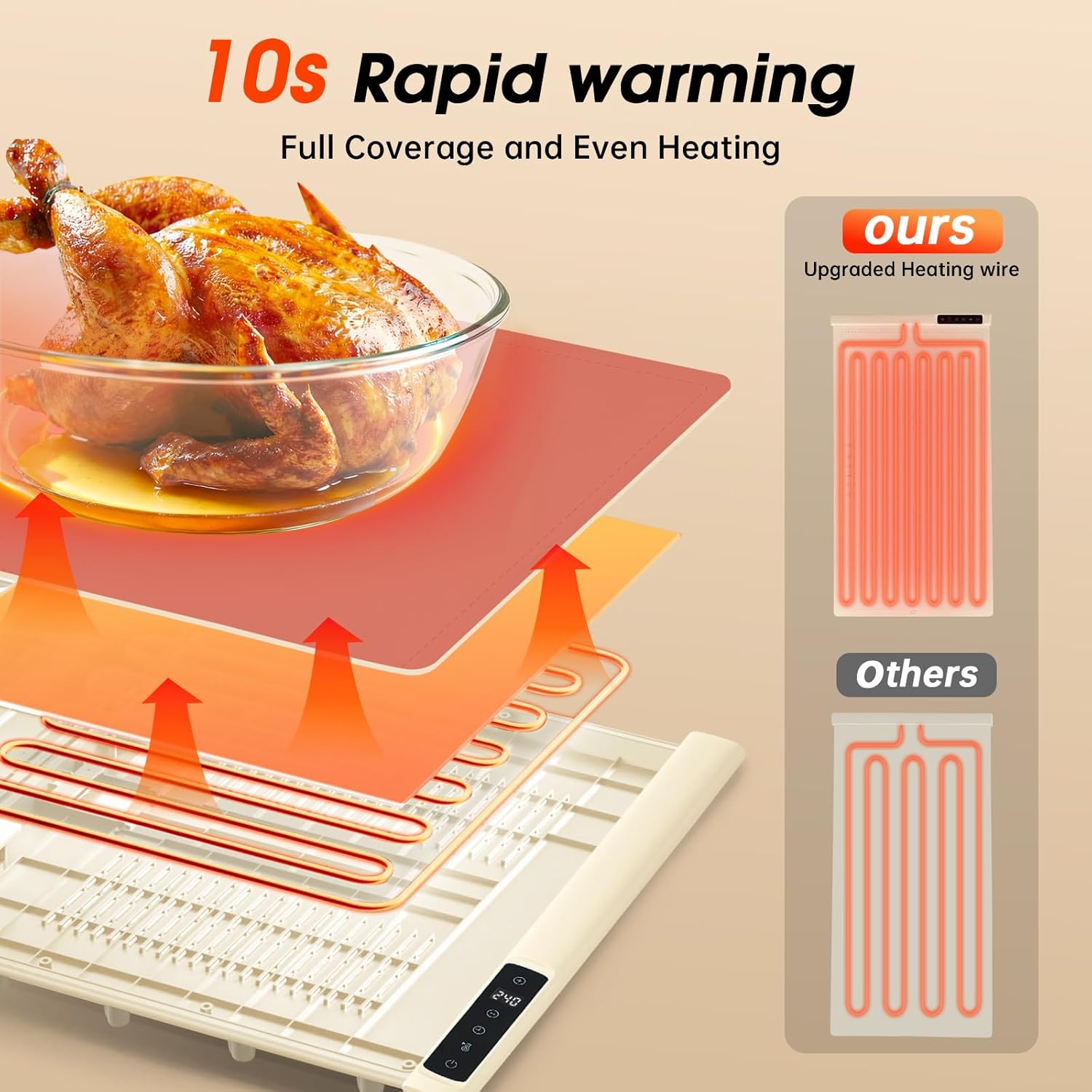

An internal view demonstrating the high-density heating wires that provide rapid and even heat distribution across the mat surface within 10 seconds.
5.3 Timer Settings
The mat features 6 timer settings, allowing you to set the operation duration from 1 to 6 hours.
- Press the Timer Button to cycle through the available timer options (1H, 2H, 3H, 4H, 5H, 6H).
- The selected timer duration will be displayed. The mat will automatically turn off once the set time has elapsed.
5.4 Child Lock Function
The child lock prevents accidental changes to settings during operation.
- To activate the child lock, press and hold the Power Button for 3 seconds. The screen will display "LOC".
- To deactivate the child lock, press and hold the Power Button again until the screen shows "OFF".
To activate the child lock, press and hold the power button for 3 seconds until 'LOC' appears on the display. Repeat to deactivate.
The smart digital control panel allows for easy operation. Press the power button to turn on/off. Hold for 3 seconds to lock or unlock the controls, indicated by 'LOC' or 'OFF' on the display.
5.5 Compatible Cookware
The warming mat is designed to work with a wide variety of heat-safe cookware.
- Suitable for: Milk bottles, enamelware, tin foil boxes, glass dishes, baking dishes, stainless steel pots, frying pans, and ceramic plates.
- Ensure cookware is heat-resistant and has a flat bottom for optimal contact with the mat.
The mat features a food-safe silicone surface compatible with a wide range of cookware, including milk bottles, enamelware, tin foil boxes, glass, baking dishes, stainless steel, and frying pans.
6. Care and Maintenance
6.1 Cleaning
- Always unplug the mat from the power outlet and allow it to cool completely before cleaning.
- Wipe the surface of the mat with a damp cloth. For stubborn stains, a mild detergent can be used.
- Do not immerse the mat or its power cord in water or any other liquid.
- Ensure the mat is completely dry before storing or reusing.
The silicone surface is designed for easy cleaning. Simply wipe it down with a damp cloth. It is odorless and resistant to stains and oil.
6.2 Storage
- Once clean and dry, roll up the mat using the provided silicone straps.
- Place the rolled mat into the storage bag.
- Store in a cool, dry place away from direct sunlight and moisture.
The flexible design allows the mat to be rolled up for compact storage in drawers or cabinets, saving space.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mat does not turn on. | No power supply. Power cord not properly connected. | Ensure the power cord is securely plugged into both the mat and a working electrical outlet. Check the circuit breaker. |
| Mat is not heating. | Temperature setting is too low. Child lock is active. | Increase the temperature setting. Deactivate the child lock by holding the power button for 3 seconds. |
| Controls are unresponsive. | Child lock is active. | Deactivate the child lock by holding the power button for 3 seconds. |
| Food is not staying warm enough. | Temperature setting is too low. Cookware is not suitable. | Increase the temperature setting. Ensure cookware is heat-safe and has a flat bottom for efficient heat transfer. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | 35x16 |
| Brand | BOMOVA |
| Mat Dimensions | Approx. 35 inches x 16 inches |
| Material | Silicone |
| Color | Beige |
| Power | 500W |
| Temperature Range | 104°F - 248°F (9 levels) |
| Timer Settings | 1-6 hours |
| Item Weight | 5.19 pounds |
| UPC | 649310052141 |
| ASIN | B0FM8B5WLM |
The mat's underside features a 15mm lifted design to ensure proper airflow and protect countertops from direct heat.
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact BOMOVA customer service directly. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the BOMOVA Store: BOMOVA Store on Amazon
