Aobabo 2-Drawer Lateral File Cabinet Instruction Manual

1. Introduction

Thank you for choosing the Aobabo 2-Drawer Lateral File Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new filing cabinet. Please read all instructions carefully before assembly and retain this manual for future reference.

This all-steel lateral file cabinet is designed for stability and durability, featuring a corrosion and stain-resistant powder coat finish. It includes two deep and spacious drawers with adjustable bars to accommodate both Letter and Legal size files, ensuring your documents remain organized. The cabinet is equipped with wheels for easy mobility and a lockable mechanism for security.

2. Safety Information

• Always assemble the product on a soft, clean surface to prevent scratches.
• Ensure all parts are securely fastened before use.
• To prevent tipping, open only one drawer at a time. The cabinet is designed with an interlock system to prevent both drawers from opening simultaneously.
• Utilize the provided anti-tipping strap and expansion screws to fix the cabinet to a wall for enhanced stability, especially in households with children or pets.
• Do not overload drawers beyond the recommended weight limit of 220 pounds.
• Keep small parts and packaging materials away from children to prevent choking hazards.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer service.

4. Assembly Instructions

Assembly is required for this product. Please follow the steps below carefully. An assembly video is also provided for visual guidance.

4.1. Watch the Assembly Video

For a detailed visual guide, please watch the official product installation video:

4.2. Step-by-Step Assembly Guide

1. Prepare the Base: Attach the bottom support bars to the side panels using the provided screws. Ensure all connections are secure.
2. Install Casters: Securely attach the four lockable casters to the bottom of the cabinet frame. Ensure they are tightened to allow for smooth rotation and locking.
3. Assemble the Cabinet Frame: Connect the back panels to the side panels and bottom supports. Use the appropriate screws to create a sturdy frame.
4. Attach the Top Panel: Carefully place the top panel onto the assembled frame, aligning the screw holes. Secure it with screws.
5. Assemble the Drawers: Fold the metal drawer buckets and insert the drawer back panels. Secure these components with screws.
6. Install Hanging Bars: Place the adjustable hanging bars inside each drawer bucket. These can be repositioned to fit Letter or Legal size files.
7. Insert Drawers: Carefully slide each assembled drawer into the pre-installed drawer slides on the cabinet frame. Ensure they glide smoothly.
8. Install Anti-Tipping Mechanism: Attach the anti-tipping strap to the rear of the cabinet using the provided screws and nuts. Secure the other end of the strap to a wall stud using the expansion screws to prevent accidental tipping.

5. Operating Instructions

5.1. Using the Drawers

The cabinet features two deep and spacious drawers designed for efficient file storage. Each drawer is equipped with adjustable bars to accommodate both Letter and Legal size hanging files. To adjust the bars, simply lift and reposition them along the designated slots within the drawer.

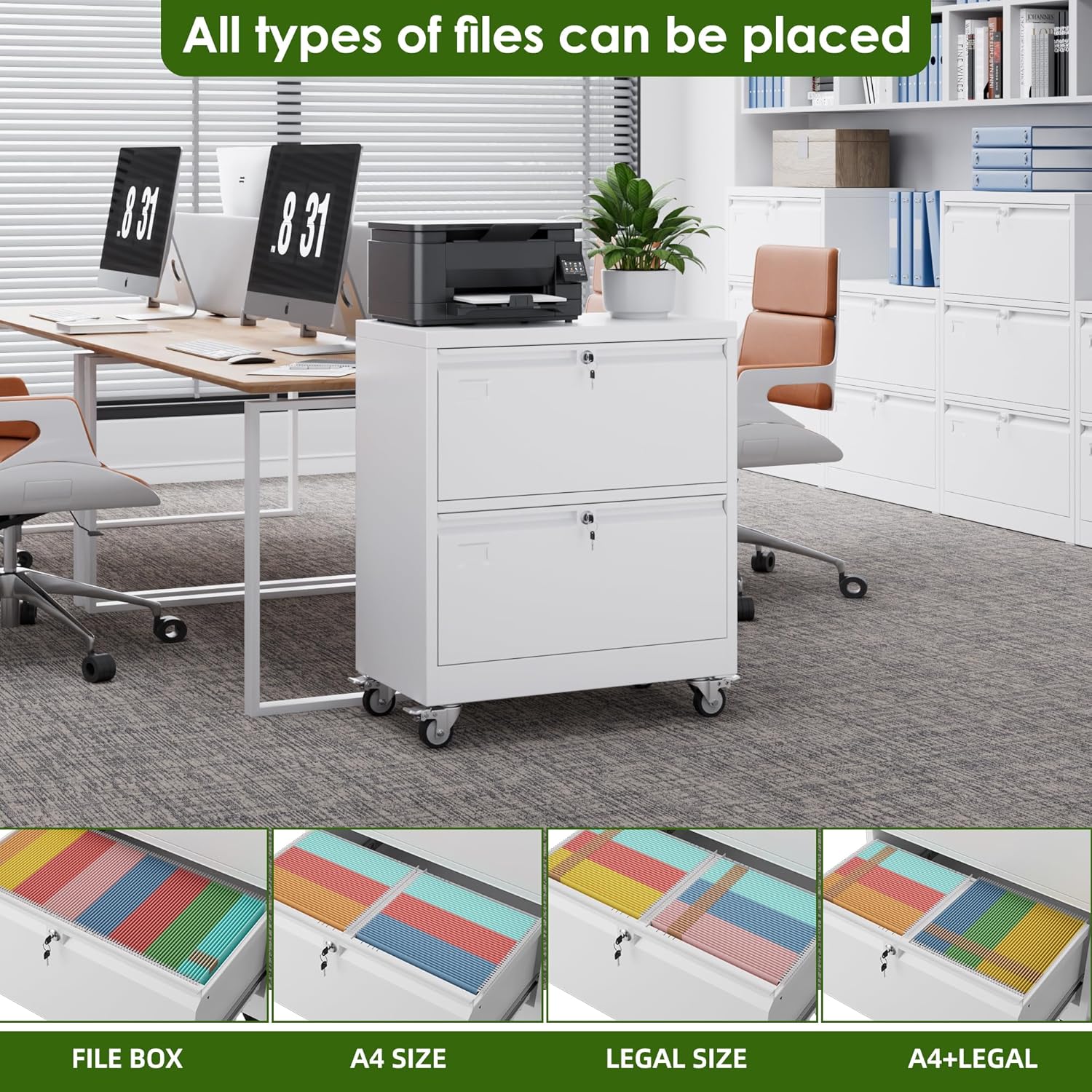

The drawers can accommodate various file types and sizes, including file boxes, A4, and legal documents.

5.2. Locking Mechanism

The cabinet is equipped with a central locking system that secures both drawers simultaneously. Insert one of the provided keys into the lock located on the top drawer and turn to lock or unlock. Each cabinet comes with 2 keys for convenience and security.

Detail of the independent lock with two keys, ensuring the security of your documents.

5.3. Mobility

The cabinet features four 360° rotating lockable wheels. To move the cabinet, unlock the wheels. To keep the cabinet stationary, engage the locks on the wheels.

6. Maintenance

Due to its metal surface, the Aobabo file cabinet is easy to clean and maintain. Simply wipe it down with a damp cloth or a mild cleaning agent. Avoid abrasive cleaners that could damage the powder-coated finish.

7. Troubleshooting

If you encounter any issues during assembly or operation, please refer to the following common solutions:

• Difficulty with Screws: If screws are hard to insert, ensure proper alignment of parts. A magnetized screwdriver can be helpful. Do not overtighten.
• Locking Mechanism Issues: Ensure the lock is properly aligned and the key is fully inserted before turning. If drawers are not locking, check for any obstructions.
• Drawers Not Sliding Smoothly: Verify that the drawer slides are correctly installed and free from debris. Apply a small amount of silicone lubricant if necessary.
• Cabinet Instability: Double-check that all screws are tightened. Ensure the anti-tipping strap is securely fastened to both the cabinet and the wall.

If problems persist, please contact customer service for assistance.

8. Specifications

Product dimensions and internal drawer measurements for planning your space and storage.

9. Warranty & Support

Aobabo is committed to providing quality products and excellent customer service. If you encounter any problems after receiving your product, such as damages, lost packages, or missing accessories, please do not hesitate to contact us. We will do our best to help you solve the problem promptly.

For support, please refer to the contact information provided with your purchase or visit the Aobabo store on Amazon.
