Cuilvu 1 HP Electric Motor Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Cuilvu 1 HP Electric Motor. This general-purpose single-phase motor is designed for various applications requiring 3450 RPM, 115/230V power, and features a 56C frame with TEFC (Totally Enclosed Fan Cooled) enclosure. Please read this manual thoroughly before installation and use.

Key Features:

• Horsepower: 1 HP
• Poles: 2
• Frame: 56C
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• IP Rating: 55
• Rotation: CW/CCW (Clockwise/Counter-Clockwise)
• Shaft Diameter: 5/8"
• Shaft Length: 1.88"
• Housing Material: Rolled steel shell
• Frequency: 60Hz
• Voltage: 115V/230V
• Amperage: 11.2A (115V) / 5.6A (230V)
• RPM: 3450

2. Safety Information

WARNING: Electrical shock hazard. Always disconnect power before servicing or installing the motor.

• Ensure all wiring is performed by a qualified electrician and complies with local electrical codes.
• Verify that the power supply voltage and frequency match the motor's specifications.
• The circuit breaker current should be at least three times the rated current of the electric motor to allow for normal starting without exceeding load limits.
• Do not attempt to convert single-phase motors to three-phase operation using a Variable Frequency Drive (VFD) unless you are a professional electrician, as this can lead to unpredictable problems and is not recommended.
• Always wear appropriate personal protective equipment (PPE) during installation, operation, and maintenance.
• Keep hands, clothing, and tools clear of moving parts during operation.
• Ensure the motor is securely mounted before operation.

3. Unpacking and Initial Inspection

Carefully unpack the motor and inspect it for any signs of damage that may have occurred during shipping. The motor is packaged in a thickened carton with specially designed foam inserts to protect each part.

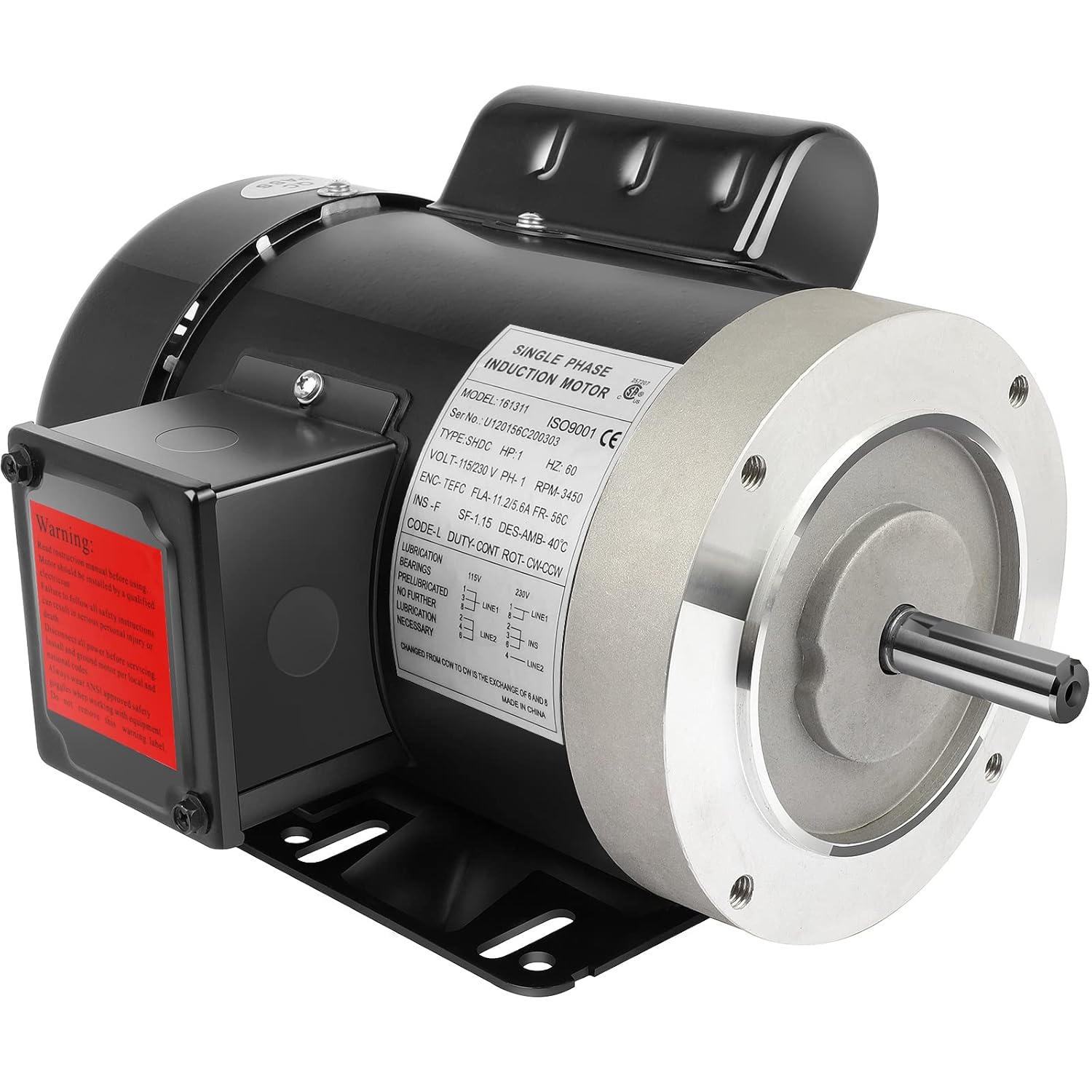

Image: Front view of the Cuilvu 1 HP Electric Motor, showing its overall design and smooth surface, indicating no damage from shipping.

Image: Side view of the motor, highlighting the 1HP rating, the shaft, and the sturdy mounting base.

Ensure the motor's surface is smooth and free from dents or scratches. Check the shaft for any bends or damage. All components should be present and intact.

4. Installation and Wiring

Proper installation and wiring are critical for the safe and correct operation of the motor. Refer to the motor's data plate for specific wiring configurations for 115V and 230V connections.

4.1 Mounting

The motor features a sturdy mounting bracket. Securely fasten the motor to a stable and level surface using appropriate hardware. Ensure there is adequate ventilation around the motor, especially for the fan-cooled enclosure.

Image: Close-up of the motor's mounting base, designed for secure attachment.

4.2 Electrical Connections

1. Access the Junction Box: Use a screwdriver to open the motor's junction box cover.
2. Identify Wires: Inside, you will find several wires. Refer to the wiring diagram on the motor's data plate to identify the corresponding numbers for your desired voltage (115V or 230V) and rotation (CW/CCW).
3. Connect Wires: Connect the power supply wires according to the diagram. Ensure all connections are tight and secure.
4. Close Junction Box: Replace the junction box cover and secure it with screws.

Image: The motor's data plate, which contains crucial information including the wiring diagram for different voltages and rotation directions.

Image: The electrical junction box opened, revealing the internal wiring for connection.

Image: A detailed view of the motor's internal wiring, showing the various colored wires for correct connection.

4.3 Rotation Direction (CW/CCW)

The motor supports both clockwise (CW) and counter-clockwise (CCW) rotation. The method for changing rotation direction is typically indicated on the motor's data plate. For this model, changing the rotation from CW to CCW involves exchanging wires 6 and 8 as per the data plate instructions.

5. Operation

After successful installation and wiring, perform a no-load operation to ensure the motor is functioning correctly before connecting it to your machine or application.

1. Initial No-Load Test: With the motor disconnected from any load, apply power. Observe the motor for smooth operation, unusual noises, or excessive vibration.
2. Verify Rotation: Confirm the motor is rotating in the desired direction (CW or CCW).
3. Connect Load: Once the no-load test is satisfactory, disconnect power, connect the motor to its intended load, and then reapply power to begin operation.

Image: Detail of the motor shaft, which should rotate smoothly during operation.

Image: The motor's fan cover, part of the TEFC enclosure, ensuring proper cooling during operation.

6. Maintenance

The Cuilvu 1 HP Electric Motor is designed for durability and minimal maintenance. Adhere to the following guidelines to ensure long-term performance:

• Lubrication: The motor bearings are pre-lubricated and require no further lubrication.
• Cleaning: Periodically clean the exterior of the motor, especially the fan cover, to prevent dust and debris buildup that could impede cooling. Ensure power is disconnected before cleaning.
• Inspection: Regularly inspect the motor for any signs of wear, loose connections, or unusual conditions. Address any issues promptly.
• Ventilation: Ensure the motor's ventilation mode (TEFC) is not obstructed, allowing for efficient heat dissipation.

7. Troubleshooting

If you encounter issues with your electric motor, refer to the following basic troubleshooting steps:

• Motor Does Not Start:
  • Check power supply and circuit breaker.
  • Verify all electrical connections are secure and correct according to the wiring diagram.
  • Ensure the motor is not overloaded.
• Motor Overheats:
  • Check for proper ventilation; clear any obstructions from the fan cover.
  • Ensure the motor is not continuously operating under excessive load.
  • Verify correct voltage supply.
• Unusual Noise or Vibration:
  • Check for loose mounting bolts.
  • Inspect the shaft and connected load for misalignment or damage.
  • Ensure the motor is not operating under an unbalanced load.

If problems persist after performing these checks, consult a qualified technician or contact Cuilvu customer support.

8. Specifications

Detailed technical specifications for the Cuilvu 1 HP Electric Motor:

9. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact Cuilvu customer service directly. When contacting support, please have your model number (161311-5334-1552121131) and purchase details available.
