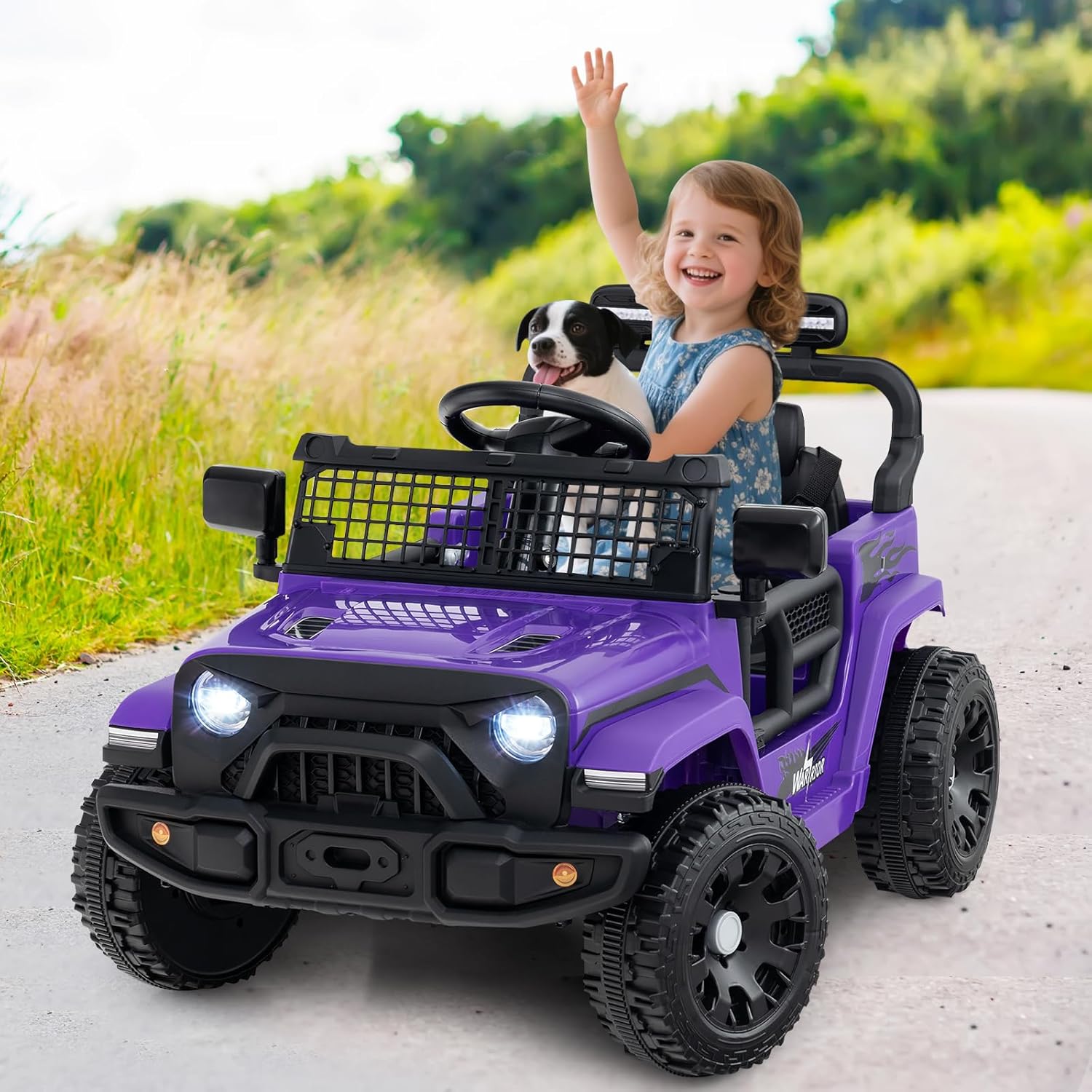

Costzon 12V Kids Ride-On Car Truck Instruction Manual

1. Important Safety Information

This instruction manual contains vital information regarding the assembly, operation, and maintenance of your Costzon 12V Kids Ride-On Car Truck. Please read and understand all instructions before use to ensure the safety of the child and to prevent damage to the vehicle.

• Adult Supervision Required: Always supervise children during operation.
• Age Recommendation: Suitable for children aged 3+ years old.
• Weight Capacity: Maximum weight capacity is 66 lbs (30 kg).
• Safe Operating Environment: Use on flat, dry surfaces away from public roads, steep inclines, swimming pools, or other hazards.
• Safety Belt: Ensure the adjustable safety belt is securely fastened before each ride.
• Doors: Keep lockable doors closed during operation to prevent accidental opening.

2. Package Contents

Verify that all components are present before beginning assembly:

• 1 × Ride on Truck body
• 1 × Remote Control
• 1 × Charger
• 1 × Instruction Manual
• Wheels (4)
• Steering Wheel
• Seat with safety belt
• Windshield/Dashboard assembly
• Front Bumper
• Rear Roll Bar with Lights
• Rearview Mirrors (2)
• Axles, Washers, Nuts, and Screws

3. Assembly Instructions

Follow these steps carefully for proper assembly. Refer to the included video for visual guidance.

1. Unboxing and Parts Identification:


   Carefully unbox all components and lay them out. Identify each part using the provided parts diagram in the printed manual.
2. Install Rear Axle and Wheels:


   Attach the rear axle to the chassis. Secure the rear wheels using the provided washers and nuts. Ensure they spin freely but are securely fastened.

3. Install Front Axle and Wheels:


   Repeat the process for the front axle and wheels, ensuring all connections are tight.

4. Connect Battery:


   Locate the battery compartment (usually under the seat). Connect the battery terminals (red to red, black to black) as indicated. Ensure a secure connection.
5. Install Seat:


   Place the seat into position and secure it with the screws provided. Ensure the safety belt is accessible and functional.

6. Attach Steering Wheel:


   Connect the steering wheel's electrical connector to the dashboard. Insert the steering wheel into its slot and secure it.

7. Install Windshield/Dashboard:


   Align the windshield/dashboard piece and snap or screw it into place.
8. Attach Front Bumper:


   Secure the front bumper to the front of the vehicle using the designated screws.

9. Install Rear Roll Bar with Lights:


   Attach the rear roll bar, ensuring any light connections are made before securing it fully.

10. Attach Rearview Mirrors:


    Snap the foldable rearview mirrors into their designated slots on the sides of the vehicle.

4. Operating Instructions

Your ride-on truck offers two primary driving modes:

• Child Manual Operation Mode: The child controls the vehicle using the steering wheel and foot pedal. This mode has one speed (2.1 mph).
• Parent Remote Control Mode: An adult can control the vehicle using the remote control. This mode offers three speeds (0.9–2.1 mph) and an emergency brake button.

Starting the Vehicle:

1. Press the one-button start on the dashboard.
2. Select Forward or Reverse using the switch.
3. Press the foot pedal to accelerate in manual mode.

Using the Remote Control:

1. Ensure the vehicle's power is ON.
2. Turn on the remote control.
3. Pair the remote control with the vehicle (refer to the printed manual for specific pairing instructions).
4. Use the remote to control direction (forward/backward, left/right) and speed. The emergency brake button will stop the vehicle immediately.

Features:

• Music & Horn: Use the built-in music control panel and horn sound for an enhanced driving experience.
• LED Headlights: Bright LED headlights provide visibility and realism.
• Soft Start/Stop: The vehicle features soft start and stop functions for a smooth and comfortable ride, preventing sudden jerks.

5. Charging Instructions

To ensure optimal battery life and performance, follow these charging guidelines:

• Initial Charge: Before first use, charge the battery for 4-6 hours.
• Regular Charging: Recharge the battery after each use. Do not charge for more than 10 hours to avoid overcharging.
• Charging Port: Locate the convenient charging port on the vehicle and connect the included charger.
• Battery Type: 12V 4.5Ah. Remote control requires 2 AAA batteries (not included).

6. Maintenance

Regular maintenance helps prolong the life of your ride-on truck:

• Cleaning: Wipe the vehicle with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the vehicle in a dry, cool place away from direct sunlight when not in use.
• Battery Care: Disconnect the battery if storing for extended periods. Recharge the battery at least once a month during storage.
• Tires: Check tires periodically for wear and tear. The anti-skid, wear-resistant, and puncture-proof tires are designed for durability.

7. Troubleshooting

If you encounter issues, refer to these common solutions:

• Vehicle Not Moving: Check battery connections. Ensure the battery is charged. Verify the forward/reverse switch is engaged.
• Slow Speed: Ensure the battery is fully charged. Check the high/low speed setting if applicable.
• Remote Control Not Working: Check batteries in the remote. Ensure the remote is properly paired with the vehicle.
• No Sound/Lights: Check all electrical connections. Ensure the vehicle is powered on.
• Fuse: This product is equipped with a restorative fuse. If the car is blocked or abnormal, the fuse will disconnect for about 10 seconds, and the car will return to normal.

8. Specifications

9. Warranty and Support

Specific warranty details are not provided in the product description. Please refer to the product packaging, the manufacturer's official website, or contact Costzon customer support for comprehensive warranty information and assistance.

For further support, troubleshooting, or parts inquiries, please contact Costzon customer service through the contact information provided on your product packaging or their official website.
