DazzlingStage 120W Square 4-Eye RGBW LED Par Light Model ZQ01325 User Manual

1. Introduction

This manual provides essential information for the safe and effective operation of your DazzlingStage 120W Square 4-Eye RGBW LED Par Light, Model ZQ01325. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Instructions

• Always connect the unit to a grounded power outlet.
• Ensure the voltage of the power supply matches the voltage specified on the unit.
• Do not operate the unit if the power cord is damaged.
• Avoid direct eye exposure to the light source.
• Ensure proper ventilation around the unit to prevent overheating.
• Do not open the housing; there are no user-serviceable parts inside. Refer all servicing to qualified personnel.
• Keep the unit away from rain, moisture, and extreme temperatures.
• When suspending the unit, always use safety cables and ensure the mounting structure is secure.

3. Product Overview

3.1. Components and Packing List

The DazzlingStage 120W Square 4-Eye RGBW LED Par Light package includes the following items:

• 1x DazzlingStage 120W Square 4-Eye RGBW LED Par Light
• 1x Power Cord
• 1x Instruction Manual

Figure 3.1: Included components: LED Par Light, power cord, and instruction manual.

3.2. Key Features

• Ultra-Compact & Lightweight Design: Square mini housing (4-eye design) for seamless integration in tight spaces. Weighs only 1.75KG, ideal for hanging, truss mounting, or hidden installations.
• Dual-Layer RGBW + RGB Lighting System: Main light features 4x18W RGBW LEDs with individual DMX512 pixel control. Auxiliary light includes 48x1W 5050 RGB beads for single-color/mixed-color modes.
• Multiple Control Modes: Supports DMX512, Auto-run, Sound-Active, and Master-Slave modes for versatile operation.
• Rich Lighting Effects: Offers 8 static colors and over 30 dynamic programs (rotating, fading, strobe, etc.) with adjustable speed and brightness.
• Wide Application: Suitable for stages, concerts, bars, clubs, stadiums, hotels, exhibitions, and various party settings.

Figure 3.2: Overview of key features of the LED Par Light.

4. Setup

4.1. Mounting the Light

The DazzlingStage LED Par Light is designed for flexible installation. It can be mounted on a truss, ceiling, or placed on a flat surface. Always ensure the mounting location is stable and capable of supporting the weight of the fixture. Use appropriate clamps and safety cables when suspending the unit.

Figure 4.1: The light's adjustable bracket allows for various mounting positions.

4.2. Connecting Power and DMX

Connect the provided power cord to the POWER IN socket on the rear panel of the light and then to a suitable power outlet. For DMX control, connect a DMX cable from your DMX controller to the DMX IN socket. If linking multiple units, connect the DMX OUT of the first unit to the DMX IN of the next, and so on.

Figure 4.2: Rear panel connections and control interface.

5. Operating Modes

The DazzlingStage LED Par Light offers several operating modes, selectable via the control panel on the rear of the unit.

Figure 5.1: Available control modes.

5.1. DMX512 Control Mode

This mode allows professional control of the light's functions using a DMX512 controller. The light supports various channel modes (7, 9, 12, 64, 66 channels) for different levels of control, including individual pixel control for the 4x18W RGBW LEDs. Refer to the DMX channel chart (typically found in a separate DMX manual or on the product display) for detailed channel assignments.

5.2. Auto-run Mode

In Auto-run mode, the light cycles through over 30 pre-programmed dynamic effects automatically. The speed of these effects can be adjusted via the control panel.

5.3. Sound-Active Mode

The Sound-Active mode enables the light to react to music or ambient sound through its built-in microphone. The sensitivity of the microphone can be adjusted to suit the environment and desired responsiveness.

5.4. Master-Slave Mode

Connect multiple DazzlingStage LED Par Lights using DMX cables. Set one unit as the 'Master' and the others as 'Slave' units. The slave units will then synchronize their operations with the master unit, creating a coordinated light show without the need for an external DMX controller.

6. Lighting Effects and Customization

The light offers extensive options for creating diverse visual effects.

• Static Colors: Quickly select from 8 static colors for solid hues.
• Dynamic Programs: Access over 30 pre-programmed dynamic effects including rotating, fading, and strobe.
• Adjustable Parameters: Speed and brightness are adjustable across various modes to tailor performances.
• RGBW and RGB Mixing: The dual-layer system allows for a wide spectrum of colors and effects, including 16.7 million vivid color mixes.

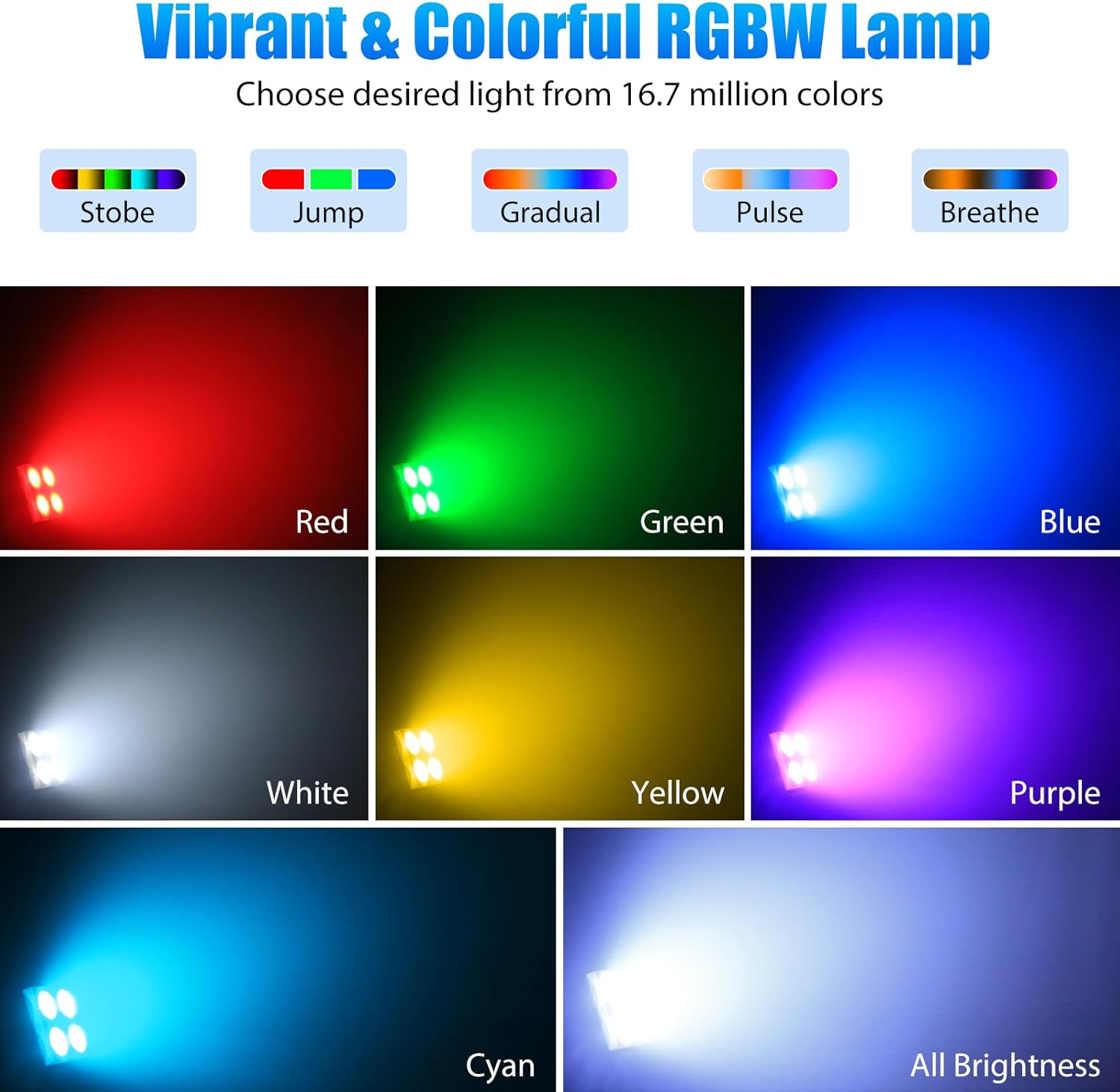

Figure 6.1: Examples of vibrant RGBW color output and effects.

Figure 6.2: Illustrations of dynamic auto-chasing light effects.

Figure 6.3: Smooth dimming from 0% to 100%.

7. Maintenance

• Cleaning: Regularly clean the lens and housing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
• Inspection: Periodically check power cords, DMX cables, and mounting hardware for any signs of wear or damage. Replace damaged components immediately.
• Storage: When not in use, store the light in a dry, dust-free environment, preferably in its original packaging or a protective case.

8. Troubleshooting

9. Specifications

Figure 9.1: Product dimensions and weight.

10. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
