CAMMOO QH-D01 3-Point Quick Hitch with 2" Receiver Instruction Manual

1. Safety Information

WARNING: Always read and understand all instructions and safety warnings before operating this equipment. Failure to follow these instructions can result in serious injury or death.

• Ensure the quick hitch is securely attached to the tractor's 3-point linkage before connecting any implement.
• Verify that all pins and clips are properly installed and secured.
• Do not exceed the maximum lifting and towing capacity of 3000 lbs.
• Keep hands and feet clear of moving parts during attachment and operation.
• Always operate the tractor and attached implements on level ground when possible.
• When using the 2" receiver, ensure the trailer or equipment is properly hitched and secured.
• Be aware that some PTO-driven implements may have clearance issues with the 2" receiver. Modifications may be required for compatibility.
• Regularly inspect the quick hitch for any signs of wear, damage, or loose fasteners. Replace damaged parts immediately.

2. Product Overview

The CAMMOO QH-D01 3-Point Quick Hitch is designed to simplify the attachment and detachment of Category 1 implements to your tractor. Constructed from durable alloy steel, it features a robust design with a 3000 lbs lifting and towing capacity. This quick hitch includes a versatile adapter and a 2" receiver, enhancing its functionality for various agricultural tasks.

Key Features:

• Versatile Quick Hitch Adapter: Pre-installed and detachable, providing two different heights for link adjustment, compatible with a wide range of Category 1 farm implements.
• Bushing-less Design: Eliminates the need for additional bushings, saving time and cost.
• 5-Level Adjustable Bolt: Features 7 holes for 5 quick-adjust positions, allowing easy matching to implement size or task for faster changes and improved efficiency.
• Stable & Durable: Offers a 3000 lbs lifting and towing capacity, ensuring powerful and reliable performance for heavy-duty implements.
• Reinforcing Rib Design: The reinforced 2" receiver provides strong strength and great performance under heavy use, allowing direct connection to trailer balls and other equipment.

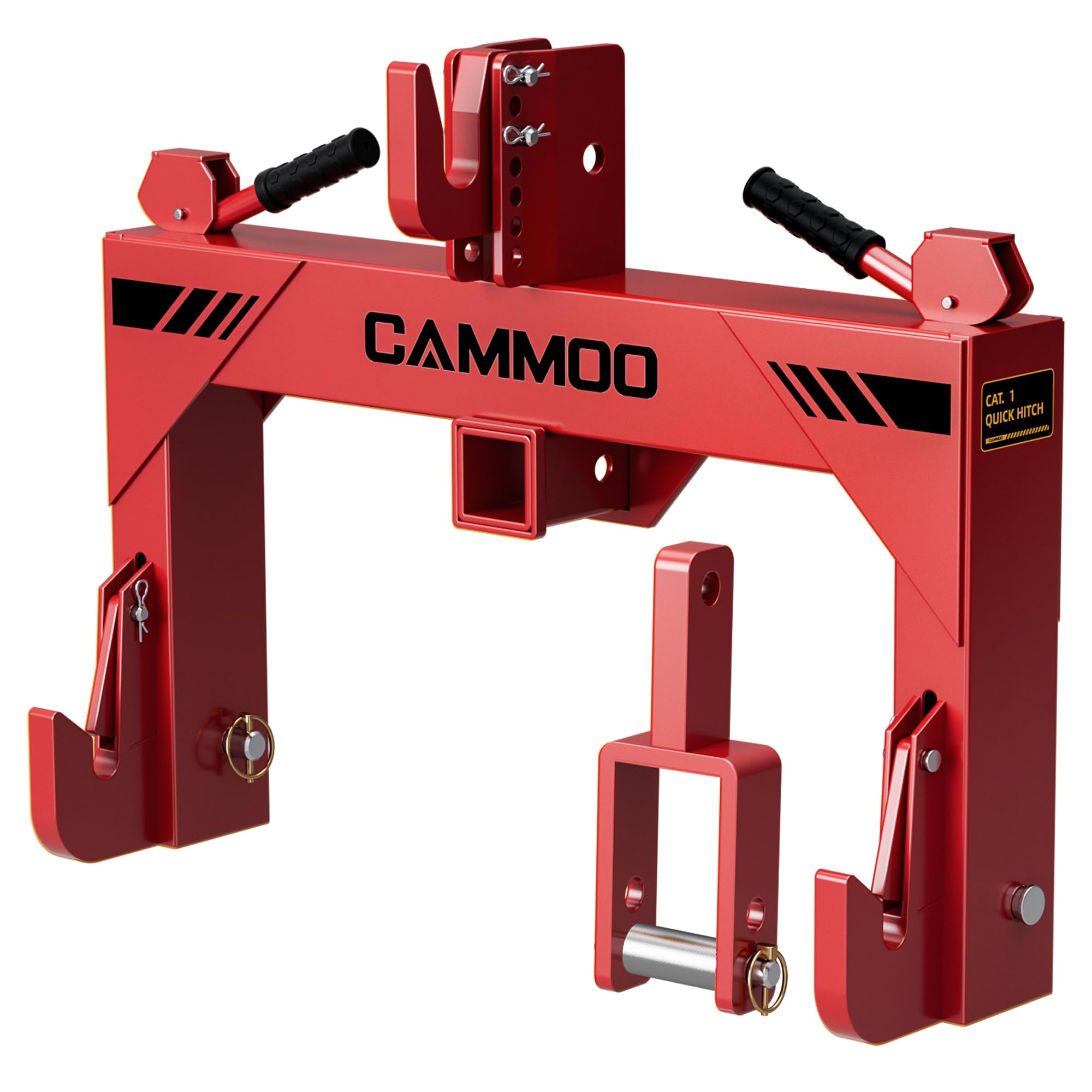

Figure 2.1: The CAMMOO QH-D01 3-Point Quick Hitch in red, showcasing its robust design and key components.

Figure 2.2: Comparison highlighting the CAMMOO Quick Hitch's included versatile adapter, bushing-less design, linch pins, and reinforced 2" receiver against other models.

3. Parts List

The following components are included with your CAMMOO QH-D01 3-Point Quick Hitch:

• 1 x 3-Point Quick Hitch (Main Assembly)
• 1 x Versatile Quick Hitch Adapter
• 1 x Versatile Quick Hitch Adapter Bushing
• 1 x User Manual (This Document)
• Necessary Pins and Clips for assembly and adjustment

Figure 3.1: The versatile quick hitch adapter, included with the main unit.

4. Setup & Installation

Follow these steps to properly install the CAMMOO QH-D01 3-Point Quick Hitch onto your Category 1 tractor.

4.1 Attaching the Quick Hitch to the Tractor

1. Position your tractor on a level surface and engage the parking brake.
2. Align the quick hitch with the tractor's 3-point linkage arms.
3. Connect the lower lift arms of the tractor to the lower pins of the quick hitch. Secure with appropriate pins and clips.
4. Connect the top link of the tractor to the adjustable top hook of the quick hitch. Secure with the provided quick pins.
5. Ensure all connections are tight and secure before proceeding.

Figure 4.1: Step-by-step illustration of attaching the quick hitch to the tractor's 3-point linkage.

4.2 Using the Versatile Quick Hitch Adapter

The versatile adapter is designed to accommodate older implements or those with different pin configurations that may not directly fit the quick hitch hooks. It can be detached from its pre-installed position for separate use or to adjust the top link height.

1. If your implement requires a different top link height, detach the adapter from its storage position.
2. Insert the adapter into the top hook of the quick hitch, selecting one of the two available height settings.
3. Secure the adapter with the provided pins.
4. Connect the implement's top link to the adapter.

Figure 4.2: Illustration showing the quick hitch attached to a tractor, with the versatile adapter in use for a different implement configuration.

Figure 4.3: The versatile quick hitch adapter shown with a tractor, demonstrating its compatibility with various Category 1 farm implements.

5. Operating Instructions

5.1 Connecting Implements

1. With the quick hitch securely mounted to the tractor, back the tractor slowly towards the implement.
2. Align the lower hooks of the quick hitch with the implement's lower pins.
3. Lower the tractor's 3-point linkage until the hooks engage the pins.
4. Connect the implement's top link to the quick hitch's top hook (or adapter, if used).
5. Ensure all connections are secure and pins are locked in place.

5.2 Adjusting Implement Height (5-Level Adjustable Bolt)

The quick hitch features a 5-level adjustable bolt system for precise height control of your implement.

1. To adjust the height, remove the quick pins from the top link connection.
2. Select the desired hole position on the adjustable bolt mechanism to raise or lower the implement.
3. Reinsert and secure the quick pins.
4. Verify the implement is at the correct working height before operation.

Figure 5.2: Diagram illustrating the 5 adjustable positions for the top link, ranging from 14.9 inches to 18 inches.

5.3 Using the 2" Receiver

The integrated 2" receiver allows for towing trailers or connecting other equipment directly.

1. Insert your trailer hitch or other 2" receiver compatible attachment into the receiver tube.
2. Secure the attachment with a hitch pin and clip.
3. Ensure the attachment is fully seated and secured before towing or operating.

Figure 5.3: Visual guide on how to properly use the 2" receiver for towing by horizontal traction force.

Important Note for PTO Implements: The 2" receiver may interfere with some Power Take-Off (PTO) driven implements. If clearance issues arise, the 2" receiver is removable. Consult a professional for any modifications.

Figure 5.4: Diagram showing potential interference of the 2" receiver with PTO implements and indicating its removability.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your CAMMOO QH-D01 3-Point Quick Hitch.

• Cleaning: Clean the quick hitch after each use to remove dirt, debris, and corrosive materials.
• Lubrication: Periodically lubricate all pivot points and moving parts with appropriate grease to ensure smooth operation and prevent rust.
• Inspection: Before each use, inspect the quick hitch for:
  • Cracks or damage to the frame or welds.
  • Bent or worn pins, hooks, or receiver tube.
  • Loose or missing fasteners.
  • Signs of excessive wear on any components.
• Storage: Store the quick hitch in a dry, protected area when not in use to prevent corrosion.

7. Troubleshooting

This section addresses common issues you might encounter with your quick hitch.

8. Specifications

Figure 8.1: Detailed dimensions of the CAMMOO 3-Point Quick Hitch, including overall width (26.8 in), height (24 in), and adapter dimensions.

Important Compatibility Note: Not all 3-point products are quick-hitch adaptable, especially older units of any brand. Please carefully compare the product size with the implements you are using before purchase and installation.

9. Warranty & Support

Manufacturer Warranty: This CAMMOO 3-Point Quick Hitch comes with a 1 Year Warranty from the manufacturer. Please retain your proof of purchase for warranty claims.

Customer Support: For any questions, technical assistance, or warranty inquiries, please contact CAMMOO Direct customer support. Refer to the contact information provided at the point of purchase or on the official CAMMOO website.

Returns: This product is eligible for 30-day easy returns. Please refer to the retailer's return policy for details.
