Kolasina 1/2 HP ECM X-13 Furnace Blower Motor 6205E Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Kolasina 1/2 HP ECM X-13 Furnace Blower Motor 6205E. Please read these instructions thoroughly before proceeding with any installation or operation to ensure proper function and to prevent potential hazards.

2. Safety Information

WARNING: Electrical shock hazard. Disconnect power before servicing. Failure to do so can result in serious injury or death.

• Installation and servicing should only be performed by a qualified HVAC technician or licensed electrician.
• Ensure all local and national electrical codes are followed during installation.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and maintenance.
• Verify that the power supply voltage matches the motor's specifications (208/230V).
• Do not operate the motor if it is damaged or if any wiring is exposed.

3. Product Overview

The Kolasina 1/2 HP ECM X-13 Furnace Blower Motor 6205E is an energy-efficient, multi-speed, constant torque motor designed for residential and light commercial HVAC systems. It provides consistent airflow and reliable performance.

Key Features:

• Model: 6205E
• Horsepower: 1/2 HP
• Motor Type: ECM (Electronically Commutated Motor) X-13
• Voltage: 208/230V
• Amperage: 3.8A
• RPM: 1050 RPM
• Speeds: Multi-Speed, Constant Torque
• Designed for compatibility with various major HVAC brands.

What's in the Box:

• 1 x Furnace Blower Motor

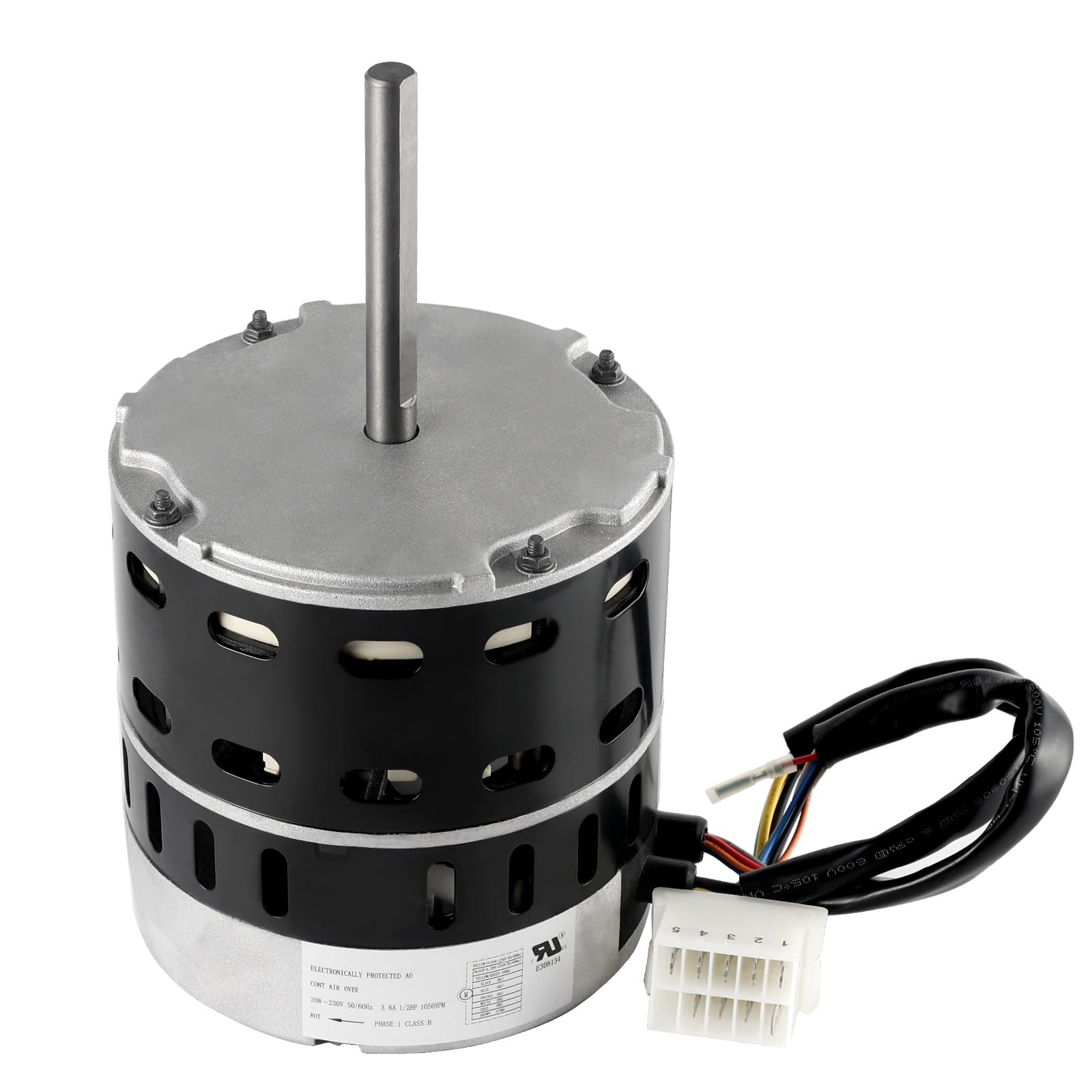

Image 3.1: Kolasina 1/2 HP ECM X-13 Furnace Blower Motor 6205E. This image shows the overall view of the furnace blower motor with its shaft and wiring harness.

4. Setup and Installation

IMPORTANT: Professional installation is highly recommended for this product due to electrical connections and system integration requirements.

Installation Steps:

1. Power Disconnection: Before beginning any work, ensure the main power supply to the furnace or air handler is completely disconnected at the circuit breaker. Verify with a voltage tester.
2. Access Blower Compartment: Open the access panel to the furnace's blower compartment.
3. Disconnect Wiring: Carefully disconnect the existing motor's wiring harness. Note the position and color of each wire for correct re-connection.
4. Remove Old Motor: Unmount and remove the old blower motor. This may involve removing mounting bolts or clamps.
5. Install New Motor: Position the Kolasina 6205E motor in the blower housing. Secure it using the appropriate mounting hardware. Ensure the motor shaft is properly aligned with the blower wheel.
6. Connect Wiring: Connect the wiring harness of the new motor. Refer to the wiring diagram provided with your furnace or the motor's specific instructions. The motor features a multi-pin connector for electrical connections.
7. Secure Components: Ensure all connections are secure and all mounting hardware is tightened. Close the blower compartment access panel.
8. Restore Power: Restore power to the furnace/air handler at the circuit breaker.
9. Test Operation: Initiate a test cycle to ensure the motor operates correctly and the blower wheel spins freely without obstruction or unusual noise.

Image 4.1: Close-up view of the wiring harness and connector for the Kolasina 6205E motor, showing numbered pins for electrical connections.

Image 4.2: Angled view of the Kolasina 6205E motor, illustrating the motor body, shaft, and the attached wiring harness, useful for understanding its physical configuration during installation.

5. Operating Instructions

The Kolasina 6205E ECM X-13 motor is designed to integrate seamlessly with your existing HVAC control system. It operates as a direct replacement for traditional direct-drive motors.

• Automatic Operation: Once installed and wired correctly, the motor will respond to calls for heating or cooling from your thermostat, automatically adjusting its speed as required by the system.
• Multi-Speed Functionality: The motor features multiple discrete speeds and automatic continuous fan speed, allowing your HVAC system to optimize airflow for comfort and energy efficiency.
• Constant Torque: The constant torque design ensures consistent airflow across varying static pressures, maintaining comfort levels even as filters become slightly dirty.
• Continuous Fan Mode: If your thermostat has a 'Fan ON' setting, the motor will operate continuously at a lower, energy-efficient speed to circulate air throughout your home.

6. Maintenance

Regular maintenance helps ensure the longevity and efficient operation of your blower motor. Always disconnect power before performing any maintenance.

• Annual Inspection: Have a qualified technician inspect the motor and blower assembly annually.
• Clean Blower Wheel: Periodically inspect and clean the blower wheel to prevent dirt and debris buildup, which can reduce airflow and strain the motor.
• Check Wiring: Ensure all electrical connections remain tight and free from corrosion.
• Motor Bearings: ECM motors typically have sealed bearings that do not require lubrication. Do not attempt to lubricate the motor unless specifically instructed by the manufacturer.
• Air Filter Replacement: Regularly replace your furnace air filter as recommended by your furnace manufacturer. A clogged filter can restrict airflow and cause the motor to work harder.

7. Troubleshooting

If you experience issues with your blower motor, refer to the following common troubleshooting steps. For complex problems, contact a qualified HVAC technician.

Common Issues and Solutions:

• Motor Not Running:
  • Check if power is supplied to the furnace/air handler.
  • Verify thermostat settings are calling for fan operation (heat, cool, or fan ON).
  • Inspect wiring connections for looseness or damage.
  • Check for tripped circuit breakers.
• Unusual Noises (e.g., grinding, squealing):
  • Disconnect power and inspect the blower wheel for obstructions (e.g., debris, loose components).
  • Check if the motor mounting is secure.
  • If noise persists, professional inspection of motor bearings may be required.
• Weak Airflow:
  • Check and replace dirty air filters.
  • Inspect the blower wheel for excessive dirt buildup.
  • Ensure all supply and return vents are open and unobstructed.

8. Specifications

Image 8.1: Angled view of the Kolasina 6205E motor, highlighting the product label which contains model number, electrical ratings, and other manufacturing details.

9. Compatibility

The Kolasina 1/2 HP ECM X-13 Furnace Blower Motor 6205E is designed as a replacement for various HVAC systems. It is compatible with:

• Major Brands: American Standard, Trane, Carrier, ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite, and Day & Night.
• Replacement Numbers: 6205E, 1185157, 1186459, E308134, HD44AQ260, D5005, D5003, KMSAH013C84, V006A11B, C18060930, 00589, 00823960367484, 23960, 36748.
• Specific Models (examples): FEM4P3600A2, FEM4P3600AL2, FEM4P3600AT2, FEM4X3600B1, FEM4X3600BL1, FEM4X3600BT1, WAHL364B1, WAHM364B1, WAHT364B1, WAPL364A2, WAPM364A2, WAPT364A2.
• Also compatible with other 1/2 HP X13 Constant Torque Motors from major manufacturers, excluding EON, 3.0, 2.3, and 2.5 ECM Motors.

10. Warranty and Support

This Kolasina 1/2 HP ECM X-13 Furnace Blower Motor 6205E comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or any questions regarding the product, please contact the seller or Kolasina customer support directly. Please have your purchase details and model number (6205E) available when contacting support.
