Beshapy Portable Air Conditioner User Manual

Introduction

Thank you for choosing the Beshapy Portable Air Conditioner. This evaporative personal mini AC unit is designed to provide effective cooling and comfort in various personal spaces such as rooms, cars, bedrooms, and during camping. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

Product Overview

The Beshapy Portable Air Conditioner features a compact design with multiple functionalities including cooling, fan, timer, and a colorful night light. It is equipped with a dual water tank system and an upgraded cooling mechanism for enhanced performance.

Components and Features

Figure 1: Main unit of the Beshapy Portable Air Conditioner, showing the control panel, air outlet, remote control, USB power cable, and wall adapter.

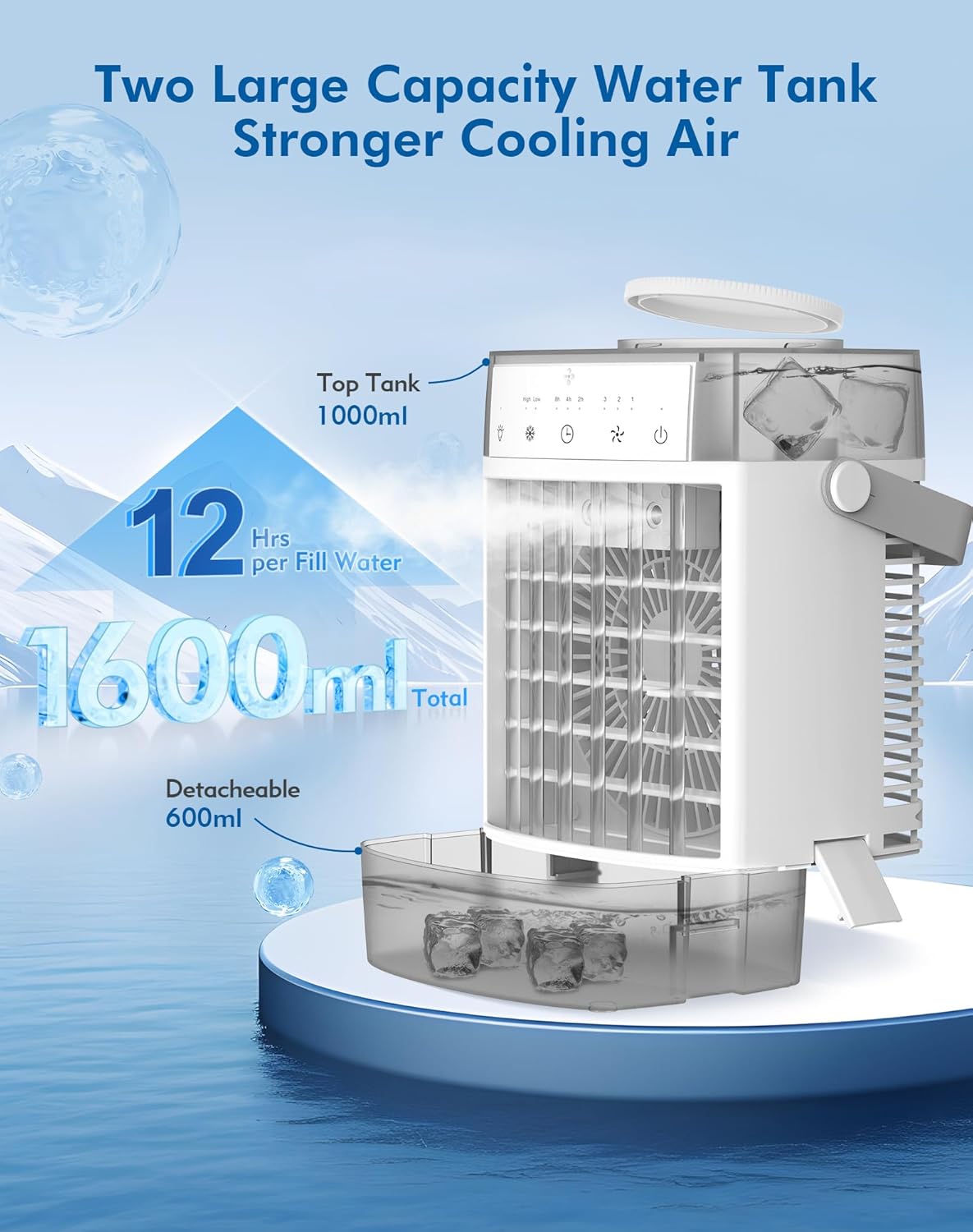

Figure 2: Illustration of the dual water tank system. The upper tank has a capacity of 1000ml, and the detachable lower tank has a capacity of 600ml, totaling 1600ml. This design allows for extended operation up to 12 hours per fill.

Figure 3: Internal components highlighting the upgraded powerful motor and double upgraded ultrasonic nebulizer, which contribute to effective cooling down to 75°F.

Figure 4: Remote control functionality, including options for 3 wind speeds (1/2/3 Level), 3 wind modes (Strong Cool, Light Cool, Natural Wind), Timer (2-4-8H), and 7 Colors Light. The unit can project cool air up to 16 feet.

Figure 5: The unit operates at a low noise level of approximately 55dB, suitable for use in bedrooms. It also features 7 selectable night light colors to create a comfortable sleeping atmosphere.

Figure 6: The portable air conditioner can be powered via USB, allowing for flexible use with devices such as laptops, car chargers, power banks, or standard USB wall adapters.

Setup

1. Unpack the Unit: Carefully remove the air conditioner and all accessories from the packaging. Ensure all components are present: main unit, remote control, USB cable, and power adapter.
2. Place on a Stable Surface: Position the unit on a flat, stable, and level surface to prevent water spillage.
3. Fill the Water Tank:
   • Open the top cover of the water tank.
   • Pour clean water into the upper 1000ml tank. For enhanced cooling, you may add ice cubes to the water.
   • Ensure the water level does not exceed the maximum fill line.
   • The lower 600ml tank collects condensation and also contributes to cooling via fan evaporation.
4. Connect Power: Insert the USB cable into the unit's power port and connect the other end to a suitable USB power source (e.g., wall adapter, laptop, power bank, car charger). The unit requires 5V power.
5. Initial Power On: Press the power button on the control panel or remote control to turn on the unit.

Operating Instructions

The Beshapy Portable Air Conditioner can be operated using the control panel on the unit or the included remote control.

Control Panel / Remote Functions:

• Power Button (Ⓘ): Turns the unit ON or OFF.
• Wind Speed Button (☰): Cycles through 3 adjustable wind speeds: Low, Medium, and High.
• Wind Mode Button (❄): Selects between 3 wind modes: Strong Cool, Light Cool, and Natural Wind.
• Timer Button (⏲): Sets the auto-off timer for 2, 4, or 8 hours.
• Night Light Button (💡): Activates and cycles through 7 different color night light options. Press again to turn off the night light.
• Adjustable Shutters: Manually adjust the front shutters 120° up or down to direct the airflow as desired.

For optimal cooling, ensure the water tank is adequately filled. The unit's evaporative cooling function is most effective in dry environments.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your portable air conditioner.

• Water Tank Cleaning:
  • Unplug the unit before cleaning.
  • Empty any remaining water from both the upper and lower tanks.
  • Detach the lower water tank for thorough cleaning.
  • Clean the tanks with a soft cloth and mild detergent. Rinse thoroughly with clean water.
  • Allow all parts to air dry completely before reassembling.
  • Clean the water tanks at least once a week, or more frequently if used daily, to prevent mold and mildew buildup.
• Exterior Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Air Filter Cleaning (if applicable): While this model does not feature a removable air filter, ensure the air intake and outlet grilles are free from dust and obstructions. Use a soft brush or vacuum cleaner to gently remove dust.
• Storage: If storing the unit for an extended period, ensure it is clean and completely dry. Store it in a cool, dry place away from direct sunlight.

Troubleshooting

If you encounter issues with your Beshapy Portable Air Conditioner, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

Usage Scenarios

The Beshapy Portable Air Conditioner is designed for versatile use in various personal environments due to its compact size and USB power compatibility.

Figure 7: The unit provides personal cooling in a bedroom, ideal for night use with its quiet operation and night light feature.

Figure 8: Suitable for use in vehicles, providing personal cooling during travel or while parked, powered by a car charger.

Figure 9: Its portability and power bank compatibility make it an ideal cooling solution for outdoor activities like camping.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Beshapy
