1. Important Safety Instructions
Please read all instructions carefully before assembly and use. Keep this manual for future reference.
- Ensure all electrical connections are performed by a qualified electrician in accordance with local codes.
- Always disconnect power before cleaning or performing any maintenance.
- Do not expose the mirror to excessive moisture or direct water spray.
- Handle the mirror with care to prevent breakage. The glass is tempered but can still break under extreme impact.
- Mount the cabinet securely to a sturdy wall structure to prevent falling.
2. Product Overview
The FURRIFIC LED Bathroom Mirror Cabinet is a multi-functional unit designed to enhance your bathroom space. It features an LED-lighted mirror with adjustable brightness and three color temperatures, integrated storage shelves, and a durable construction.

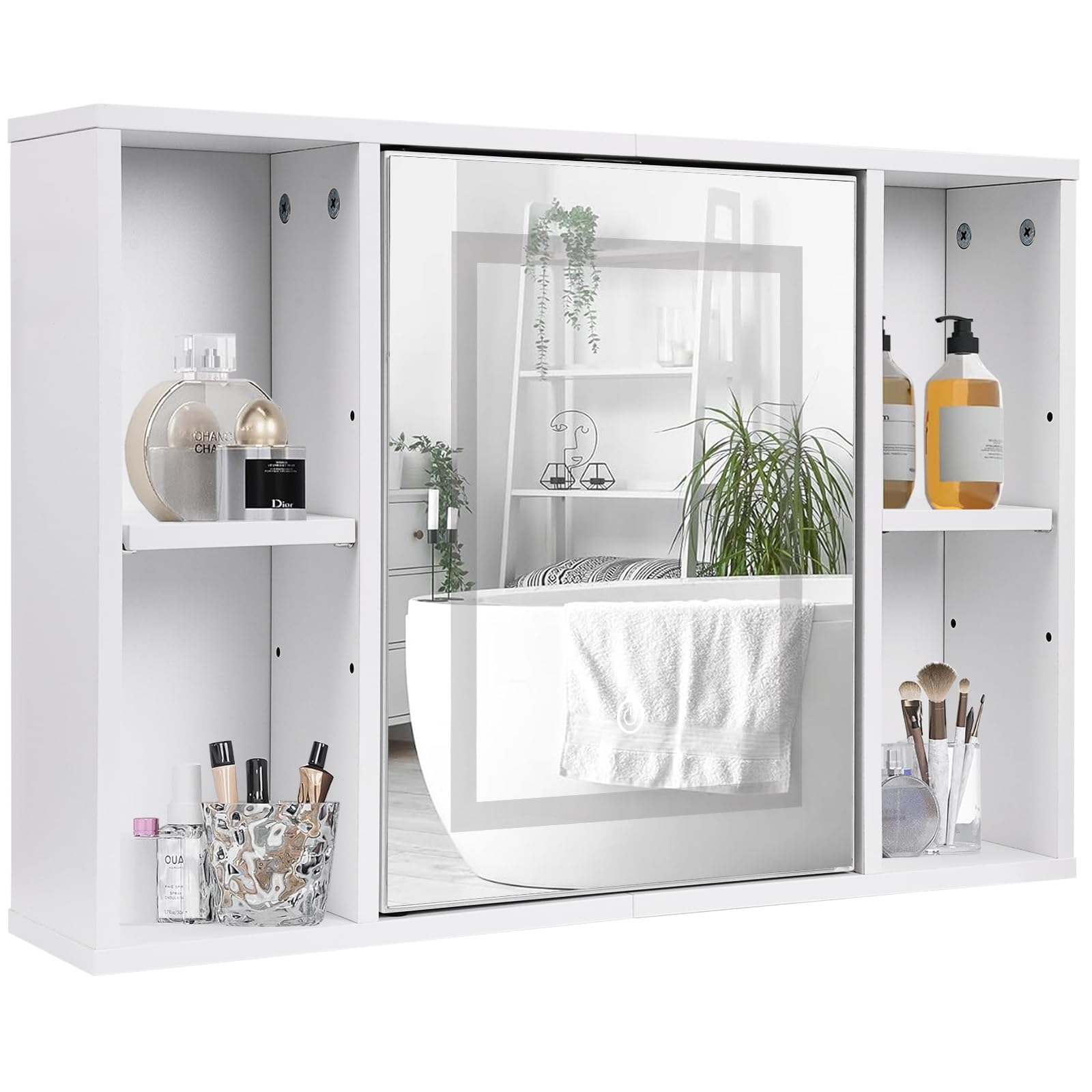

Image: The FURRIFIC LED Bathroom Mirror Cabinet, featuring a central LED mirror door, two open side shelves, and internal storage.
3. Package Contents
Verify that all components are present before beginning assembly.
- LED Mirror Cabinet Unit
- Adjustable Shelves (quantity may vary)
- Mounting Hardware (screws, anchors)
- Assembly Tools (e.g., Allen wrench)
- Instruction Manual (this document)
Image: An exploded diagram showing the cabinet's dimensions (40.5cm H x 60.5cm W x 13cm D) and various assembly parts and mounting hardware.
4. Specifications
| Brand | FURRIFIC |
| Model Number | MC216-B-0 |
| Product Dimensions | 40.5 x 60.5 x 13 cm (Depth x Width x Height) |
| Item Weight | 6.3 kg |
| Material | Mirror Cabinet (Density Board, Tempered Glass) |
| Mirror Thickness | 4mm Tempered Glass |
| Light Source | LED Strip Light |
| Color Temperatures | White Light, Natural Light, Warm Light |
| Features | Dimmable, Touch Control, Wall-Mounted, Storage Shelves |
5. Setup and Installation
Follow these steps for proper installation of your mirror cabinet.
- Prepare the Wall: Choose a suitable location on a sturdy wall. Ensure there are no hidden electrical wires or plumbing in the drilling area. Mark the desired mounting height.
- Assemble the Cabinet (if necessary): Refer to the exploded diagram in Section 3. Assemble the cabinet frame and shelves using the provided hardware.
- Mark Drilling Points: Hold the cabinet against the wall at the desired height and use a pencil to mark the positions for the mounting holes. Ensure the marks are level.
- Drill Holes: Use an appropriate drill bit for your wall type (e.g., masonry bit for concrete, wood bit for studs) and drill holes at the marked points. Insert wall anchors if required.
- Mount the Cabinet: Secure the cabinet to the wall using the provided screws. Ensure it is firmly attached and stable.
- Electrical Connection: Connect the LED mirror's power cable to your household electrical supply. This step must be performed by a qualified electrician.
- Install Shelves: Place the adjustable shelves into the desired positions within the cabinet. The shelves can be adjusted to accommodate items of different heights.
Image: Detail of the wall-mounting design, illustrating the use of wall anchors for secure installation.
Image: The interior of the cabinet, highlighting the two-level adjustable shelves and fixed storage areas for flexible organization.
6. Operating Instructions
The LED mirror features intuitive touch controls for lighting functions.
- Power On/Off: Lightly touch the power icon on the mirror surface to turn the LED light on or off.
- Change Color Temperature: With the light on, short press the power icon repeatedly to cycle through the three color temperatures: White Light, Natural Light, and Warm Light.
- Adjust Brightness (Dimming): With the light on, press and hold the power icon. The brightness will gradually increase or decrease. Release the button when the desired brightness level is reached.
Image: Demonstrates the three color temperature modes (white, natural, warm) and the touch control for adjusting brightness.
7. Maintenance and Care
Proper care will ensure the longevity and appearance of your mirror cabinet.
- Cleaning the Mirror: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the electrical components.
- Cleaning the Cabinet: Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive household cleaner. Dry immediately with a clean cloth.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or ammonia-based products, as these can damage the finish and mirror coating.
- Regular Inspection: Periodically check all mounting hardware to ensure the cabinet remains securely fastened to the wall.
Image: Highlights the 4mm tempered glass, a quick-release hinge mechanism, and the easy-to-clean surface of the cabinet.
8. Troubleshooting
If you encounter issues with your mirror cabinet, refer to the following common problems and solutions.
- LED Light Does Not Turn On:
- Check if the power supply is connected and the circuit breaker is on.
- Ensure the touch sensor is clean and unobstructed.
- If the issue persists, contact customer support.
- Light Brightness or Color Temperature Cannot Be Adjusted:
- Ensure you are using the correct touch gestures (short press for color, long press for brightness).
- Clean the touch sensor area.
- Cabinet Door Does Not Close Properly:
- Check for any obstructions in the hinges or door path.
- Ensure the cabinet is mounted level and square.
9. Warranty and Support
The FURRIFIC Bathroom Mirror Cabinet comes with a full 6-month warranty and a 100% satisfaction guarantee.
For any questions, concerns, or technical support, please contact our customer service team. We are available 24/7 to assist you.
Contact information can typically be found on the product packaging or the retailer's website where you purchased the item.
