DEECOZY HN-CK30x60

DEECOZY Electric Heating Pad User Manual

Model: HN-CK30x60

1. Introduction

This manual provides instructions for the safe and effective use of your DEECOZY Electric Heating Pad, Model HN-CK30x60. Please read this manual thoroughly before first use and retain it for future reference.

Intended Use: The DEECOZY Electric Heating Pad is designed to provide soothing heat for temporary relief of minor aches and pains associated with muscle stiffness, menstrual cramps, back pain, and rheumatic joint complaints. It can be applied to the back, waist, abdomen, shoulders, and feet.

DEECOZY Electric Heating Pad with controller and power plug
Figure 1: The DEECOZY Electric Heating Pad, showing its soft grey fabric, integrated heating elements, and the attached control unit with power plug.

2. Important Safety Instructions

To reduce the risk of burns, electric shock, fire, and injury, this product must be used in accordance with the following instructions:

  • Always disconnect the heating pad from the power outlet when not in use or before cleaning.
  • Do not fold, crumple, or curl the heating pad during operation. Ensure it is laid flat.
  • Do not use while sleeping.
  • Do not use on infants, incapacitated individuals, or persons insensitive to heat.
  • Avoid using pins or other metallic objects with the heating pad.
  • Do not use if the heating pad or power cord appears damaged. Inspect regularly for wear or damage.
  • Keep out of reach of children.
  • Consult a physician before use if you have any medical conditions, are pregnant, or have a pacemaker.
  • Do not use this device with liniment, salve, or ointment preparations, as skin burns could result.

3. Package Contents

Please check the package contents upon receipt:

  • 1 x DEECOZY Electric Heating Pad
  • 1 x Control Unit with Power Cable
  • 1 x User Manual

4. Setup

  1. Unpack all components and ensure they are intact and free from visible damage.
  2. Connect the control unit to the heating pad securely. Ensure the connector is fully inserted.
  3. Lay the heating pad flat on the desired body area. Ensure it is not folded or crumpled before plugging it into a power outlet.
  4. The heating pad features an adjustable hook-and-loop fastener for a comfortable and secure fit around various body parts such as the back, waist, or shoulders. Adjust the belt to your comfort.

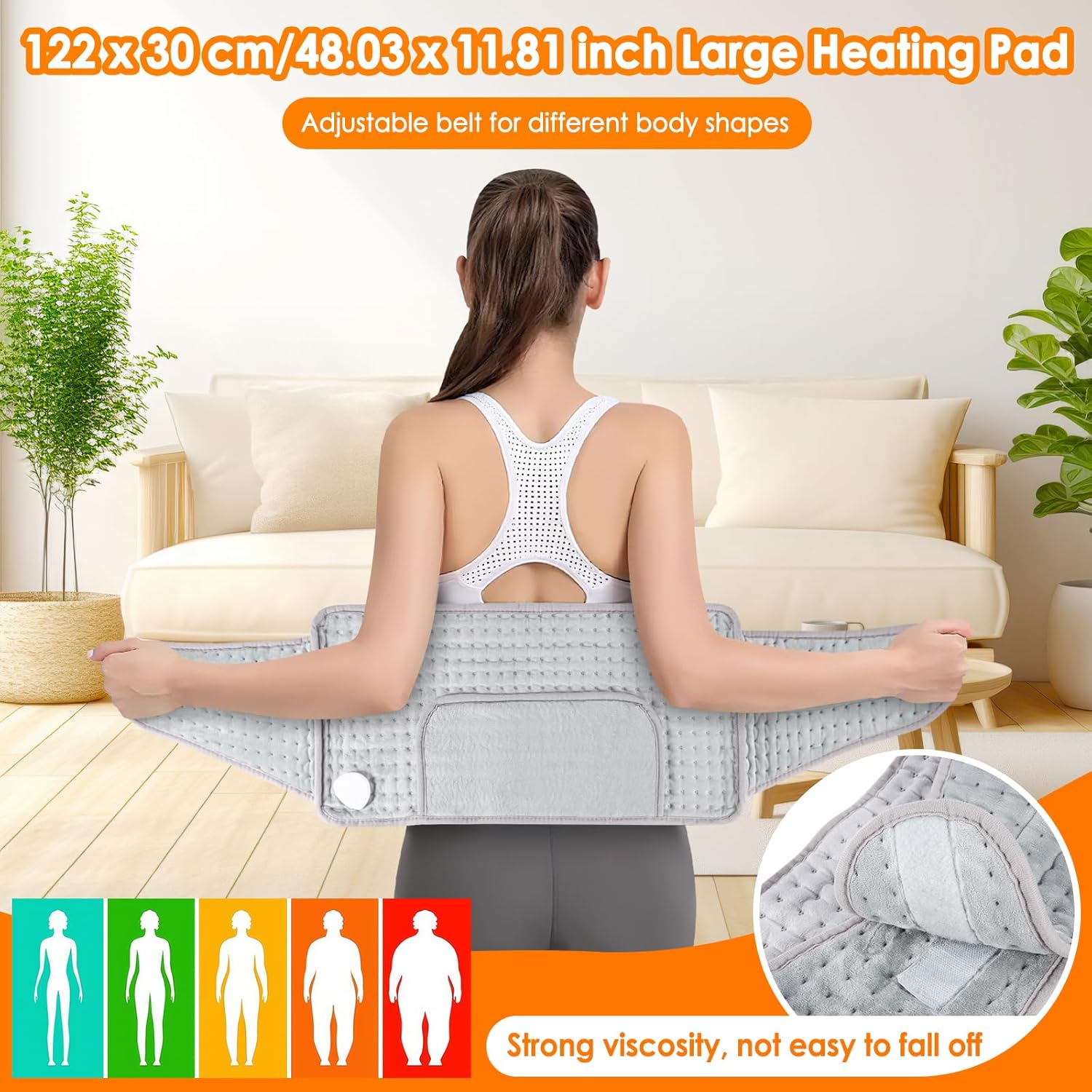

Person wearing the DEECOZY heating pad around their lower back, showing the adjustable belt
Figure 2: The heating pad being worn around the lower back, demonstrating its adjustable belt for a secure fit. This image also illustrates the large coverage area of the pad.

5. Operating Instructions

Follow these steps to operate your DEECOZY Electric Heating Pad:

  1. Plug the power cable into a standard electrical outlet (110-240V).
  2. Press the Power Button (Power button icon on controller) on the control unit to turn on the heating pad. The LED display will illuminate.
  3. Temperature Settings: Use the Temperature Adjustment Button (Temperature adjustment button icon on controller) to select one of 9 temperature levels. The temperature ranges from 30°C to 65°C (86°F to 150°F). The current level will be displayed on the LED screen.
  4. Timer Function: Use the Timer Button (Timer button icon on controller) to set the automatic shut-off time. Choose from 1, 2, 3, or 4 hours. The selected timer duration will be indicated on the control unit. The device will automatically turn off after the set time to prevent overheating and conserve energy.
  5. To turn off the heating pad manually, press the Power Button again.
DEECOZY heating pad controller showing 9 temperature levels and 4 timer settings
Figure 3: The control unit displaying the 9 temperature levels and 4 timer options (1h, 2h, 3h, 4h). This unit allows precise control over the heating pad's operation.
Woman relaxing on a couch with the heating pad, showing various application areas like abdomen, waist, shoulder, arm, knee, and leg
Figure 4: Illustrates the versatility of the heating pad, showing its application on different body parts such as the abdomen, waist, shoulder, arm, knee, and leg for targeted heat therapy.

6. Maintenance and Cleaning

Proper maintenance ensures the longevity and hygiene of your heating pad:

  1. Always disconnect the heating pad from the power supply and allow it to cool completely before cleaning.
  2. Machine Washable: The heating pad is machine washable. Remove the control unit and power cable before washing.
  3. Wash by hand or machine wash on a gentle cycle with water not exceeding 30°C (86°F).
  4. Do not iron, bleach, or dry clean the heating pad.
  5. After washing, lay the heating pad flat to air dry completely. Do not fold or wring it.
  6. Ensure the heating pad is completely dry before reconnecting the control unit and storing or using it again.
Woman placing the heating pad into a washing machine, with icons indicating washing instructions
Figure 5: Demonstrates the machine-washable feature of the heating pad. The image also shows care symbols: maximum 30°C water, do not dry clean, do not iron, do not bleach, emphasizing the need to remove the controller before washing.

7. Troubleshooting

If you encounter any issues with your heating pad, please refer to the following common problems and solutions:

  • No Heat:
    • Check if the power cable is securely plugged into the outlet and the control unit is properly connected to the heating pad.
    • Ensure the power button has been pressed and a temperature level is selected.
    • If the device has automatically shut off, it may be due to the timer expiring or an overheating protection activation. Unplug the device, wait a few minutes, and try again.
  • Inconsistent Heat:
    • Ensure the heating pad is laid flat and not folded or crumpled, which can affect heat distribution.

If problems persist after attempting these solutions, please contact customer support.

8. Specifications

Model NumberHN-CK30x60
MaterialUltra-soft Crystal Velvet
ColorGrey
Dimensions122 x 30 cm (48.03 x 11.81 inches)
Temperature Settings9 levels (30°C – 65°C / 86°F – 150°F)
Timer Settings4 options (1, 2, 3, 4 hours)
Voltage Range110-240 V
Frequency50/60 Hz
Power Consumption75 Watts
Automatic Shut-offYes, after selected timer duration
Cable LengthApprox. 2 meters
Diagram showing the dimensions of the DEECOZY heating pad and its controller
Figure 6: A detailed diagram illustrating the physical dimensions of the heating pad (122 x 30 cm) and its control unit, including cable length.

9. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official DEECOZY website. Please have your model number (HN-CK30x60) ready when contacting support.
