Harpaq 4-Drawer Black Dresser (Model BS01) Instruction Manual
Model: BS01 | Dimensions: 15.7"D x 29.5"W x 35.8"H
Introduction
Thank you for choosing the Harpaq 4-Drawer Black Dresser. This instruction manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read this manual thoroughly before beginning assembly and retain it for future reference.
Important Safety Information
- Always assemble the dresser on a soft, clean surface to prevent scratches.
- Ensure all parts and hardware are present before assembly. Do not proceed if any parts are missing or damaged.
- Follow the assembly steps in the order provided. Do not overtighten screws.
- For stability, it is highly recommended to anchor the dresser to a wall using the provided anti-tip kit. This prevents accidental tipping and potential injury.
- Keep small parts and packaging materials away from children and pets.
- Do not stand on the dresser or allow children to climb on it.
- Distribute weight evenly across drawers to maintain balance and prevent tipping.
Parts and Hardware List
Please verify that all components listed below are included in your package. Refer to the detailed diagrams in your physical instruction booklet for specific identification.
Components:
- Top Panel
- Side Panels (2)
- Bottom Panel
- Back Panel
- Drawer Fronts (4)
- Drawer Sides (8)
- Drawer Backs (4)
- Drawer Bottoms (4)
- Base Support Pieces
Hardware:
- Screws (various sizes)
- Cam Locks and Cam Bolts
- Wood Dowels
- Drawer Slides (8 pieces, 4 for frame, 4 for drawers)
- Brushed Metal Handles (4)
- Anti-Tip Kit (wall anchor, strap, screws)
Tools Required (Not Included):
- Phillips Head Screwdriver
- Hammer (for dowels)
- Drill (for wall anchor installation, optional for screws)
- Level
Setup and Assembly Instructions
Assembly is recommended to be performed by two adults. Lay out all parts on a soft, clean surface to prevent damage. Refer to the numbered diagrams in your physical manual for visual guidance.
- Prepare Side Panels: Attach drawer slides to the inner sides of the side panels using the designated screws. Insert wood dowels and cam bolts into the pre-drilled holes on the side panels.
- Assemble Base: Connect the base support pieces to the bottom panel. Ensure the unique base design elements are correctly aligned.
- Construct Frame: Attach the side panels to the bottom panel and base using cam locks and screws. Secure the top panel to the side panels.
- Install Back Panel: Carefully align and attach the back panel to the assembled frame using small nails or screws. Ensure the frame is square.
- Assemble Drawers: For each of the four drawers:
- Attach drawer slides to the drawer sides.
- Connect the drawer sides and back to the drawer front using cam locks, cam bolts, and dowels.
- Slide the drawer bottom into the grooves.
- Attach the brushed metal handle to the drawer front.
- Insert Drawers: Carefully slide each assembled drawer into its corresponding slot in the dresser frame. Ensure smooth operation.
- Install Anti-Tip Kit: Secure the anti-tip strap to the back of the dresser and then to a wall stud using the provided hardware. This step is crucial for safety.
This image displays the Harpaq 4-Drawer Black Dresser, showcasing its sleek design and brushed metal handles. The dresser is positioned in a room, highlighting its aesthetic appeal and functional presence.
This image provides a clear visual representation of the dresser's overall dimensions (15.7"D x 29.5"W x 35.8"H) and the internal dimensions of a single drawer, aiding in space planning and understanding storage capacity.
Operating Instructions
The Harpaq 4-Drawer Black Dresser is designed for easy and smooth operation. Each drawer is equipped with reliable slides for effortless opening and closing.
- Opening Drawers: Gently pull the brushed metal handle to open a drawer. Avoid excessive force.
- Closing Drawers: Push the drawer firmly until it is fully closed and flush with the dresser frame.
- Weight Distribution: Distribute items evenly within each drawer. Avoid overloading drawers, as this can strain the slides and affect stability.

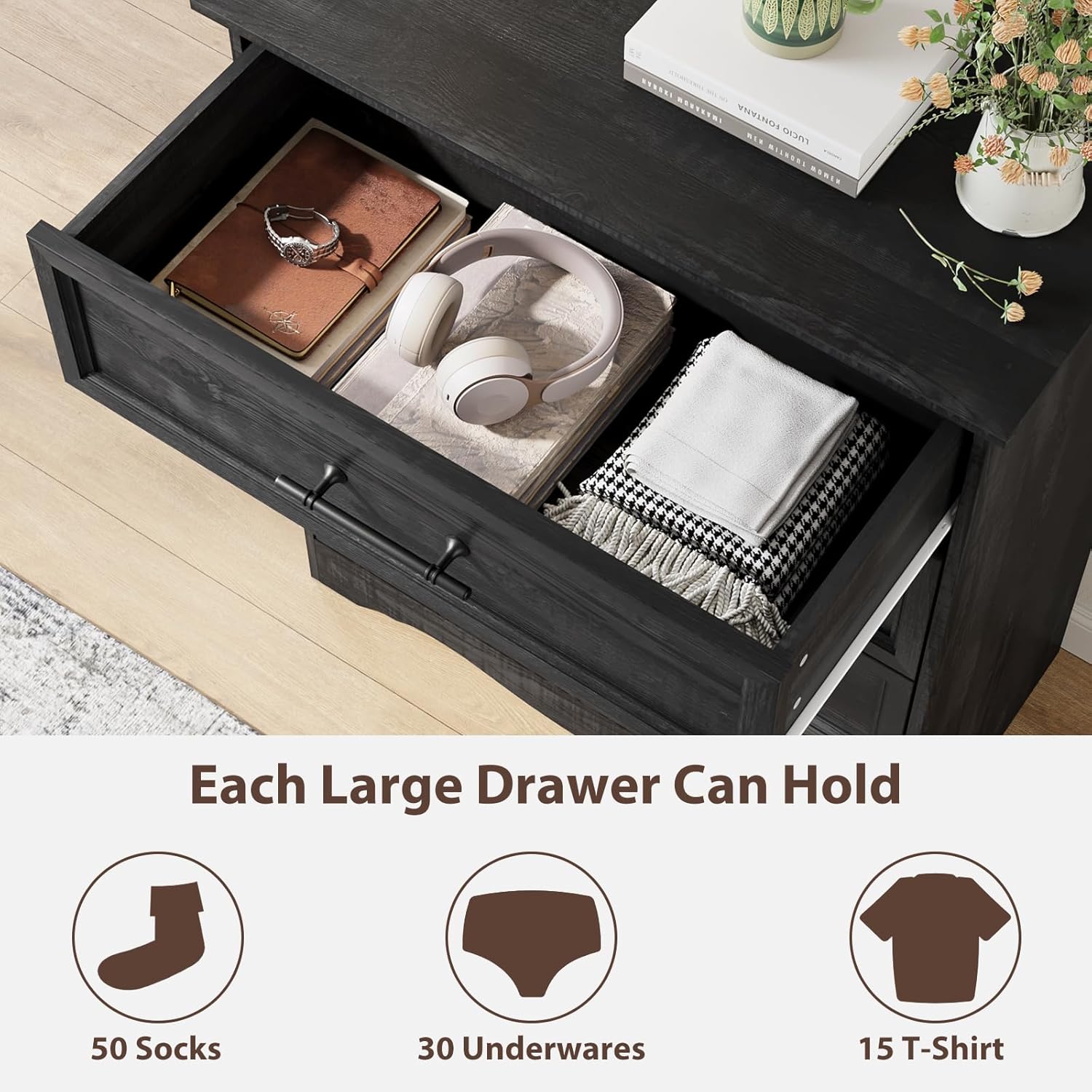

This image visually demonstrates the ample storage space within each drawer, indicating it can hold approximately 50+ socks, 30+ underwears, 15+ T-shirts, and 20+ jeans, providing practical examples of its utility.
This image highlights the aesthetic details of the dresser, focusing on the brushed metal handles for easy drawer access and the unique, elegant base design that contributes to its stability.
Video: Drawer Capacity Demonstration
Video 1: A user demonstrates the significant storage capacity of the Harpaq dresser drawers, showing how multiple clothing items can be stored efficiently.
Video: Drawer Depth Overview
Video 2: This video provides a closer look at the depth of the dresser drawers, illustrating how much space is available for various items.
Maintenance
- Cleaning: Wipe the dresser surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
- Spills: Clean spills immediately with a dry cloth to prevent staining or water damage.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration.
- Humidity: Maintain a stable humidity level in the room to prevent wood warping or cracking.
- Hardware Check: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not slide smoothly. | Misaligned drawer slides or loose screws. | Check that drawer slides are correctly installed and all screws are tightened. Ensure drawers are not overloaded. |
| Dresser feels wobbly or unstable. | Loose connections or uneven floor. | Verify all cam locks and screws are fully tightened. Ensure the dresser is on a level surface. Install the anti-tip kit if not already done. |
| Drawer does not close flush. | Obstruction in the drawer or misaligned front panel. | Remove items from the drawer to check for obstructions. Re-check drawer assembly and slide alignment. |
Specifications
- Brand: Harpaq
- Model Name: BS01
- Product Dimensions: 15.7"D x 29.5"W x 35.8"H
- Color: Black
- Material: Engineered Wood
- Number of Drawers: 4
- Item Weight: 91 Pounds
- Assembly Required: Yes
- FSC Certified: The frame is made of FSC-certified wood.
Warranty Information
Harpaq products are manufactured with quality and durability in mind. For specific warranty details regarding your 4-Drawer Black Dresser, please refer to the warranty card included in your product packaging or visit the official Harpaq website. Please retain your proof of purchase for any warranty claims.
Customer Support
If you have any questions about the assembly, operation, or maintenance of your Harpaq 4-Drawer Black Dresser, or if you require replacement parts, please contact our customer support team. Our representatives are available to assist you.
Contact Information:
- Website: Visit the Harpaq Store on Amazon
- Email: Refer to your product packaging for direct customer service email.
- Phone: Refer to your product packaging for direct customer service phone number.
