Generic C900 NTL99010.2 Treadmill Incline Lift Motor 301953 User Manual

Introduction

This manual provides essential information for the installation, maintenance, and general understanding of the Generic C900 NTL99010.2 Treadmill Incline Lift Motor, part number 301953. This component is designed for compatibility with NordicTrack C900 treadmills (model NTL99010.2). Each motor has been inspected to ensure optimal performance and safety. By utilizing this replacement part, you contribute to extending the lifespan of your fitness equipment.

Safety Information

• Disconnect Power: Always unplug the treadmill from the power source before attempting any installation, maintenance, or repair.
• Professional Installation Recommended: Installation of this component may require technical knowledge. If you are unsure, consult a qualified technician.
• Use Proper Tools: Ensure you have the correct tools for the job to prevent damage to the motor or treadmill.
• Inspect Connections: After installation, double-check all electrical connections to ensure they are secure and correctly seated.
• Keep Clear: Ensure no loose clothing, hair, or objects are near moving parts during testing.

Installation Guide

This section outlines the general steps for replacing the incline lift motor. For detailed, model-specific instructions, always refer to your original treadmill's user manual or service guide.

1. Prepare the Treadmill:
   • Ensure the treadmill is unplugged from the wall outlet.
   • Position the treadmill in an area with sufficient space to work safely.
2. Access the Motor Compartment:
   • Locate and remove the motor cover or access panels as per your treadmill's manual. This typically involves unscrewing several fasteners.
3. Disconnect the Old Motor:
   • Carefully disconnect any electrical wiring connected to the existing incline lift motor. Note the position of each wire for correct re-connection.
   • Remove any mounting bolts or pins securing the old motor in place.
   • Gently remove the old incline lift motor from its position.
4. Install the New Motor:
   • Position the new Generic C900 NTL99010.2 Incline Lift Motor (part 301953) into the designated mounting area.
   • Secure the motor using the original mounting bolts or pins. Ensure it is firmly seated.
   • Reconnect all electrical wiring to the new motor, matching the connections noted during removal.
5. Test and Reassemble:
   • Before replacing covers, plug in the treadmill and perform a brief test of the incline function to ensure the motor operates correctly.
   • Once confirmed operational, unplug the treadmill again and reattach all motor covers and access panels.

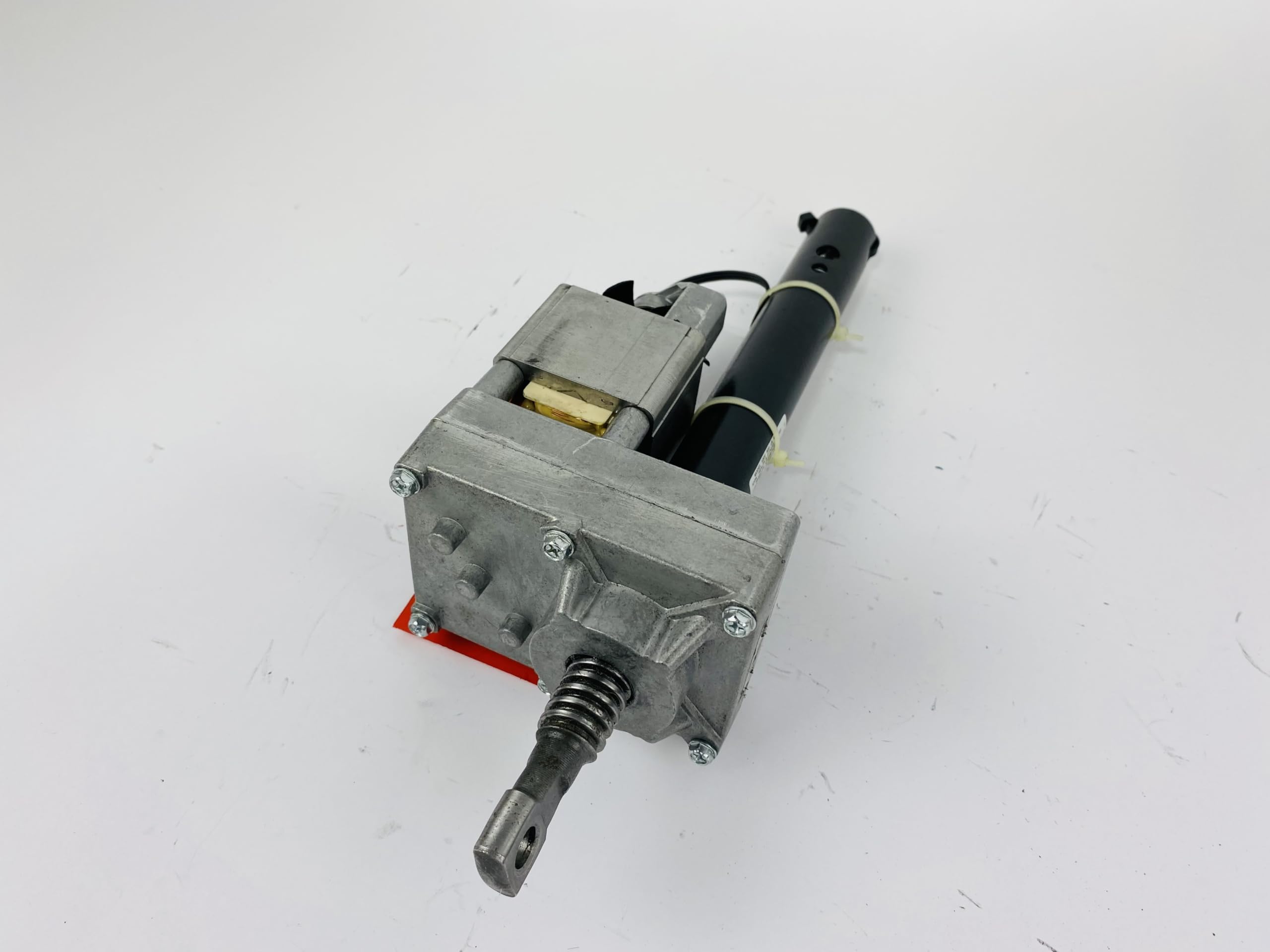

Image: The Generic C900 NTL99010.2 Treadmill Incline Lift Motor (part 301953). This image displays the motor assembly, including the main housing, gear mechanism, and the linear actuator component.

Operating Instructions

Once the incline lift motor is correctly installed, its operation is integrated with your treadmill's control console. Refer to your treadmill's original user manual for specific instructions on how to adjust the incline settings.

• Power On: Plug the treadmill into a grounded electrical outlet.
• Adjust Incline: Use the incline control buttons on your treadmill's console to raise or lower the deck. The motor will respond to these commands, adjusting the treadmill's angle.
• Observe Functionality: Ensure the incline movement is smooth and responsive, without unusual noises or jerky motions.

Maintenance

Proper maintenance can extend the life of your incline lift motor and treadmill.

• Keep Clean: Periodically inspect the motor area (with power disconnected) for dust and debris. Use a soft, dry cloth or a vacuum cleaner to remove any accumulation.
• Check Connections: Occasionally, with the power off, verify that all electrical connections to the motor are secure.
• Avoid Overloading: Do not exceed the maximum user weight capacity of your treadmill, as this can strain the incline motor.

Troubleshooting

If you experience issues with your treadmill's incline function after installing this motor, consider the following:

• Incline Not Moving:
  • Check if the treadmill is properly plugged in and receiving power.
  • Verify all electrical connections to the motor are secure.
  • Consult your treadmill's original manual for specific error codes related to incline issues.
• Unusual Noises:
  • Ensure the motor is securely mounted and not vibrating against other components.
  • If noises persist, discontinue use and consult a professional technician.
• Incline Jumps or Is Erratic:
  • This could indicate an issue with the motor's sensor or control board. Professional diagnosis is recommended.

Note: For complex issues, it is always advisable to contact a certified treadmill technician or refer to the original treadmill manufacturer's support resources.

Specifications

Warranty and Support

This product has been tested and is 100% working. As a replacement part, specific warranty details may vary. Please note the following:

• Returns: A 25% restock fee is charged for all returns. Ensure this part is compatible with your treadmill model before purchase.
• Contact: For any additional information or support regarding this product, please contact the seller directly.
