compressor-source DG03 Pump Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your compressor-source DG03 Pump. This 3HP cast iron air compressor pump is designed as a replacement for various models, including Campbell Hausfeld VT4923, and is compatible with systems requiring a 3HP motor (15A at 220V). Please read this manual thoroughly before installation and use.

2. Safety Information

WARNING: Failure to follow these instructions may result in serious injury or property damage.

• Always disconnect power to the air compressor before performing any installation, maintenance, or repair.
• Ensure the compressor system is depressurized before working on the pump.
• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• This pump requires a minimum 3HP motor, drawing at least 15 amps at 220 volts. Verify your motor specifications before installation.
• Ensure proper ventilation in the work area.
• Do not operate the pump if any parts are damaged or missing.
• Refer to the original air compressor manual for additional safety guidelines.

3. Product Overview

The compressor-source DG03 Pump is a heavy-duty, single-stage, two-cylinder cast iron pump designed for durability and performance. It is equipped with features for easy maintenance and reliable operation.

Key Features:

• Heavy-duty single-stage, 2-cylinder cast iron pump.
• Delivers up to 12 SCFM at 90 PSI, suitable for 60-gallon air compressor tanks.
• Equipped with an oil sight glass for convenient oil level monitoring.
• Includes an intake filter for air purification.
• Features a 10-inch pulley with dual set screws for secure fitment.
• Designed with an oil drain hole opposite the shaft for simplified maintenance.
• Universal replacement for a wide range of popular air compressor brands.

Components:

The DG03 Pump includes the main pump assembly, intake filter, and pulley.

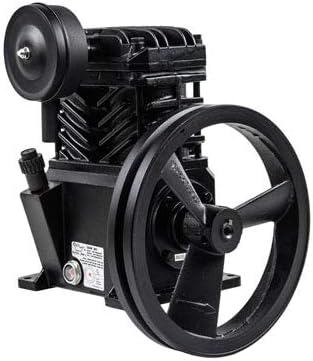

Figure 1: Overall view of the compressor-source DG03 Pump, showing the cast iron body, pulley, and intake filter.

Figure 2: Side view of the DG03 Pump, highlighting the large 10-inch pulley and the robust cast iron construction.

Figure 3: Close-up view of the intake filter, which helps protect the pump from airborne contaminants.

4. Specifications

Compatible Models (Examples):

This pump is designed as a universal replacement for many models. Verify specifications for exact fitment.

• Campbell Hausfeld: VT627000, VT622701, VT629100, VT470000AV, VT470200, VT203003, VT203001, VT200001, VT233301, VT23401, VT23350, VT4200, VT4300, VT4101, VT4150, VT510700, VT627504, VT619504, VT558804, VT633500, EX840500, VT619600AJ, VT618901, VT620800, VT627505, VT631403, VT631404AJ, VT635900, VT6359, VT619503AJ
• RIDGID: GP90135, GP90135A, GP90150A
• Maxus: EX8003, EX800301, EX801300AJ, VT633000AJ, VT633001AJ, EX801200, VT635300, EX558702
• Husky: VT6314, VT6314HDRB
• Sears Craftsman: 106.174541, 106.154580, 106.153680, 106.153781, 106.170641, 106.171941, 106.153783, 106.153684, 106.153784, 106.153992
• Kobalt: VT6362
• Speedaire: 3Z408L, 3Z869J, 5F214A

5. Setup and Installation

Proper installation is crucial for the performance and longevity of your DG03 Pump. Ensure all safety precautions are followed.

1. Preparation:
   • Disconnect the power supply to the existing air compressor.
   • Completely drain any air pressure from the tank.
   • Remove the old compressor pump, noting the connections for the intake, exhaust, and mounting.
2. Mounting:
   • Position the DG03 Pump on the compressor tank's mounting plate.
   • Verify that the mounting hole dimensions (Front to Back: 6-1/2", Side to Side: 5-7/8") align with your compressor's mounting pattern.
   • Secure the pump using appropriate bolts and washers (not included).
3. Pulley Installation:
   • Attach the 10-inch pulley to the motor shaft. The pulley features dual set screws for a secure fit.
   • Ensure proper alignment between the pump pulley and the motor pulley to prevent belt wear.
   • Install the drive belt, ensuring it has the correct tension (refer to your compressor's original manual for tensioning guidelines).


   Figure 4: Detail of the 10-inch pulley and shaft connection, showing the dual set screws for secure attachment.

4. Connecting Air Lines:
   • Connect the intake line to the 1/2" FNPT intake port.
   • Connect the exhaust line to the 3/8" FNPT exhaust port.
   • Ensure all connections are tight to prevent air leaks.
5. Lubrication:
   • Before first use, fill the pump with SAE 30 non-detergent oil or full synthetic 10W-30 oil.
   • Use the oil sight glass to monitor the oil level. Fill until the level is at the center of the sight glass.


   Figure 5: Detail of the oil sight glass and recommended oil types (SAE 30 non-detergent or full synthetic 10W-30).

6. Electrical Connection:
   • Ensure your motor is rated for 3HP and 220V, drawing at least 15 amps.
   • Reconnect the power supply to the air compressor system.

6. Operating Instructions

Once installed, the DG03 Pump operates as part of your air compressor system. Refer to your air compressor's main instruction manual for general operating procedures.

• Initial Start-up: After installation, run the compressor for a short period (e.g., 15-30 minutes) without load to allow the oil to circulate and components to seat.
• Monitoring: During operation, periodically check the oil sight glass to ensure proper lubrication. Listen for unusual noises or vibrations.
• Pressure Regulation: The pump will build pressure until the system's pressure switch activates, shutting off the motor. It will restart when pressure drops below a set threshold.

7. Maintenance

Regular maintenance ensures optimal performance and extends the life of your DG03 Pump.

• Oil Level Check: Check the oil level before each use or daily. Maintain the oil level at the center of the sight glass.
• Oil Change: Change the pump oil after the first 50 hours of operation, then every 3 months or 200 hours, whichever comes first. Use SAE 30 non-detergent oil or full synthetic 10W-30. The oil drain hole is located opposite the shaft for easy access.
• Air Filter Inspection/Replacement: Inspect the intake air filter monthly. Clean or replace it if it appears dirty or clogged. A clogged filter reduces pump efficiency and can cause overheating.
• Belt Tension: Periodically check the drive belt tension. Adjust if too loose or too tight according to your compressor's specifications.
• General Cleaning: Keep the pump exterior clean, especially the cooling fins, to ensure efficient heat dissipation.

Figure 6: Side view illustrating the location of the oil sight glass and the oil drain hole (opposite the shaft) for maintenance.

8. Troubleshooting

This section addresses common issues you might encounter with your air compressor pump.

9. Warranty and Support

For warranty information or technical support regarding your compressor-source DG03 Pump, please refer to the documentation provided at the time of purchase or contact compressor-source directly.

Contact Information: Please visit the official compressor-source website or refer to your purchase receipt for customer service contact details.

Online Resources: For additional information and resources, you may visit the compressor-source Store on Amazon.
