MEIVIYA Manual Die-Cutting and Embossing Machine User Manual

1. Introduction

Thank you for choosing the MEIVIYA Manual Die-Cutting and Embossing Machine. This versatile tool is designed for various crafting projects, including scrapbooking, card making, and other DIY decorations. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your machine.

2. Safety Instructions

• Always read and understand all instructions before operating the machine.
• Keep hands and fingers clear of the roller area and cutting dies during operation to prevent injury.
• Use only compatible dies and embossing folders with the machine.
• Keep the machine on a stable, flat surface during use.
• Store the machine and accessories out of reach of children.
• Do not force materials through the machine; this can damage the machine or the material.

3. Package Contents

Please verify that all items listed below are included in your package:

• 1 x MEIVIYA Manual Die-Cutting and Embossing Machine
• 1 x Embossing Mat
• 1 x Plate
• 2 x Cutting Pads
• 1 x A6 Embossing Folder
• 8 x 0.8mm Cutting Dies
• 10 x A5 Cardstocks
• 1 x Adapter

Figure 3.1: Contents of the starter kit, including the die-cutting machine and various accessories.

4. Setup

1. Unpack the Machine: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Placement: Place the die-cutting machine on a clean, stable, and flat work surface. Ensure there is enough space around the machine for comfortable operation.
3. Handle Attachment: If the handle is not pre-attached, insert it into the designated slot on the side of the machine and secure it firmly.

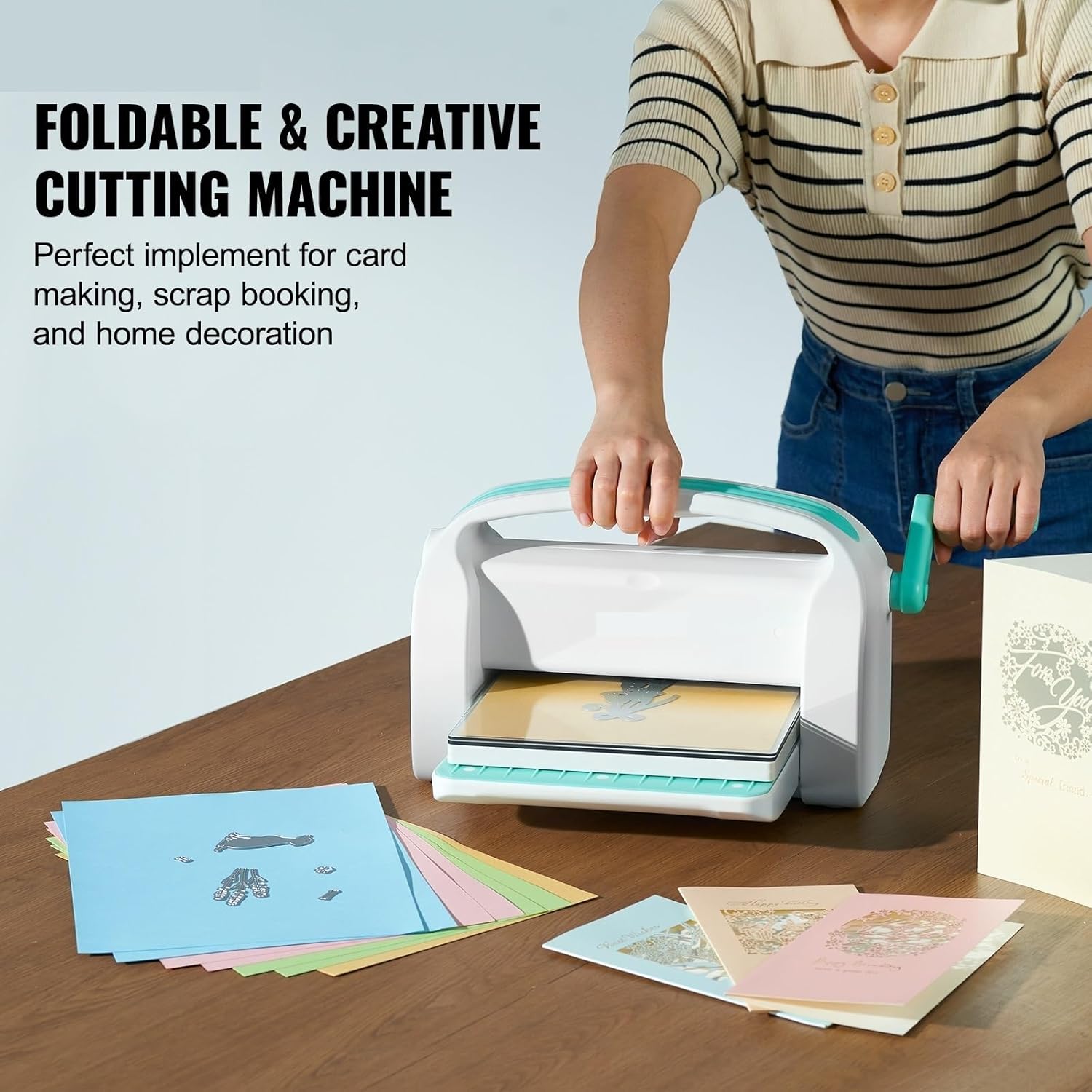

Figure 4.1: The MEIVIYA die-cutting machine ready for use with crafting materials.

5. Operating Instructions

5.1 General Operation for Die-Cutting and Embossing

The MEIVIYA machine uses a 'sandwich' method to apply pressure for cutting or embossing. The specific layers of the sandwich will vary depending on whether you are die-cutting or embossing, and the thickness of your material.

1. Prepare Your Materials: Select your desired paper, cardstock, felt, leather, or other compatible material. Choose the appropriate cutting die or embossing folder.
2. Create the Sandwich: Assemble the layers according to your project. A typical die-cutting sandwich might include:
   Cutting Pad > Die (cutting edge up) > Material > Plate > Cutting Pad.
   For embossing, the sandwich typically involves the embossing folder with your material inside, placed between the appropriate plates/pads. Refer to the instructions provided with your specific dies and folders for precise layering.
3. Insert the Sandwich: Carefully place the assembled sandwich into the machine's opening. Ensure it is centered and aligned.
4. Turn the Handle: Steadily turn the handle clockwise to feed the sandwich through the rollers. Apply consistent pressure. You may hear a slight cracking sound as the die cuts through the material; this is normal.
5. Retrieve and Inspect: Once the sandwich has passed through the rollers, remove it from the machine. Carefully separate the layers to reveal your cut or embossed design.

Figure 5.1: Demonstrating the use of the MEIVIYA machine for card making.

Figure 5.2: The machine's capability to cut intricate shapes efficiently.

5.2 Compatible Materials

This machine is compatible with a wide range of materials, including but not limited to:

• Paper
• Cardstock
• Felt
• Thin Leather
• Fabric
• Thin Metal Plate (check die compatibility)

Figure 5.3: Examples of materials and creative outputs possible with the machine.

6. Maintenance

• Cleaning: After each use, wipe down the machine with a soft, dry cloth to remove any paper dust or debris. Do not use abrasive cleaners or solvents.
• Storage: Store the machine in a dry, cool place away from direct sunlight. Keep dies and embossing folders organized in appropriate storage solutions to prevent damage.
• Roller System: The machine features a durable metal handle and steel roller system. No special lubrication is typically required for the rollers.

Figure 6.1: Details of the machine's robust construction, including the handle and roller mechanism.

7. Troubleshooting

• Material Not Cutting Completely:
  • Ensure the correct 'sandwich' combination is used for your material and die.
  • Check if the cutting pads are worn out. Replace if necessary.
  • Try rotating the die or material slightly and passing it through again.
• Uneven Embossing:
  • Verify that the embossing folder is properly aligned and the material is flat inside.
  • Adjust the pressure by adding or removing shims (thin pieces of cardstock) if your machine allows for fine-tuning.
• Machine Jams:
  • Do not force the handle. Gently turn the handle backward to release the sandwich.
  • Ensure you are not trying to cut overly thick materials or too many layers at once.

8. Specifications

Figure 8.1: Detailed dimensions and weight of the MEIVIYA die-cutting machine.

9. Warranty and Support

This product is covered by a standard warranty. For specific details regarding warranty coverage, returns, or technical support, please refer to the retailer's policy or contact MEIVIYA customer service directly. Keep your proof of purchase for any warranty claims.

For issues with defective or damaged products, please consult the retailer's help page for return and replacement procedures.
