Zevemomo Twin Daybed with Trundle Bed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Zevemomo Twin Daybed with Trundle Bed. This versatile furniture piece is designed to maximize space and provide comfortable seating and sleeping arrangements. It features a rustic farmhouse design, a sliding barn door headboard with integrated storage, LED lighting, and a convenient charging station.

The daybed is ideal for various settings, including small bedrooms, living rooms, guest rooms, children's rooms, or home offices, offering a practical solution for additional sleeping capacity when needed.

2. Safety Information

• Always assemble the daybed strictly according to the provided instructions.
• Do not exceed the maximum weight limit of 400 lbs for the daybed.
• Use only a standard twin-size mattress (39" x 75"). A mattress height of 6-8 inches is recommended.
• No box spring is required or recommended for this daybed.
• Ensure all connections are securely tightened before use. Periodically check and re-tighten fasteners as necessary.
• Never leave infants or young children unattended on the daybed or trundle.
• Keep small parts away from children during assembly to prevent choking hazards.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Daybed Frame Components
• Trundle Bed Components
• Bookcase Headboard Components
• LED Light Strips
• Charging Station Unit
• Hardware Pack (screws, bolts, Allen key, etc.)
• Installation Manual

4. Setup and Assembly

The Zevemomo Twin Daybed is designed for straightforward assembly. Follow the included installation manual carefully. All parts are labeled, and necessary tools are provided. For optimal results, consider the following tips:

1. Unpack and Organize: Lay out all components and hardware. Verify against the parts list in the separate installation manual.
2. Partial Tightening: During initial assembly, only tighten screws and bolts approximately 80% of the way. This allows for minor adjustments to align parts correctly. Fully tighten all fasteners once the entire frame is assembled and stable.
3. Trundle Assembly: Pay close attention to the trundle assembly. Ensure all screws are of adequate length for secure fastening. If any screws seem too short, consult the manufacturer or acquire appropriate replacements.
4. Slat Installation: A rubber mallet can be helpful for securely tapping the bed slats into place, ensuring a snug fit.
5. Headboard Alignment: Some users have noted that headboard holes may require careful alignment. Refer to the visual diagrams in the installation manual for correct positioning.
6. Mattress Placement: Once assembled, place a standard twin-size mattress (39" x 75") on the daybed. The embedded design helps keep the mattress in place.

Figure 4.1: Illustration of easy slat installation and mattress retention clips.

Figure 4.2: Product dimensions for the daybed and trundle.

5. Operating Instructions

5.1. Daybed and Trundle Functionality

The daybed serves as a comfortable seating area during the day and a primary sleeping surface at night. The integrated trundle bed provides an additional sleeping space, easily accessible when needed.

• Deploying the Trundle: Gently pull the trundle bed out from underneath the main daybed frame. The trundle is equipped with lockable casters for smooth movement.
• Securing the Trundle: Once positioned, engage the locks on the trundle's casters to prevent unwanted movement.
• Retracting the Trundle: Unlock the casters, push the trundle back under the daybed, and re-engage the caster locks for storage.

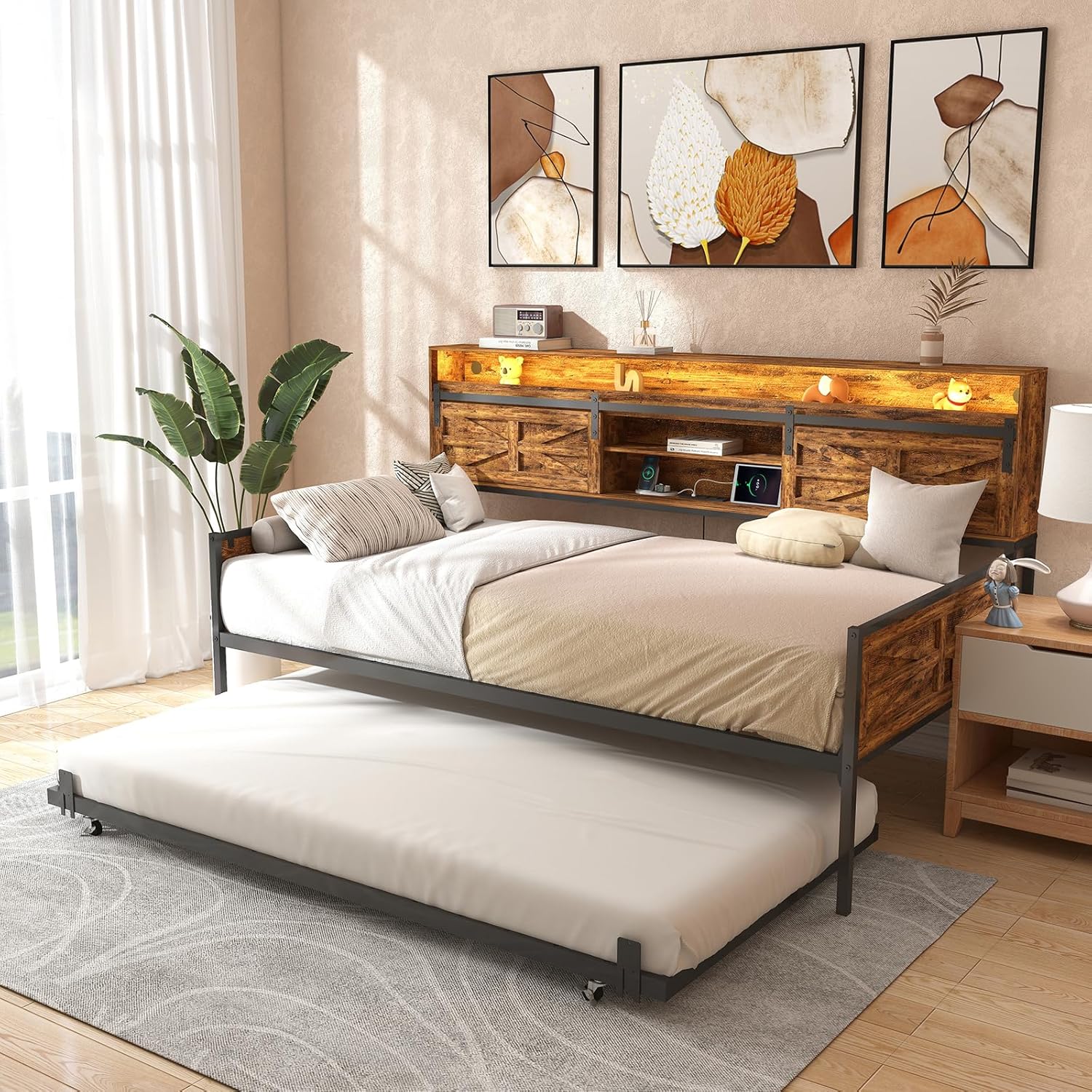

Figure 5.1: Zevemomo Twin Daybed with trundle extended.

Figure 5.2: Lockable casters on the trundle bed.

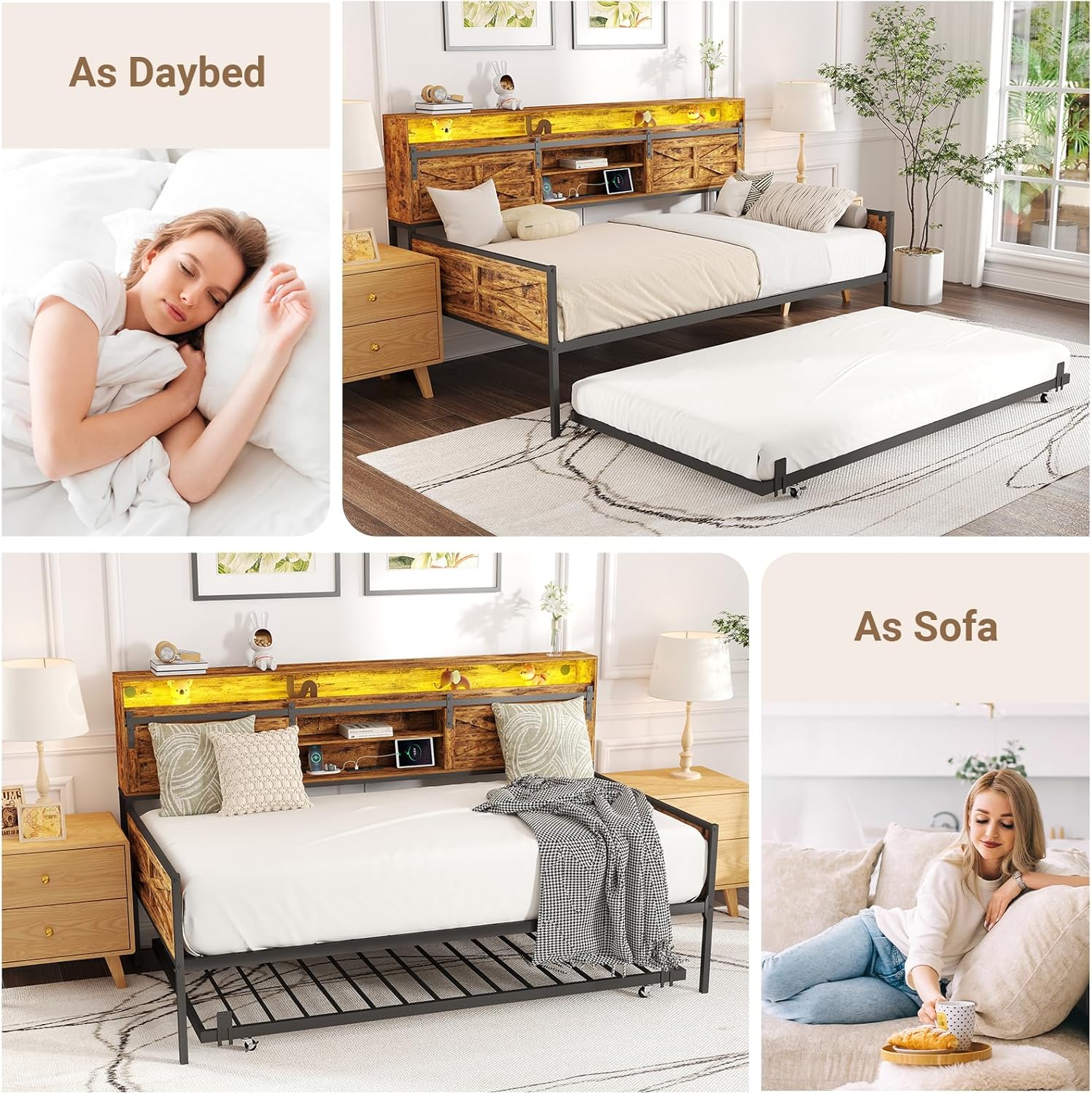

Figure 5.3: Daybed versatility as both a bed and a sofa.

5.2. RGB LED Lighting

The headboard features a built-in smart RGB LED strip. This lighting system is controlled via a dedicated mobile application (no remote control is included). The app allows you to:

• Select from over 60,000 colors.
• Choose from various preset lighting effects.
• Utilize features such as music mode, mic mode, and timing mode.

Refer to the LED light strip's specific instructions for app download and pairing procedures.

Figure 5.4: RGB LED light features and app control.

5.3. Charging Station

The headboard includes a convenient charging station to power your electronic devices. It features:

• 2 Standard AC Outlets
• 1 USB Port
• 1 Type-C Port

Ensure the daybed is connected to a power source for the charging station and LED lights to function.

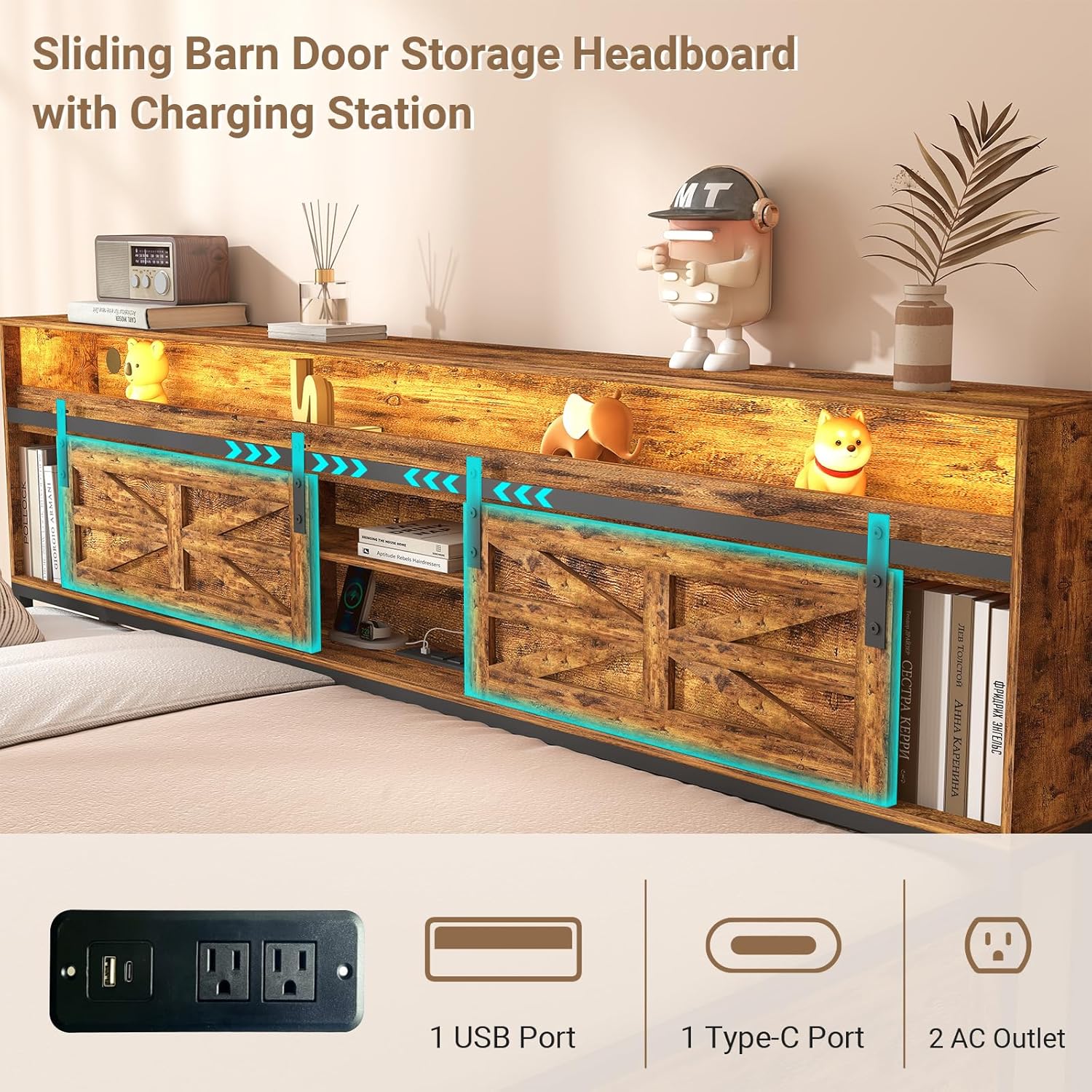

Figure 5.5: Sliding barn door headboard with charging station.

6. Maintenance

Regular maintenance will help prolong the life and appearance of your daybed.

• Cleaning the Frame: Wipe the metal frame and wooden headboard surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Dusting: Regularly dust the headboard and frame to prevent buildup.
• Fastener Checks: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten any loose fasteners to maintain stability and safety.
• Trundle Casters: Keep the trundle casters clean and free of debris to ensure smooth operation.

7. Troubleshooting

This section addresses common issues you might encounter.

• Issue: The daybed or trundle feels unstable or wobbly.
  Solution: Check all assembly bolts and screws. Ensure they are fully tightened. If the issue persists, disassemble and reassemble, ensuring all parts are correctly aligned before tightening.
• Issue: Trundle wheels do not roll smoothly.
  Solution: Check the casters for any trapped debris (e.g., hair, lint). Clean them thoroughly. Ensure the caster locks are disengaged when attempting to roll the trundle.
• Issue: LED lights are not working.
  Solution: Verify that the daybed is properly plugged into a functional power outlet. Check the connection of the LED strip to the power source. Ensure the mobile app is correctly paired and functioning.
• Issue: Charging station ports are not providing power.
  Solution: Confirm the daybed is plugged into a live power outlet. Check for any tripped circuit breakers.
• Issue: Mattress slides on the daybed frame.
  Solution: The frame includes embedded mattress stoppers. Ensure your mattress is correctly positioned within these stoppers.
• Issue: Difficulty aligning parts during assembly.
  Solution: Loosen all fasteners slightly to allow for greater flexibility in alignment. Once parts are correctly positioned, gradually tighten all fasteners. Refer closely to the visual diagrams in the instruction manual.

8. Specifications

9. Warranty and Support

Specific warranty details for your Zevemomo Twin Daybed may vary. Please refer to the documentation included with your purchase or visit the official Zevemomo website for the most current warranty information.

For technical assistance, missing parts, or any other inquiries, please contact Zevemomo customer support through their official channels. Contact information can typically be found on the manufacturer's website or on the packaging materials.
