soges Twin Over Full Metal Bunk Bed User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your soges Twin Over Full Metal Bunk Bed. Please read this manual thoroughly before assembly and use to ensure safe and proper operation. Keep this manual for future reference.

The soges Twin Over Full Metal Bunk Bed is designed to maximize space in smaller rooms, dorms, or shared living areas. It features a robust steel construction with integrated ladder and guardrails for safety and durability.

Safety Information

• Weight Capacity: The top bunk supports up to 300 lbs, and the bottom bunk supports up to 350 lbs. Do not exceed these limits.
• Mattress Thickness: Recommended mattress thickness is 4 inches for the top bunk and 6-8 inches for the bottom bunk. Ensure the top bunk mattress is not too thick to compromise guardrail effectiveness.
• Guardrails: Always ensure guardrails are properly installed and secured on the top bunk.
• Ladder Safety: Use the integrated ladder for access to the top bunk. Do not jump on or off the bunk bed.
• Assembly: Assemble the bed strictly according to the instructions. Ensure all bolts and fasteners are tightened securely before use. Periodically check and retighten fasteners.
• Children: Children under 6 years of age should not use the top bunk.
• Ventilation: Ensure adequate ventilation around the bed.
• No Box Spring Needed: This bed is designed for direct mattress support. Do not use a box spring.

Components List

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Note: A detailed diagram of all components and hardware will be included in the physical instruction manual.

Setup and Assembly

Assembly is straightforward and all necessary tools are included. It is recommended that two adults assemble this bunk bed.

1. Step 1: Unpack and Identify Parts.

   Carefully remove all components from the packaging. Lay them out on a clean, soft surface (like a carpet) to prevent scratches. Refer to the Components List to identify each part.



   Image: The fully assembled soges Twin Over Full Metal Bunk Bed, showcasing its design and how it fits into a room setting.

2. Step 2: Assemble the Bottom Bunk Frame.

   Connect the side rails and end frames for the full-size bottom bunk using the provided bolts and Allen wrench. Do not fully tighten bolts until all sections are aligned.

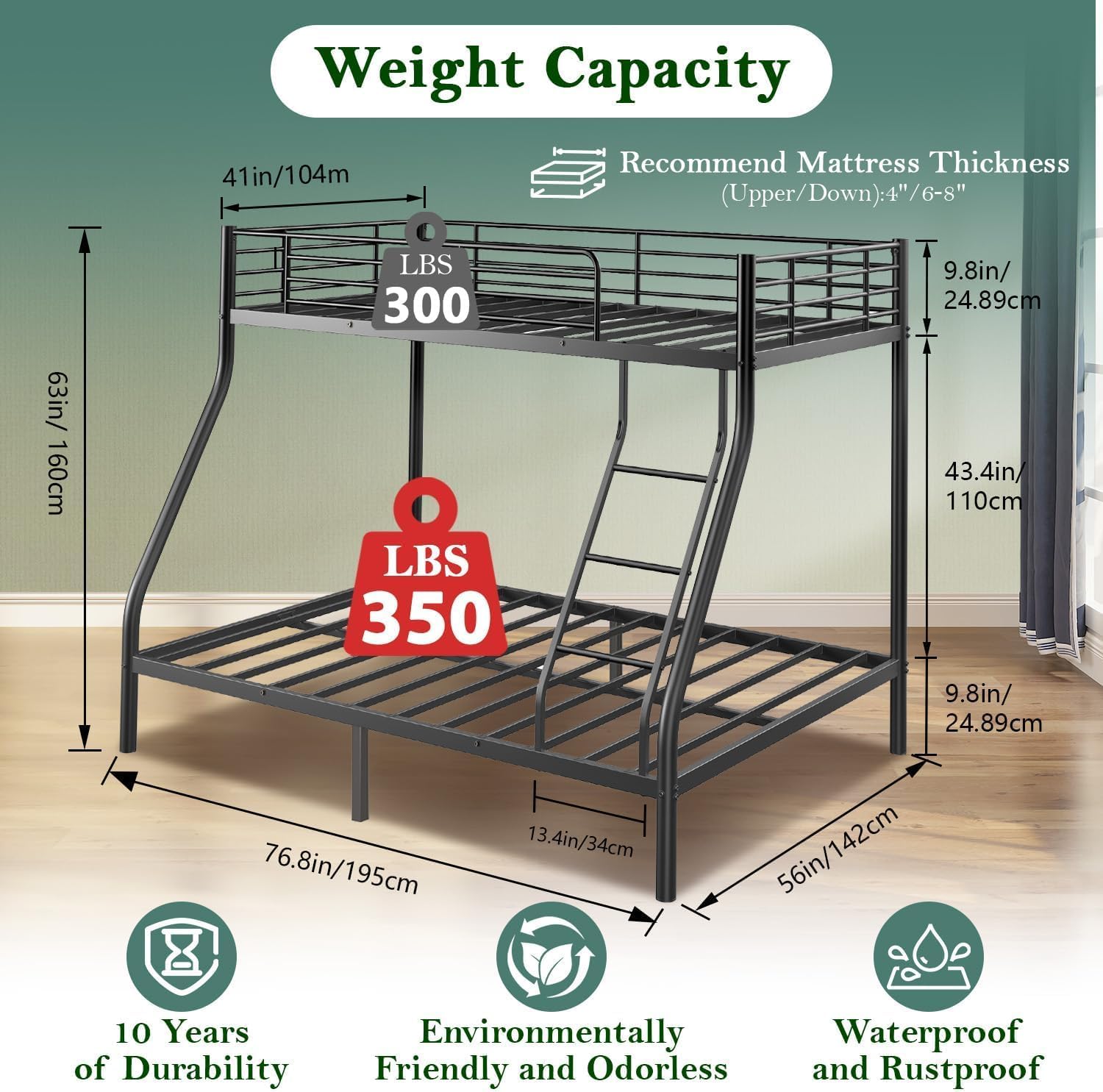

   Image: A diagram illustrating the dimensions of the bunk bed and its weight capacities for both the top (300 lbs) and bottom (350 lbs) bunks. It also shows recommended mattress thickness.

3. Step 3: Assemble the Top Bunk Frame.

   Similarly, assemble the twin-size top bunk frame. Ensure the guardrails are attached to the top bunk frame as per the instructions.



   Image: A close-up view of the bunk bed frame, highlighting its reinforced and thickened metal structure, designed for safety and comfort.
4. Step 4: Attach the Ladder.

   Securely attach the integrated ladder to the designated points on the bunk bed frame. Ensure it is stable and does not wobble.



   Image: A diagram illustrating the four layers of the premium steel frame: Powder Spray Coating Layer, Conversion Layer, Cold Rolled Steel Base Layer, and Rust-Proof Layer, indicating durability.

5. Step 5: Install Metal Slats.

   Place the metal slats onto the support rails for both the top and bottom bunks. Ensure they are evenly spaced and secured if there are attachment points.



   Image: The bunk bed with icons highlighting key features such as strong load-bearing capacity, sturdy metal slats, fall-proof guardrail, anti-rust coated finish, and anti-scratch & durable surface.

6. Step 6: Final Tightening.

   Once all components are assembled and aligned, go back and fully tighten all bolts and fasteners. Do not overtighten. Check for stability.

Operating Instructions

• Mattress Placement: Place the appropriate size mattress on each bunk. For the top bunk, use a twin-size mattress (75"x38") with a maximum thickness of 4 inches to maintain guardrail effectiveness. For the bottom bunk, use a full-size mattress (75"x54") with a recommended thickness of 6-8 inches.
• Weight Distribution: Distribute weight evenly on both bunks. Avoid concentrating weight in one small area.
• Ladder Use: Always use the ladder to access the top bunk. Do not climb on the frame or guardrails.
• Underbed Storage: The design allows for spacious underbed clearance, suitable for storing sundry boxes, quilts, suitcases, or toys.


Image: A visual demonstrating the spacious underbed clearance for storage and a detailed view of the safety guardrail on the top bunk.

Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Fastener Check: Periodically (e.g., every 3-6 months) check all bolts and fasteners to ensure they are tight. Retighten if necessary to maintain stability and safety.
• Rust Prevention: The frame features an anti-rust powder coating. To prolong its life, avoid exposing the bed to excessive moisture.
• Inspection: Regularly inspect the frame for any signs of damage, bending, or wear. If any issues are found, discontinue use and contact customer support.

Troubleshooting

Specifications

• Brand: soges
• Model Number: 20HBND-YCTC103
• Colour: Black
• Product Dimensions: 198L x 143W x 160H Centimetres (78 x 56.3 x 63 inches)
• Material: Metal
• Item Weight: 31 kg (68.3 lbs)
• Top Bunk Weight Capacity: 300 lbs
• Bottom Bunk Weight Capacity: 350 lbs
• Assembly Required: Yes
• Included Components: Bed Set (frame, ladder, guardrails, slats, hardware)

Warranty and Support

soges provides a limited warranty for this product against manufacturing defects. Please refer to the warranty card included with your purchase for specific terms and conditions, or visit the official soges website for more details.

For technical support, missing parts, or warranty claims, please contact soges customer service:

• Email: ivan@csbdhome.com
• Website: soges Official Store on Amazon.ca

Please have your model number (20HBND-YCTC103) and purchase date ready when contacting support.
