PAPAGIFTREE Vinyl Wall Mount Record Player Stand Instruction Manual

1. Product Overview

The PAPAGIFTREE Vinyl Wall Mount Record Player Stand is designed to provide a secure and space-saving solution for your turntable and vinyl record collection. Constructed from durable metal and wood, this wall-mounted unit helps to minimize floor space usage while offering organized storage and display for your audio equipment and records.

Key features include a sturdy top shelf for a compact turntable and three integrated tiers for vinyl record storage, allowing for easy access and display of your collection. The design aims to enhance both functionality and the aesthetic appeal of your listening space.

Image 1.1: The PAPAGIFTREE Vinyl Wall Mount Record Player Stand, featuring a turntable on the top shelf and a collection of vinyl records stored in the integrated lower rack. The stand is mounted on a wall, showcasing its space-saving design.

2. Package Contents

Please verify that all components are present before beginning assembly:

• Wall Mount Frame (Metal)
• Top Shelf (Wood)
• Mounting Hardware (Screws, Wall Anchors)
• Assembly Instructions

3. Setup and Installation

3.1. Before You Begin

• Safety First: Always wear appropriate safety gear, such as eye protection, during installation.
• Wall Type: This stand is designed for secure wall mounting. For optimal stability and to support the weight of your turntable and records, it is highly recommended to mount the stand directly into wall studs. If mounting into drywall without studs, use heavy-duty drywall anchors suitable for the combined weight of the stand, turntable, and records.
• Tools Required: Pencil, measuring tape, level, stud finder (recommended), drill, screwdriver.
• Weight Capacity: The top shelf and record storage sections each have a capacity of 10 kg (22 lbs). Do not exceed this weight limit.

3.2. Step-by-Step Installation

1. Choose Location: Select a suitable wall location, ensuring it is free from electrical wires or plumbing. Use a stud finder to locate wall studs for the most secure mounting.
2. Mark Drill Points: Hold the wall mount frame against the wall at the desired height. Use a level to ensure it is perfectly horizontal. Mark the positions for the mounting holes with a pencil.
3. Drill Pilot Holes: Using a drill bit appropriate for your wall type and chosen anchors/screws, drill pilot holes at the marked locations. If mounting into studs, ensure the drill bit is slightly smaller than the screw diameter. If using drywall anchors, follow the anchor manufacturer's instructions.
4. Attach Wall Mount Frame: Align the wall mount frame with the drilled holes. Insert the screws and tighten them securely. Ensure the frame is firmly attached to the wall and does not wobble.
5. Install Top Shelf: Place the wooden top shelf onto the metal frame. Secure it using the provided screws, ensuring it is flush and stable.
6. Final Check: Gently test the stability of the installed stand before placing any items on it.

Image 3.1: This image provides the precise measurements of the product: 12.6 inches (D) x 16 inches (W) x 14.6 inches (H). It also shows the internal dimensions for the record storage area, which are crucial for planning installation and ensuring compatibility with your turntable.

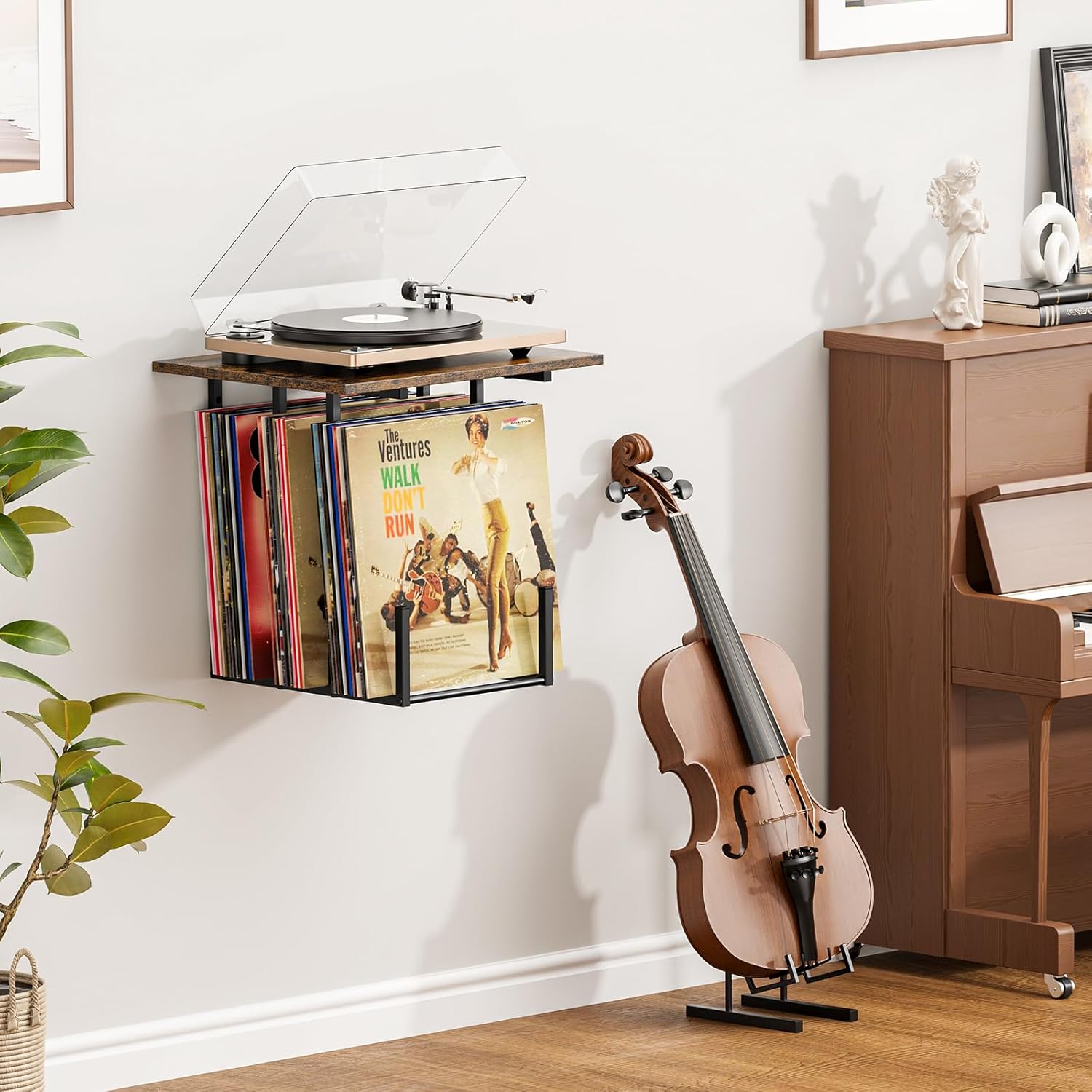

Image 3.2: The stand is shown mounted on a wall in a room, demonstrating its aesthetic integration into a home environment. A record player rests on the top shelf, and vinyl records are stored below. This image illustrates a typical installed setup.

4. Operation

4.1. Turntable Placement

• Carefully place your turntable on the wooden top shelf.
• Ensure your turntable's dimensions do not exceed 15.75 inches (W) x 12.6 inches (D) to fit properly on the shelf.
• Position the turntable centrally to distribute weight evenly.

4.2. Record Storage

The stand features three tiers for organizing your vinyl records:

• Inner Layer: Holds up to 20 records.
• Middle Layer: Holds up to 15 records.
• Outer Layer: Designed for 3-5 frequently played records, allowing for easy flip-through access.

Arrange your records to utilize the L-shape design for convenient browsing and selection.

Image 4.1: This diagram details the record storage capacity of the stand. It highlights three tiers: an inner layer for up to 20 records, a middle layer for up to 15 records, and an outer layer for 3-5 frequently played records. The overall shelf capacity is 10 kg (22 lbs) per shelf.

5. Maintenance and Care

• Cleaning: Wipe the metal and wood surfaces with a soft, dry, or slightly damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
• Inspection: Periodically check all mounting screws and connections to ensure they remain tight and secure. Retighten if necessary.
• Weight Distribution: Always ensure that the weight of your turntable and records is distributed evenly and does not exceed the specified capacity.

6. Troubleshooting

• Issue: The stand feels unstable after installation.
  Solution: Ensure all mounting screws are fully tightened. Verify that the stand is mounted into wall studs for maximum stability. If mounted into drywall, confirm that appropriate heavy-duty anchors were used and installed correctly.
• Issue: My turntable does not fit on the top shelf.
  Solution: The top shelf is designed for compact turntables with dimensions not exceeding 15.75 inches (W) x 12.6 inches (D). Please measure your turntable to confirm compatibility.
• Issue: Records are difficult to browse or remove from the storage tiers.
  Solution: The L-shape design is intended for easy flipping. Ensure the tiers are not over-packed with records. Try organizing your collection to utilize the outer tier for frequently accessed albums.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact PAPAGIFTREE customer service directly through their official channels. Keep your purchase receipt for any warranty claims.
