1. Introduction
Thank you for choosing the DAIWA Light Game RX IC 150L Counter Bait Reel. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new fishing reel. Please read these instructions carefully before using the product to ensure safe and effective performance. Keep this manual for future reference.

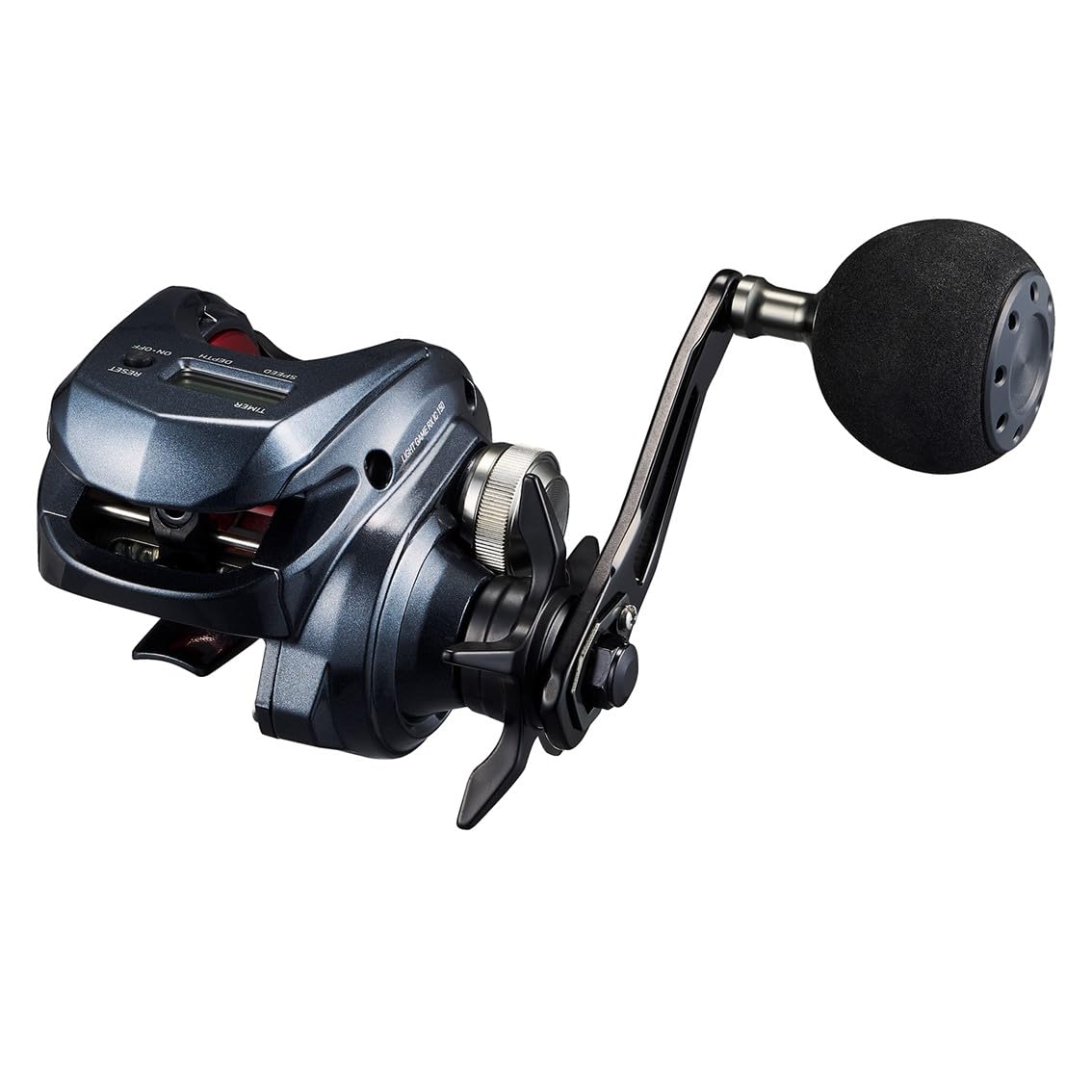

Figure 1: DAIWA Light Game RX IC 150L Counter Bait Reel. This image displays the overall design of the reel, highlighting its compact and ergonomic form factor.
2. Product Overview
The DAIWA Light Game RX IC 150L is a lightweight and compact baitcasting reel equipped with an advanced IC (Intelligent Counter) system. Designed for a wide range of light game fishing techniques, this reel offers precise depth and line management, enhancing your fishing experience. Its robust construction ensures durability and smooth operation.
Figure 2: DAIWA Light Game RX IC Reel with Digital Counter Display. This view showcases the integrated digital counter, which provides real-time information on line depth, speed, and a timer.
3. Setup
3.1 Attaching the Reel to a Rod
- Loosen the reel seat nut on your fishing rod.
- Place the reel foot into the reel seat.
- Tighten the reel seat nut securely until the reel is firmly attached to the rod. Ensure there is no wobble.
3.2 Spooling Line
- Tie the fishing line to the reel spool using an appropriate knot (e.g., arbor knot).
- Ensure the line is spooled evenly and tightly onto the spool. Avoid overfilling or underfilling the spool.
- For optimal performance of the IC counter, it is recommended to spool the line to the specified capacity.
3.3 Initial Counter Settings
Before first use, or after changing line, calibrate the IC counter for accurate depth readings.
- Press the ON/OFF button to power on the counter.
- Lower your lure or weight into the water until it reaches the desired depth or the bottom.
- Press the RESET button to set the current depth to zero or to a specific starting depth.
- The counter will now display the line depth accurately as you retrieve or deploy line.
Figure 3: Accessory parts for DAIWA Light Game RX IC Reel. These may include mounting hardware or spare components.
4. Operating Instructions
4.1 Using the IC Counter
The IC counter provides real-time data to assist with precise fishing.
- Depth Display: Shows the current line depth in meters or feet (depending on model settings). This is crucial for targeting specific depths where fish are located.
- Speed Display: Indicates the retrieval speed, allowing for consistent lure presentation.
- Timer: Tracks the time elapsed since the counter was reset, useful for monitoring fishing duration at a specific spot.
Figure 4: Depth Indicator. Displays the current line depth.
Figure 5: Speed Indicator. Shows retrieval speed.
Figure 6: Timer Function. Tracks elapsed fishing time.
4.2 Casting and Retrieving
- To cast, disengage the spool by pressing the clutch lever.
- Perform your cast. As the lure flies, control the spool with your thumb to prevent backlash.
- Once the lure lands, engage the clutch by turning the handle.
- Retrieve the line by turning the handle. The IC counter will display the current depth.
4.3 Drag Adjustment
The drag system controls the amount of force required to pull line from the reel. Adjust the drag according to the target fish size and line strength.
- To increase drag, turn the drag knob clockwise.
- To decrease drag, turn the drag knob counter-clockwise.
- Always set the drag before fishing. A good starting point is about one-third of your line's breaking strength.
Figure 7: Drag Knob. Used for adjusting the reel's drag tension.
5. Maintenance
Regular maintenance will prolong the life and performance of your DAIWA Light Game RX IC 150L reel.
5.1 Cleaning After Use
- After each use, especially in saltwater, rinse the reel thoroughly with fresh water. Do not submerge the reel.
- Wipe the reel dry with a soft cloth.
- Pay attention to crevices and moving parts to remove any salt or debris.
5.2 Lubrication
- Periodically apply a small amount of reel oil to moving parts such as the handle shaft, line roller, and bail arm pivots.
- Apply reel grease to gears if you disassemble the reel for deeper cleaning. Refer to a professional for complex disassembly.
5.3 Storage
- Store the reel in a cool, dry place away from direct sunlight and extreme temperatures.
- Ensure the drag is loosened before storage to prevent compression of the drag washers.
6. Troubleshooting
If you encounter issues with your reel, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reel handle is stiff or difficult to turn. | Lack of lubrication, dirt/salt buildup, damaged internal components. | Clean and lubricate the reel. If problem persists, seek professional service. |
| IC Counter not displaying or inaccurate. | Low battery, incorrect calibration, sensor obstruction. | Check/replace battery. Recalibrate the counter (see Section 3.3). Ensure no debris is blocking the line sensor. |
| Drag slips or is inconsistent. | Drag washers are dry, worn, or contaminated. | Clean and re-grease drag washers. Replace if worn. |
| Line tangles or backlashes frequently. | Improper line spooling, incorrect casting technique, worn line. | Respool line correctly. Practice casting technique. Replace old or damaged line. |
7. Specifications
Detailed specifications for the DAIWA Light Game RX IC 150L reel:
| Feature | Specification |
|---|---|
| Brand | DAIWA |
| Model Name | Light Game RX IC |
| Size | 150L |
| Product Type | Counter-equipped Baitcasting Reel |
| Hand Orientation | Left Handle |
| Color | Gunmetal |
| Product Weight | 0.24 kg |
| Gear Ratio | 6.4:1 (from image, assuming 150L shares 150's ratio) |
| Line Retrieve Per Turn | 72 cm |
| Max Drag Force | 5 kg |
| Standard Line Capacity (Nylon) | 3-160m, 4-120m |
| Standard Line Capacity (PE) | 1.5-250m, 2-200m |
| Ball Bearings / Roller Bearings | 5/1 |
| Handle Arm Length | 70 mm (from image, assuming 150L shares 150's handle length) |
| Fishing Technique | Boat Fishing |
| Country of Origin | China |
| Part Number / Model Number | 00621082 |
8. Warranty Information
DAIWA products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for any warranty claims. For detailed warranty information, please refer to the warranty card included with your product or contact DAIWA customer support.
9. Support
For further assistance, technical support, or inquiries regarding your DAIWA Light Game RX IC 150L reel, please contact DAIWA customer service through the official website or the contact information provided in your product packaging. Our support team is available to help you with any questions or issues you may have.
- Official DAIWA Website: www.daiwa.com (Please check for regional websites)
- Customer Service: Refer to your product packaging or the official website for local contact details.
