1. Product Overview
The YKYI V8 Cordless Stick Vacuum Cleaner is designed for versatile home cleaning. It features a powerful motor, multiple suction modes, and a foldable design for enhanced maneuverability. This manual provides essential information for the safe and efficient use of your vacuum cleaner.
Image 1.1: YKYI V8 Cordless Stick Vacuum Cleaner and included accessories.
Key Features:
- Powerful Suction: Up to 40,000Pa with a 450W motor.
- Long Runtime: Up to 50 minutes in Eco mode with a 2500mAh*7 lithium battery.
- 3 Cleaning Modes: Eco, Standard, and Turbo for various cleaning needs.
- Foldable Design: 180° bendable aluminum tube for cleaning under furniture.
- LED Display: Real-time information on battery level, suction mode, and alerts.
- 6-Stage HEPA Filtration: Captures 99.97% of fine dust and allergens.
- Versatile: Converts to a handheld vacuum for cleaning ceilings, cars, sofas, and tight spaces.
- Self-Cleaning Roller: Designed to prevent hair tangles.
- LED Headlights: Integrated into the floor brush to illuminate hidden dust.
2. Setup and Assembly
Follow these steps to assemble your YKYI V8 Cordless Stick Vacuum Cleaner and prepare it for first use.
2.1 Unpacking and Component Identification
Carefully remove all components from the packaging. Verify that all parts listed below are present:
Image 2.1: Included components and accessories.
- Main Unit (with dust cup and motor)
- LED Floor Brush Assembly
- Telescopic Pole (extension wand)
- 2-in-1 Combination Brush
- Crevice Tool
- Wall Mount
- Power Adapter/Charger
- Spare HEPA Filters (2)
- Cleaning Tool
2.2 Initial Assembly
- Attach the Telescopic Pole: Insert the telescopic pole into the main unit until it clicks securely into place.
- Attach the Floor Brush: Connect the LED floor brush assembly to the other end of the telescopic pole until it clicks.
- Install Accessories: For handheld use, attach the 2-in-1 combination brush or crevice tool directly to the main unit.
2.3 Charging the Battery
Before first use, fully charge the vacuum cleaner's battery. The battery can be charged while attached to the main unit or separately.
- Direct Charging: Connect the power adapter to the charging port on the main unit and plug it into a wall outlet.
- Wall Mount Charging: Install the wall mount in a convenient location. Place the vacuum cleaner onto the wall mount, ensuring the charging contacts align. Connect the power adapter to the wall mount and plug it in.
Image 2.2: Wall-mounted charging and storage.
The LED display will indicate the charging status. A full charge typically takes approximately 4 hours.
3. Operating Instructions
Understand how to use your YKYI V8 vacuum cleaner effectively for various cleaning tasks.
3.1 Power On/Off and Suction Modes
- Power On: Press the power button on the main unit to start the vacuum cleaner. It will typically start in Eco mode.
- Change Suction Mode: Press the mode button to cycle through the three suction modes: Eco (quiet daily upkeep, up to 50 mins runtime), Standard (balanced pet hair removal, up to 35 mins runtime), and Turbo (maximum suction for ground-in messes, up to 20 mins runtime).
- Power Off: Press the power button again to turn off the vacuum cleaner.
Image 3.1: All-in-One LED Display showing operational status.

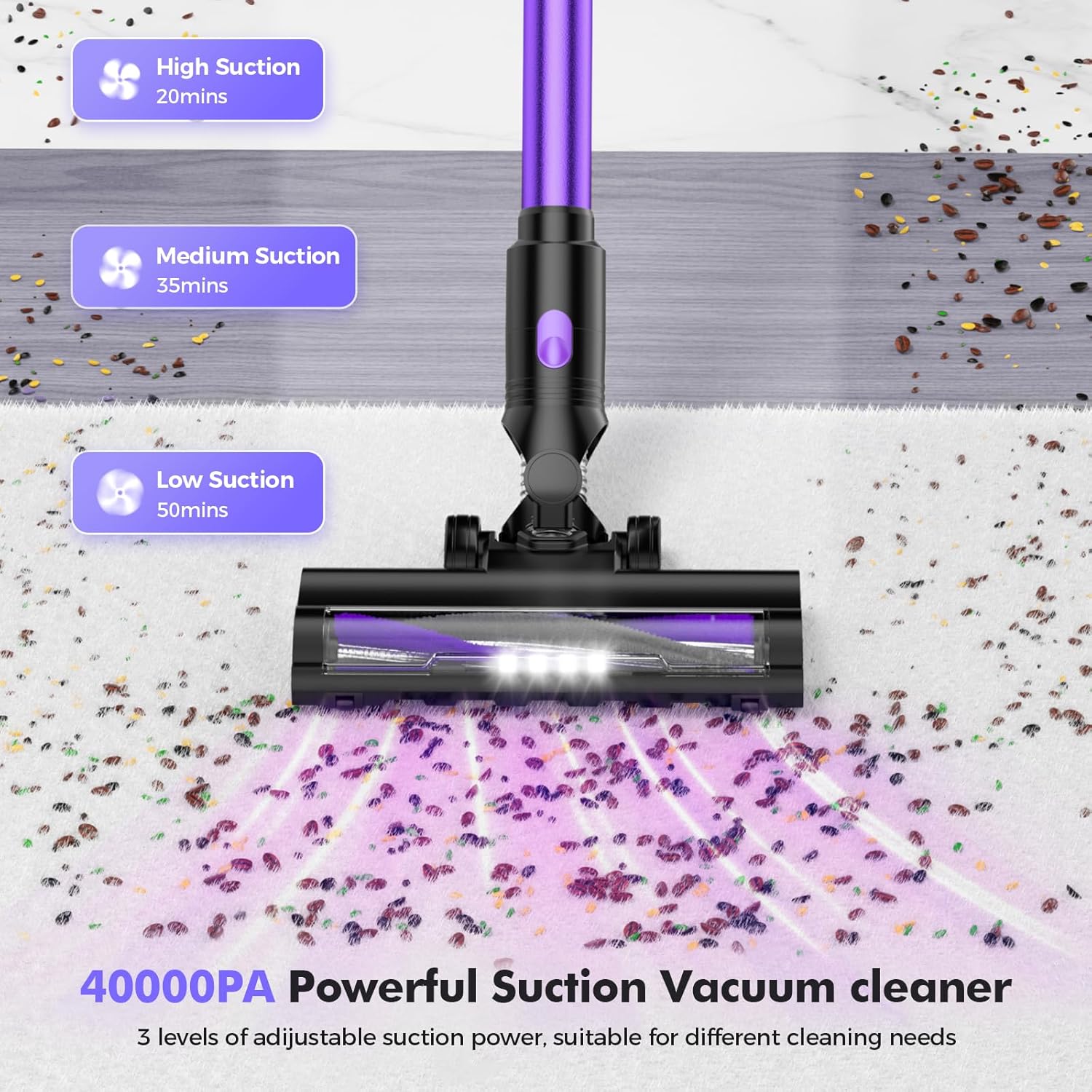

Image 3.2: Suction levels and corresponding runtimes.
3.2 Using the Foldable Design
The 180° foldable aluminum tube allows for easy cleaning under low-lying furniture without excessive bending.
- While the vacuum is running, press the hinge release button on the telescopic pole.
- Gently bend the pole downwards to reach under beds, tables, and sofas.
- To return to the upright position, straighten the pole until it locks into place.
Image 3.3: Demonstrating the foldable design for cleaning under furniture.
3.3 Utilizing Attachments and LED Headlights
The YKYI V8 comes with various attachments and features for comprehensive cleaning.
- LED Floor Brush: Ideal for hard floors and carpets. The integrated LED headlights illuminate dust and debris in dark areas.
- Handheld Mode: Detach the telescopic pole to use the main unit with the 2-in-1 combination brush or crevice tool for cleaning upholstery, car interiors, keyboards, and high surfaces.
Image 3.4: Multi-functional cleaning applications.
Image 3.5: Flexible floor brush with LED headlights.
4. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.
4.1 Emptying the Dust Cup
Empty the dust cup regularly, especially when the 'Air Duct Blocked' indicator appears on the LED display or when the dust level reaches the MAX line.
- Ensure the vacuum cleaner is turned off.
- Press the dust cup release button to detach it from the main unit.
- Position the dust cup over a trash bin.
- Press the bottom release button on the dust cup to open the flap and empty the contents.
- Close the flap and reattach the dust cup to the main unit until it clicks.
4.2 Cleaning the Filtration System
The YKYI V8 features a 6-stage filtration system that requires periodic cleaning.
Image 4.1: Diagram of the 4-stage filtration system.
- Disassemble: Twist and pull to remove the filter components from the dust cup. This typically includes the HEPA filter, metal mesh filter, and sponge filter.
- Wash: Rinse the HEPA filter, metal mesh filter, and sponge filter under running water until clean. Do not wash the main unit or motor components.
- Dry: Allow all filter components to air dry completely for at least 24 hours before reassembling. Ensure they are thoroughly dry to prevent mold or damage to the motor.
- Reassemble: Once dry, reassemble the filters in reverse order and attach the dust cup to the main unit.
Image 4.2: Routine maintenance steps for dust cup and filters.
4.3 Cleaning the Roller Brush
The self-cleaning roller comb helps prevent hair tangles, but occasional manual cleaning may be necessary.
- Ensure the vacuum cleaner is off and disconnected from power.
- Locate the release tab on the side of the floor brush head.
- Remove the roller brush.
- Use the included cleaning tool or scissors to remove any tangled hair or debris from the roller brush.
- Reinsert the roller brush and secure the release tab.
5. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is depleted or not properly installed. | Charge the battery fully. Ensure the battery is securely clicked into place. |
| Reduced suction power | Dust cup is full. Filters are clogged. Air duct is blocked. Roller brush is tangled. | Empty the dust cup. Clean all filters (HEPA, metal mesh, sponge). Check for blockages in the telescopic pole or floor brush. Clean the roller brush. |
| LED display shows "Air Duct Blocked" | Obstruction in the air path. | Check the dust cup, filters, telescopic pole, and floor brush for blockages. Clear any obstructions. |
| LED display shows "Floor Brush Wrapping" | Hair or debris tangled around the roller brush. | Turn off the vacuum, remove the roller brush, and clear any tangles. |
| Battery runtime is shorter than expected | Using Turbo mode frequently. Battery not fully charged. Battery degradation over time. | Use Eco or Standard mode for longer runtime. Ensure battery is fully charged before use. Contact customer support if battery life significantly decreases. |
6. Specifications
Detailed technical specifications for the YKYI V8 Cordless Stick Vacuum Cleaner.
| Feature | Specification |
|---|---|
| Brand | YKYI |
| Model Number | V8 |
| Colour | Purple |
| Power/Wattage | 450 watts |
| Suction Power | Up to 40,000Pa |
| Motor Speed | 90,000 RPM |
| Runtime | Up to 50 minutes (Eco mode) |
| Battery | 7x 2500mAh lithium battery |
| Charging Time | Approx. 4 hours |
| Dust Cup Capacity | 1 liter |
| Filter Type | HEPA Filter (6-stage filtration) |
| Item Weight | 3.81 kg |
| Material | Aluminum, Plastic, Stainless Steel |
| Form Factor | Stick |
| Special Features | Foldable Design, LED Display, Wall-Mounted Storage, Versatile Accessories |
| Surface Recommendation | Hard Floor, Carpet, Pet Hair, Rug, Bare Floors, Marble Flooring, Tile, Sofa, All floors |
7. Warranty and Support
Your YKYI V8 Cordless Stick Vacuum Cleaner comes with a 2-year extended protection plan.
For warranty claims, technical assistance, or any product-related inquiries, please contact YKYI customer support through the retailer's platform or the official YKYI website. Please have your purchase receipt and model number (V8) available when contacting support.
