1. Introduction
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Habitio 40V 16-Inch Cordless Electric Snow Shovel. Please read all instructions carefully before use to ensure proper function and to prevent injury or damage.
Image: The Habitio 40V 16-Inch Cordless Electric Snow Shovel, ready for use.
2. Safety Information
General Safety
- Always wear appropriate personal protective equipment, including safety goggles, during operation to protect against flying debris.
- The snow shovel features a dual safety switch and trigger mechanism to prevent accidental starts. Ensure both are engaged for operation.
- The adjustable dual-handle system is designed to minimize back and wrist strain. Adjust it to a comfortable height for your posture.
- This device is designed for clearing fluffy, fresh snow under 10 inches (25 cm) deep. Performance may vary with different snow conditions.
Battery Safety
- Ensure the charging environment is dry and within a temperature range of 0°C to 40°C (32°F to 104°F).
- Lithium-ion batteries may struggle to operate effectively below -4°F (-20°C). If the machine fails to start in cold conditions, warm the batteries indoors for approximately 30 minutes before reattempting operation.
3. Package Contents
Verify that all items are present and undamaged upon unpacking:
- Habitio Cordless Electric Snow Shovel Unit
- Adjustable Handle Assembly
- 2 x 4.0Ah 20V Lithium-Ion Batteries
- Fast Charger for 20V Batteries
- Instruction Manual

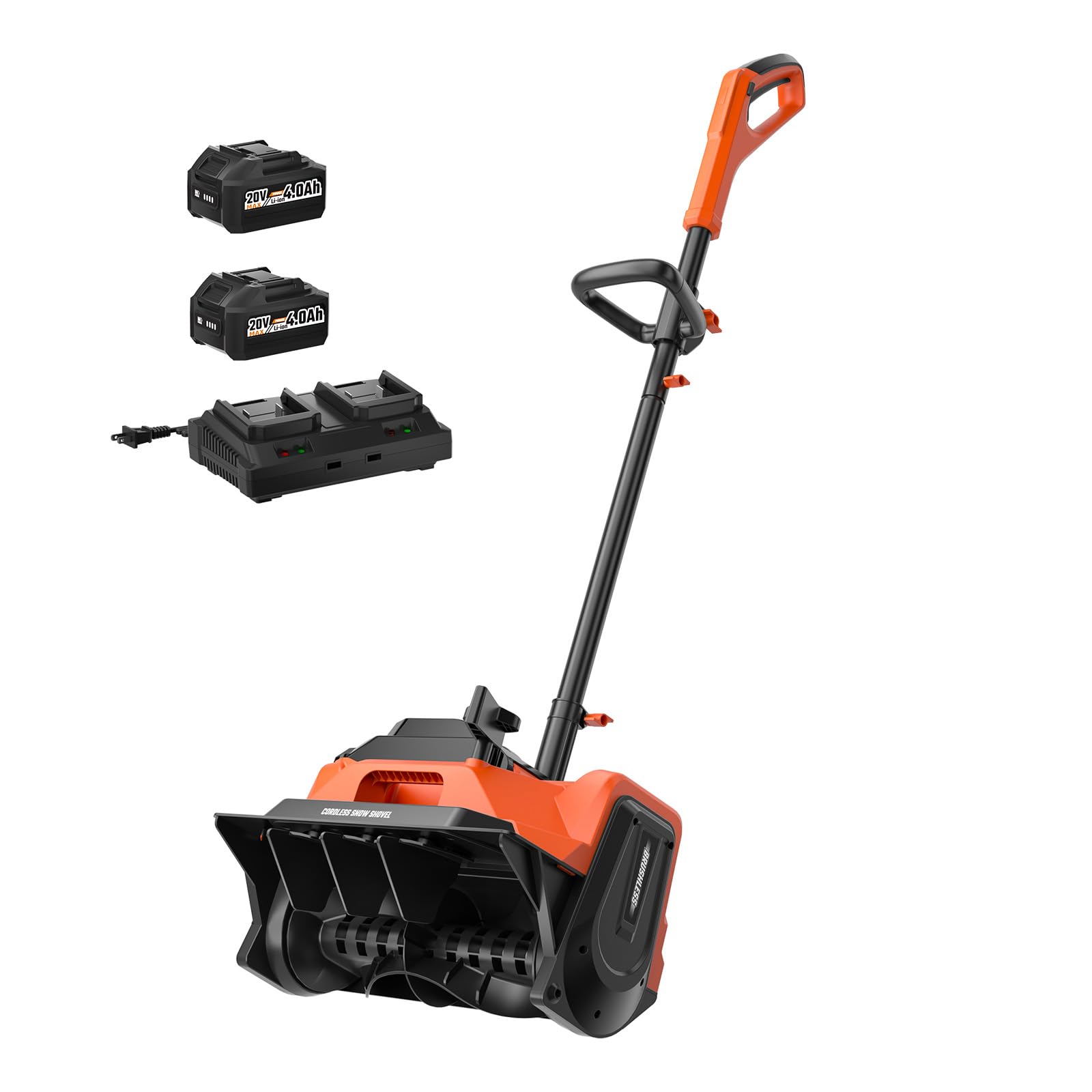

Image: The Habitio snow shovel, two 4.0Ah batteries, and the dual fast charger.
4. Setup and Assembly
Assembly of your Habitio Cordless Electric Snow Shovel is designed to be tool-free and takes approximately 5 minutes.
- Attach the Handle: Connect the handle sections and secure them to the main shovel unit. Ensure all connections are firm.
- Insert Batteries: Open the battery compartment and insert the two 4.0Ah 20V batteries until they click into place.
- Adjust Handle: Adjust the front handle to a comfortable operating height using the quick-release mechanisms.
Assembly Video Guide
Video: A step-by-step guide on how to assemble the Habitio 16-inch cordless snow shovel.
Image: Visual guide showing the three main steps for assembling the snow shovel: inserting batteries, connecting the middle handle, and connecting the top handle.
5. Operating Instructions
Your Habitio Cordless Electric Snow Shovel is designed for efficient snow removal from driveways, patios, and walkways.
Starting the Snow Shovel
- Ensure batteries are fully charged and properly inserted.
- Press the safety button located on the handle.
- While holding the safety button, squeeze the trigger to start the motor. Release the safety button once the motor is running.
Image: Close-up of the handle showing the dual safety switch and trigger for starting the snow shovel.
Snow Clearing Operation
- The 40V brushless motor provides powerful snow removal, clearing a path up to 16 inches wide and 10 inches deep.
- The snow deflector can be rotated +/- 30 degrees to adjust the snow throwing direction, projecting snow up to 20 feet away to prevent secondary accumulation.
- The two 4.0Ah batteries provide a run time of approximately 35-40 minutes on a full charge. Monitor the remaining power using the battery indicator.
Image: The snow shovel highlighting its 16-inch clearing width and 10-inch clearing depth capabilities.
Image: A person operating the snow shovel, demonstrating its ability to throw snow up to 20 feet away.
Image: Diagram illustrating the three adjustable throwing directions (+/- 30 degrees) of the snow deflector.
Battery Charging
The included fast charger can fully charge both 4.0Ah batteries in approximately 2.5 hours.
Image: Two 4.0Ah 20V batteries being charged simultaneously on the dual fast charger.
Operation Video Guide
Video: An overview of the Habitio Cordless Snow Shovel in operation, demonstrating its snow clearing capabilities.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your snow shovel.
- Always store the machine indoors in a dry location after use.
- Clean the snow shovel thoroughly after each use to prevent snow and ice buildup from affecting moving parts.
- Regularly inspect the auger and housing for any damage or wear.
- Ensure batteries are stored in a cool, dry place and charged periodically if not in regular use.
Image: The Habitio snow shovel stored neatly on a shelf, demonstrating its compact design for effortless tidy-up after winter storms.
7. Troubleshooting
Refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine fails to start | Low battery charge; Batteries too cold; Safety switch not engaged | Charge batteries; Warm batteries indoors for 30 minutes if below -4°F (-20°C); Ensure safety button is pressed before trigger. |
| Reduced snow clearing performance | Snow is too deep or heavy; Ice present; Auger obstructed | Clear snow in smaller passes; Avoid areas with ice; Turn off and clear any obstructions from the auger. |
| Short battery run time | Batteries not fully charged; Extreme cold affecting battery capacity | Ensure batteries are fully charged (approx. 2.5 hours); Operate in recommended temperature ranges. |
8. Specifications
- Model Number: RLST40D
- Brand: Habitio
- Power Source: 40V (2 x 20V) Cordless Lithium-Ion
- Batteries: 2 x 4.0Ah 20V Lithium-Ion (included)
- Charger: Dual Fast Charger (included)
- Clearing Width: 16 Inches
- Ideal Snow Depth: Up to 10 Inches
- Snow Throwing Distance: Up to 20 Feet
- Product Dimensions: 22.83 x 12.6 x 15.75 inches
- Item Weight: 22.2 pounds
9. Warranty and Support
Your Habitio Cordless Electric Snow Shovel comes with a 12-month warranty. For warranty claims, technical support, or replacement parts, please contact Habitio customer service through the retailer where the product was purchased or visit the official Habitio website for contact information.
