1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your CIKUNASI Queen Size Upholstered Bed Frame with Storage Drawers and LED Headboard. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

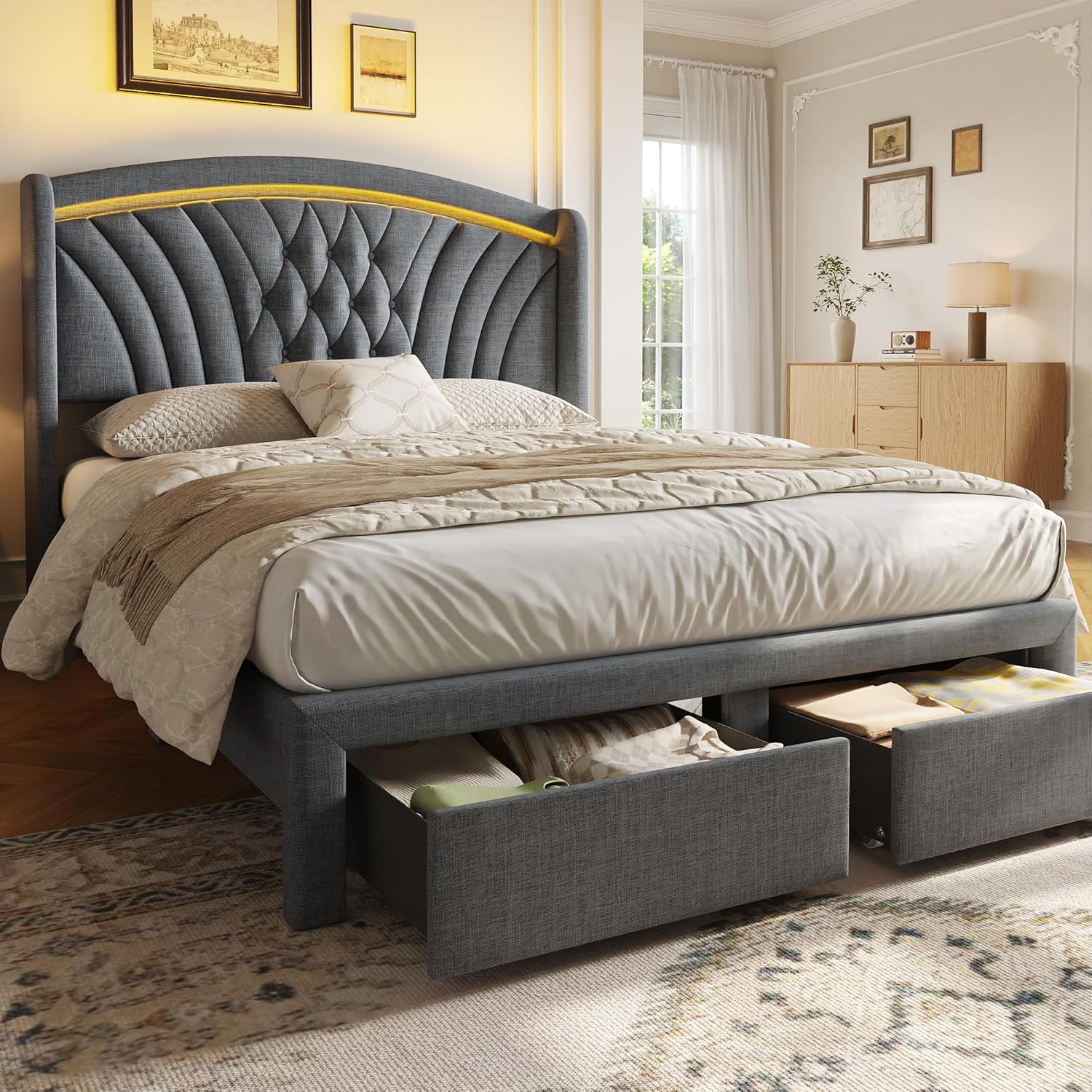

Image 1.1: Fully assembled CIKUNASI Queen Size Upholstered Bed Frame with LED headboard and two open storage drawers, showcasing its design and functionality.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Two-Person Assembly: Do not attempt to assemble this bed frame alone. Assembly requires at least two individuals to ensure safety and proper construction.
- Weight Capacity: The maximum weight capacity for this bed frame is 1100 lbs. Do not exceed this limit.
- LED Light Handling: Exercise caution when handling the LED lights and associated wiring to avoid damage or electrical injury. Ensure all connections are secure.
- Secure Connections: Periodically check all bolts and screws to ensure they remain tight. Loose connections can compromise stability.
- Level Surface: Assemble and use the bed frame on a flat, level surface to prevent wobbling and ensure stability.
3. Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support.
- Upholstered Headboard
- Side Rails (Left and Right)
- Footboard with Drawer Mechanism
- Storage Drawers (x2)
- Wooden Slats and Support Legs
- Center Support Beam
- LED Light Strip and Controller Kit
- Hardware Pack (bolts, screws, washers, Allen wrench)
Image 3.1: Dimensional diagram of the Queen size bed frame, illustrating overall length (85.0"), width (63.3"), headboard height (45.8"), and individual drawer dimensions.
4. Assembly Instructions
Follow these steps for proper assembly. It is recommended to have two people for this process.
- Unpack and Identify: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratches. Identify each part using the provided parts list.
- Assemble Headboard: Attach any necessary support legs or decorative elements to the upholstered headboard as per the specific instructions in your hardware pack.
- Connect Side Rails: Attach the side rails to the headboard and footboard using the provided bolts and Allen wrench. Ensure all connections are snug but do not overtighten until the frame is fully assembled.
- Install Center Support: Secure the center support beam(s) and their respective support legs to the bed frame. Adjust the leg height if necessary to ensure even support.
- Place Wooden Slats: Lay the wooden slats across the bed frame. Secure them to the side rails using the designated fasteners or by pressing them into place if they have a snap-in design. Ensure even spacing for optimal mattress support.
Image 4.1: Illustration of the bed frame's stable and noise-free design, highlighting the robust metal cross-bracing and the method for installing wooden slats securely.
- Assemble Storage Drawers: Assemble the two fabric storage drawers according to their individual instructions. Typically, this involves attaching the base and wheels. Insert the assembled drawers into the designated compartments under the footboard.

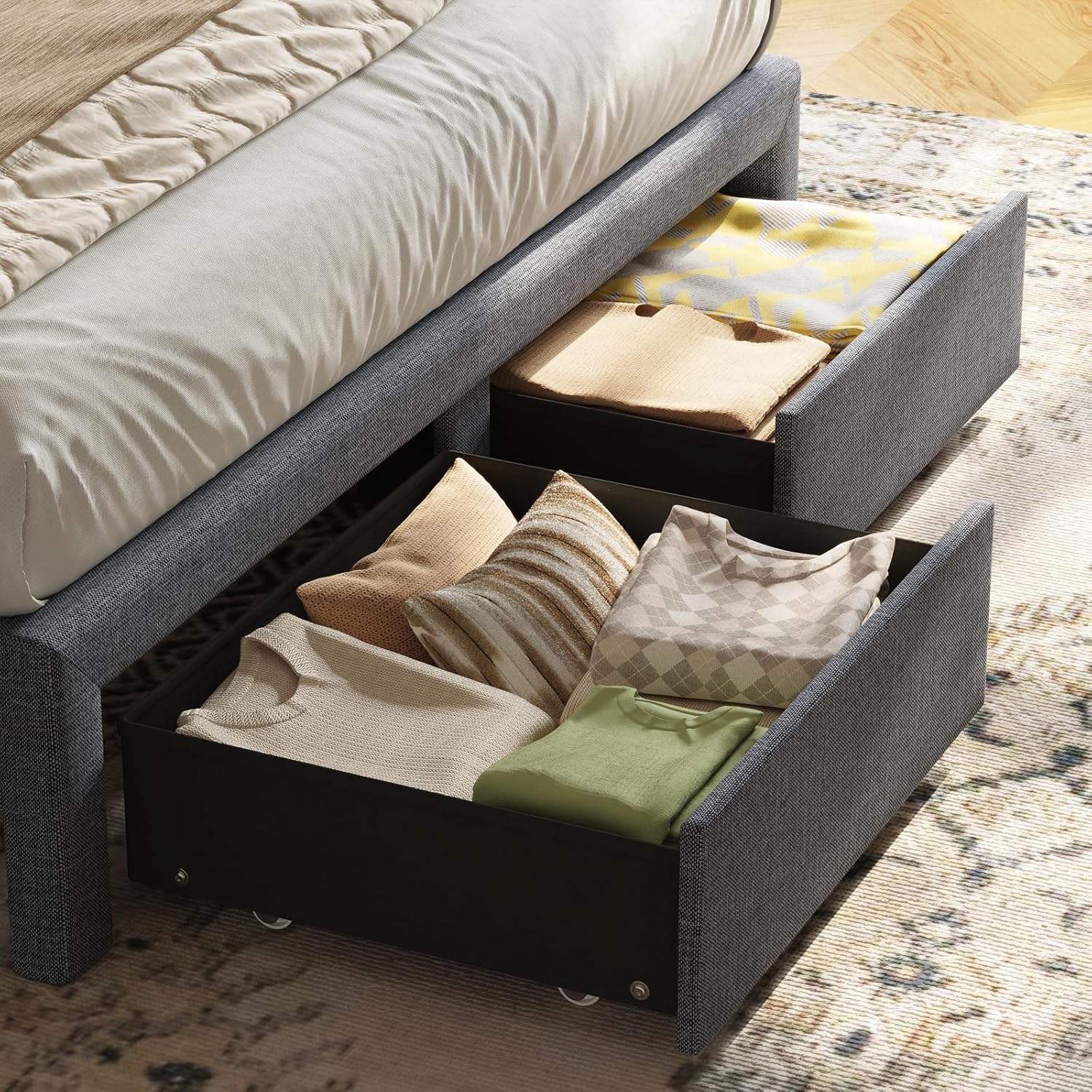

Image 4.2: Detailed view of the two fabric storage drawers, demonstrating their capacity for storing items like clothing and pillows beneath the bed frame.
- Install LED Lights: Carefully attach the LED light strip to the designated area on the headboard. Connect the LED strip to the controller and power adapter. Route the wiring neatly and securely to avoid tripping hazards.
- Final Tightening: Once all components are in place, go back and securely tighten all bolts and screws. Do not overtighten.
5. Operating Instructions (LED Headboard)
The integrated LED lighting system offers various customization options via a remote control or a smartphone application.
- Power On/Off: Use the power button on the remote or in the app to turn the LED lights on or off.
- Color Selection: Choose from over 60,000 colors using the color wheel in the app or pre-set color buttons on the remote.
- Brightness Adjustment: Adjust the light intensity using the brightness controls on the remote or app.
- Timing Function: Set a timer for the lights to automatically turn off after a specified duration.
- Music Mode: Activate music mode for the lights to synchronize with audio played from your device or detected by the microphone.
- Mic Mode: Utilize the microphone mode for the lights to react to ambient sounds.
- App Control: Download the compatible iOS/Android application (refer to the LED kit's specific instructions for app name) to access advanced features and control options.
Image 5.1: The bed frame with its LED headboard illuminated, accompanied by a remote control and visual icons representing features such as iOS/Android app control, over 60,000 colors, timing function, music mode, brightness adjustment, and microphone mode.
6. Maintenance
Regular maintenance helps prolong the life and appearance of your bed frame.
- Cleaning Upholstery: For general cleaning, gently vacuum the upholstered surfaces to remove dust. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner following the product's instructions, testing on an inconspicuous area first.
- Frame Cleaning: Wipe down the non-upholstered parts of the frame with a damp cloth and mild soap, then dry thoroughly.
- Hardware Check: Periodically (every 3-6 months) inspect all bolts, screws, and connections to ensure they are tight. Retighten as needed to maintain stability and prevent noise.
- Drawer Care: Keep the storage drawers clean and free of excessive weight. Ensure the wheels are free of debris for smooth operation.
7. Troubleshooting
Refer to this section for solutions to common issues.
- Bed Frame is Wobbly:
- Ensure all bolts and screws are securely tightened.
- Verify that the bed frame is on a flat, level surface.
- Check that all support legs, especially the center ones, are making firm contact with the floor.
- Squeaking Noises:
- Retighten all hardware.
- Ensure wooden slats are properly seated and not rubbing against each other or the frame.
- Apply felt pads or a thin cloth between contact points if noise persists.
- LED Lights Not Working:
- Check if the power adapter is securely plugged into both the wall outlet and the LED controller.
- Ensure the LED strip is correctly connected to the controller.
- Replace the remote control battery if applicable.
- If using the app, ensure Bluetooth is enabled on your device and the app is properly paired.
- Drawers Do Not Slide Smoothly:
- Check for any obstructions in the drawer tracks or under the bed.
- Ensure the drawer wheels are clean and free of debris.
- Verify that the drawers were assembled correctly and are not overloaded.
8. Specifications
| Brand | CIKUNASI |
| Model Number | 7132-GQ |
| Size | Queen |
| Product Dimensions | 85"L x 63.3"W x 45.8"H |
| Color | Drak Grey |
| Special Feature | Upholstered Wingback Headboard with LED Lighting, 2 Storage Drawers |
| Included Components | Bed Frame, Wooden Slats, Storage Drawers, LED Kit |
| Compatible Mattress Size | Queen (recommended 8"-14" thickness) |
| Load-bearing Capacity | 1100 lbs |
| Under-bed Clearance | Approximately 6.5 inches (excluding drawers) |
Image 8.1: Illustration of the 6.5-inch under-bed clearance, demonstrating space for additional storage or easy cleaning.
Image 8.2: Detailed view of the upholstered wingback headboard, highlighting the premium high-density foam (7.2" thickness) and the dark grey fabric texture.
9. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact CIKUNASI customer service directly. Keep your purchase receipt for warranty claims.
