diymore Wireless USB-C Soldering Iron Kit

1. Introduction

This manual provides essential information for the safe and effective use of your diymore Wireless USB-C Soldering Iron Kit. This portable soldering iron features a built-in 1100 mAh battery, rechargeable via USB-C, offering cordless operation. It includes an LCD display for precise temperature control, adjustable from 180℃ to 450℃ (356°F to 842°F), and boasts rapid heating in approximately 8 seconds. It is designed for various applications such as circuit board repair, jewelry soldering, guitar maintenance, watch repair, and other small electronic DIY projects. Please read this manual thoroughly before first use.

2. Safety Instructions

Always observe the following safety precautions to prevent injury or damage to the device:

• Heat Hazard: The soldering iron tip reaches high temperatures. Avoid direct contact with skin or flammable materials.
• Ventilation: Use in a well-ventilated area to avoid inhaling soldering fumes.
• Eye Protection: Always wear safety glasses to protect against solder splashes.
• Proper Use: Only use the device for its intended soldering purpose. Do not use for high-power projects.
• Storage: Allow the soldering iron to cool completely before storing. Store in a safe place, out of reach of children.
• Power Source: Use only a 5V/2A USB-C power source for charging.
• Damage: Do not operate if the device or cable is damaged.

3. Package Contents

Verify that all items are present in your package:

• 1 x USB Soldering Iron
• 1 x USB-C Charging Cable
• 1 x Soldering Iron Stand with Sponge
• 3 x Soldering Tips (Round, Horseshoe, Knife Head)
• 1 x Rosin

Figure 3.1: Included components of the diymore Wireless USB-C Soldering Iron Kit.

4. Product Overview

Familiarize yourself with the main parts of your soldering iron:

• Soldering Tip: The interchangeable heating element and tip.
• Tip Connector: Where the soldering tip is inserted.
• LCD Display: Shows current temperature, battery status, and error codes.
• Power Button: Used to turn the device on/off.
• Temperature Adjustment Buttons (+/-): Used to increase or decrease the temperature.
• USB-C Charging Port: For connecting the charging cable.
• Handle: Ergonomically designed, heat-resistant TPE material.

Figure 4.1: Overview of the soldering iron's controls and display.

Figure 4.2: Physical dimensions and summarized features of the soldering iron.

5. Setup

5.1. Charging the Soldering Iron

Before first use, fully charge the soldering iron. Connect the provided USB-C charging cable to the soldering iron's USB-C port and to a 5V/2A USB power adapter (not included). The LCD display will show the battery percentage during charging. A full charge takes approximately 90 minutes and provides 20-30 minutes of continuous operation.

Figure 5.1: USB-C charging and battery specifications.

5.2. Installing/Replacing Soldering Tips

The soldering iron comes with three interchangeable tips: Round, Horseshoe, and Knife Head. To install or replace a tip:

1. Ensure the soldering iron is off and cool.
2. Gently pull out the current tip from the tip connector.
3. Insert the desired tip firmly into the tip connector until it is securely seated.

Figure 5.2: Replacing soldering iron tips.

6. Operating Instructions

6.1. Power On/Off

To turn the soldering iron ON or OFF, press and hold the Power button for 3 seconds.

6.2. Temperature Adjustment

Once powered on, the LCD will display the current temperature. The soldering iron heats up rapidly, reaching the set temperature in approximately 8 seconds.

• Increase/Decrease Temperature: Click the "+" or "-" button to adjust the temperature by 5℃ (or 9°F) increments. Press and hold the "+" or "-" button for rapid temperature adjustment.
• Switch ℃/°F: Press the "+" and "-" buttons simultaneously to switch between Celsius and Fahrenheit display modes.

Figure 6.1: Intelligent temperature control display.

Figure 6.2: Fast heating performance.

6.3. Sleep Mode and Automatic Shutdown

The soldering iron is equipped with intelligent power management features:

• During Battery Discharge:
  • After 1 minute of inactivity, the device enters sleep mode (display turns OFF).
  • After 5 minutes of inactivity, the device performs an automatic shutdown.
• During Charging and Use:
  • After 3 minutes of inactivity, the device enters sleep mode (display shows OFF + % flicker).
  • After 5 minutes of inactivity, the device performs an automatic shutdown. The battery percentage will flash during charging.
• Wake-up Method: To wake the device from sleep mode, click any temperature adjustment button or gently vibrate the device.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your soldering iron.

• Tip Cleaning: Regularly clean the soldering tip using the provided sponge (dampened with water) to remove excess solder and oxidation. This helps maintain efficient heat transfer.
• Tip Replacement: Replace soldering tips when they become worn or damaged to ensure proper soldering results. Refer to Section 5.2 for replacement instructions.
• Storage: Always allow the soldering iron to cool down completely before storing it in its case or a safe place.
• General Cleaning: Wipe the body of the soldering iron with a dry, soft cloth. Do not use abrasive cleaners or solvents.

8. Troubleshooting

This section addresses common issues you might encounter:

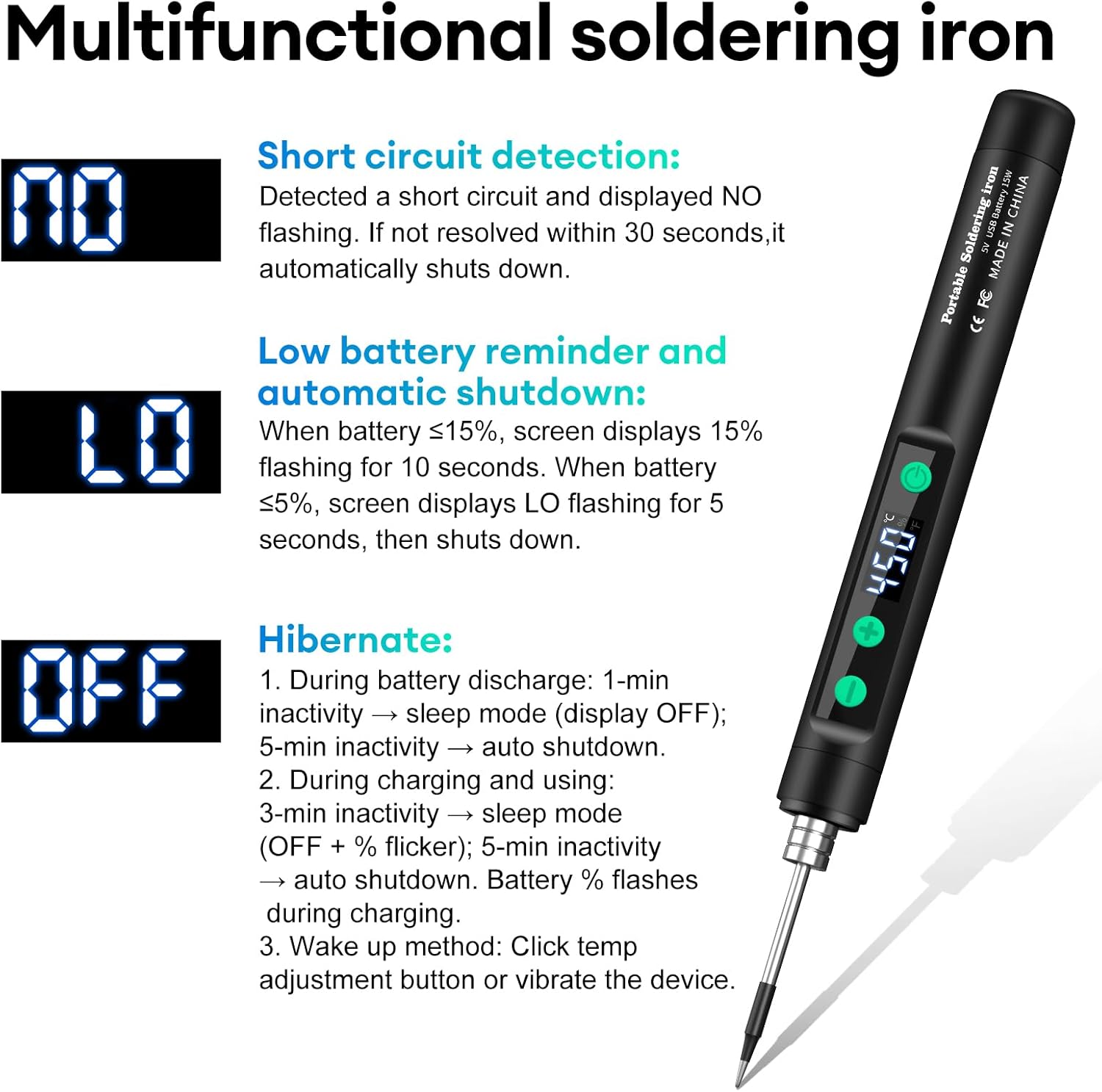

Figure 8.1: Display codes for troubleshooting.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the retailer's return policy or contact diymore customer service directly. Contact details can typically be found on the product packaging or the official diymore website.
