Giantex Twin Over Full Bunk Bed Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, safe use, and maintenance of your Giantex Twin Over Full Bunk Bed. Please read all instructions carefully before assembly and use to ensure safety and proper function. Retain this manual for future reference.

Image: The Giantex Twin Over Full Bunk Bed, featuring a white wooden frame, integrated ladder, and full-length guardrails on the upper bunk.

Important Safety Information

Adherence to these safety guidelines is crucial to prevent injury and ensure the longevity of your bunk bed.

• Guardrails: Always use the guardrails when sleeping in the upper bunk. Ensure they are securely attached.
• Assembly Caution: Exercise caution during assembly to avoid injury. Two adults are recommended for safe assembly.
• Weight Capacity: Do not exceed the maximum weight capacity of 250 lbs for the upper (Twin) bed and 350 lbs for the lower (Full) bed.
• Secure Connections: After assembly, ensure all connections are securely tightened. Periodically check and re-tighten all hardware.
• Mattress Thickness: Use only the recommended mattress thicknesses: 6-inch Twin for the upper bed and 8-inch Full for the lower bed.
• Mattress Surface Height: The surface of the mattress on the upper bunk must be at least 5 inches below the top edge of the guardrail.
• Age Restriction: Do not allow children under 6 years of age to use the upper bunk.
• Prohibited Activities: Prohibit horseplay on or under the bed. Do not attach or suspend items from any part of the bunk bed that are not designed for use with the bed.
• Ladder Use: Always use the integrated ladder for entering and leaving the upper bunk.

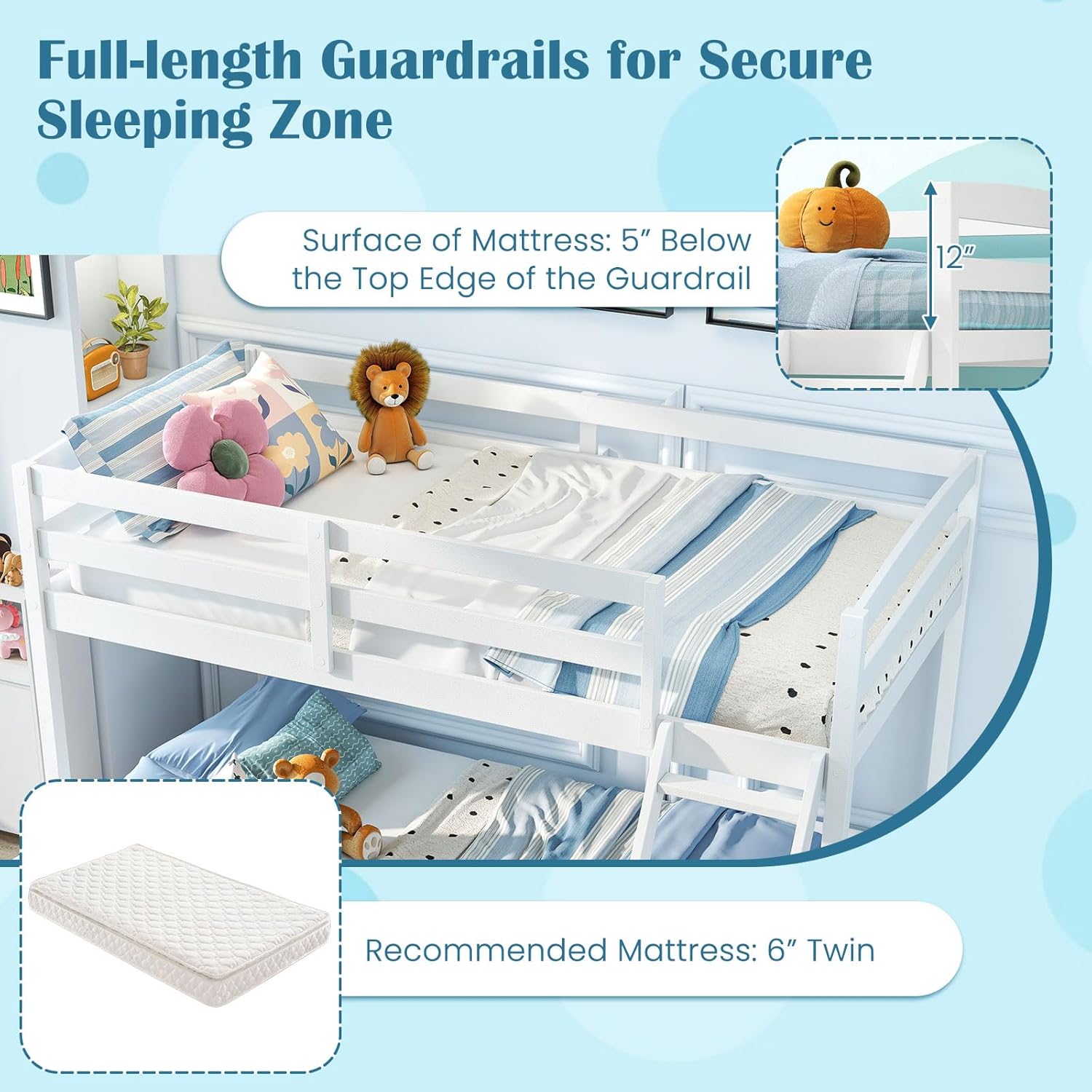

Image: Illustration detailing the guardrail height and the required mattress surface clearance for the upper bunk for safety.

Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact Giantex customer support for assistance.

• Bed Frame Components (Headboards, Footboards, Side Rails)
• Upper Bunk Slats (14 pieces)
• Lower Bunk Slats (7 pieces)
• Ladder Components
• Guardrails
• Hardware Pack (screws, bolts, nuts, Allen wrench)
• Instruction Manual

Setup and Assembly

Assembly requires two adults and approximately 1-2 hours. Follow the included pictorial instructions carefully. A Phillips head screwdriver (not included) may be required in addition to the provided Allen wrench.

1. Step 1: Unpack and Identify Parts. Lay out all components on a clean, soft surface (like a carpet) to prevent scratches. Identify each part using the provided labels.
2. Step 2: Assemble Headboards and Footboards. Attach the side rails to the headboards and footboards for both the upper and lower bunks. Ensure all bolts are finger-tight at this stage.
3. Step 3: Install Slats. Place the plywood slats onto the support rails for both the upper and lower bunks. Secure them with the provided screws.
4. Step 4: Attach Guardrails. Secure the full-length guardrails to the upper bunk frame.
5. Step 5: Assemble and Attach Ladder. Assemble the ladder steps to the ladder side rails. Attach the completed ladder securely to the upper bunk.
6. Step 6: Final Tightening. Once all components are in place, systematically tighten all bolts and screws using the provided Allen wrench. Do not overtighten.

Important: Periodically check and tighten all connections to maintain stability and safety.

Image: The assembled Giantex Twin Over Full Bunk Bed frame, showcasing the slat support system and integrated ladder before mattresses are added.

Image: Detail of the solid pine wood frame construction and the plywood slat support system, highlighting the bed's sturdy foundation.

Operating Instructions

This bunk bed is designed for safe and efficient use when following these guidelines:

• Weight Capacity: Adhere strictly to the weight limits: 250 lbs for the upper twin bed and 350 lbs for the lower full bed.
• Mattress Usage: Use only the recommended mattress sizes and thicknesses to ensure guardrail effectiveness and overall safety.
• Ladder Use: Always use the integrated 3-step ladder for accessing the upper bunk. Do not climb on the bed frame directly.
• Guardrails: Ensure guardrails are always in place and secure on the upper bunk.
• Low-to-Ground Design: The low height design facilitates easy access for younger children to the lower bunk.

Image: Illustration of the low floor design, twin over full configuration, wide entrance, and sturdy 3-step ladder for easy access to both bunks.

Maintenance

Regular maintenance will help preserve the condition and safety of your bunk bed.

• Cleaning: Wipe the bed frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any loose hardware to ensure the bed remains stable and safe.
• Slats Inspection: Check the plywood slats for any signs of damage or cracking. Replace any damaged slats immediately to maintain mattress support.
• Guardrail Integrity: Ensure guardrails are firmly attached and free from damage.

Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions:

• Wobbling Bed: If the bed feels wobbly, check all assembly bolts and screws. Tighten any that are loose. Ensure the bed is placed on a level surface.
• Squeaking Noises: Squeaking can often be resolved by tightening all hardware. If it persists, check for any friction points between wood components and consider applying a small amount of wax or lubricant to the contact areas.
• Difficulty Assembling: Review the instruction manual carefully. Ensure all parts are correctly oriented and that you are using the correct hardware for each step. Do not force parts together.
• Missing or Damaged Parts: If you discover missing or damaged parts during unpacking or assembly, contact Giantex customer support immediately for replacements.

Specifications

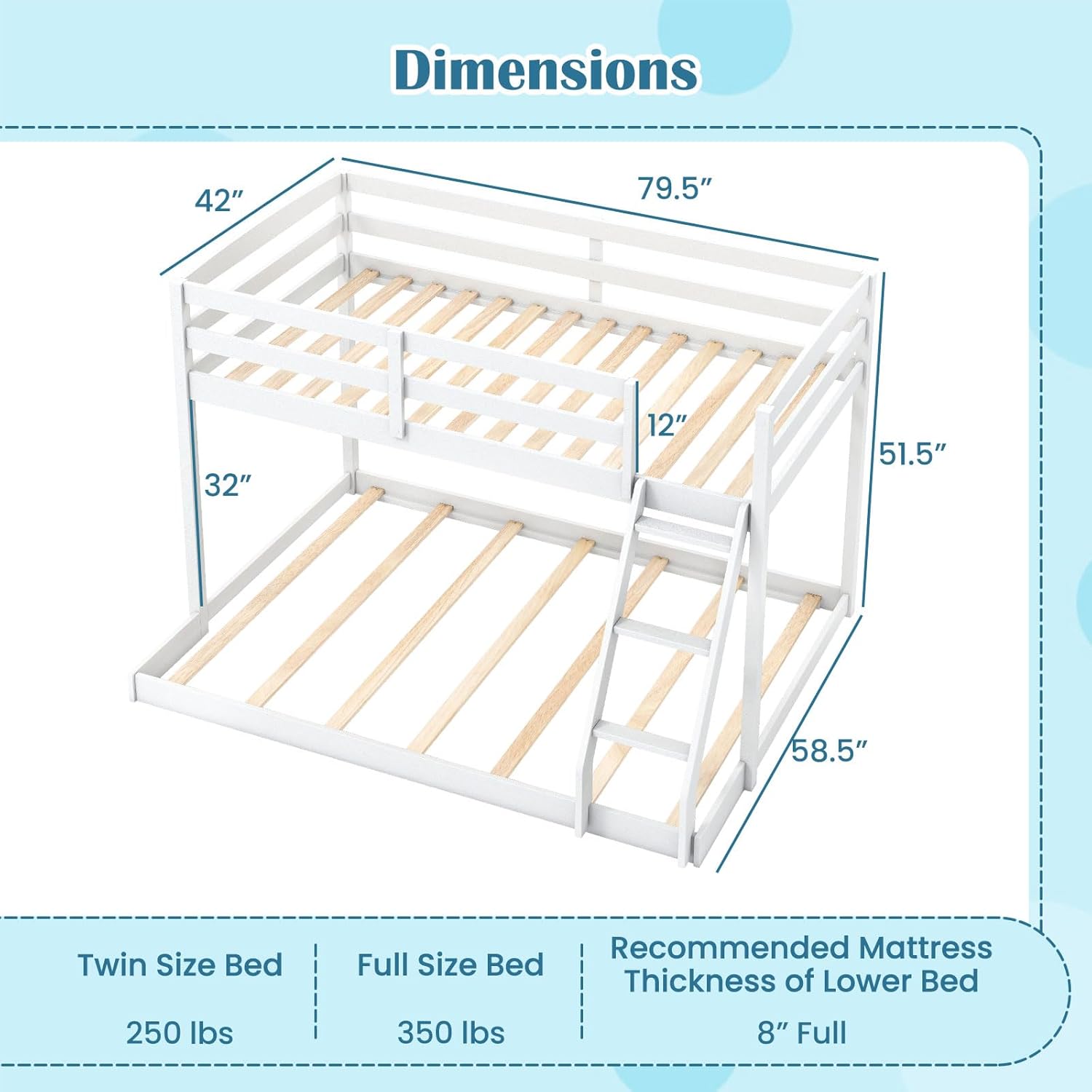

Image: Detailed dimensions and weight capacities for the Giantex Twin Over Full Bunk Bed.

Warranty and Support

For warranty information, missing parts, or any product-related inquiries, please contact Giantex customer support directly. Specific warranty terms may vary and are typically provided at the point of purchase or on the manufacturer's official website.

You can also visit the official Giantex store on Amazon for more information and contact options: Giantex Amazon Store
