LIVLUX 160x200 cm Storage Bed with LED and USB Ports User Manual

1. Introduction

Thank you for choosing the LIVLUX 160x200 cm Storage Bed. This upholstered double bed features integrated LED lighting, USB and USB-C charging ports, and a hydraulic lift storage mechanism with a slatted base. Designed for comfort and functionality, this manual provides essential information for safe assembly, operation, and maintenance of your new bed.

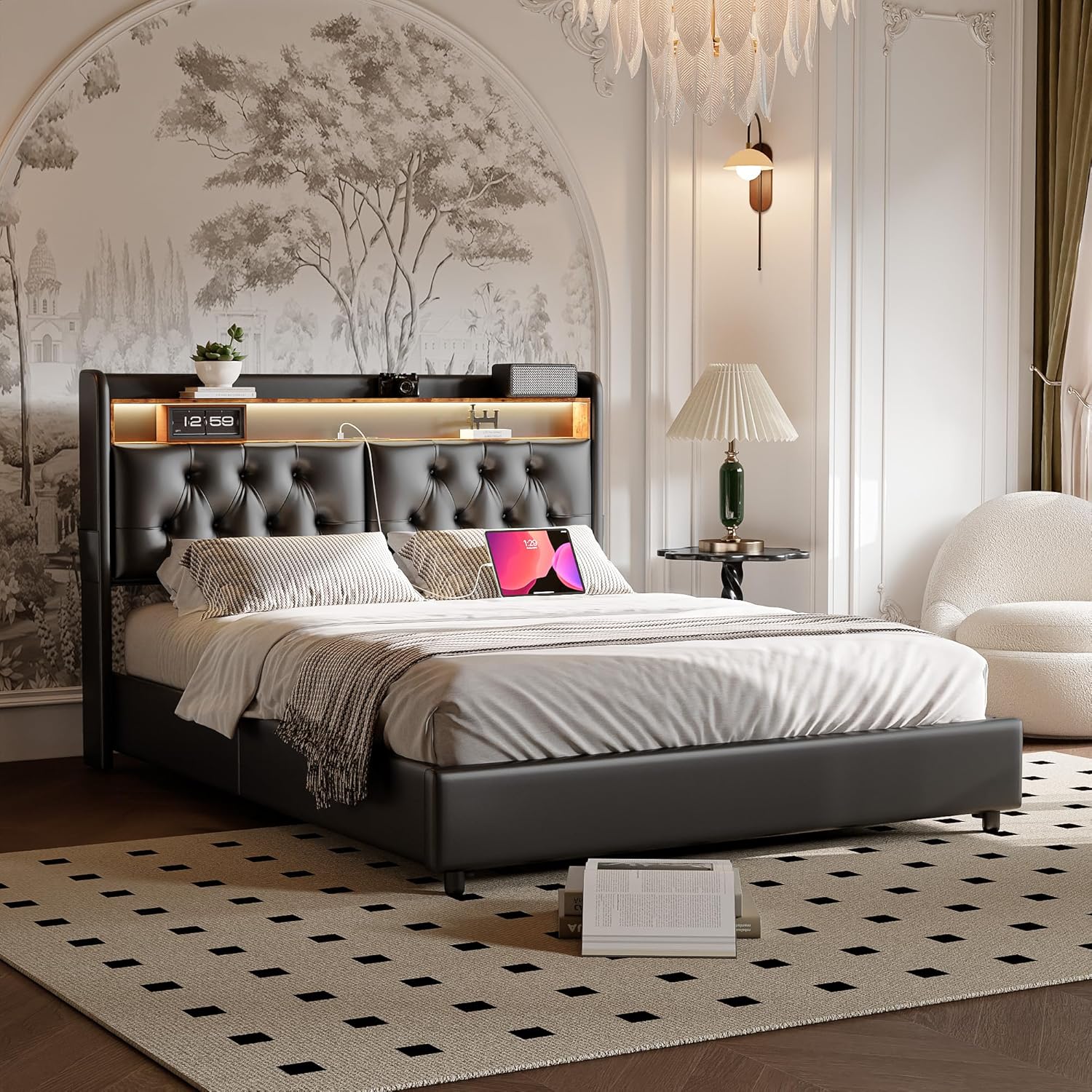

Image 1.1: The LIVLUX 160x200 cm Storage Bed, showcasing its elegant design and integrated headboard features.

2. Safety Information

Please read all safety warnings carefully before assembly and use.

• Do not load the bed with more than 300 kg (660 lbs). Exceeding this weight limit may cause structural damage or injury.
• Use the hydraulic lifting mechanism with caution. Keep hands and fingers clear of moving parts to prevent pinching or injury. Ensure the mechanism is fully engaged when open or closed.
• Assemble the bed with care, following all instructions precisely, to avoid any risk of instability or collapse. Ensure all fasteners are securely tightened.
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Ensure the bed is placed on a level surface to maintain stability.
• Do not allow children to play on or around the hydraulic lifting mechanism.

3. Setup and Assembly

Assembly of the LIVLUX storage bed requires two adults. Please ensure all components are present before beginning. Refer to the included assembly diagram for detailed steps.

3.1. Unpacking and Component Check

• Carefully unpack all boxes and lay out components on a soft, clean surface to prevent scratches.
• Verify all parts against the component list provided in your packaging. If any parts are missing or damaged, contact customer support immediately.

3.2. Frame Assembly

1. Assemble the main bed frame sections according to the diagram, ensuring all bolts are finger-tightened initially.
2. Attach the headboard to the assembled frame.
3. Once the frame is stable, fully tighten all bolts using the provided tools. Do not overtighten.

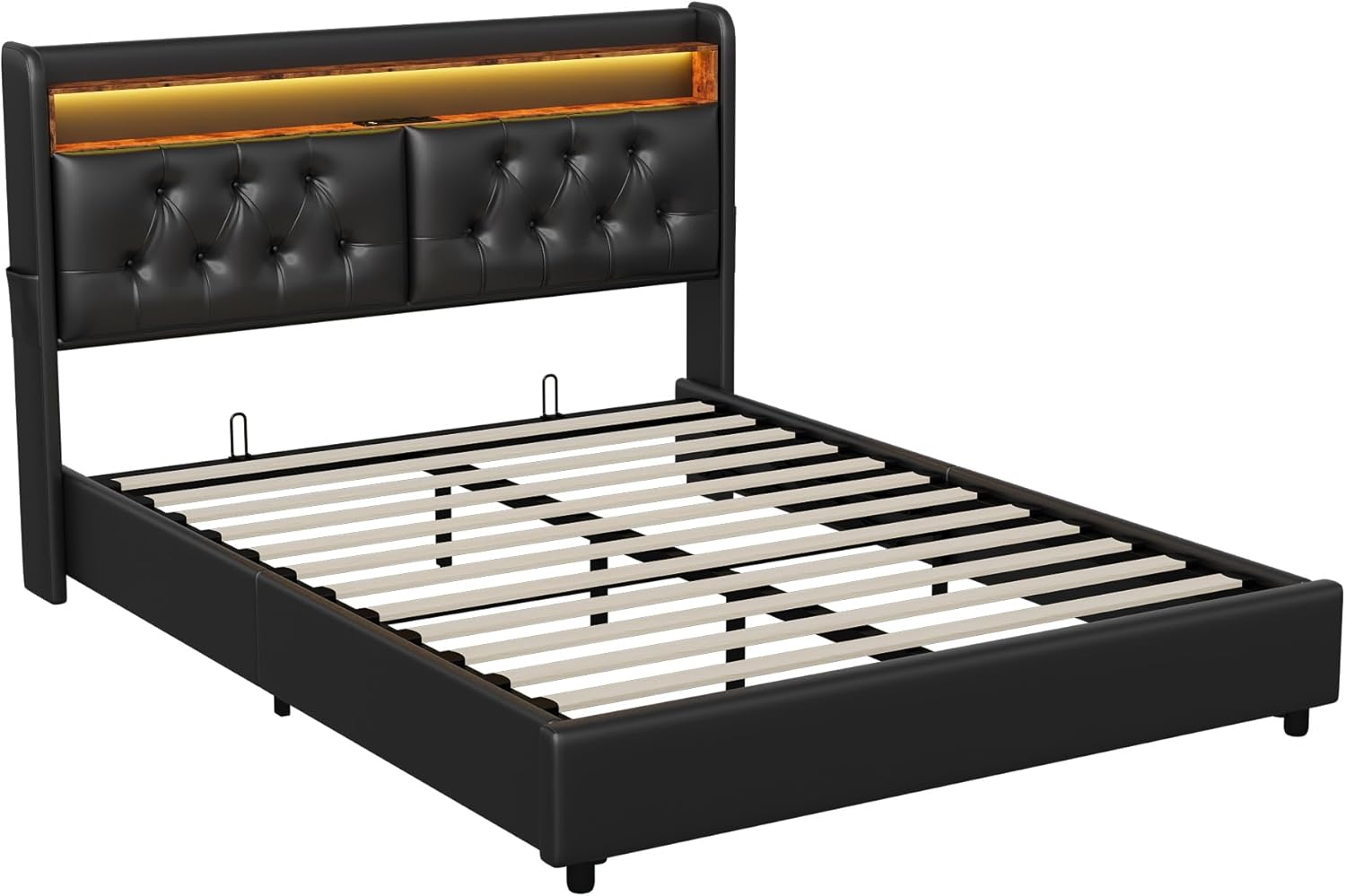

Image 3.1: The bed frame and slatted base components before mattress placement.

3.3. Hydraulic Lift and Slatted Base Installation

1. Install the hydraulic lift mechanism onto the bed frame as indicated in the assembly instructions. Ensure the pistons are correctly oriented.
2. Place the slatted base onto the frame, securing it to the hydraulic mechanism.
3. Test the hydraulic lift by gently raising and lowering the slatted base without a mattress. It may require some weight (e.g., the mattress) to operate smoothly initially.

Image 3.2: View of the hydraulic lift mechanism and slatted base from below.

3.4. Electrical Connections (LED & USB)

1. Locate the power cable for the LED lighting and USB ports, typically found at the back of the headboard.
2. Connect the power adapter to the bed's power input and then plug it into a standard wall outlet.
3. Ensure all connections are secure.

Image 3.3: Detail of the headboard showing the integrated shelf, LED lighting, and USB/USB-C ports.

4. Operating Instructions

4.1. Hydraulic Storage Mechanism

• To access the storage space: Gently lift the mattress and slatted base from the foot end of the bed. The hydraulic pistons will assist in raising and holding the bed base in an open position.
• To close the storage space: Apply gentle downward pressure on the bed base until the hydraulic pistons fully retract and the base rests securely on the frame. Ensure no items are obstructing the closing mechanism.
• Do not force the mechanism. If it feels stiff, ensure the mattress is properly centered and there are no obstructions.

Image 4.1: The bed with its hydraulic storage compartment open, revealing ample space for bedding and other items.

4.2. LED Lighting System

• The headboard features a multi-color LED light strip.
• Remote Control: Use the included remote control to turn the lights on/off, change colors (7 colors mentioned in description), adjust brightness, and select dynamic modes.
• Mobile App Control: The LED strip can also be controlled via a mobile application (refer to the specific app instructions provided in the packaging for pairing and usage).

Image 4.2: The LED lighting system with its remote control, illustrating various color and mode options.

4.3. USB and USB-C Charging Ports

• The headboard is equipped with USB and USB-C ports for convenient charging of electronic devices.
• Simply plug your device's charging cable into the appropriate port. Ensure the bed's power adapter is plugged into a wall outlet for the ports to function.

5. Maintenance

• Cleaning: Wipe the upholstered surfaces with a dry cloth. For minor spills, use a slightly damp cloth and mild soap, then dry immediately. Avoid harsh chemicals or abrasive cleaners.
• Hydraulic Mechanism: Periodically check the hydraulic pistons and their attachment points for any signs of wear or looseness. Lubricate moving parts if necessary with a silicone-based spray, avoiding contact with upholstery.
• Fasteners: Every 6-12 months, check all bolts and screws for tightness and re-tighten if necessary to maintain structural integrity.
• Electrical Components: Ensure power cables are not pinched or damaged. Keep the USB and LED components free from dust.

6. Troubleshooting

7. Specifications

Image 7.1: Detailed dimensions of the LIVLUX 160x200 cm Storage Bed.

8. Warranty Information

Specific warranty information for the LIVLUX 160x200 cm Storage Bed is not provided in this manual. Please refer to your purchase documentation or contact your retailer for details regarding warranty coverage and terms.

9. Customer Support

For technical assistance, missing parts, or any questions regarding your LIVLUX 160x200 cm Storage Bed, please contact the retailer from whom you purchased the product. You may also visit the official LIVLUX brand store for additional information and contact options.

LIVLUX Brand Store: Visit LIVLUX Store
