Introduction
Thank you for choosing the YUWVVCV Acacia Wood Patio Double Porch Swing Sofa Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new porch swing. Please read these instructions carefully before installation and retain them for future reference.
Image: The YUWVVCV Acacia Wood Patio Double Porch Swing Sofa Bed Frame, showcasing its design and suitability for outdoor spaces.
Safety Information
- Professional Installation Required: All swings must be installed by a licensed building contractor to ensure structural integrity and safety. Hanging hardware is not included and must be confirmed on-site by the professional installer.
- Weight Capacity: The swing is designed to support a maximum weight of 350 pounds (158 kg). Do not exceed this limit.
- Regular Inspection: Periodically inspect all ropes, connections, and the swing frame for wear, damage, or loose components. Discontinue use if any issues are found and address them immediately.
- Secure Mounting: Ensure the overhead support structure is robust and capable of safely bearing the swing's weight plus the maximum user weight.
- Clearance: Maintain adequate clearance around the swing to prevent collisions with walls, furniture, or other objects.
- Children's Safety: Supervise children when they are using the swing.
Image: Visual representation of the swing's 350 lbs weight capacity, emphasizing safety.
Package Contents
Before assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- Acacia Wood Swing Frame (Disassembled)
- Four (4) 118-inch Hanging Ropes
- Assembly Hardware (Screws, bolts, etc. for frame assembly)
- Instruction Manual
Note: Mattress, pillows, and overhead hanging hardware (e.g., hooks, chains, beams) are not included and must be sourced separately or provided by your licensed contractor.
Setup and Assembly Instructions
Assembly of the swing frame requires basic tools (not included) such as a screwdriver and wrench. For hanging the swing, professional installation by a licensed building contractor is mandatory to ensure safety and compliance with local building codes.
Step 1: Assemble the Swing Frame
- Unpack all components and lay them out on a clean, flat, non-abrasive surface.
- Identify the side panels, backrest, and seat slats.
- Attach the side panels to the seat slats using the provided hardware. Ensure all connections are secure but do not fully tighten screws until the entire frame is assembled.
- Connect the backrest to the assembled seat and side panels.
- Once all parts are loosely connected, gently rock the frame to ensure it is level, then fully tighten all screws and bolts. Do not overtighten.
Image: Breakdown of key components including ropes, frame, and back/arm structure, aiding in assembly identification.
Step 2: Attach Hanging Ropes
- Locate the four designated attachment points on the swing frame.
- Securely attach one end of each 118-inch rope to these points. Ensure the knots are tight and secure, or use appropriate hardware if provided.
Image: Detail of how the hanging rope connects to the swing frame, highlighting the secure attachment point.
Step 3: Professional Hanging Installation
- Contact a licensed building contractor to install the swing.
- The contractor will assess your chosen location (porch, patio, garden) and determine the appropriate overhead support structure and hanging hardware required.
- Ensure the swing hangs level and has sufficient clearance from surrounding objects.
- The contractor will securely attach the ropes to the overhead support using appropriate, heavy-duty hanging hardware (not supplied with the swing).
Operation
Once properly installed, your YUWVVCV Porch Swing is ready for use. Follow these guidelines for safe operation:
- Seating: Sit gently on the swing. Avoid jumping onto it or applying sudden, excessive force.
- Weight Distribution: Distribute weight evenly across the swing. Avoid concentrating weight on one side or corner.
- Gentle Swinging: Swing gently and avoid excessive or aggressive swinging motions that could strain the ropes or support structure.
- Capacity: Do not exceed the 350 lbs weight capacity.
- Personalization: You may add cushions and pillows (not included) for enhanced comfort.

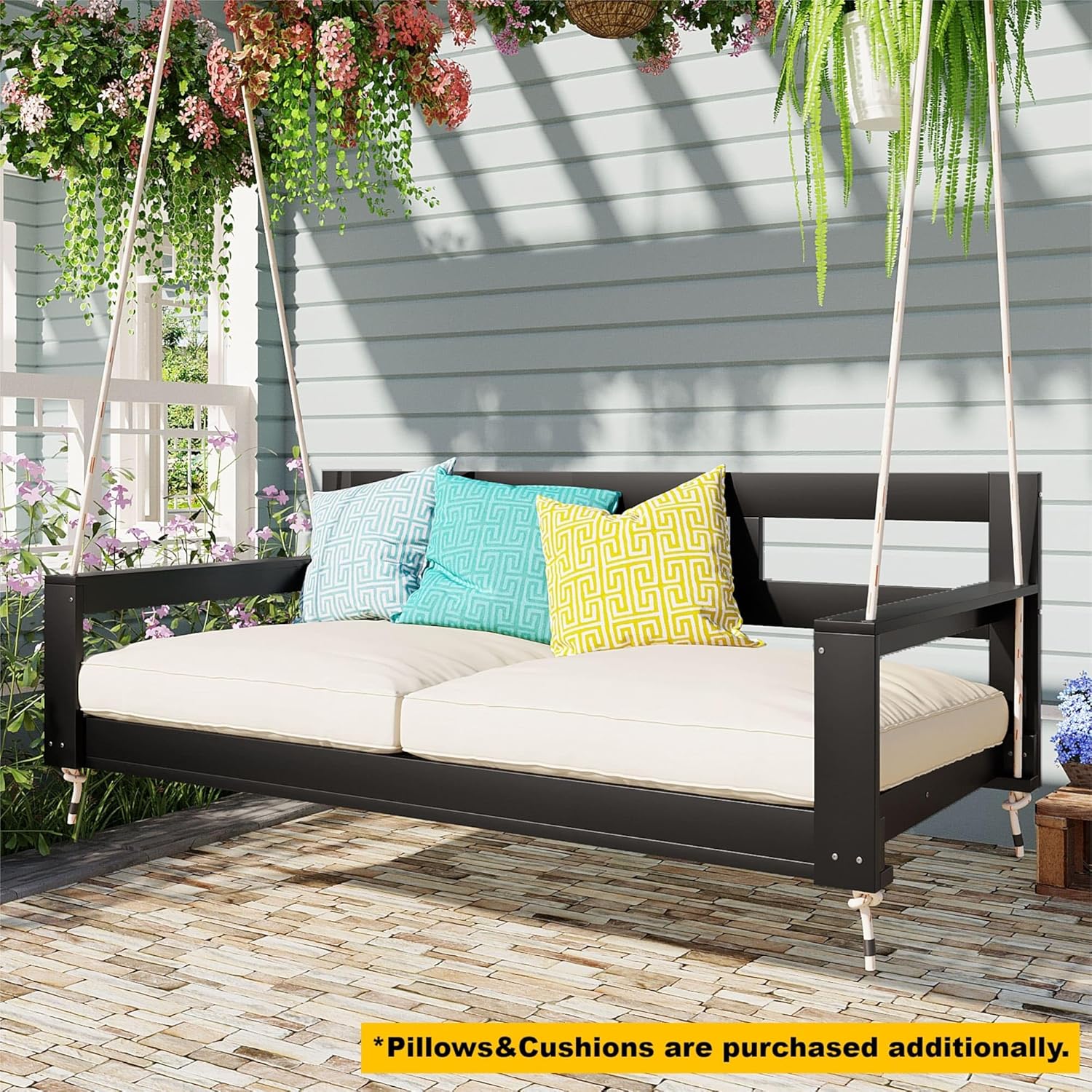

Image: The swing adorned with cushions and pillows, illustrating how users can customize it for personal comfort.
Maintenance
Proper maintenance will extend the life and preserve the appearance of your acacia wood swing.
- Cleaning: Clean the acacia wood frame regularly with a soft cloth dampened with mild soap and water. Avoid harsh chemicals or abrasive cleaners. Rinse thoroughly and dry immediately.
- Wood Treatment: Acacia wood benefits from periodic oiling (e.g., teak oil or linseed oil) to maintain its luster and protect it from weathering. Follow the instructions on your chosen wood treatment product.
- Rope Inspection: Regularly check the hanging ropes for fraying, wear, or damage. Replace ropes if any signs of weakness are observed.
- Hardware Check: Periodically inspect all screws and bolts on the frame and hanging hardware for tightness. Tighten as necessary.
- Weather Protection: While acacia wood is durable for outdoor use, prolonged exposure to extreme weather conditions (heavy rain, snow, intense sun) can affect its lifespan. Consider covering the swing or moving it to a sheltered area during harsh weather.
Image: The swing in an outdoor setting, demonstrating its aesthetic appeal and the importance of maintenance for longevity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Swing feels unstable or wobbly | Loose assembly hardware; uneven hanging; damaged support structure. | Check and tighten all frame screws. Ensure hanging ropes are of equal length and securely fastened. Have a licensed contractor inspect the overhead support. |
| Squeaking noise during use | Friction between wood components; dry hanging hardware. | Apply a small amount of silicone lubricant to contact points between wood parts. If using metal hanging hardware, lubricate pivot points. |
| Wood appears faded or dry | Exposure to sun and weather without treatment. | Clean the wood and apply a suitable outdoor wood oil (e.g., teak oil) to restore and protect the finish. |
Specifications
- Brand: YUWVVCV
- Model Number: N717P265795B
- Material: Premium Acacia Wood
- Overall Dimensions (L x W x H): 81.9" x 40.6" x 27.6" (208 cm x 103 cm x 70 cm)
- Seat Dimensions (L x W): Approximately 74.0" x 38.0" (188 cm x 96.5 cm)
- Backrest Height: 27.6" (70 cm)
- Rope Length: Four (4) x 118" (300 cm) each
- Weight Capacity: 350 lbs (158 kg)
- Color: Black (as per product variant)
Image: Technical drawing illustrating the precise dimensions of the swing frame for reference.
Warranty and Support
For warranty information or technical support, please contact the manufacturer, YUWVVCV, through your original point of purchase or their official website. Please have your model number (N717P265795B) and purchase date available when contacting support.
