LINKHOO Twin XL Over Twin & Twin Triple Bunk Bed Instruction Manual

1. Product Overview

The LINKHOO Twin XL Over Twin & Twin Triple Bunk Bed is a versatile and space-saving solution designed for multiple users. This metal bed frame can be configured as an L-shaped triple bunk bed or separated into three individual beds, adapting to various needs and room layouts. It features robust metal construction for durability and includes safety guardrails and an integrated ladder for secure use.

Image: The LINKHOO Triple Bunk Bed in its L-shaped configuration, showcasing the Twin XL top bunk and two Twin bottom beds, suitable for multiple occupants.

Key Features:

• Detachable Triple Bunk Bed: Functions as an L-shaped triple bunk or splits into three separate twin beds.
• Safety Guardrails: Full-length protective guardrails on the upper bunk for enhanced safety.
• Convertible Design with Ladder: Sturdy integrated ladder for easy access; upper bunk includes a shelf and can convert to Twin XL size.
• Sturdy Construction: Crafted from heavy-duty metal with metal slats, eliminating the need for a box spring.

2. Safety Information

Please read and understand all safety warnings and instructions before assembling and using this product. Failure to follow these warnings can result in serious injury.

General Safety Rules:

• Always ensure all fasteners are securely tightened before use. Periodically check and re-tighten as needed.
• Do not allow children under 6 years of age on the upper bunk.
• Use only mattresses that are 74-75 inches long and 37.5-38.5 inches wide for the Twin bunks, and 79-80 inches long and 37.5-38.5 inches wide for the Twin XL bunk.
• The maximum weight capacity for the top bunk is 250 lbs.
• The maximum weight capacity for each bottom bunk is 350 lbs.
• Always use the ladder for entering and exiting the upper bunk.
• Prohibit more than one person on the upper bunk.
• Prohibit jumping on the bed.
• Ensure the bed is placed on a level surface.

Image: Visual representation of the robust metal construction and specified weight capacities for each level of the bunk bed.

3. Setup and Assembly

This product requires assembly. It comes with step-by-step instructions, numbered parts, and all necessary tools for straightforward setup. We recommend assembling the bed with at least two adults.

Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all components and hardware. Refer to the included parts list to ensure all pieces are present and undamaged.
2. Prepare the Area: Clear a spacious area for assembly, preferably near the bed's final location.
3. Assemble Base Frames: Follow the diagrams to assemble the base frames for the lower and upper bunks. Ensure all connections are finger-tightened initially.
4. Attach Support Beams and Slats: Securely attach the support beams and metal slats to the bed frames.
5. Connect Bunk Components: If assembling as a triple bunk, connect the upper bunk frame to the lower bunk frames using the designated connectors and ladder.
6. Final Tightening: Once all components are in place and aligned, systematically tighten all bolts and screws using the provided tools. Do not overtighten.
7. Safety Check: Before use, double-check all connections to ensure they are secure and stable.

Image: An exploded view illustrating the various components of the bunk bed, providing a visual guide for assembly.

4. Operating and Configuration

The LINKHOO Triple Bunk Bed offers flexible configurations to suit your needs.

Triple Bunk Configuration:

In its primary L-shaped triple bunk configuration, the bed provides sleeping space for three individuals. The upper bunk is a Twin XL size, and the two lower bunks are Twin size. The integrated ladder provides access to the top bunk, and a small table is positioned between the two lower beds for convenience.

Separated Bed Configuration:

For increased personal space or different room arrangements, the bunk bed can be disassembled into three separate beds: one Twin XL bed and two Twin beds. This allows for greater versatility as children grow or living situations change.

Image: The bunk bed disassembled into three individual beds, showcasing its adaptable design.

5. Maintenance

Proper maintenance will ensure the longevity and safety of your LINKHOO bunk bed.

• Cleaning: Wipe down the metal frame with a soft, damp cloth. For stubborn marks, a mild soap solution can be used, followed by drying with a clean cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the finish.
• Fastener Checks: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Re-tighten any loose fasteners to maintain stability and prevent squeaking.
• Structural Integrity: Ensure the bed remains on a level surface to prevent undue stress on the frame.

6. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common problems and solutions:

• Squeaking or Wobbling:
  • Cause: Loose fasteners or uneven placement.
  • Solution: Check all bolts and screws and tighten them securely. Ensure the bed is placed on a flat, level surface.
• Difficulty Assembling:
  • Cause: Parts misalignment or incorrect orientation.
  • Solution: Review the assembly instructions carefully, paying close attention to part numbers and diagrams. Ensure parts are oriented correctly before tightening. Do not force components together.
• Missing Parts:
  • Cause: Packaging error.
  • Solution: Contact customer support with your purchase details and a list of missing parts.

7. Specifications

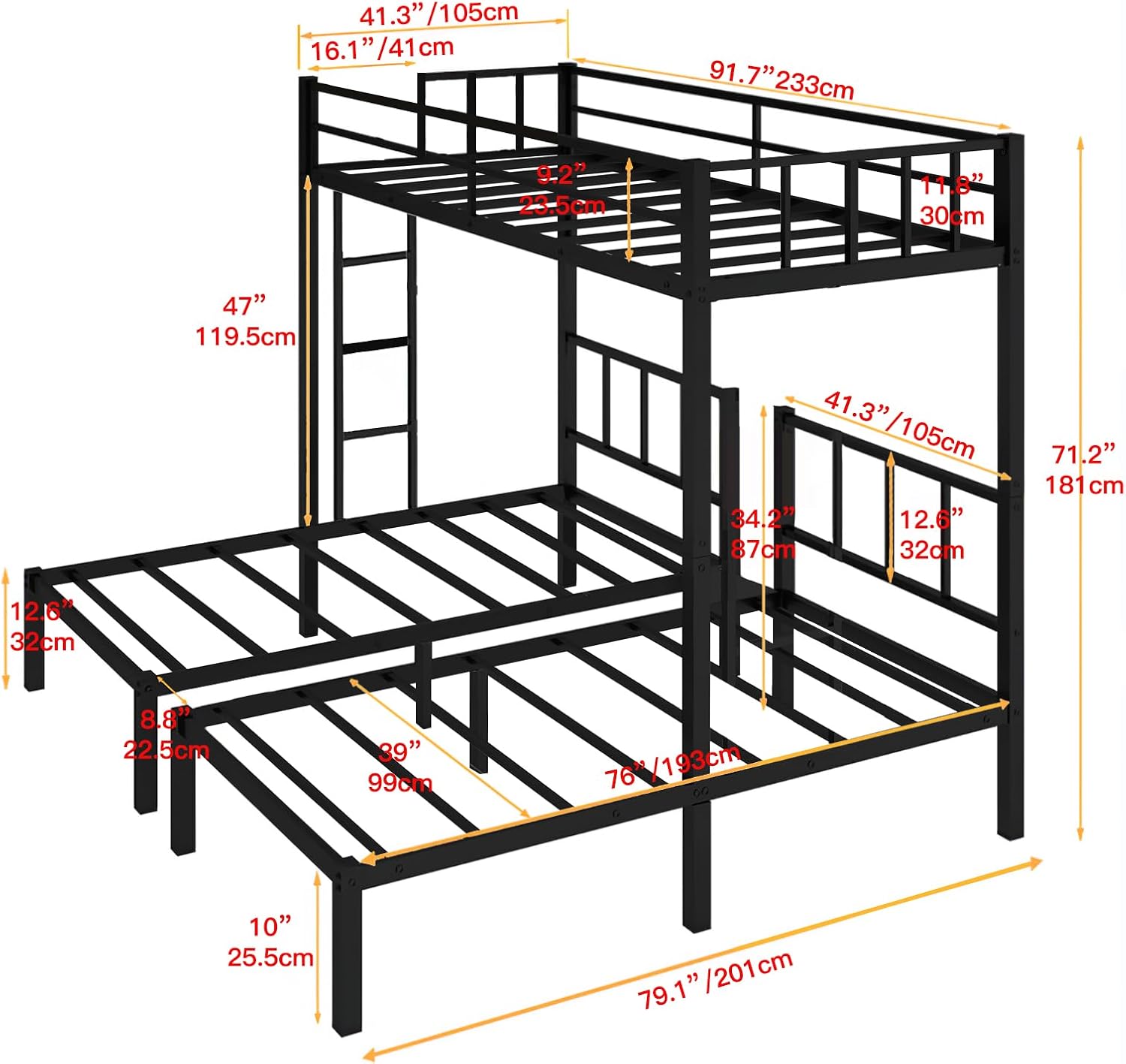

Image: Comprehensive dimensions of the bunk bed, including height, length, and width for each section.

8. Warranty Information

Specific warranty details for the LINKHOO Twin XL Over Twin & Twin Triple Bunk Bed are typically provided at the time of purchase or can be found on the manufacturer's official website. Please retain your proof of purchase for any warranty claims.

Commonly, warranties cover manufacturing defects for a limited period from the date of purchase. Damage resulting from improper assembly, misuse, neglect, or normal wear and tear is generally not covered.

9. Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact the seller or manufacturer directly. Have your product model number (Bunkbeds3) and purchase information ready to expedite the support process.

For further information, you may visit the LINKHOO brand page on Amazon or their official website (if available).
