Generic 12000W 16-inch Electric Concrete Ring Saw Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Generic 12000W 16-inch Electric Concrete Ring Saw. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

Image 1.1: Generic 12000W 16-inch Electric Concrete Ring Saw

2. Safety Information

Operating power tools, especially high-power cutting equipment, requires strict adherence to safety protocols. Failure to follow these instructions may result in serious injury or property damage.

2.1 General Safety Warnings

• Read All Instructions: Familiarize yourself with the tool's functions and operating procedures before use.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, hearing protection, dust mask, heavy-duty gloves, and steel-toed boots.
• Work Area: Ensure the work area is clean, well-lit, and free from obstructions. Keep bystanders, especially children, away from the operating area.
• Electrical Safety: Verify the power supply matches the tool's requirements (110V/220V). Use a Ground Fault Circuit Interrupter (GFCI) when operating in wet conditions. Ensure the wiring connected to the electrical meter box uses 4-6 square cable; 6 square wiring is generally recommended for high power loads.
• Secure Workpiece: Always secure the material being cut to prevent movement during operation.
• Avoid Kickback: Maintain a firm grip on the saw and be aware of potential kickback, especially when cutting through dense materials or at awkward angles.
• Dust Control: Concrete cutting generates significant dust. Utilize the integrated water pump system to suppress dust and reduce airborne particles.
• Maintenance: Regularly inspect the saw blade, power cord, and all components for damage or wear. Replace worn parts immediately.

3. Product Overview

The Generic 12000W 16-inch Electric Concrete Ring Saw is a powerful tool designed for cutting various hard materials such as concrete, stone, brick, and marble. It features a robust motor and an intelligent water pump system for efficient and cleaner operation.

3.1 Components

Image 3.1: Key Components of the Concrete Ring Saw

• Ring Saw Blade: 16-inch (410mm) industrial titanium alloy diamond blade.
• Splash Guard: Protects against debris and water spray.
• Front Handle: For stable two-hand operation.
• Rear Handle: Main grip with integrated start switch.
• Start Switch: Power activation.
• Water Hose Connection: For the intelligent water pump.
• Dual Water Spray Nozzles: Ensures dust suppression during cutting.
• Upper Pressure Roller Adjustment Knob: Adjusts blade pressure.
• Lower Pressure Roller Adjustment Knob: Adjusts blade pressure.
• Training Wheels: Aids in guiding the saw during cuts.

3.2 Key Features

• High-Power Motor: Equipped with a 12000W pure copper motor, delivering a no-load speed of 3300 RPM for efficient cutting. The motor features 360° all-round heat dissipation for extended operation.
• Durable Blade: Features a 16-inch (41cm) thickened titanium alloy diamond blade designed for smooth and precise cuts through various hard materials.
• Integrated Water Pump System: An intelligent water pump and 5-meter water pipe automatically supply water during cutting, reducing blade temperature, extending blade life, and suppressing dust for a safer working environment.
• Ergonomic Design: PVC handle design provides a comfortable, anti-slip grip, reducing operator fatigue during prolonged use.
• Versatile Cutting: Capable of 90-degree and multi-angle cutting, suitable for cement blocks, granite, stone, concrete, porcelain, and various construction applications.

Image 3.2: Pure Copper Motor Technology

Image 3.3: Linked Water Pump Supply for Dust-Free Cutting

4. Setup

Before operating the concrete ring saw, ensure proper setup to guarantee safety and optimal performance.

4.1 Unpacking and Inspection

• Carefully remove all components from the packaging.
• Inspect the saw and accessories for any signs of damage during transit. Do not operate if any damage is observed.
• Verify all listed accessories are present, including the saw blades and intelligent water pump.

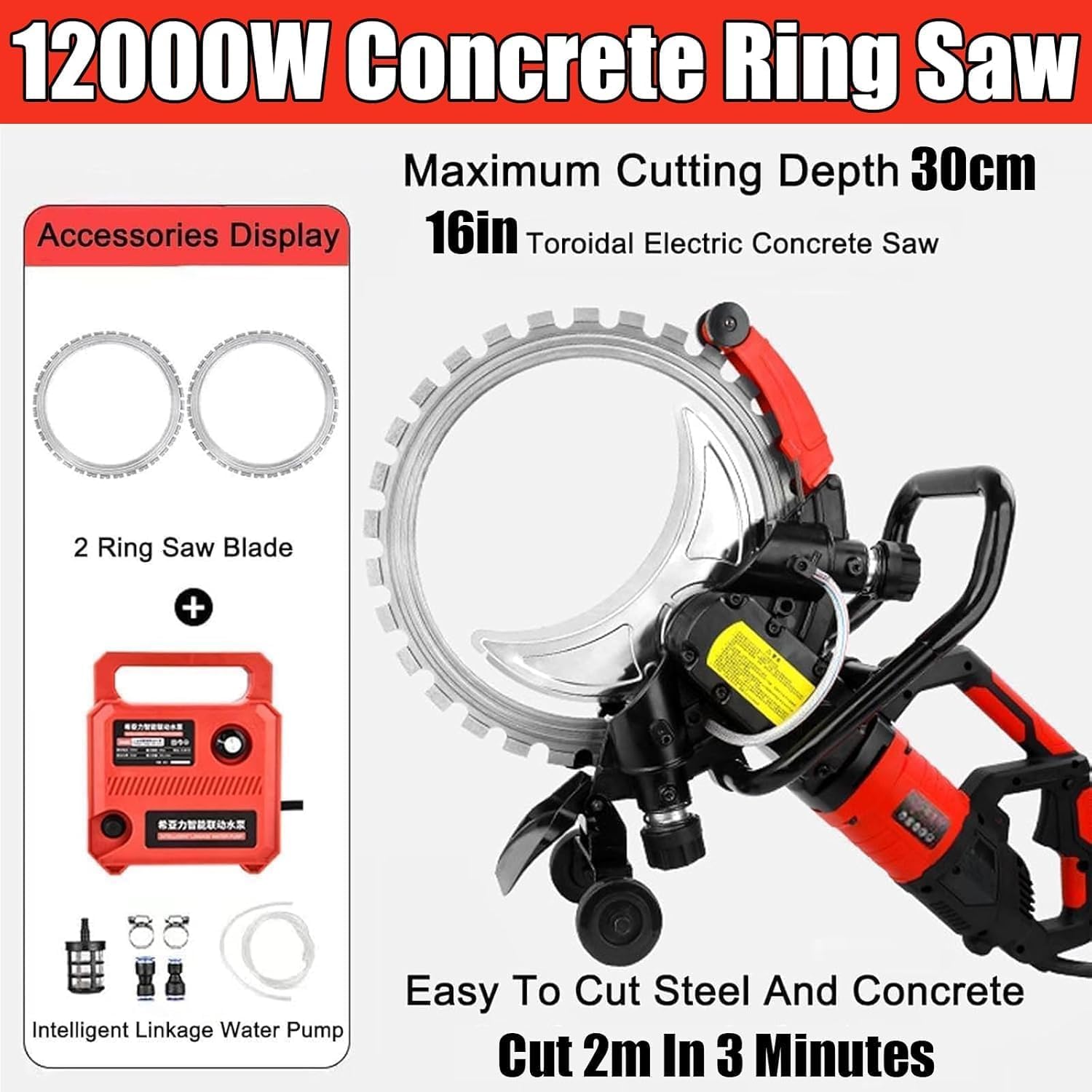

Image 4.1: Included Accessories

4.2 Blade Installation

• Ensure the saw is unplugged from the power source.
• Refer to the detailed diagram in Section 3.1 for blade mounting points.
• Carefully align the 16-inch diamond blade with the saw's mounting mechanism.
• Secure the blade using the provided fasteners, ensuring it is tightly fastened and rotates freely without wobble.

4.3 Water Pump Connection

• Connect one end of the 5-meter water pipe to the intelligent water pump.
• Connect the other end of the water pipe to the water hose connection point on the saw.
• Place the water pump in a suitable water source (e.g., bucket of water).
• Ensure all connections are secure to prevent leaks.

4.4 Power Connection

• Connect the saw's power cord to a compatible 110V/220V power outlet.
• Important: The wiring connected to the electrical meter box must use 4-6 square cable. For the high power of this electric saw, 6 square wiring is generally recommended to prevent overheating and ensure stable power delivery. Smaller gauge wire will be unable to handle such high power loads.
• Always use a GFCI for electrical safety, especially when working with water.

5. Operating Instructions

Follow these steps for safe and effective operation of your concrete ring saw.

5.1 Pre-Operation Checklist

• Ensure all safety gear is worn.
• Confirm the blade is correctly installed and secure.
• Verify the water pump system is connected and functioning, with an adequate water supply.
• Check the power cord for damage and ensure it is connected to a suitable power source with GFCI protection.
• Clear the work area of any obstacles.

5.2 Starting the Saw

• Hold the saw firmly with both hands using the front and rear handles.
• Press the start switch to power on the saw. Allow the blade to reach full speed before beginning the cut.

5.3 Cutting Techniques

• Initial Cut: Gently bring the spinning blade into contact with the workpiece. Do not force the saw.
• Maintaining Cut: Apply steady, even pressure. Let the saw's power do the work. The training wheels can assist in guiding the saw along a straight line.
• 90-Degree Cutting: The saw is designed to achieve precise 90-degree cuts. Guide the saw carefully to maintain the desired angle.
• Water Suppression: The intelligent water pump will automatically supply water to the blade during cutting, minimizing dust and cooling the blade. Ensure the water flow is consistent.
• Material Versatility: This saw is suitable for cutting concrete walls, red brick, reinforced stone, cement pavement, and lightweight brick.

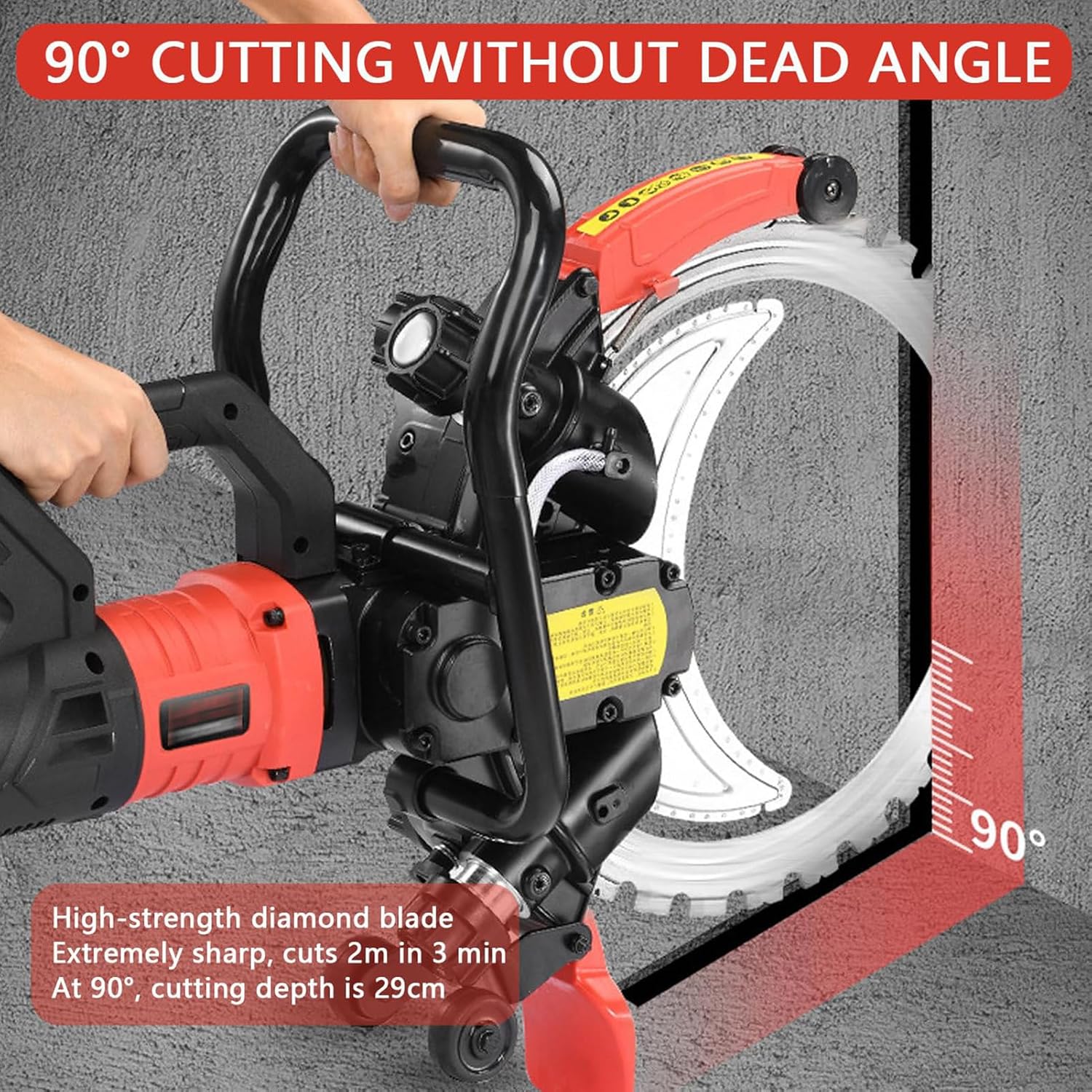

Image 5.1: Achieving 90-Degree Cuts

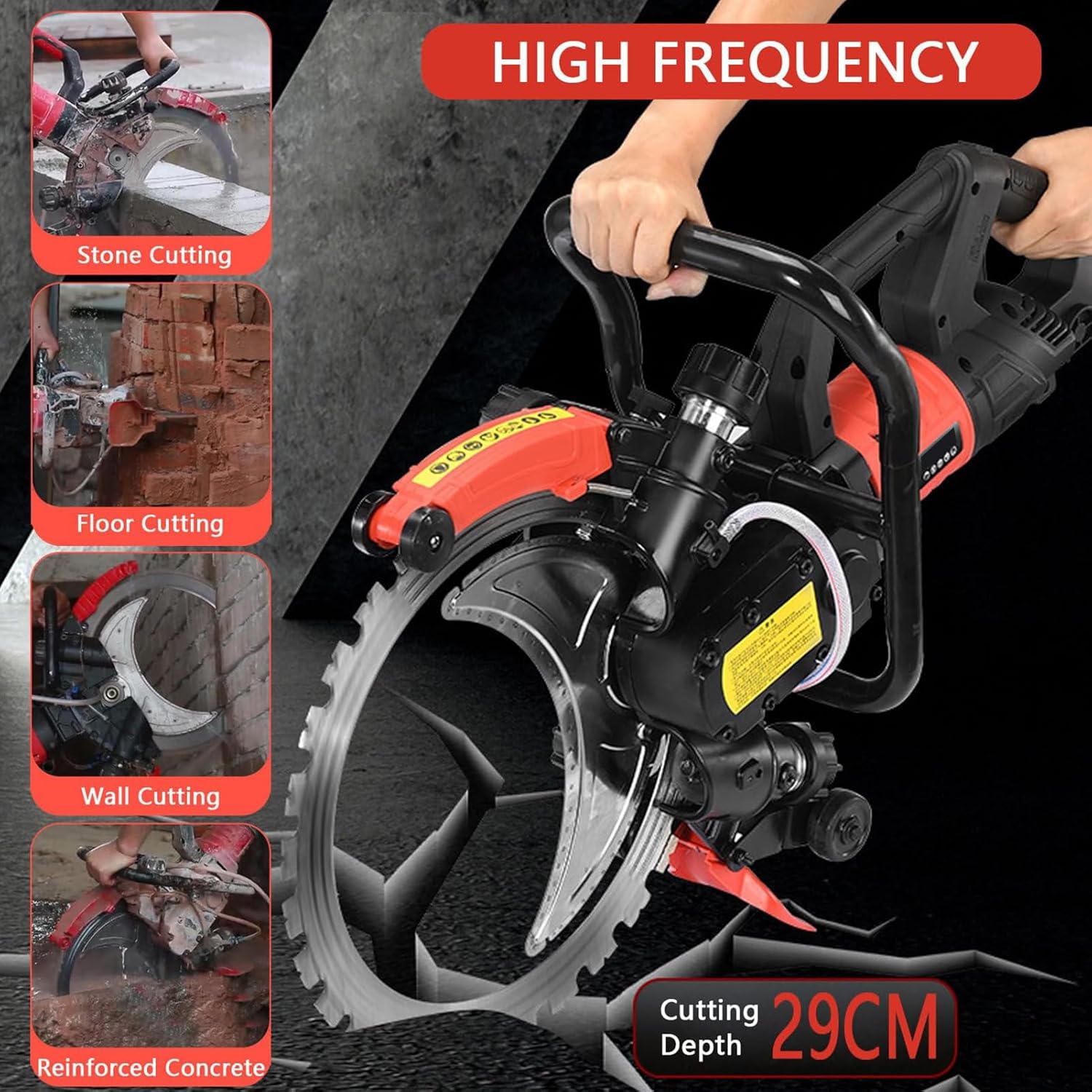

Image 5.2: Versatile Cutting Applications

5.4 Official Product Video

Video 5.1: Demonstration of the 16-inch Electric Concrete Saw in various cutting scenarios, including cement wall beams, red brick, and cement pavement. This video illustrates the saw's performance and dust suppression capabilities.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your concrete ring saw.

6.1 Cleaning

• After each use, disconnect the saw from the power supply.
• Clean the saw thoroughly, especially the blade area, splash guards, and water nozzles, to remove concrete slurry and debris.
• Use a damp cloth to wipe down the motor housing and handles. Avoid using harsh chemicals.
• Ensure the water pump and hose are flushed clean to prevent blockages.

6.2 Blade Inspection and Replacement

• Regularly inspect the diamond blade for wear, cracks, or missing segments.
• A dull or damaged blade can reduce cutting efficiency and increase the risk of kickback. Replace worn blades promptly.
• When replacing the blade, ensure the saw is unplugged and follow the installation steps outlined in Section 4.2.

6.3 Motor and Ventilation

• The motor features 360° all-round heat dissipation. Keep the ventilation openings clear of dust and debris to ensure proper cooling and prevent motor damage during continuous operation.

7. Troubleshooting

This section addresses common issues you might encounter with your concrete ring saw.

7.1 Saw Does Not Start

• Check Power Connection: Ensure the saw is securely plugged into a live outlet.
• GFCI Tripped: Reset the GFCI if it has tripped.
• Power Supply Wiring: Verify that the electrical wiring to your meter box is adequate (4-6 square cable, 6 square recommended for 12000W). Insufficient wiring can prevent the saw from starting or cause it to trip breakers.
• Start Switch: Ensure the start switch is fully engaged.

7.2 Reduced Cutting Performance

• Dull Blade: Inspect the blade for wear. Replace if dull or damaged.
• Insufficient Water Supply: Check the water pump connection, water level, and ensure nozzles are not clogged. Proper water flow is crucial for efficient cutting and blade cooling.
• Overheating: If the motor feels excessively hot, allow it to cool down. Ensure ventilation openings are clear.

7.3 Excessive Dust During Operation

• Water Pump Function: Verify the intelligent water pump is operating correctly and supplying water to the blade.
• Nozzle Clogs: Clean the dual water spray nozzles to ensure unobstructed water flow.
• Water Source: Ensure the water source for the pump is not depleted.

8. Specifications

Technical specifications for the Generic 12000W 16-inch Electric Concrete Ring Saw.
