Fitness Tech M200 Evolution Multifunction Machine

Introduction

This manual provides essential information for the safe and effective use of your Fitness Tech M200 Evolution Multifunction Machine. Please read all instructions carefully before assembly and use. Keep this manual for future reference.

Safety Warning:

• Consult a physician before starting any exercise program.
• Always inspect the machine for loose or damaged parts before each use. Do not use if damaged.
• Ensure all pins, bolts, and cables are securely fastened before exercising.
• Keep children and pets away from the machine during operation.
• Use the machine on a flat, stable surface.
• Wear appropriate athletic footwear and clothing.
• Do not exceed the maximum user weight of 150 kg.

Product Overview

The Fitness Tech M200 Evolution is a comprehensive strength training station designed for full-body workouts. It features a robust reinforced steel structure and a 66 kg guided weight stack for safe and progressive training.

Key Features:

• Complete training for all major muscle groups.
• Robust reinforced steel structure for durability and stability.
• 66 kg guided weight stack for safe and progressive resistance.
• Elegant matte black finish.
• Compact design suitable for home or gym environments.

Components:

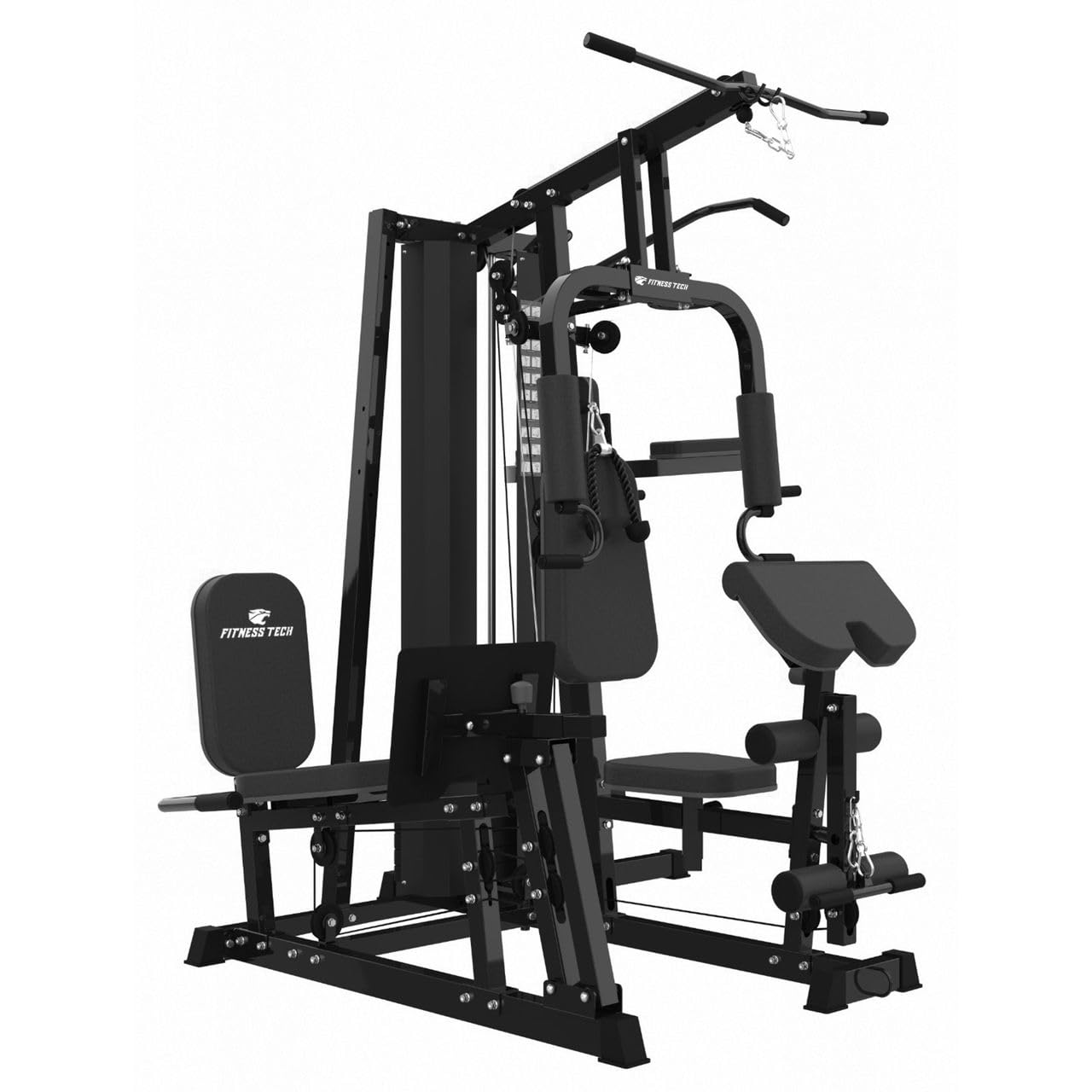

Figure 1: Full view of the Fitness Tech M200 Evolution Multifunction Machine, showcasing its various stations including the lat pulldown, chest press, leg extension, and arm curl.

Figure 2: Close-up of the upper pulley system and lat pulldown bar, demonstrating the cable routing and attachment points for upper body exercises.

Figure 3: Detail of the adjustable seat, arm curl pad, and the lower cable attachment point, used for exercises like bicep curls and rows.

Figure 4: View of the leg extension and curl station, showing the padded rollers and adjustment mechanism for lower body workouts.

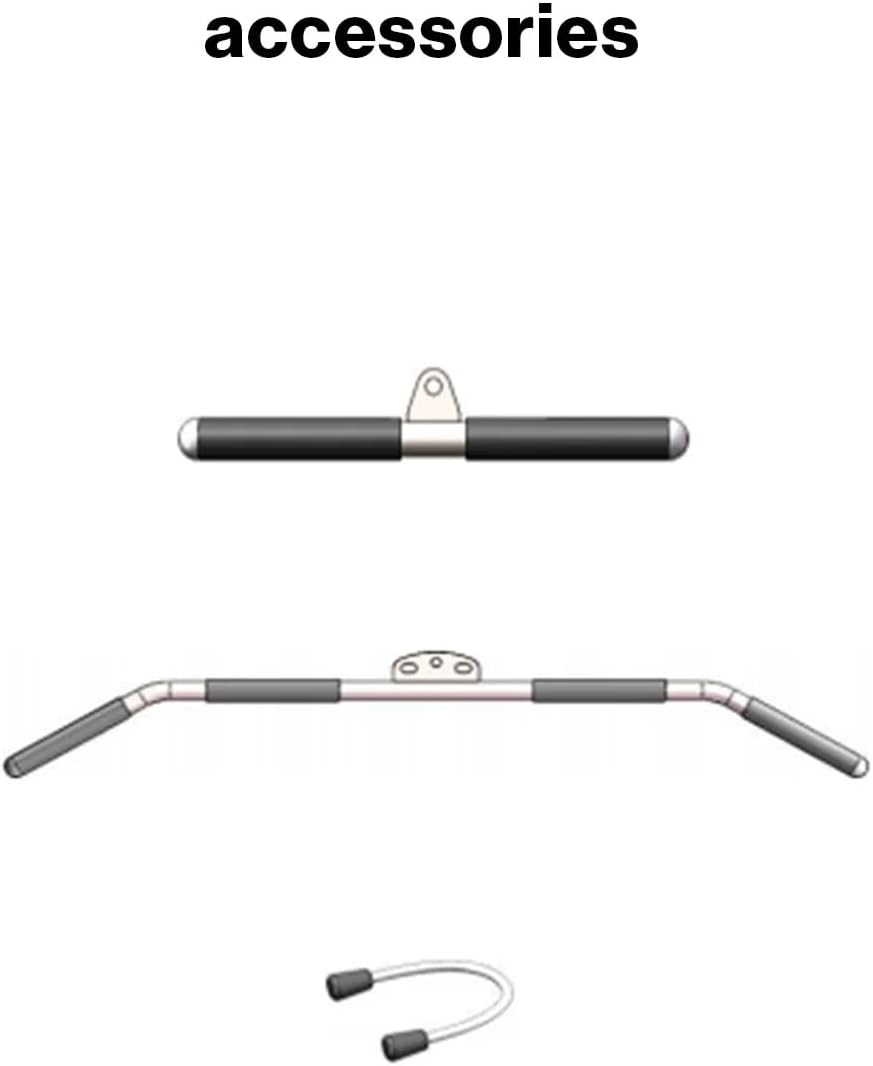

Figure 5: Illustration of the included accessories: a short straight bar, a wider lat pulldown bar, and an ankle strap, which attach to the cable system for varied exercises.

Setup and Assembly

The M200 Evolution requires assembly. It is recommended that two adults assemble the machine. Ensure you have sufficient space and all parts are present before beginning.

Unpacking:

• Carefully remove all components from the packaging.
• Verify all parts against the included parts list (not provided in this manual, refer to your product packaging).
• Note: Packages weighing over 30 kg are delivered to street level only.

Assembly Steps:

1. Begin by assembling the main frame base, ensuring all bolts are finger-tight.
2. Attach the vertical support beams and connect them to the base.
3. Install the weight stack guide rods and carefully slide the weight plates onto them.
4. Mount the various exercise stations (chest press, lat pulldown, leg extension) to the main frame.
5. Route all cables through the pulleys as per the diagram in your assembly guide (refer to the separate assembly guide for detailed diagrams).
6. Attach the seat, backrest, and arm curl pad. Adjust to your preferred height.
7. Once all components are in place, tighten all bolts securely using the provided tools. Do not overtighten.
8. Perform a functional check: slowly move all moving parts and test the cable system for smooth operation.

Operating Instructions

The M200 Evolution allows for a wide range of exercises. Always warm up before exercising and cool down afterward. Adjust the weight stack by inserting the selector pin into the desired weight plate.

Adjustments:

• Seat Height: Adjust the seat height to ensure proper alignment for chest press and lat pulldown exercises.
• Arm Curl Pad: Position the arm curl pad to comfortably support your arms during bicep curls.
• Leg Extension/Curl: Adjust the leg rollers to fit your leg length for optimal range of motion.

Common Exercises:

• Chest Press: Sit on the seat, grasp the handles, and push forward, extending your arms. Control the return motion.
• Lat Pulldown: Sit facing the machine, grasp the lat pulldown bar (Figure 2), and pull it down towards your upper chest. Slowly release.
• Seated Row: Attach a handle to the lower cable (Figure 3), sit with feet braced, and pull the handle towards your abdomen, squeezing your shoulder blades.
• Bicep Curl: Attach a handle or the straight bar (Figure 5) to the lower cable, stand or sit, and curl the weight upwards, contracting your biceps.
• Leg Extension: Sit on the leg station (Figure 4), place your shins behind the rollers, and extend your legs forward.
• Leg Curl: Lie face down on the leg station (if applicable, or use the same station in a different configuration), place your heels under the rollers, and curl your legs upwards.

Maintenance

Regular maintenance ensures the longevity and safe operation of your M200 Evolution machine.

• Cleaning: Wipe down the frame, upholstery, and handles with a damp cloth after each use to remove sweat and dirt. Use mild soap if necessary. Avoid abrasive cleaners.
• Inspection (Weekly): Check all bolts, nuts, and pins for tightness. Retighten as needed. Inspect cables and pulleys for any signs of fraying, wear, or damage. Ensure smooth movement of all pulleys.
• Lubrication (Monthly): Apply a silicone-based lubricant to the weight stack guide rods to ensure smooth movement of the weight plates. Do not use oil-based lubricants.
• Upholstery Care: Keep upholstery clean and dry. Avoid sharp objects that could puncture or tear the material.

Troubleshooting

Specifications

Warranty Information

The Fitness Tech M200 Evolution Multifunction Machine comes with a 3-year product warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and service. It does not cover damage resulting from misuse, abuse, accident, alteration, or improper assembly/maintenance. Please retain your proof of purchase for warranty claims.

Support

For technical assistance, parts replacement, or warranty claims, please contact Fitness Tech customer support. Refer to your product packaging or the official Fitness Tech website for the most current contact information.

Online Resources: Visit the official Fitness Tech website for additional resources, FAQs, and product registration.

Manufacturer: Fitness Tech
