YITAHOME 4-Drawer Dresser with LED User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your YITAHOME 4-Drawer Dresser with LED. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

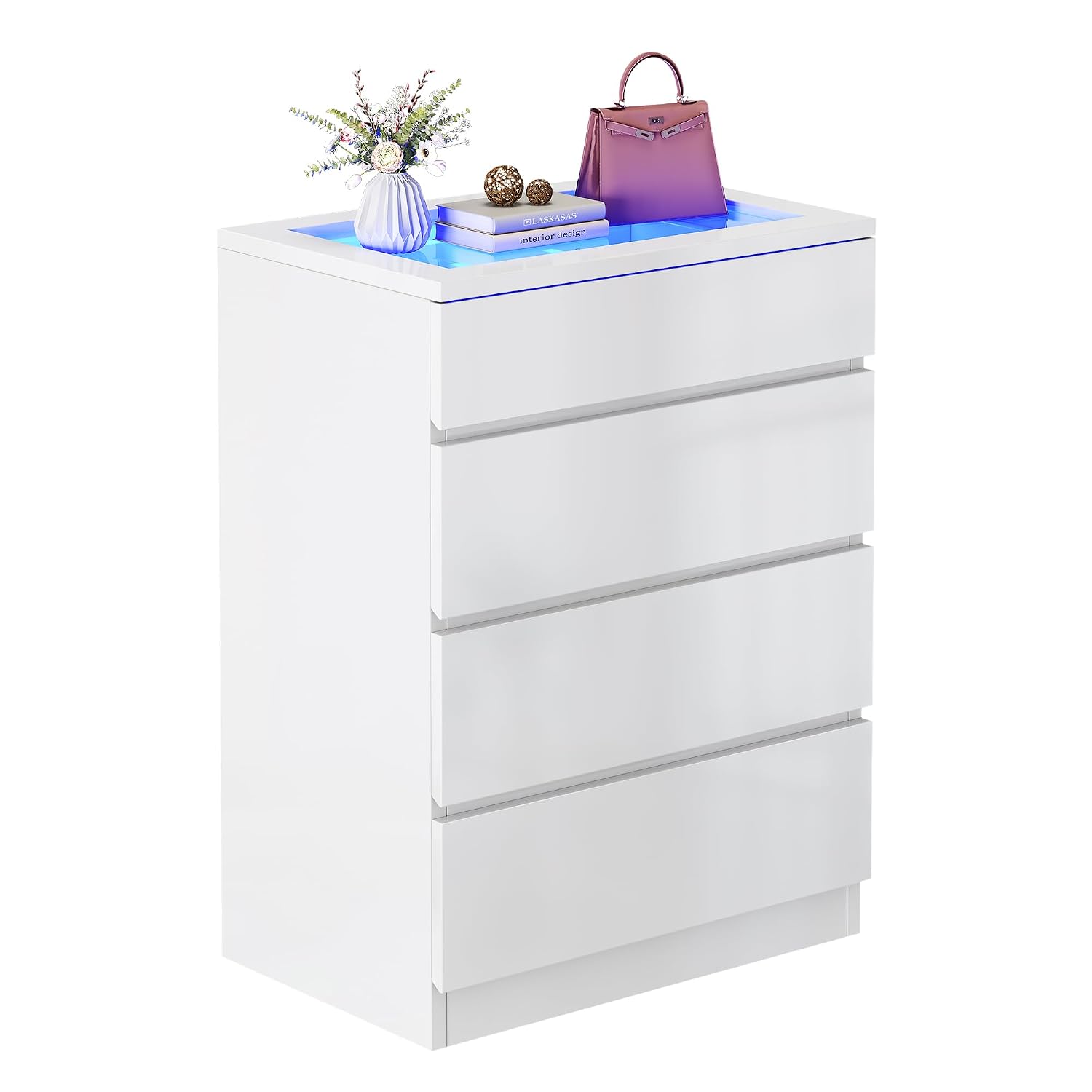

Image: The YITAHOME 4-Drawer Dresser with LED, featuring a high-gloss white finish and illuminated top surface, positioned in a modern living room.

Safety Information

To prevent serious injury or death, this product must be permanently attached to the wall using the provided anti-tip device. Failure to do so can result in furniture tip-over causing severe or fatal crushing injuries.

• Always use the anti-tip device provided.
• Do not place heavy objects on top of the dresser.
• Never allow children to climb or hang on drawers, doors, or shelves.
• Place the heaviest items in the lowest drawers.
• Ensure all drawers are closed when not in use.

Image: Illustration demonstrating the proper installation of the anti-tip device to secure the dresser to the wall, highlighting the importance of preventing tip-over incidents.

Parts List

Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, please contact YITAHOME customer service.

• Dresser Frame Components
• 4 Drawer Components (including high-gloss fronts)
• Tempered Glass Top
• LED Light Strip and Controller
• Drawer Slide Rails
• Anti-Tip Device (dual detachable)
• Assembly Hardware (screws, dowels, cam locks, etc.)
• Instruction Manual
• Installation Tools (Allen wrench, screwdriver, etc.)

Image: An overhead view of the dresser with key dimensions labeled, including height, width, and depth, as well as individual drawer heights.

Assembly Instructions

Assembly typically takes less than 30 minutes. Follow these steps carefully:

1. Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the parts list.
2. Assemble the Frame: Connect the side panels to the top and bottom panels using the provided hardware. Ensure all connections are secure.
3. Install Drawer Slides: Attach the drawer slide rails to the inner sides of the dresser frame according to the pre-drilled holes. Ensure they are level and aligned.
4. Assemble Drawers: Construct each of the four drawers by attaching the side, front, and back panels. Install the corresponding drawer slide components onto each drawer.
5. Insert Drawers: Carefully slide each assembled drawer into its respective slot in the dresser frame. Test for smooth operation.
6. Install LED Lighting: Adhere the LED light strip to the designated area on the top surface of the dresser. Connect the controller and power supply.
7. Place Glass Top: Carefully place the tempered glass top onto the dresser. Ensure it is securely seated.
8. Attach Anti-Tip Device: Securely attach the dual detachable anti-tip device to the back of the dresser and to a wall stud using the provided hardware. This step is crucial for safety.

Image: A collage of close-up images highlighting key features: the high-gloss surface, the simple handle design, the smooth operation of the drawer slide rails, and the anti-toppling device for safety.

Operating Instructions

LED Lighting Operation

The integrated LED lighting system offers various colors and modes, controllable via a remote or a mobile application.

• Power On/Off: Use the power button on the remote or app to turn the lights on or off.
• Color Selection: Select desired RGB colors from the color palette on the remote or app.
• Light Modes: Cycle through various light modes (e.g., static, fade, jump) using the mode selection buttons.
• Brightness Adjustment: Adjust the brightness levels to your preference.
• Music Sync (if applicable): Some models may feature a built-in microphone for music synchronization, allowing lights to change with sound.
• Timing Function (if applicable): Set timers for automatic power off.

Image: The dresser with its LED lights illuminated in a vibrant purple hue, showcasing the customizable lighting feature.

Image: The dresser with its LED lights illuminated in a cool blue hue, demonstrating another color option.

Image: The dresser with its LED lights illuminated in a bright green hue, illustrating the range of available colors.

Image: The dresser with its LED lights illuminated in a warm red hue, showcasing the customizable lighting feature.

Drawer Operation

The dresser features four spacious drawers designed for smooth operation and ample storage. The top two drawers include intricate dividers and sleek tempered glass covers for organized storage of smaller items like jewelry or accessories.

• Opening/Closing: Gently pull or push the drawer fronts to open or close. Avoid excessive force.
• Weight Capacity: Do not overload drawers. Refer to specifications for maximum weight capacity per drawer.
• Glass Top Drawers: Utilize the dividers in the top drawers for organizing small items. The glass top allows for easy viewing of contents.

Image: The YITAHOME dresser with its top drawer partially open, showcasing the internal dividers and the illuminated contents, demonstrating its organizational capabilities.

Maintenance

Proper care will extend the life and appearance of your dresser.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, especially on the high-gloss finish and glass top.
• Spills: Clean spills immediately to prevent staining or damage to the finish.
• Drawer Slides: Periodically check drawer slides for smooth operation. If they become stiff, a small amount of silicone lubricant can be applied.
• Hardware: Periodically check and tighten all assembly hardware to ensure stability.
• Anti-Tip Device: Regularly inspect the anti-tip device to ensure it remains securely attached to both the dresser and the wall.

Troubleshooting

Specifications

Warranty and Support

YITAHOME products are manufactured to high-quality standards. For warranty information, technical support, or to order replacement parts, please contact YITAHOME customer service through their official website or the retailer where the product was purchased. Please have your model number (MAYIHjYBh7) and purchase details ready when contacting support.
