VEIKOU 8'x12' Cedar Frame Greenhouse Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your VEIKOU 8'x12' Cedar Frame Greenhouse. Please read this manual thoroughly before beginning assembly or operation to ensure safe and efficient use of the product. Keep this manual for future reference.

2. Safety Information

• Always use caution when handling heavy components.
• Use appropriate tools for assembly and be aware of sharp edges.
• Ensure proper ventilation to prevent overheating inside the greenhouse.
• Be cautious of UV exposure from polycarbonate panels; although they offer some protection, prolonged exposure is not recommended.
• Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses during assembly.
• Ensure the assembly area is clear of obstructions and children.
• Secure the greenhouse to the ground to prevent damage from strong winds.

3. Package Contents

Your VEIKOU 8'x12' Cedar Frame Greenhouse is shipped in multiple boxes. Please verify all components are present and undamaged before beginning assembly. Refer to the included parts list for a complete inventory.

• Cedar Wood Frame Components
• 6MM Thick Polycarbonate Panels
• Door Assembly (including lock and reinforced hinges)
• Adjustable Vent Window Assembly
• All necessary hardware (screws, bolts, etc.)
• Assembly Manual

4. Setup and Assembly

4.1 Site Preparation

A level and stable base is crucial for proper assembly and long-term stability of your greenhouse. Prepare your site in advance. Consider a concrete slab or a well-leveled frame (e.g., 4x6 ground-contact treated wood) filled with gravel and topped with pavers for optimal results.

4.2 Assembly Overview

The wooden greenhouse features an insert PC panel installation method designed to reduce assembly time. While the instructions are detailed, having two people for assembly is highly recommended. The process can typically be completed in 3-4 days with a steady pace.

4.3 Key Assembly Tips

• Pre-drilling: To prevent wood splitting, it is strongly recommended to pre-drill holes in the cedar frame before inserting screws, especially where no pilot holes are present. Use an appropriate drill bit size for the screws.
• Panel Sealing: For enhanced durability and to prevent dirt, bugs, and moisture ingress, consider applying aluminum window sealing tape and anti-dust tape to the edges of the polycarbonate panels before insertion.
• Alignment: Ensure all tracks for the polycarbonate panels align correctly with the roofline and frame sections. Misalignment, even slight, can prevent panels from seating properly. If a piece feels strained during fitting, stop and realign.
• Vent Window Assembly: Pay close attention to the placement of components for the vent windows as this step can sometimes be less intuitive.
• Securing the Greenhouse: After assembly, firmly anchor the greenhouse to the ground to withstand strong winds and storms. Rebar stakes into a wooden base frame are an effective method.

Image: The fully assembled VEIKOU 8'x12' Cedar Frame Greenhouse, showcasing its design and size in an outdoor environment.

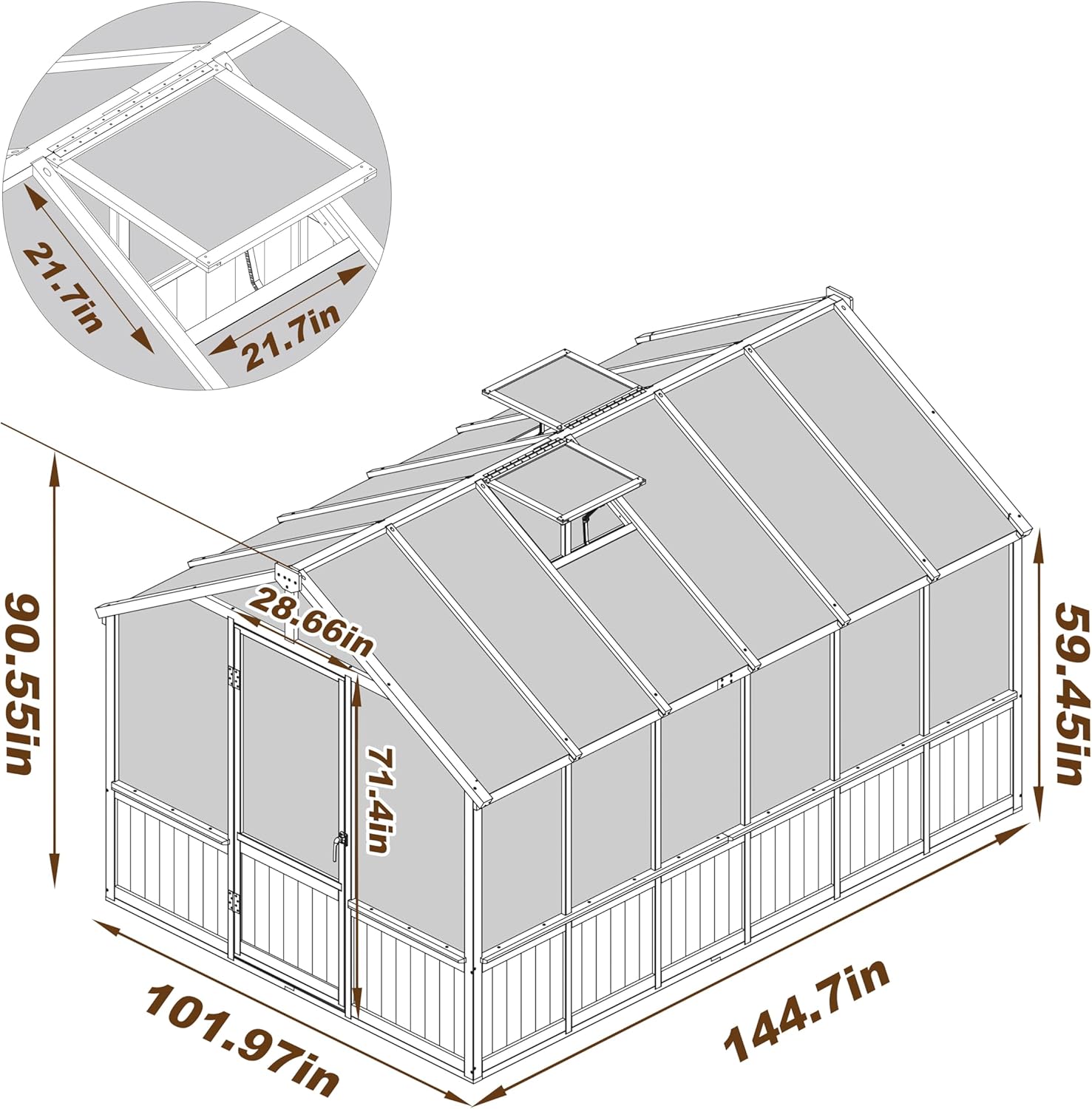

Image: A detailed diagram illustrating the overall dimensions of the greenhouse, including width, depth, height, door size, and vent size.

5. Operating Instructions

5.1 Ventilation Management

The greenhouse is equipped with adjustable vent windows to regulate internal temperature and humidity. The maximum adjustment angle for the ventilation opening is 45°. Utilize these vents to:

• Keep the greenhouse cool during warmer months.
• Prevent overheating of plants.
• Maintain optimal humidity levels for plant growth.

Image: A close-up view of the adjustable roof vent, demonstrating its 45-degree opening capability for air circulation.

5.2 Light Management with Polycarbonate Panels

The 6MM thick multi-layer polycarbonate panels provide diffuse light, ensuring light reaches your plants from all angles. The diffusion pattern achieves over 98% luminous uniformity, providing ample sunlight for plant growth while offering scratch resistance and excellent impact strength. These panels also contribute to thermal insulation.

Image: Visual representation of the multi-layer 6mm polycarbonate panel, highlighting its light diffusion, anti-flaming, and UV-resistant properties.

5.3 Thermal Regulation with Cedar Frame

The thickened cedar frame acts as a natural insulator. During the day, the wood absorbs heat from the sun and releases it slowly at night, contributing to stable internal temperatures and reducing energy consumption, especially in colder months.

Image: The greenhouse featuring its natural cedar wood frame, emphasizing its serviceable, versatile, and aesthetically attractive qualities, along with its insulating function.

5.4 Door Operation

The greenhouse is equipped with a lockable door and reinforced hinges for secure access. Ensure the door is properly closed and latched when not in use to maintain internal conditions and protect plants.

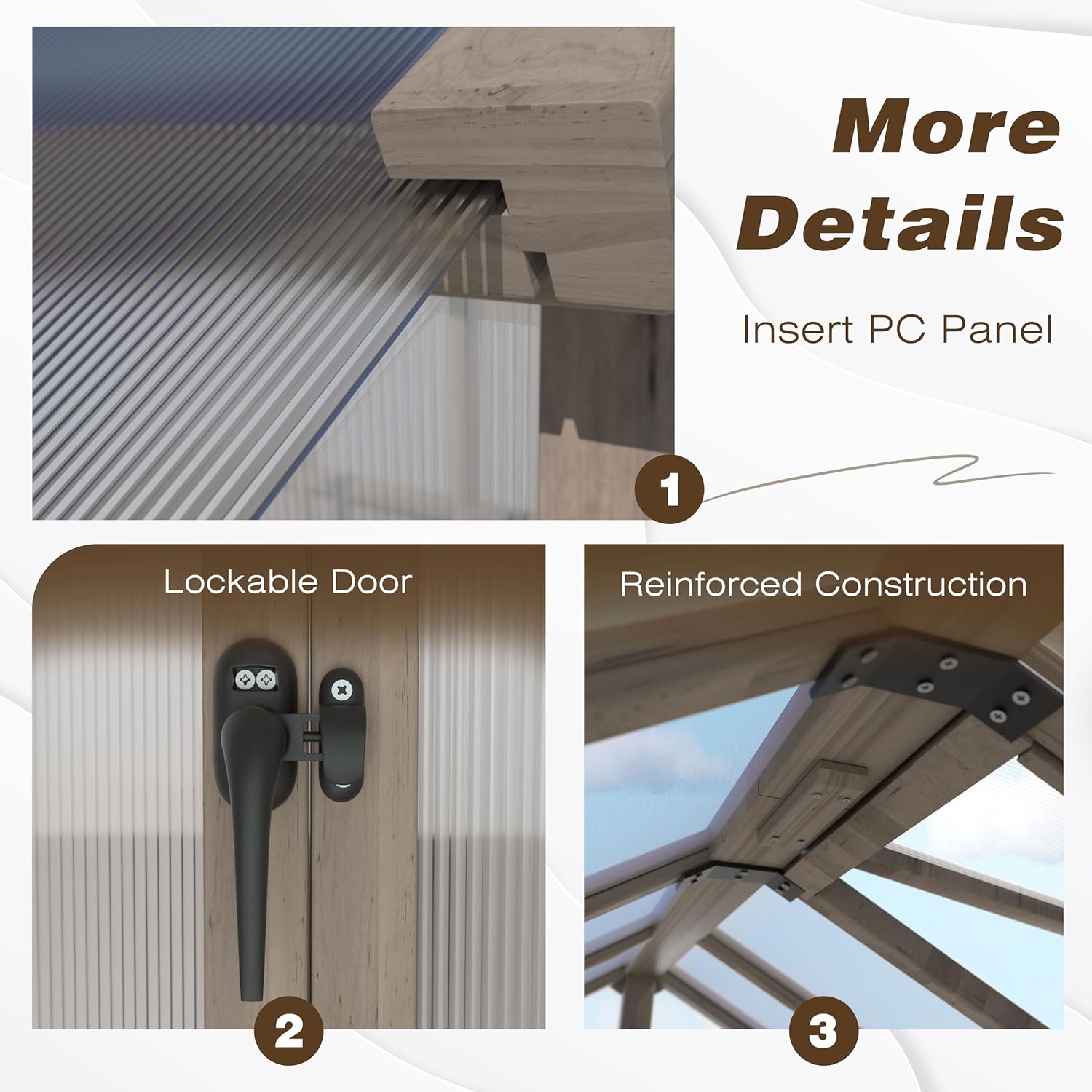

Image: Detailed views showing the insert PC panel design, the lockable door mechanism, and reinforced construction elements of the greenhouse.

6. Maintenance

• Cleaning Panels: Regularly clean the polycarbonate panels with mild soap and water to ensure maximum light transmission. Avoid abrasive cleaners or tools that could scratch the surface.
• Cedar Frame Care: Inspect the cedar frame periodically for any signs of wear, damage, or rot. While cedar is durable, applying a wood sealant or stain can extend its lifespan and maintain its appearance.
• Hardware Check: Periodically check all screws, bolts, and hinges to ensure they are tight and secure. Lubricate hinges as needed.
• Vent Mechanism: Ensure the adjustable vent mechanism operates smoothly. Clean any debris that might obstruct its movement.
• Snow Removal: In areas with heavy snowfall, gently remove accumulated snow from the roof to prevent excessive weight and potential damage.

7. Troubleshooting

Issue: Wood splitting during assembly.

Solution: This can occur if screws are driven into thin wood pieces without pilot holes. Always pre-drill holes before inserting screws. If minor splits occur, they can often be repaired with wood glue.

Issue: Panels do not fit or align properly.

Solution: Ensure the base is perfectly level. Double-check that all frame components and panel tracks are correctly aligned. If a piece is under strain, disassemble and realign before forcing it.

Issue: Greenhouse interior is too hot or humid.

Solution: Utilize the adjustable vent windows to increase air circulation. Ensure vents are fully open during hot periods. Consider additional shading if direct sunlight is excessive.

Issue: Water leakage or drafts.

Solution: Inspect panel seals and frame connections. Ensure all panels are fully seated in their tracks. Applying additional sealing tape to panel edges during assembly can help prevent this. Check for any gaps around the door or vents.

Issue: Greenhouse instability in windy conditions.

Solution: Ensure the greenhouse is securely anchored to the ground. Review the anchoring method and reinforce if necessary. A strong, level base is critical for stability.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact VEIKOU customer service. Contact details can typically be found on the product packaging or the official VEIKOU website.

If you encounter any issues or have questions regarding your greenhouse, please reach out to our support team for assistance.

10. Additional Resources

For further information on gardening, greenhouse management, or product updates, visit the official VEIKOU Store.
