1. Introduction
Thank you for choosing the Misolant Drafting Chair with Footrest Ring. This chair is designed to provide ergonomic support and comfort for various environments, including standing desks, bars, labs, and counter-height workstations. Its adjustable features and durable construction ensure a reliable and comfortable seating experience. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your chair.
Image 1.1: Misolant Drafting Chair with Footrest Ring, Brown.

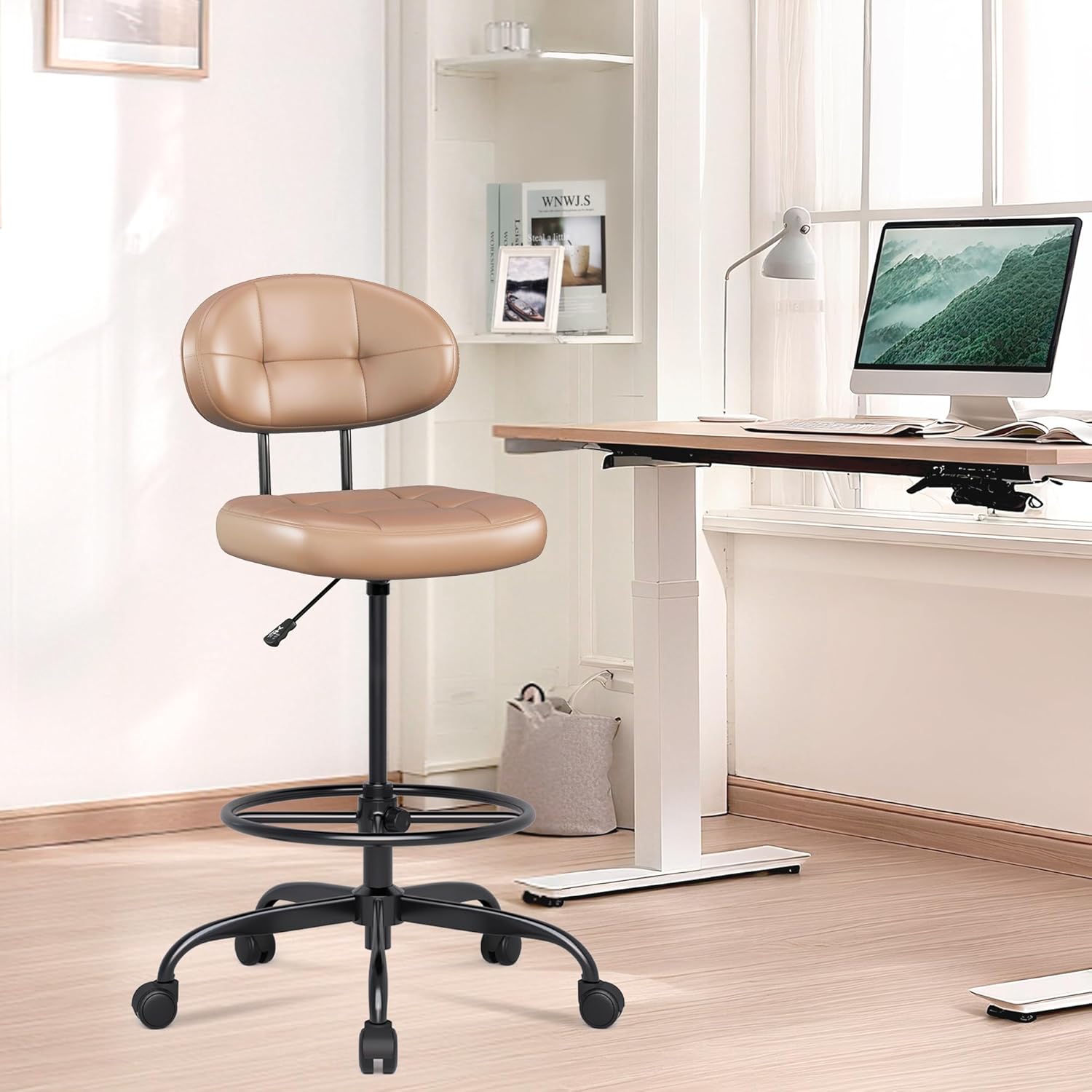

Image 1.2: The Misolant Drafting Chair positioned at a standing desk in an office environment.
2. Safety Information
To prevent injury and damage to your chair, please observe the following safety guidelines:
- Do not stand on the chair.
- Do not use the chair as a step stool.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not exceed the maximum weight capacity of 300 lbs (136 kg).
- Keep children away from moving parts during adjustment.
- Use the chair on a level surface to prevent tipping.
- Avoid exposing the chair to direct sunlight or extreme temperatures to prevent material degradation.
3. Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Backrest
- Seat Cushion
- Gas Lift Cylinder
- Footrest Ring
- Chair Base (with 5 legs)
- Casters (5 pieces)
- Mounting Plate (for seat)
- Hardware Pack (screws, Allen wrench)
4. Setup (Assembly Instructions)
Assembly typically takes approximately 25 minutes. Follow these steps carefully:
- Attach Casters to Base: Insert each of the five casters into the holes at the end of the chair base legs until they click securely into place.
- Insert Gas Lift: Place the gas lift cylinder into the center hole of the chair base.
- Assemble Footrest Ring: Slide the footrest ring over the gas lift cylinder. Secure it at your desired height using the adjustment knob on the footrest ring.
- Attach Mounting Plate to Seat: Align the mounting plate with the pre-drilled holes on the underside of the seat cushion. Secure it with the provided screws and Allen wrench. Ensure the front of the plate aligns with the front of the seat.
- Attach Backrest to Seat: Connect the backrest support frame to the back of the seat cushion using the designated screws.
- Connect Seat Assembly to Gas Lift: Carefully place the assembled seat (with mounting plate and backrest) onto the top of the gas lift cylinder. Press down firmly to ensure a secure connection.
After assembly, test all adjustments and ensure the chair is stable before regular use.
5. Operating Instructions
Your Misolant Drafting Chair offers several adjustable features for personalized comfort.
5.1. Height Adjustment
To adjust the chair's height:
- To raise: While standing, pull the height adjustment lever upwards. The chair will rise automatically. Release the lever at the desired height.
- To lower: While seated, pull the height adjustment lever upwards. The chair will lower. Release the lever at the desired height.
Image 5.1: Detail of the height adjustment lever located under the seat.
Image 5.2: Illustration of the chair's adjustable height range, accommodating various desk heights.
5.2. Footrest Ring Adjustment
The footrest ring can be adjusted vertically to support your feet comfortably at different chair heights.
- Locate the knob on the side of the footrest ring.
- Loosen the knob by turning it counter-clockwise.
- Slide the footrest ring up or down to your preferred position.
- Tighten the knob by turning it clockwise to secure the footrest in place.
Image 5.3: Diagram illustrating the adjustment mechanism for the footrest ring.
5.3. Backrest Ergonomics
The chair features an ergonomically designed backrest with a unique wrap-around curve to provide optimal lumbar support and promote good posture.
Image 5.4: Visual representation of the curved backrest design for ergonomic support.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your Misolant Drafting Chair.
- Cleaning: For the faux leather upholstery, wipe with a soft, damp cloth. For stubborn stains, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals or abrasive cleaners.
- Hardware Check: Periodically inspect all screws and bolts to ensure they are tight. Re-tighten as needed to maintain stability.
- Caster Care: Keep casters free of hair, dust, and debris to ensure smooth rolling. Clean with a soft brush or cloth.
- Gas Lift: The gas lift is maintenance-free. If you experience issues with height adjustment, refer to the troubleshooting section.
7. Troubleshooting
If you encounter any issues with your chair, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height | Gas lift cylinder malfunction or lever not engaged. | Ensure the lever is fully pulled. If the issue persists, the gas lift may need replacement. Contact support. |
| Chair wobbles or feels unstable | Loose screws or uneven floor. | Check and tighten all assembly screws. Ensure the chair is on a flat, level surface. |
| Casters do not roll smoothly | Debris caught in casters or damaged casters. | Remove any hair or debris from the caster wheels. If damaged, casters may need replacement. |
| Footrest ring slides down | Adjustment knob is loose. | Tighten the footrest adjustment knob firmly. |
8. Specifications
Detailed specifications for the Misolant Drafting Chair with Footrest Ring:
- Brand: Misolant
- Model: Drafting Chair with Footrest Ring
- Color: Brown
- Material: Faux Leather
- Product Dimensions: 19.68"D x 17.32"W x 40"H (Overall, minimum height)
- Chair Height Range: 35 to 43.4 inches
- Cushion Height from Floor: 23.5 to 31.9 inches
- Seat Cushion Dimensions: 16.5"W x 16.3"D x 2.8"H (Thickness)
- Backrest Dimensions: 16.7"W x 9.6"H
- Base Diameter: 25.1 inches
- Special Feature: Adjustable Height, Adjustable Footrest Ring, Ergonomic Backrest
- Gas Lift: SGS Certified Class-4 Gas Lift
- Casters: Hard-wearing PU material, 360° slide
- Maximum Load Capacity: 300 lbs
Image 8.1: Detailed diagram illustrating the dimensions of the Misolant Drafting Chair.
Image 8.2: Cross-section view detailing the construction of the 16.5-inch wide seat cushion, including faux leather, memory foam, and a sturdy wooden plate.
Image 8.3: Illustration highlighting the SGS certified Class-4 gas lift and the durable, quiet 360° sliding casters.
9. Warranty and Support
Misolant is committed to providing exceptional service and product satisfaction.
- Warranty: Your Misolant Drafting Chair comes with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use.
- Customer Support: For any questions, concerns, or assistance with assembly, operation, or warranty claims, please contact Misolant customer service. Refer to the product packaging or purchase documentation for contact details.
