1. Product Overview
The INNOLAND Smart Chicken Coop Heater (Model YCT-20) is designed to provide safe, consistent, and energy-efficient warmth for poultry, including chicks, pullets, and adult hens. It features dual-sided heating, an automatic temperature control system, cycle modes, and remote operation for convenience.
Figure 1: INNOLAND Smart Chicken Coop Heater (Model YCT-20)
2. Package Contents & Specifications
2.1 Package Contents
- Dual-Sided Heating Plate
- Standing Feet (2)
- Base Screws (2)
- Power Line (2.8m power cord)
- Screws (for mounting)
- Remote Control
- User Manual

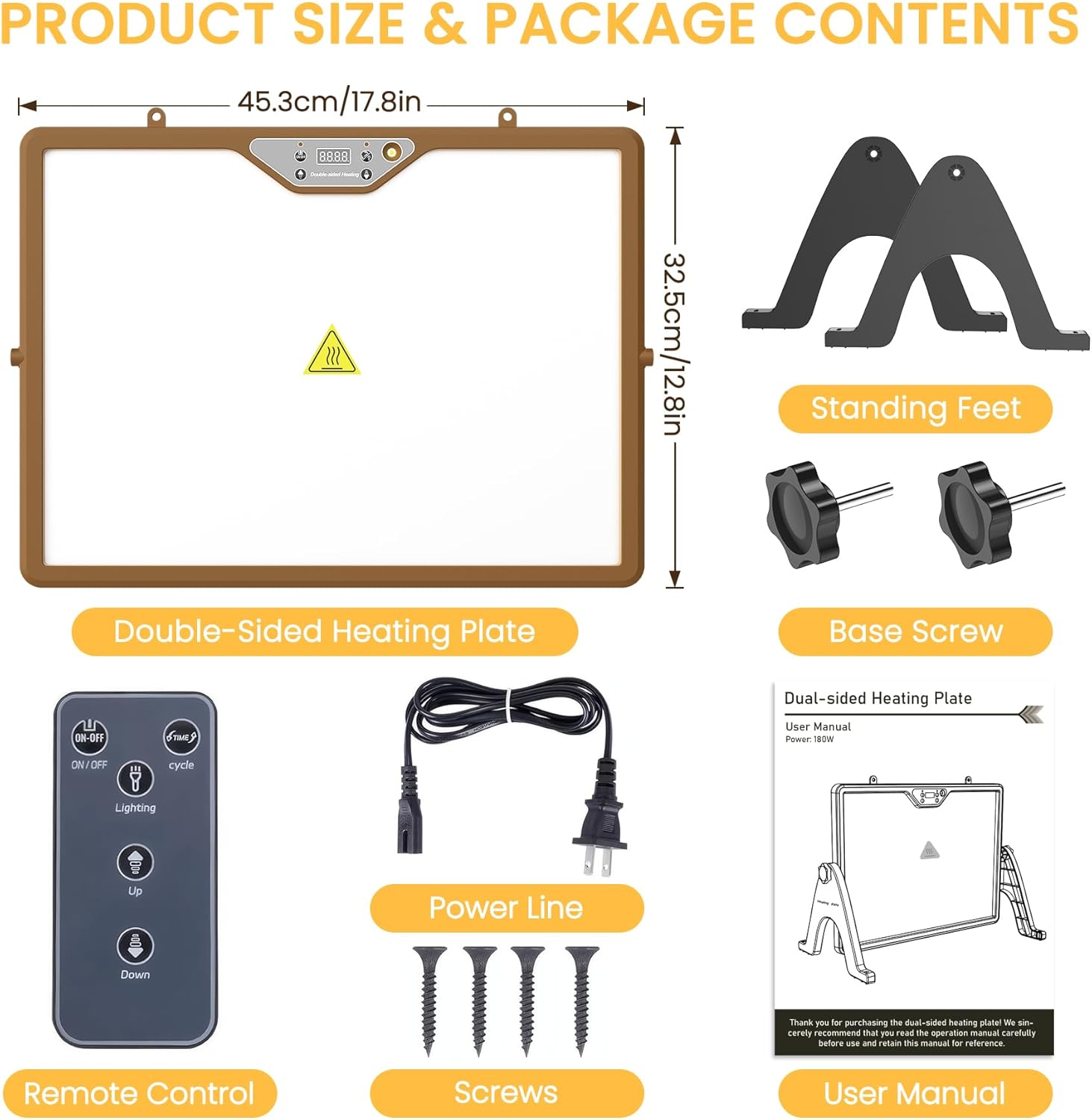

Figure 2: Package Contents
2.2 Product Specifications
| Feature | Detail |
|---|---|
| Model Name | YCT-20 |
| Item Weight | 4.24 pounds |
| Product Dimensions | 17.83"L x 12.8"W x 9.84"H |
| Material | Acrylonitrile Butadiene Styrene (ABS), Aluminum |
| Power Cord Length | 2.8m |
| Temperature Range | 86°F-167°F / 30°C-75°C |
| Special Features | Adjustable Heating Panel, Built-in Light, Built-in Thermostat, Cycle Mode, Remote Control |
| Batteries | 1 Lithium Metal battery required (included for remote) |
3. Setup & Installation
The INNOLAND Smart Chicken Coop Heater offers flexible installation options to suit various coop designs and poultry needs.
3.1 Assembling the Stands
- Insert the bolts into the holes in the base of each standing foot.
- Align the heating plate with the brackets on the standing feet.
- Tighten the base screws to secure the heating plate to the stands. Ensure the base is firmly connected.
- Use the included screws to secure the base to a stable surface for added stability, especially if placed on the ground.
3.2 Installation Methods
The heater can be installed in three primary ways:
- Standing: Use the provided stands for a stable base on the coop floor. The panel can be adjusted 360° to direct heat.
- Wall-Mounted: Utilize the integrated hanging holes at the top of the heater to mount it directly to a wall.
- Hanging: Suspend the heater from the ceiling or a sturdy beam using appropriate hooks (not included) through the top hanging holes. This method helps prevent tipping.
Figure 3: Flexible Installation Methods
Ensure the product is placed in a stable location after installation to prevent accidental tipping. The dual-sided heating panel provides even heat distribution, allowing poultry to access warmth from either side.
Video 1: Official INNOLAND demonstration of the Smart Chicken Coop Heater's dual-heating and thermostat features.
4. Operating Instructions
The heater features an intuitive control panel and a remote control for easy operation.
4.1 Control Panel Overview
- ON/OFF Switch: Powers the unit on or off.
- Temperature Display: Shows the current set temperature.
- Temperature Increase/Decrease Buttons: Adjust the desired temperature.
- Cycle Button / Lamp Switch: Toggles between cycle modes and controls the LED light.
- Heating Indicator: Illuminates when the heater is actively heating.
- Cycle Indicator: Illuminates when a cycle mode is active.
- Lamp: Built-in LED light for illumination.
4.2 Temperature Control
The heater features a smart auto-temperature control system. Use the Up/Down buttons on the control panel or remote to set your desired temperature within the range of 86°F-167°F (30°C-75°C). The heater will automatically adjust its power to maintain this preset warmth.
Figure 4: Precise Temperature Control System
Recommended temperatures for different stages of poultry:
- Baby Chick: 80-84°F
- Growth Period: 68-77°F
- Laying Hen: 64-73°F
4.3 Cycle Mode & Remote Control
The heater includes a smart cycle mode that runs on a 24-hour loop with four adjustable settings:
- C6: Runs for 6 hours, stops for 18 hours.
- C8: Runs for 8 hours, stops for 16 hours.
- C10: Runs for 10 hours, stops for 14 hours.
- C12: Runs for 12 hours, stops for 12 hours.
Press the 'Cycle' button on the control panel or remote to select the desired cycle mode. The remote control allows for convenient adjustments without needing to enter the coop.

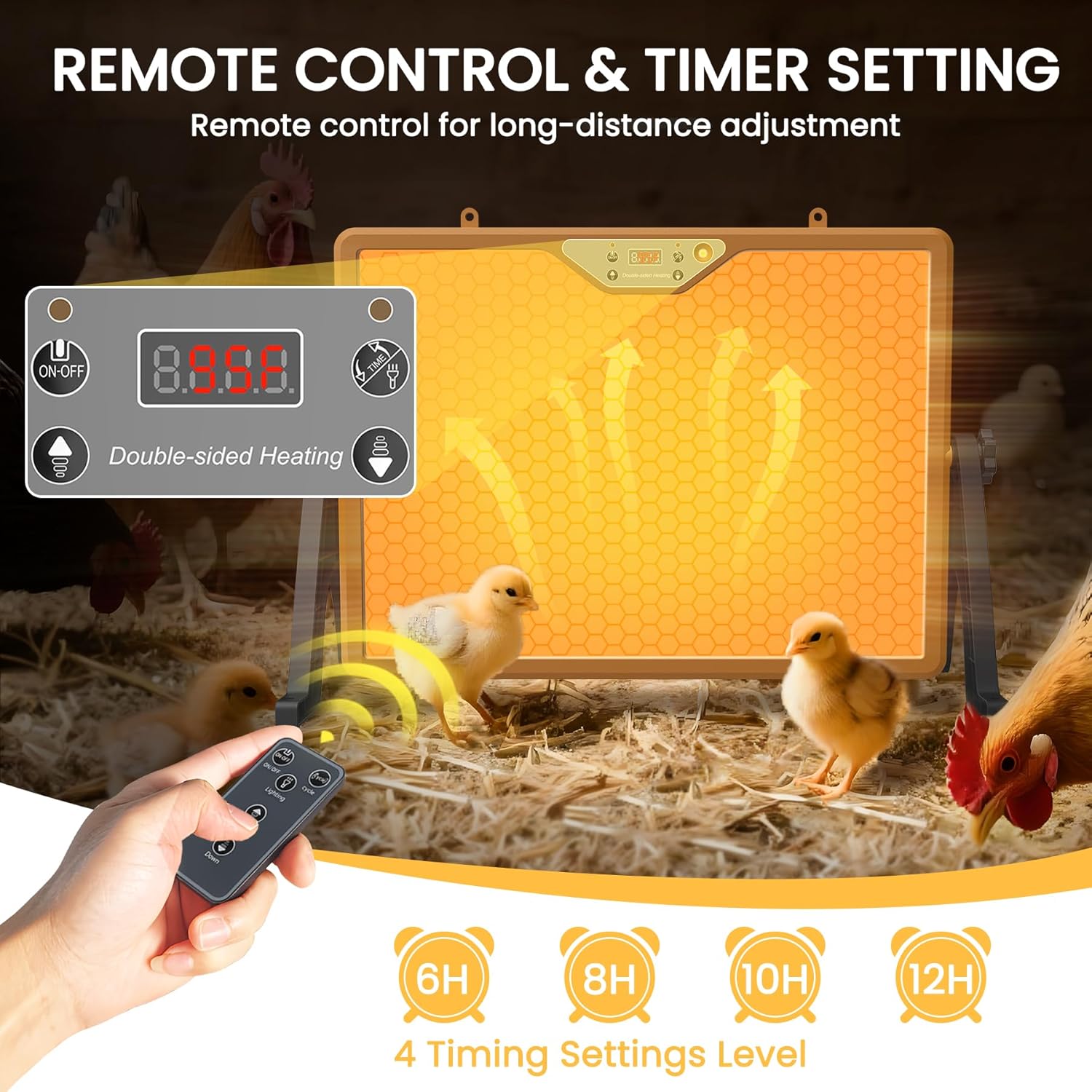

Figure 5: Remote Control & Timer Settings
4.4 LED Light Function
The built-in soft LED light can be activated via the control panel or remote. This feature allows for easy monitoring of your flock in low-light conditions without disturbing their rest.
Figure 6: Soft Night LED Light
4.5 Memory Function
The heater is equipped with a memory function that saves your last settings. In the event of a power outage, the unit will automatically restore the previous temperature and cycle settings once power is re-established.
Figure 7: Memory Function
5. Safety Features
- Overheat Protection: The heater is designed to automatically stop heating if it detects an unsafe temperature, preventing overheating.
- Dual-Sided Heating: Provides even heat distribution, reducing the risk of localized hot spots.
- Stable Design: The standing feet and mounting options ensure the heater remains securely in place, minimizing the risk of tipping.

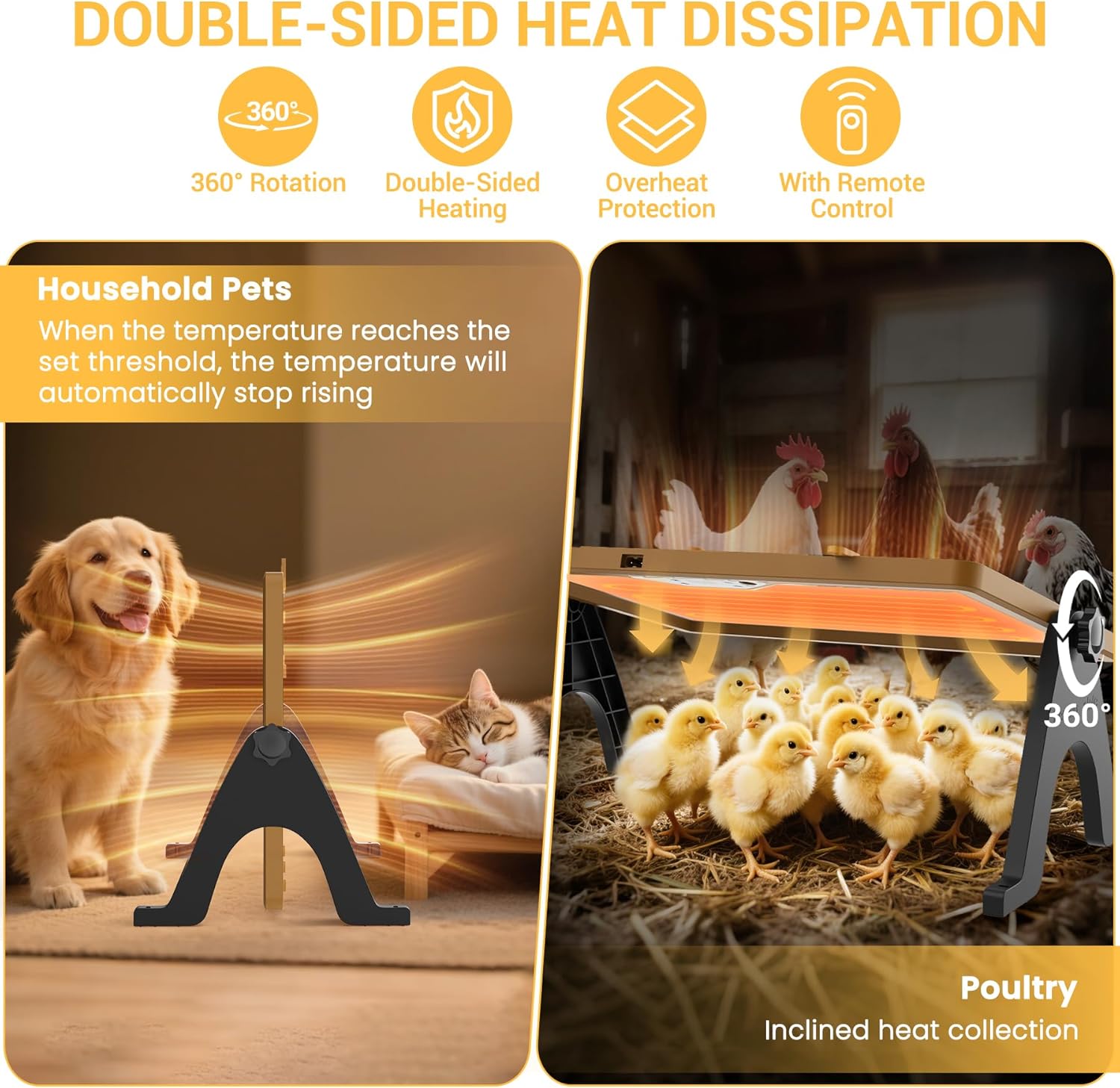

Figure 8: Double-Sided Heat Dissipation and Overheat Protection
6. Maintenance
To ensure optimal performance and longevity of your INNOLAND Smart Chicken Coop Heater, follow these simple maintenance guidelines:
- Cleaning: Always unplug the power cord before cleaning. Wipe the surface of the main heating plate with a damp cloth. The stands are washable.
- Storage: When not in use, store the heater in a dry, safe place.
7. Troubleshooting
No specific troubleshooting steps are provided in the product information. If you encounter any issues with your INNOLAND Smart Chicken Coop Heater, please refer to the Warranty & Support section for assistance.
8. Warranty & Support
8.1 Warranty Information
The INNOLAND Smart Chicken Coop Heater comes with a 2 Year Manufacturer Warranty.
8.2 Customer Support
INNOLAND specializes in agricultural and poultry equipment and is committed to providing quality products and excellent customer service. If you require assistance or have questions regarding your product, please contact INNOLAND customer support. Our team is dedicated to supporting poultry keepers.
