1. Introduction
This manual provides instructions for the VIMIN 18-Port 2.5G Unmanaged Network Switch. This device is designed to expand your network connectivity with high-speed 2.5 Gigabit Ethernet and 10 Gigabit SFP ports. It is an unmanaged switch, meaning it operates as a plug-and-play device without requiring complex configuration.
Image 1.1: The VIMIN 18-Port 2.5G Unmanaged Network Switch, shown with its product packaging, highlighting its 16x 2.5G Ethernet ports and 2x 10G SFP ports.
2. Package Contents
Verify that your package contains the following items:
- 1x VIMIN 18-Port 2.5G Unmanaged Network Switch
- 1x Power Cable
- 1x User Manual (this document)
3. Product Overview
3.1 Front Panel
The front panel of the switch features 16x 2.5Gbase-T Ethernet ports (RJ45) and 2x 10G SFP ports. Each port has corresponding LED indicators to display its status.
Image 3.1: Close-up view of the switch's front panel, showing the 16 RJ45 2.5G Ethernet ports and the 2 10G SFP ports, along with their respective indicator lights.
3.2 Rear Panel
The rear panel includes the power input connector.
Image 3.2: The rear view of the switch, illustrating the power input port and the overall compact design.
3.3 LED Indicators
The LED indicators provide visual feedback on the switch's operational status.
- PWR (Power) LED:
- On: Device is powered on.
- Off: Device is powered off.
- 1-16 Port Yellow LED:
- On: 10/100/1000/2500Mbps Link established.
- Flickering: Data transfer in progress.
- Off: No link or link unavailable.
- 1-16 Port Green LED:
- On: 2.5G Link established.
- Off: The link is unavailable or operating at a different speed.
- 17-18 Port 10G SFP LED:
- Green: 1G/2.5G/10G Link established.
- Flashing: Data transmission in progress.
4. Setup
The VIMIN 18-Port 2.5G Unmanaged Network Switch is designed for simple plug-and-play operation. No software configuration is required.
- Placement: Place the switch on a stable, flat surface or mount it in a 19-inch rack. Ensure adequate ventilation around the device.
- Power Connection: Connect the provided power cable to the power input port on the rear panel of the switch and then to a standard AC power outlet (100-240V). The PWR LED will illuminate.
- Network Device Connection:
- Connect your network devices (e.g., computers, NAS, wireless access points, servers) to the 16x 2.5G Ethernet ports using standard Ethernet cables (CAT5e, CAT6, or CAT6a recommended for optimal performance).
- For higher-speed connections, insert compatible 1G/2.5G/10G SFP modules (not included) into the 2x 10G SFP ports and connect fiber optic cables to your SFP-compatible devices.
- Verification: Once devices are connected, observe the LED indicators for each port. A solid yellow or green light indicates a successful link, and flickering indicates data activity.

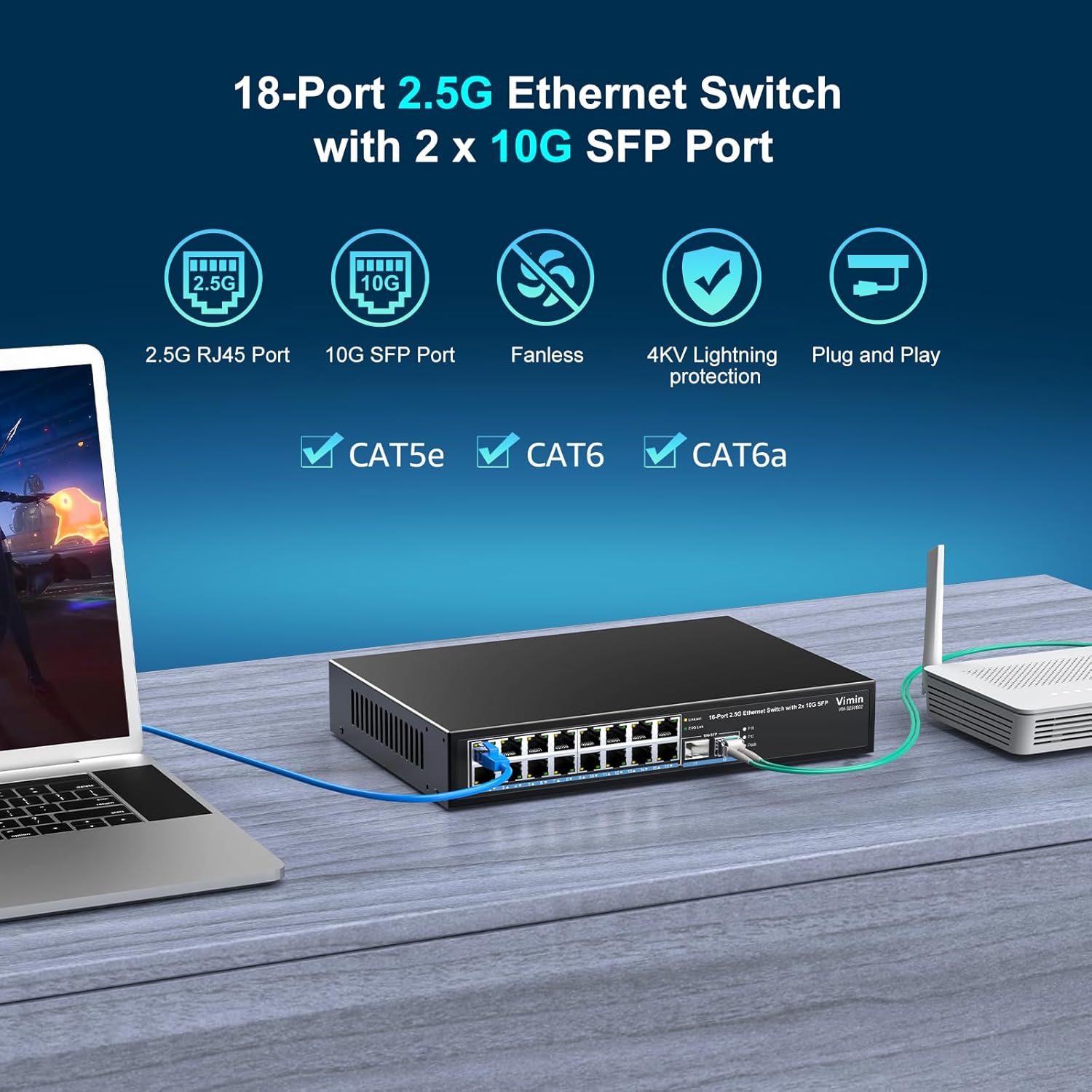

Image 4.1: The network switch connected to a laptop and a wireless router, demonstrating a typical setup for expanding network connectivity.
Image 4.2: The dimensions of the VIMIN 18-Port 2.5G Network Switch, illustrating its suitability for 19-inch rack mounting.
5. Operating Instructions
As an unmanaged switch, the VIMIN 18-Port 2.5G Network Switch operates automatically once powered on and connected to network devices.
- Power On: Ensure the power cable is securely connected. The switch will power on automatically.
- Network Connectivity: Connect your devices to any available Ethernet or SFP port. The switch will automatically detect the link speed and establish a connection.
- Data Transfer: Data will be transferred between connected devices at the highest supported speed (up to 2.5Gbps for Ethernet ports and 10Gbps for SFP ports).
- Monitoring: Observe the LED indicators to monitor link status and data activity for each port.
Image 5.1: Icons illustrating the switch's compatibility with various devices such as 2.5G NAS, Access Points, Routers, Computers, 4K Video devices, and Gaming PCs.
6. Maintenance
The VIMIN 18-Port 2.5G Network Switch is designed for minimal maintenance.
- Cleaning: Use a soft, dry cloth to clean the exterior of the switch. Do not use liquid or aerosol cleaners.
- Ventilation: Ensure that the ventilation openings on the sides of the metal housing are not obstructed to allow for proper heat dissipation. The fanless design ensures silent operation.
- Environmental Conditions: Operate the switch within the recommended temperature range of 0°F to 113°F (approximately -17°C to 45°C).
- Lightning Protection: The switch features 4KV lightning protection. However, it is recommended to disconnect the power during electrical storms.
Image 6.1: Visual representation of key features: durable metal case for heat dissipation, fanless quiet design, 4KV lightning protection, and 120Gbps switching capacity.
7. Troubleshooting
If you encounter issues with your VIMIN 18-Port 2.5G Network Switch, refer to the following common troubleshooting steps:
- No Power:
- Ensure the power cable is securely connected to both the switch and the power outlet.
- Verify that the power outlet is functional.
- Check if the PWR LED is illuminated.
- No Link on a Port:
- Ensure the Ethernet cable is securely connected to both the switch port and the connected device.
- Verify that the connected device is powered on and functioning correctly.
- Try a different Ethernet cable to rule out cable issues.
- For SFP ports, ensure the SFP module is correctly inserted and compatible, and the fiber cable is functional.
- Check the LED indicators for the specific port. If off, there is no link.
- Slow Network Speed:
- Ensure you are using CAT5e, CAT6, or CAT6a Ethernet cables for 2.5G connections. Older cables (e.g., CAT5) may limit speed.
- Verify that your connected devices (e.g., network cards, NAS) support 2.5G or 10G speeds.
- Check for network congestion or issues with other network components (router, modem).
- Intermittent Connection:
- Check all cable connections for looseness.
- Ensure the switch is placed in a well-ventilated area and not overheating.
- Test with different cables and devices to isolate the problem.
8. Specifications
| Feature | Description |
|---|---|
| Brand | VIMIN |
| Model | 16x2.5G Ethernet+2x 10G SFP |
| Number of Ports | 18 (16x 2.5Gbase-T Ethernet, 2x 10G SFP) |
| Ethernet Port Speed | 10/100/1000M/2.5G Adaptive (IEEE802.3bz) |
| SFP Port Speed | 1G/2.5G/10G Adaptive |
| Switching Capacity | 120 Gbps |
| Management Type | Unmanaged (Plug & Play) |
| Housing | Metal |
| Cooling | Fanless |
| Lightning Protection | 4KV |
| Rack Mount | 19-inch Rack Mountable |
| Power Input | AC 100-240V |
| Operating Temperature | 0°F - 113°F (approx. -17°C - 45°C) |
| Compatible Devices | NAS, Wireless Access Point, Server, Gaming PC |
| Color | Silver |
9. Warranty and Support
For warranty information or technical support, please contact VIMIN customer service.
- Email Support: support@vimintech.com
Please have your product model number (16x2.5G Ethernet+2x 10G SFP) and purchase details ready when contacting support.
