LVKE L1 Cordless Robotic Pool Cleaner Instruction Manual

1. Introduction

Thank you for choosing the LVKE L1 Cordless Robotic Pool Cleaner. This device is designed to provide efficient and hassle-free cleaning for your above-ground pool. Its cordless operation, powerful suction, and intelligent features ensure a clean pool floor with minimal effort. Please read this manual thoroughly before operating the cleaner to ensure proper use and maintenance.

Figure 1: The LVKE L1 Cordless Robotic Pool Cleaner.

2. Safety Information

• Always ensure the cleaner is turned off before handling or performing maintenance.
• Do not operate the cleaner if the battery or charging cable is damaged.
• Keep the cleaner out of reach of children and pets.
• Only use the provided charger for the device.
• Store the cleaner in a cool, dry place away from direct sunlight when not in use.
• It is recommended to charge the battery every 3 months to maintain performance during storage.
• This product is intended for adults 18 years and older.

3. Package Contents

Verify that all items are present in the package:

• 1 x LVKE L1 Robotic Pool Cleaner
• 1 x Float
• 1 x Screw
• 1 x Hook (for retrieval)
• 2 x Scrapers
• 1 x User Manual
• 1 x Power Adapter

Figure 2: Included components in the LVKE L1 package.

4. Product Features

• High-Efficiency Filtration: Equipped with a 1280 GPH high-flow filtration system and a 40W motor to capture debris, leaves, and dirt.
• Cordless Operation: Eliminates tangled cables, allowing unrestricted movement for comprehensive cleaning.
• Extended Battery Life: A 2850mAh rechargeable lithium battery provides up to 70 minutes of continuous cleaning.
• Upgraded Obstacle-Crossing: Navigates over drains, slopes, and uneven surfaces without getting stuck.
• Smart Auto-Docking: Automatically moves to the pool edge when the battery is low or cleaning is complete for easy retrieval.
• Lightweight Design: Easy to handle and retrieve from the pool.

Figure 3: The cleaner effectively removes various debris like sand, coarse sand, small twigs, and leaves.

Figure 4: Designed for above-ground pools up to 860 sq.ft with a 70-minute runtime.

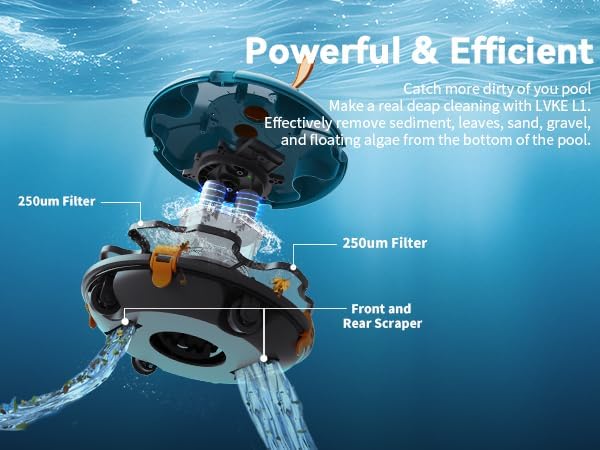

Figure 5: Internal view showing the 250um filter and front/rear scrapers for deep cleaning.

Figure 6: The cleaner features smart auto-parking when the battery is low, moving to the pool edge.

Figure 7: The cleaner is suitable for above-ground and flat-floored in-ground pools (less than 860 sq.ft, no sloped floors, does not clean steps or walls).

Figure 8: Compatible with various pool surface materials including mosaic, vinyl liner, and cement.

5. Specifications

6. Setup

6.1 Charging the Cleaner

1. Connect the power adapter to the charging port on the cleaner.
2. Plug the power adapter into a standard electrical outlet.
3. The indicator light will show the charging status. A full charge typically takes 3.5 to 4 hours.
4. Ensure the charging port is dry before connecting the charger.

Figure 9: The cleaner offers 70 minutes of runtime per charge and quick charging in 3-4 hours.

6.2 Initial Assembly

The LVKE L1 requires minimal assembly. Attach the float and scrapers as indicated in the package contents diagram (Figure 2).

7. Operating Instructions

7.1 Starting the Cleaner

1. Ensure the cleaner is fully charged.
2. Locate the power button on the underside of the unit.
3. Press and hold the power button until you hear a beep, indicating the cleaner is active.

Figure 10: Press the power button on the underside to activate the cleaner.

7.2 Placing in the Pool

1. Gently submerge the cleaner into the pool. It will sink to the bottom.
2. The cleaner will begin its cleaning cycle automatically.

Video 1: The LVKE L1 cleaner operating in a pool, demonstrating its movement and cleaning path.

Video 2: The LVKE L1 effectively collecting leaves and debris from the pool floor.

7.3 Auto-Parking and Retrieval

1. When the battery is low or the cleaning cycle is complete, the cleaner will automatically move to the edge of the pool.
2. Use the included hook, attached to a standard pool pole, to retrieve the cleaner from the water.

Figure 11: The lightweight design and included hook make retrieval simple.

8. Maintenance

8.1 Cleaning the Filter Basket

1. After each use, remove the cleaner from the pool.
2. Unlatch the side clips to open the cleaner and access the filter basket.
3. Remove the filter basket and rinse it thoroughly with a hose to remove collected debris.
4. Ensure the filter basket is clean before reassembling the cleaner.

Figure 12: The filter basket is easily removed and cleaned with water.

8.2 Storage

When not in use, store the LVKE L1 in a cool, dry place, away from direct sunlight. It is recommended to charge it every 3 months to ensure battery performance and longevity.

9. Troubleshooting

10. Warranty and Support

The LVKE L1 Cordless Robotic Pool Cleaner comes with a limited warranty. For detailed warranty information or technical support, please refer to the warranty card included in your package or contact LVKE customer service through the retailer where you purchased the product.
